HYQ12BBTKeyless Entry System Transmitter

Locking/Unlocking the doors INSTRUCTIONS When you push the ‘Lock’ button on the key, all the doors can be locked from outside the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the ‘Unlock’ button on the key, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the ‘Trunk’ button on the key, the car trunk lid can be opened from outside the vehicle. (If applicable) When you push the ‘Power Back Door’ button on the key, the back door can be opened /closed from outside the vehicle. (If applicable) When you push the ‘Panic’ button on the key, alarms can be operated/unoperated from outside the vehicle. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 16, 2002 RE: FCC ID: HYQ12BBT Attention: Ms. Hiroka Umeyama I have a few comments on this Application. 1 The plots in the report are not clear. Please provide clear plots. 2 The setup photo is not clear. Please provide a photo that clearly identifies the EUT. 3 Intentional radiators are to be tested in accordance with ANSI C63.4. While the report states ANSI C63.4 was used, there is no indication in the data that the device was tested in all three orthogonal planes as required by par 13.1.4.1. Please provide evidence that all three orthogonal planes were investigated. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

A-PEX INTERNATIONAL CO., LTD. EMC HEAD OFFICE DIVISION 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan TEL:0596-24-8116 / FAX:0596-24-8124 Date: May 21, 2002 Re: Denso Corporation FCC ID: HYQ12BBT Dear Mr. Dennis Ward, Please find the following replies to your comments dated May 16, 2002; 1) Please find the submitted clearer plots for the report in the filing. 2) Please find the re-submitted photos of Test Setup in the filing. 3) Please find the evidence data of device tested in all three orthogonal planes in the filing. Keijiro Kumagai (Mr.) A-Pex International Co., Ltd.

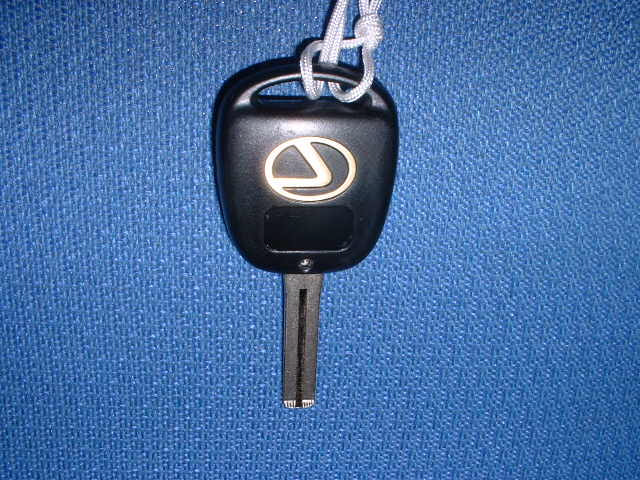

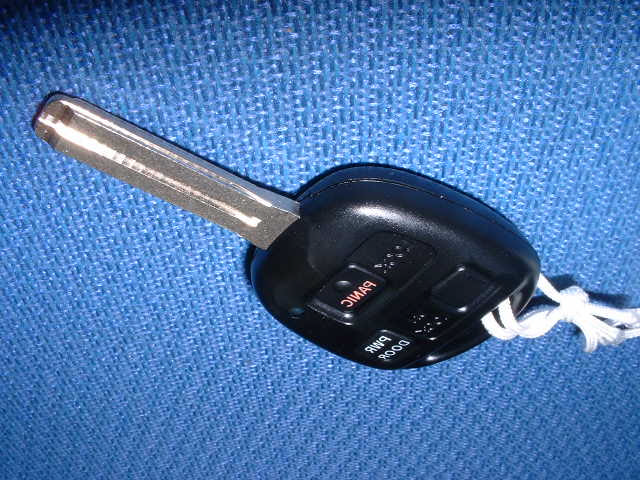

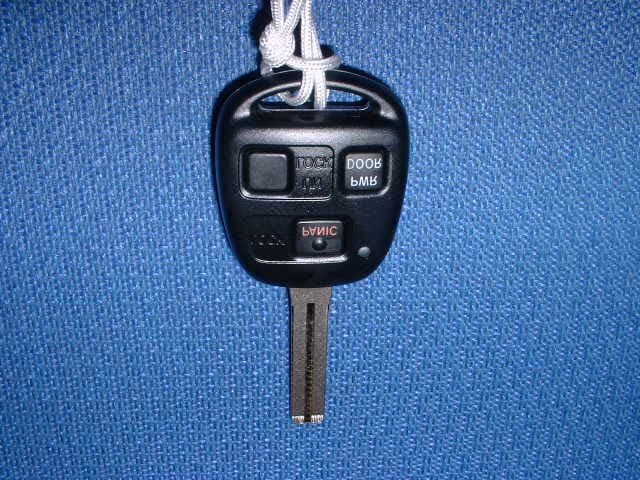

External Photo Denso Corporation FCC ID: HYQ12BBT Model Name: 12 BBT Front View Rear View External Photo Denso Corporation FCC ID: HYQ12BBT Model Name: 12 BBT Over View

7 7. Marking location and layout Scale : free (22) (10) Notes: Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed.

Internal Photo Denso Corporation FCC ID: HYQ12BBT Model Name: 12 BBT Front View Rear View Internal Photo Denso Corporation FCC ID: HYQ12BBT Model Name: 12 BBT Over View

2 2. Technical description of the system 2.1 Type number -Transmitter : 12BBT 2.2 Specifications of transmitter -Nominal frequency : 314.35MHz -Local oscillator frequency : 314.35MHz SAW resonator -Radio frequency output power : 75.6dBμV/m or less at 3m(*) -Type of modulation : A1D -Power Supply - Nominal supply voltage : 3VDC - Type of Battery : One lithium battery -Antenna : Built-in type (Fixed) ∗ Note: Calculation of Voltage Average Level A transmitter has the one complete pulse train Voltage Average Level(μV) = (Epeak * Tt) / T = (Epeak * 75msec) / 150msec Epeak = Voltage peak level T = One complete pulse train time including blanking interval Tt = Total pulse of transmitter in one complete pulse train 3 3.Outline of the system 3.1 Description of the system operation This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter sends a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. 3.2 Transmitter The transmitter sends a signal using radio frequency. The transmitter emits the radio frequency while the button is depressed. If the button is depressed continuously, then the transmitter will only send a signal for a predetermined constant time(For example 20 seconds. This is an auto-power-off feature)

11 DATA OF AUTOMATICALLY DEACTIVATE A-PEX INTERNATIONAL CO., LTD. EMC HEAD OFFICE DIVISION No.1 SEMI ANECHOIC CHAMBER COMPANY : DENSO CORPORATION REPORT NO : 22HE0022-HO EQUIPMENT : Keyless Entry System (Transmitter)REGULATION : Fcc Part15 Subpart C 231(a)(1) MODEL : 12BBTTEST DISTANCE : 3m S/N : 006DATE : 04/12/2002 FCC ID : -Temperature : 22 POWER : DC3.0VHumidity : 39% Mode : Transmitting ENGINEER : Hiroka Umeyama Time of TransmittingLimit Result [sec][sec] 0.445.00Pass 12 AUTOMATICALLY DEACTIVATE 13 A-PEX INTERNATIONAL CO., LTD. EMC HEAD OFFICE DIVISION No.1 SEMI ANECHOIC CHAMBER COMPANY : DENSO CORPORATION REPORT NO : 22HE0022-HO EQUIPMENT : Keyless Entry System (Transmitter)REGULATION : Fcc Part15 Subpart C 231(b) / 205 MODEL : 12BBTTEST DISTANCE : 3m S/N : 002DATE : 04/11/2002 FCC ID : -Temperature : 21 POWER : DC3.0VHumidity : 37% Mode : Transmitting ENGINEER : Hiroka Umeyama No.FREQT/R READING : PKANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dBuV/m][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB][dB] 1314.3374.569.914.823.89.8-6.069.364.775.66.310.9 No.FREQT/R READING : QPANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dBuV/m][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB][dB] 2628.6627.329.519.424.011.50.034.236.455.621.419.2 3942.9925.024.522.424.012.80.036.235.755.619.419.9 No.FREQT/R READING : PKANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dBuV/m][dB][dB][dB][dB][dBuV/m][dBuV/m][dB][dB] 41257.3237.137.925.223.88.10.046.647.475.629.028.2 51571.6541.440.725.723.99.00.052.251.574.021.822.5 61885.9840.140.826.324.210.00.052.252.975.623.422.7 72200.3141.543.227.024.810.80.054.556.274.019.517.8 82514.6443.843.827.725.411.50.057.657.675.618.018.0 92828.9739.840.028.125.412.40.054.955.174.019.118.9 103143.3038.838.128.425.212.90.054.954.275.620.721.4 No.FREQT/R READING : AVANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dBuV/m][dB][dB][dB][dB][dBuV/m][dBuV/m][dB][dB] 41257.3224.125.725.223.88.10.033.635.255.622.020.4 51571.6530.129.525.723.99.00.040.940.354.013.113.7 61885.9828.529.826.324.210.00.040.641.955.615.013.7 72200.3130.932.027.024.810.80.043.945.054.010.19.0 82514.6434.134.127.725.411.50.047.947.955.67.77.7 926.826.528.125.412.40.041.941.654.012.112.4 103143.3025.725.528.425.212.90.041.841.655.613.814.0 REMARKS ANTENNA TYPE:30-300MHz Biconical / 300-1000MHz Logperiodic / 1-3.2GHz Horn CALCULATION RESULT=Reading + ANT Factor - Amp Gain + LOSS (Cable+ ATTEN.)+Duty factor *Except for the above table : All other spurious emissions were less than 20dB for the limit. *EUT was placed in X axis when the measurement antenna was positioned horizontally. *EUT was placed in Y axis when the measurement antenna was positioned vertically. *The noise was measured at each position of all three axes X, Y and Z to compare the level, and the maximum noise. Duty cycle Factor Measurement The duty cycle factor = 20log( 1: 80 + 2 : 1433 + 3 : 681 + 4 : 311 / 5000) = -6.00 DATA OF RADIATED EMISSIONS 14 DUTY CYCLE UNDER NORMAL OPERATION 16 DATA OF -20dB-Bandwidth A-PEX INTERNATIONAL CO., LTD. EMC HEAD OFFICE DIVISION No.1 SEMI ANECHOIC CHAMBER COMPANY : DENSO CORPORATION REPORT NO : 22HE0022-HO EQUIPMENT : Keyless Entry System (Transmitter)REGULATION : Fcc Part15 Subpart C 231() MODEL : 12BBTTEST DISTANCE : 3m S/N : 002DATE : 04/11/2002 FCC ID : -Temperature : 21 POWER : DC3.0VHumidity : 37% Mode : Transmitting ENGINEER : Hiroka Umeyama Bandwidth Limit : Fundamental Frequency 314.35MHz X 0.25% = 785.875kHz -20dB BandwidthBandwidth Limit Result [kHz][kHz] 225.45785.88Pass

A-PEX INTERNATIONAL CO., LTD. EMC HEAD OFFICE DIVISION No.1 SEMI ANECHOIC CHAMBER COMPANY : DENSO CORPORATION REPORT NO : 22HE0022-HO EQUIPMENT : Keyless Entry System (Transmitter)REGULATION : Fcc Part15 Subpart C 231(b) / 205 MODEL : 12BBTTEST DISTANCE : 3m S/N : 002DATE : 04/11/2002 FCC ID : -Temperature : 21 POWER : DC3.0VHumidity : 37% Mode : Transmitting No.FREQAXISENGINEER : Hiroka Umeyama HORVER [MHz] 1X74.561.5 2Y66.769.9 3Z73.363.9 4X27.326.6 5Y20.529.5 6Z25.625.5 628.66 DATA OF RADIATED EMISSIONS T/RREADING : QP [dBuV] 314.33

Test report No.: 22HE0022-HO-1 Page : 9 of 16 Issued date : April 26, 2002 FCC ID :HYQ12BBT A-PEX International Co., Ltd.EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission(Worst case position)
