Manual Requirement of FCC Our product (12BCM) is one of vehicle parts. Therefore, we will not supply the userโs manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle userโs manual in accordance with FCC requirement. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the userโs manual. 1.1.2. In accordance with requirement of FCCยง15.19(a)(5), following statement will be included in the userโs manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the userโs authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: January 27, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: DENSO CORPORATION FCC ID: HYQ12BCM To whom it may concern: We, the undersigned, hereby authorize Naoki Sakamoto of Application Section, EMC Services Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kazuo Sakakibara General Manager Engineering Administration Department
1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: HYQ12BCM To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commissionโs rules (47 CFR ยงยง 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara General Manager Engineering Administration Department January 27, 2011

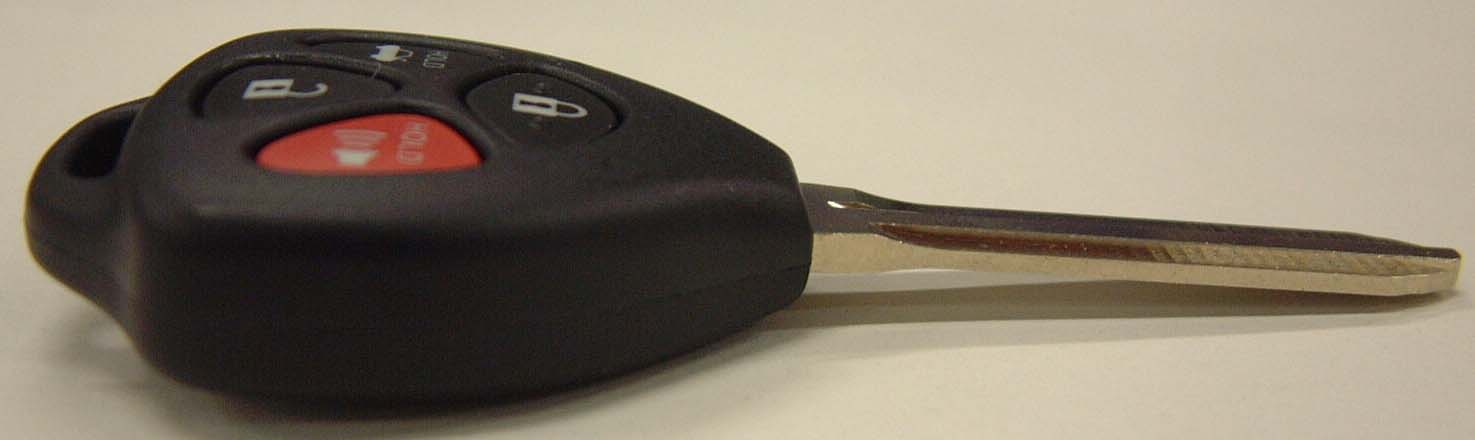

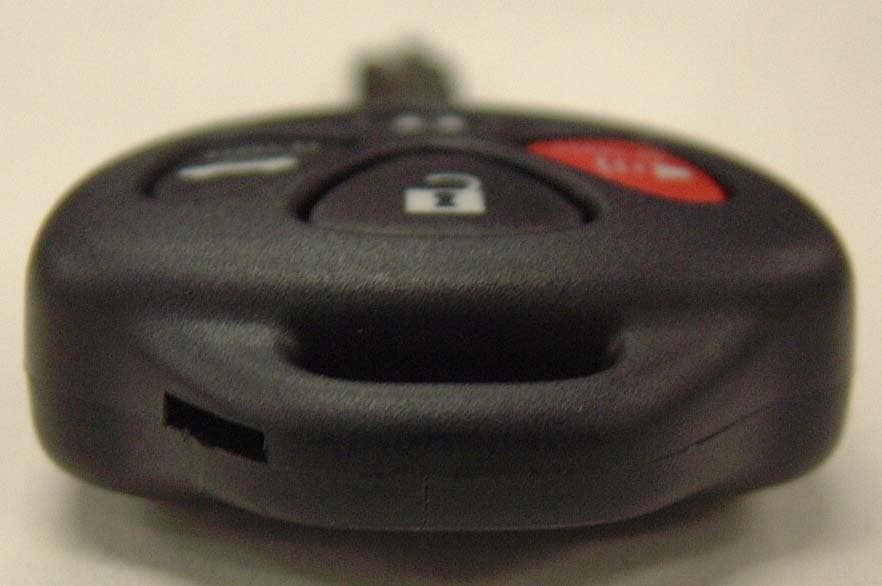

DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BCM External Photos (1/3) Front (4-button) Rear (Common) Front (3-button) Front (2-button) NOTE: Variations in the number of buttons do not affect RF performance. DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BCM External Photos (2/3) Top Bottom DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BCM External Photos (3/3) Right Left
10. Marking location and layout Fig. Marking l (39) Marking location (93) Unit: mm Note: Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. FCC ID:HYQ12BCM Fig. Marking location and layout of Transmitter
DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BCM Internal Photos (1/2) Sold Side Comp Side (4-button) Antenna Antenna DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BCM Internal Photos (2/2) Comp Side (3-button) Antenna Antenna Comp Side (2-button) NOTE: Variations in the number of buttons do not affect RF performance.
Test report No. : 31FE0146-HO-01 Page : 2 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 3 SECTION 2: Equipment under test (E.U.T.) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 3 SECTION 3: Test specification, procedures & results ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 4 SECTION 4: Operation of E.U.T. during testing ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 9 SECTION 7: -20dB and 99% Occupied Bandwidth ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 9 APPENDIX 1: Photographs of test setup ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 10 Radiated emission ............................................................................................................................. 10 Worst case position ........................................................................................................................... 11 APPENDIX 2: Data of EMI test ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 12 Automatically deactivate .................................................................................................................. 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 14 Duty Cycle ........................................................................................................................................ 15 APPENDIX 3:Test Instruments ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 17 Test report No. : 31FE0146-HO-01 Page : 3 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-7252 Facsimile Number : +81-566-25-4837 Contact Person : HIROMICHI HANAI SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Transmitter) Model No. : 12BCM Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : February 2, 2011 Country of Mass-production : Japan, China, and United States of America Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 4MHz Radio Specification Radio Type : Transmitter Frequency of Operation : 315.12 MHz Modulation : ASK (A1D) Power Supply (radio part input) : DC 3.0V Antenna type : Built-in type (Fixed) Test report No. : 31FE0146-HO-01 Page : 4 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 5.6dB 315.145MHz Horizontal PK with Duty Factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 3.8dB 2836.302MHz Horizontal PK with Duty Factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Note: UL Japan, Inc.โs EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 31FE0146-HO-01 Page : 5 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.3 Addition to standard Item Test Procedure Specification Worst margin Results Remarks 99% Occupied Bandwidth IC: RSS-Gen 4.6.1 IC: RSS-Gen 4.6.1 N/A Compliโฆ
Text truncated - open the document above for the full version.
Test report No. : 31FE0146-HO-01 Page : 12 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 31FE0146-HO-01 Date 02/03/2011 Temperature/ Humidity 25 deg. C./ 25% Engineer Hironobu Ohnishi Mode Normal use mode Time of Transmitting [sec] Limit [sec] Result 0.565 5.00 Pass Test report No. : 31FE0146-HO-01 Page : 13 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 31FE0146-HO-01 Date 02/03/2011 Temperature/ Humidity 25 deg. C./ 25% Engineer Hironobu Ohnishi Mode Transmitting mode PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 315.145 PK79.575.915.48.827.8-75.972.395.619.723.3 Carrier 630.290 PK34.234.119.710.228.6-35.535.475.640.140.2 Outside 945.435 PK31.631.222.611.327.8-37.737.375.637.938.3 Outside 1260.579 PK46.848.124.72.033.4-40.141.475.635.534.2 Outside 1575.723 PK46.949.225.72.233.0-41.844.173.932.129.8 Inside 1890.868 PK45.246.426.52.432.6-41.542.775.634.132.9 Outside 2206.012 PK49.447.527.12.732.5-46.744.873.927.229.1 Inside 2521.157 PK55.253.927.62.932.4-53.352.075.622.323.6 Outside 2836.302 PK57.256.228.13.132.4-56.055.073.917.918.9 Inside 3151.446 PK51.753.028.63.332.2-51.452.775.624.222.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 315.145 PK79.575.915.48.827.8-5.970.066.475.65.69.2 Carrier 630.290 PK34.234.119.710.228.6-5.929.629.555.626.026.1 Outside 945.435 PK31.631.222.611.327.8-5.931.831.455.623.824.2 Outside 1260.579 PK46.848.124.72.033.4-5.934.235.555.621.420.1 Outside 1575.723 PK46.949.225.72.233.0-5.935.938.253.918.015.7 Inside 1890.868 PK45.246.426.52.432.6-5.935.636.855.620.018.8 Outside 2206.012 PK49.447.527.12.732.5-5.940.838.953.913.115.0 Inside 2521.157 PK55.253.927.62.932.4-5.947.446.155.68.29.5 Outside 2836.302 PK57.256.228.13.132.4-5.950.149.153.93.84.8 Inside 3151.446 PK51.753.028.63.332.2-5.945.546.855.610.18.8 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). [dBuV][dBuV/m] Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * The noise measured with PK detect was pulse emission. Test report No. : 31FE0146-HO-01 Page : 14 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB and 99% Occupied Bandwidth Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 31FE0146-HO-01 Date 02/03/2011 Temperature/ Humidity 25 deg. C./ 25% Engineer Hironobu Ohnishi Mode Normal use mode Bandwidth Limit : Fundamental Frequency 315.12MHz x 0.25% = 787.80kHz * The above limit was calculated from more stringent nominal frequency. -20dB BandwidthResult [kHz] 152.35Pass 99% Occupied BandwidthResult [kHz] 137.94Pass [kHz] 787.80 Bandwidth Limit [kHz] 787.80 Bandwidth Limit Test report No. : 31FE0146-HO-01 Page : 15 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 31FE0146-HO-01 Date 02/03/2011 Temperature/ Humidity 25 deg. C./ 25% Engineer Hironobu Ohnishi Mode Normal use mode ON time(One pulse)ON time(in 100ms) TypeTimes[ms][ms] A350.72125.225 B181.42425.632 *1)ON time(in 100ms) = Times * ON time(One pulse) *2)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pulse train. (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 50.857100.000.51-5.87 *3)ON time = Type A's ON time (in 100ms) + Type B's ON time (in 100ms) *4)Duty = 20log 10 (ON time/Cycle) Test report No. : 31FE0146-HO-01 Page : 16 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Type AType B Type A Type B Test report No. : 31FE0146-HO-01 Page : 17 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3:Test Instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-02 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-06902 RE 2010/09/01 * 12 MOS-22 Thermo-Hygrometer Custom CTH-201 0003 RE 2010/02/09 * 12 MJM-05 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-03 Spectrum Analyzer Agilent E4448A MY44020357 RE 2010/11/30 * 12 MTR-03 Test Receiver Rohde & Schwarz ESCI 100300 RE 2010/04/19 * 12 MBA-02 Biconical Antenna Schwarzbeck BBA9106 VHA9103200 8 RE 2010/10/11 * 12 MLA-02 Logperiodic Antenna Sโฆ
Text truncated - open the document above for the full version.
Test report No. : 31FE0146-HO-01 Page : 10 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 31FE0146-HO-01 Page : 11 of 17 Issued date : February 16, 2011 FCC ID : HYQ12BCM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Carrier Horizontal: X-axis/Vertical : Zaxis 2nd harmonic Horizontal: X-axis/Vertical : Y-axis 3rd harmonic Horizontal: Z-axis/Vertical : X-axis Above 1GHz Horizontal: X-axis/Vertical : Z-axis X-axis Y-axis Z-axis
