Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Locking/Unlocking the doors INSTRUCTIONS When you push the ‘Lock’ button on the transmitter, all the doors can be locked from outside the vehicle. When you push the ‘Unlock’ button on the transmitter, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the ‘Trunk’ button on the transmitter, the car trunk lid can be opened from outside the vehicle. (If applicable) When you push the ‘Panic’ button on the transmitter, alarms can be operated/unoperated from outside the vehicle. (If applicable) When you push the ‘Power Slide Door-L’ button on the transmitter, the car left side door can be opened/closed from outside the vehicle. (If applicable) When you push the ‘Power Slide Door-R’ button on the transmitter, the car right side door can be opened/closed from outside the vehicle. (If applicable) When you push the ‘Power back door’ button on the transmitter, the car back door can be opened/closed from outside the vehicle. (If applicable) When you push the ‘Glass Hatch’ button on the transmitter, rear window of the car can be opened from outside the vehicle. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

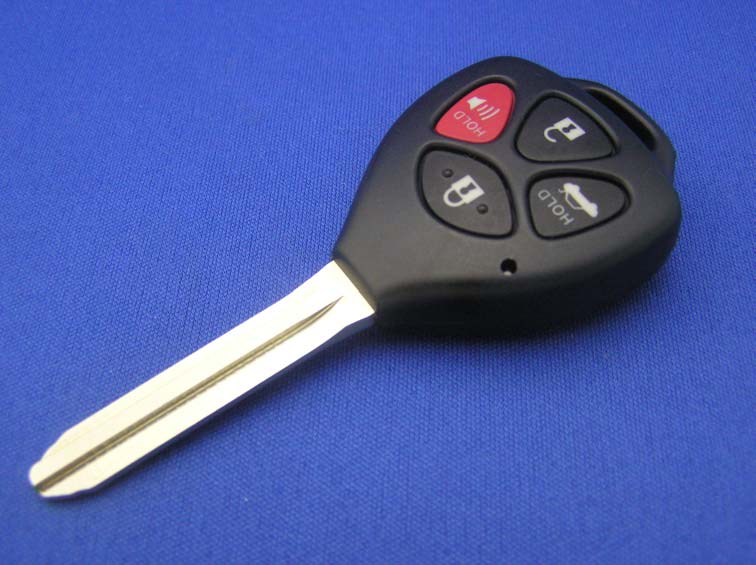

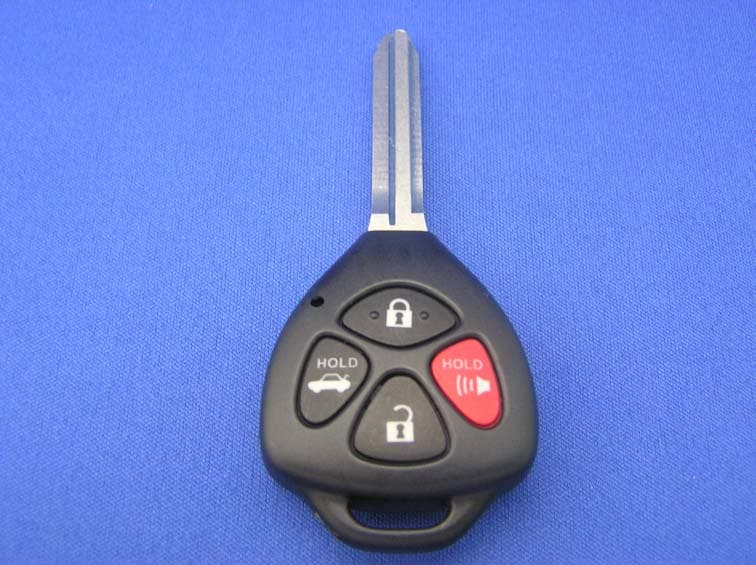

External Photo DENSO CORPORATION [Model: 12BDC] FCC ID: HYQ12BDC Front View Rear View External Photo DENSO CORPORATION [Model: 12BDC] FCC ID: HYQ12BDC Over View
Marking location and layout Fig. Marking location and layout Note: Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. (39) (10) (18) Location of approval marking Scale: free (93) FCC ID:HYQ12BDC IC : 1551A-12BDC 12BDC DENSO
DENSO CORPORATION Transmitter FCC ID: HYQ12BDC (Internal Photos) Comp Side Sold Side
Test report No. : 27LE0342-HO-A-R4 Page : 2 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information............................................................................................................3 SECTION 2: Equipment under test (E.U.T.) .......................................................................................3 SECTION 3: Test specification, procedures & results ........................................................................4 SECTION 4: Operation of E.U.T. during testing.................................................................................7 SECTION 5: Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................................................................................................................................................................8 APPENDIX 1: Photographs of test setup..............................................................................................9 Radiated Emission ....................................................................................................................................... 9 Worst case position .................................................................................................................................... 10 APPENDIX 2: Data of EMI test ...........................................................................................................11 Automatically deactivate ........................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 12 -20dB Bandwidth ....................................................................................................................................... 13 99% Occupied Bandwidth ........................................................................................................................ 14 Duty Cycle(Fundamental) ......................................................................................................................... 15 Duty Cycle(Spurious Emission) ................................................................................................................ 17 APPENDIX 3:Test Instruments............................................................................................................19 Test report No. : 27LE0342-HO-A-R4 Page : 3 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Transmitter) Model No. : 12BDC Serial No. : No.1 Rating : DC3.0V Country of Manufacture : Japan Receipt Date of Sample : July 31, 2007 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: 12BDC (referred to as the EUT in this report) is the Remote Keyless Entry System (Transmitter). Equipment Type : Transmitter Frequency of Operation : 314.35MHz Local oscillator frequency : 314.37 MHz SAW RESONATOR Type of modulation : ASK ITU code : A1D Antenna Type : Built-in type (Fixed) Test report No. : 27LE0342-HO-A-R4 Page : 4 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 27LE0342-HO-A-R4 Page : 5 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Section 15.231(a)(1) <IC> RSS-210 A1.1.1 N/A - Complied 2 Electric Field Strength of Fundamental Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.8 <FCC> Section 15.231(b) <IC> RSS-210 A1.1.2 N/A 1.2dB 314.35MHz Horizontal, QP Complied 3 Electric Field Strength of Spurious Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.9 <FCC> Section 15.205 Section 15.209 Section 15.231(b) <IC> RSS-210 A1.1.2, 2.6, 2.7 N/A 2.5dB 2829.15MHz Horizontal Peak with Duty factor Complied 4 -20dB Bandwidth <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Section 15.231(c) <IC> Reference data N/A - Complied 5 Conducted emission <FCC> ANSI C63.4:2003 7. AC powerline conducted emissio…
Text truncated - open the document above for the full version.
Test report No. : 27LE0342-HO-A-R4 Page : 11 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 27LE0342-HO EQUIPMENT : Remote Keyless Entry System (Transmitter)REGULATION: Fcc Part15 Subpart C 15.231(a)(1) MODEL: 12BDCTEST DISTANC E: - S/N: No.1DATE: 07/31/2007 POWER: DC 3.0VTEMPERATURE : 23 deg.C. Mode: Normal use modeHUMIDITY: 61% Axis: -ENGINEER: Takahiro Hatakeda Time ofLimit Result Transmitting [sec][sec] 0.535.00Pass Test report No. : 27LE0342-HO-A-R4 Page : 12 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 27LE0342-HO EQUIPMENT : Remote Keyless Entry System (Transmitter)REGULATION: Fcc Part15 Subpart C 15.231(b) / 15.205 / 15.209 MODEL: 12BDCTEST DISTANCE : 3m S/N: No.1DATE: 07/31/2007 POWER: DC 3.0VTEMPERATURE: 23 deg.C. Mode: Transmitting modeHUMIDITY: 61% Axis: Hor.: X-axis , Ver.: Y-axisENGINEER: Takahiro Hatakeda QP DETECT No.FREQT/R READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 1314.3581.776.914.632.010.0-74.369.575.51.26.0 2628.7028.530.919.332.111.9-27.630.055.527.925.5 3943.0525.426.722.430.813.3-30.331.655.525.223.9 PK DETECT(RBW: 1MHz , VBW: 1MHz)(Inside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 51571.7546.047.625.932.62.3-41.643.273.932.330.7 72200.4543.543.527.031.62.8-41.741.773.932.232.2 92829.1557.943.128.031.43.3-57.843.073.916.130.9 Peak with Duty factorResult = Reading (RBW: 1MHz , VBW: 1MHz) + Duty Factor(Inside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 51571.7546.047.625.932.62.3-6.435.236.853.918.717.1 72200.4543.543.527.031.62.8-6.435.335.353.918.618.6 92829.1557.943.128.031.43.3-6.451.436.653.92.517.3 PK DETECTResult = Reading (RBW: 1MHz , VBW: 1MHz)(Outside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41257.4745.348.225.333.41.8-39.041.975.536.533.6 61886.1043.943.626.531.92.5-41.040.775.534.534.8 82514.8055.346.327.531.53.1-54.445.475.521.130.1 103143.5050.035.928.531.33.4-50.636.575.524.939.0 Peak with Duty factorResult = Reading (RBW: 1MHz , VBW: 1MHz) + Duty Factor(Outside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41257.4745.348.225.333.41.8-6.432.635.555.522.920.0 61886.1043.943.626.531.92.5-6.434.634.355.520.921.2 82514.8055.346.327.531.53.1-6.448.039.055.57.516.5 103143.5050.035.928.531.33.4-6.444.230.155.511.325.4 REMARKSANTENNA TYPE:30-300MHz Biconical / 300-1000MHz Logperiodic / 1-4.4GHz Horn CALCULATION RESULT=Reading + ANT Factor - Amp Gain + LOSS (Cable+ ATTEN.)+Duty factor Duty cycle Factor Measurement :-6.4 dB [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] * All the measured noise was pulse emission. * The test above 1GHz was performed with PK DETECT. Average emission measurements were calculated with PK DETECT and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * The result is rounded off to the second decimal place, so some differences might be observed. *The limit was converted from V to dBuV, and it is rounded off to the second decimal place. *Except for the above table : All other spurious emissions were less than 20dB for the limit. The carrier level (or, noise levels) was (or were) measured at each position of all three axes X, Y and Z, and the position that has the maximum noise was determined. With the position, the noise levels of all the frequencies was measured. Test report No. : 27LE0342-HO-A-R4 Page : 13 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB Bandwidth UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY : DENSO CORPORATIONREPORT NO: 27LE0342-HO EQUIPMEN T: Remote Keyless Entry System (Transmitter) REGULATION: Fcc Part15 Subpart C 15.231( c ) MODEL: 12BDCTEST DISTANCE: 3m S/N: No.1DATE: 07/31/2007 POWER: DC 3.0VTEMPERATURE: 23 deg.C. Mode: Transmitting modeHUMIDITY: 61% Axis: Ver.: Y-axis ENGINEER: Takahiro Hatakeda Bandwidth Limit : Fundamental Frequency 314.35 MHz X 0.25% = 785.88kHz -20dB BandwidthResult [kHz] 54.80Pass Bandwidth Limit [kHz] 785.88 Test report No. : 27LE0342-HO-A-R4 Page : 14 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 99% Occupied Bandwidth UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 27LE0342-HO EQUIPMENT : Remote Keyless Entry System (Transmitter)REGULATION: RSS-210 A1.1.3 MODEL: 12BDCTEST DISTANCE : 3m S/N: No.1DATE: 07/31/2007 POWER: DC 3.0VTEMPERATURE : 23 deg.C. Mode: Transmitting modeHUMIDITY: 61% Axis: Ver.: Y-axisENGINEER: Takahiro Hatakeda Bandwidth Limit : Fundamental Frequency 314.35 MHz X 0.25% = 785.88 kHz Result Pass 99…
Text truncated - open the document above for the full version.
Test report No. : 27LE0342-HO-A-R4 Page : 9 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 27LE0342-HO-A-R4 Page : 10 of 19 Issued date : August 9, 2007 Revised date : September 7, 2007 FCC ID : HYQ12BDC UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
