HYQ12BDMRemote Keyless Entry System (Transmitter)

Manual Requirement of FCC Our product (12BDM) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC requirement. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. FCC WARNING: Changes or modifications not expressly approved by the party responsible fo r compliance could void the user’s authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: July 22, 2010 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: DENSO CORPORATION FCC ID: HYQ12BDM To whom it may concern: We, the undersigned, hereby authorize Naoki Sakamoto of Application Section, EMC Services Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kazuo Sakakibara Senior Manager Engineering Administration Department

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: HYQ12BDM To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara Senior Manager Engineering Administration Department June 29, 2010

DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BDM External Photos Front view Rear view

7. Marking location and layout Transmitter Fig. Marking location and layout of Transmitter Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. Marking location FCC ID : HYQ12BDM DENSO

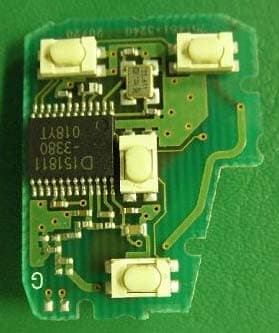

DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BDM Internal Photos Internal Photos without battery holder Pattern Antenna Comp. Side Solder Side Comp. Side Solder Side

Test report No. : 30KE0044-HO-01 Page : 2 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information··········································································································· 3 SECTION 2: Equipment under test (E.U.T.) ···························································································· 3 SECTION 3: Test specification, procedures & results ············································································· 4 SECTION 4: Operation of E.U.T. during testing······················································································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)· 8 SECTION 6: Automatically deactivate ······································································································ 9 SECTION 7: -20dB and 99% Occupied Bandwidth················································································· 9 APPENDIX 1: Photographs of test setup ································································································· 10 Radiated emission .............................................................................................................................10 Worst case position ...........................................................................................................................11 APPENDIX 2: Data of EMI test ················································································································· 12 Automatically deactivate...................................................................................................................12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................14 -20dB and 99% Occupied Bandwidth...............................................................................................16 Duty Cycle ........................................................................................................................................18 APPENDIX 3:Test Instruments ················································································································· 24 Test report No. : 30KE0044-HO-01 Page : 3 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-5236 Facsimile Number : +81-566-25-4837 Contact Person : Hiromichi Naito SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Transmitter) Model No. : 12BDM Serial No. : Refer to Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : July 6, 2010 Country of Mass-production : Japan and North America Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification Frequency of Operation : 314.35 MHz / 312.10MHz Oscillator frequenty : 33.6 MHz Crystal Type of modulation : FSK(F1D) Power supply : Norminal supply voltage: DC 3.0V (One Lithium Battery) Antenna Type : Built-in type (Fixed) Test report No. : 30KE0044-HO-01 Page : 4 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 Conducted emission IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 N/A N/A*1) - FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) Automatically Deactivate IC: - IC: RSS-210 A1.1.1 N/A Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) Electric Field Strength of Fundamental Emission IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 11.8dB (312.100MHz / Horizontal / Transmitting mode (Tx), 312.10MHz) Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) Electric Field Strength of Spurious Emission IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.6, 2.7 8.4dB (1257.400MHz/ Vertical, Transmitting mode (Tx), 314.35MHz) Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) -20dB Bandwidth IC: - IC: Reference data N/A Complied Radiated Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. 3.3 Addition to standard Item Test Procedure Specification Worst margin Results Remarks 99% Occupied Bandwidth IC: RSS-Gen 4.6.1 IC: RSS-Gen 4.6.1 N/A Complied Radiated Other than a…

Text truncated - open the document above for the full version.

Test report No. : 30KE0044-HO-01 Page : 12 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30KE0044-HO-01 Date 07/11/2010 Temperature/ Humidity 25 deg.C./ 59% Engineer Kazuya Yoshioka Mode Normal use mode 312.10MHz Time of Transmitting [sec] Limit [sec] Result 0.7167 5.00 Pass Test report No. : 30KE0044-HO-01 Page : 13 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30KE0044-HO-01 Date 07/11/2010 Temperature/ Humidity 25 deg.C./ 59% Engineer Kazuya Yoshioka Mode Normal use mode 314.35MHz Time of Transmitting [sec] Limit [sec] Result 0.7083 5.00 Pass Test report No. : 30KE0044-HO-01 Page : 14 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30KE0044-HO-01 Date 07/11/2010 Temperature/ Humidity 25 deg.C./ 59% Engineer Kazuya Yoshioka Mode Transmitting mode 312.10MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 312.100 PK77.473.614.710.131.8-70.466.695.425.028.8 Carrier 624.200 PK29.330.219.712.032.0-29.029.975.446.445.5 Outside 936.300 PK30.729.622.713.530.8-36.135.075.439.340.4 Outside 1248.400 PK56.958.726.01.934.4-50.452.275.425.023.2 Outside 1560.500 PK48.447.327.12.133.6-44.042.973.929.931.0 Inside 1872.600 PK55.150.427.92.333.0-52.347.675.423.127.8 Outside 2184.700 PK52.249.628.02.532.6-50.147.575.425.327.9 Outside 2496.800 PK52.147.727.62.732.4-50.045.673.923.928.3 Inside 2808.900 PK51.348.028.62.932.2-50.647.373.923.326.6 Inside 3121.000 PK43.742.729.33.132.1-44.043.075.431.432.4 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 312.100 PK77.473.614.710.131.8-6.863.659.875.411.815.6 Carrier 624.200 PK29.330.219.712.032.0-6.822.223.155.433.232.3 Outside 936.300 PK30.729.622.713.530.8-6.829.328.255.426.127.2 Outside 1248.400 PK56.958.726.01.934.4-6.843.645.455.411.810.0 Outside 1560.500 PK48.447.327.12.133.6-6.837.236.153.916.717.8 Inside 1872.600 PK55.150.427.92.333.0-6.845.540.855.49.914.6 Outside 2184.700 PK52.249.628.02.532.6-6.843.340.755.412.114.7 Outside 2496.800 PK52.147.727.62.732.4-6.843.238.853.910.715.1 Inside 2808.900 PK51.348.028.62.932.2-6.843.840.553.910.113.4 Inside 3121.000 PK43.742.729.33.132.1-6.837.236.255.418.219.2 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] Margin [dB] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * All the measured noise was pulse emission. Test report No. : 30KE0044-HO-01 Page : 15 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30KE0044-HO-01 Date 07/11/2010 Temperature/ Humidity 25 deg.C./ 59% Engineer Kazuya Yoshioka Mode Transmitting mode 314.35MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 314.350 PK76.872.914.810.131.8-69.966.095.525.629.5 Carrier 628.700 PK29.630.419.812.032.0-29.430.275.546.145.3 Outside 943.050 PK32.529.822.813.630.8-38.135.475.537.440.1 Outside 1257.400 PK58.560.426.01.934.4-52.053.975.523.521.6 Outside 1571.750 PK49.847.427.12.133.6-45.443.073.928.530.9 Inside 1886.100 PK54.850.428.02.332.9-52.247.875.523.327.7 Outside 2200.450 PK50.849.328.02.532.6-48.747.273.925.226.7 Inside 2514.800 PK49.345.327.72.732.4-47.343.375.528.232.2 Outside 2829.150 PK50.848.728.62.932.2-50.148.073.923.825.9 Inside 3143.500 PK43.043.329.43.132.1-43.443.775.532.131.8 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 314.350 PK76.872.914.810.131.8-6.863.159.275.512.416.3 Carrier 628.700 PK29.630.419.812.032.0-6.822.623.455.532.932.1 Outside 943.050 PK32.529.822.813.630.8-6.831.328.655.524.226.9 Outside 1257.400 PK58.560.426.01.934.4-6.845.247.155.510.38.4 Outside 1571.750 PK49.847.427.12.133.6-6.838.636.253.915.317.7 Inside 1886.100 PK54.850.428.02.332.9-6.845.441.055.510.114.5 Outside 2200.450 PK50.849.328.02.532.6-6.841.940.453.912.013.5 Inside 2514.800 PK49.345.327.72.732.4-6.840.536.555.515.019.0 Outside 2829.150 PK50.848.728.62.932.2-6.843.341.253.910.612.7 Inside 3143.500 PK43.043.329.43.132.1-6.836.636.955.518.918.6 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted …

Text truncated - open the document above for the full version.

Test report No. : 30KE0044-HO-01 Page : 10 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 30KE0044-HO-01 Page : 11 of 24 Issued date : July 23, 2010 FCC ID : HYQ12BDM UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Below 1GHz (Horizontal: X-axis/Vertical : Y-axis) Above 1GHz (Horizontal: Z-axis/Vertical : Z-axis) X-axis Y-axis Z-axis
