HYQ12BELRemote Keyless Entry System (Transmitter)

Manual Requirement of FCC / IC Our product (12BEL) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-GEN, following statement will be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: November 30, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: DENSO CORPORATION FCC ID: HYQ12BEL To whom it may concern: We, the undersigned, hereby authorize Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kazuo Sakakibara General Manager Engineering Administration Division

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: HYQ12BEL To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara General Manager Engineering Administration Division November 30, 2011

DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BEL IC Number: 1551A-12BEL External Photos (1/2) Front view (4-button) Front view (3-button) Front view (3-button) NOTE: There may be variations in the number and function of buttons, but variations do not affect RF performance. DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BEL IC Number: 1551A-12BEL External Photos (2/2) Front view (2-button) Rear view (Common)

7. Marking location and layout Fig. Marking location and layout of Transmitter Note: Compliance statement of marking will not be changed. But marking layout, size and other indications may be changed. Marking location FCC ID : HYQ12BEL IC: 1551A-12BEL Model:12BEL DENSO

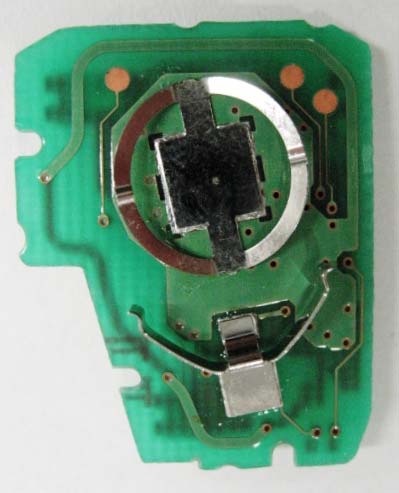

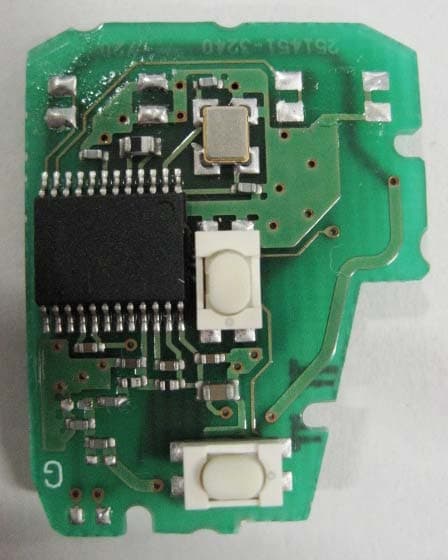

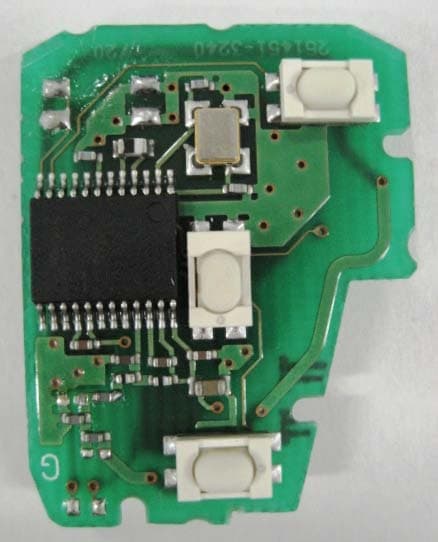

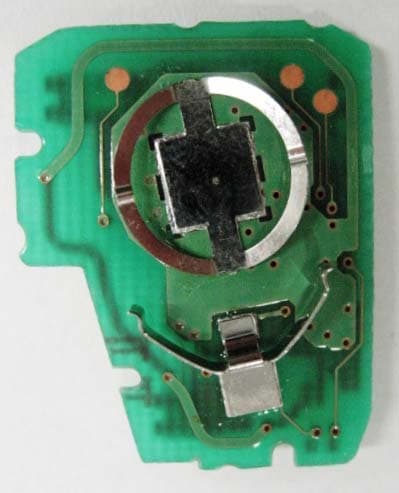

DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BEL IC Number: 1551A-12BEL Internal Photos (1/2) Comp. Side (4-button) Comp. Side (3-button) Antenna Comp. Side (3-button) Comp. Side (2-button) Antenna NOTE: Variations in the number of buttons do not affect RF performance. DENSO CORPORATION Remote Keyless Entry System (Transmitter) FCC ID: HYQ12BEL IC Number: 1551A-12BEL I Internal Photos (2/2) Antenna Solder Side Solder Side without battery holder

Test report No. : 32DE0356-HO-01-A-R1 Page : 2 of 22 Issued date : January 12, 2012 Revised date : January 13, 2012 FCC ID : HYQ12BEL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 3 SECTION 2: Equipment under test (E.U.T.) ···································································· 3 SECTION 3: Test specification, procedures & results························································· 4 SECTION 4: Operation of E.U.T. during testing ······························································· 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ··········································································· 9 SECTION 7: -20dB and 99% Occupied Bandwidth ··························································· 9 APPENDIX 1: Data of EMI test ·················································································· 10 Automatically deactivate................................................................................................................... 10 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 -20dB and 99% Occupied Bandwidth ............................................................................................... 14 Duty Cycle ........................................................................................................................................ 16 APPENDIX 2:Test Instruments ··················································································· 20 APPENDIX 3: Photographs of test setup ······································································· 21 Radiated emission ............................................................................................................................. 21 Worst case position ........................................................................................................................... 22 Test report No. : 32DE0356-HO-01-A-R1 Page : 3 of 22 Issued date : January 12, 2012 Revised date : January 13, 2012 FCC ID : HYQ12BEL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-7252 Facsimile Number : +81-566-25-4837 Contact Person : HIROMICHI HANAI SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Transmitter) Model No. : 12BEL Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : December 6, 2011 Country of Mass-production : Japan and United States of America Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: 12BEL (referred to as the EUT in this report) is the Remote Keyless Entry System (Transmitter). - The EUT has variations of 4-button, 3-button and 2-button, and the test was performed with the representative 4-button. These variations do not affect RF performance. General Specification Clock frequency(ies) in the system : 33.6MHz Radio Specification Radio Type : Transmitter Frequency of Operation : 312.10MHz / 314.35 MHz * Modulation : FSK (F1D) Power Supply (radio part input) : DC 3.0V Antenna type : Built-in type (Fixed) * Every time buttons are pushed, the transmission channels are switched alternately and two Channels are not activated simultaneously. Test report No. : 32DE0356-HO-01-A-R1 Page : 4 of 22 Issued date : January 12, 2012 Revised date : January 13, 2012 FCC ID : HYQ12BEL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2011, final revised on November 21, 2011 and effective December 21, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 10.8dB Horizontal PK with Duty Factor (Tx 314.35MHz) Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 4.7dB 1257.4MHz Vertical PK with Duty Factor (Tx 314.35MHz) Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators KDB 926416 FCC: Section 15.231€ N/A Complied Radiated IC: - IC: Reference data Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impos…

Text truncated - open the document above for the full version.

Test report No. : 32DE0356-HO-01-A-R1 Page : 21 of 22 Issued date : January 12, 2012 Revised date : January 13, 2012 FCC ID : HYQ12BEL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 32DE0356-HO-01-A-R1 Page : 22 of 22 Issued date : January 12, 2012 Revised date : January 13, 2012 FCC ID : HYQ12BEL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Below 1GHz Horizontal: X-axis/Vertical : Y-axis Above 1GHz Horizontal: X-axis/Vertical : Y-axis X-axis Y-axis Z-axis
