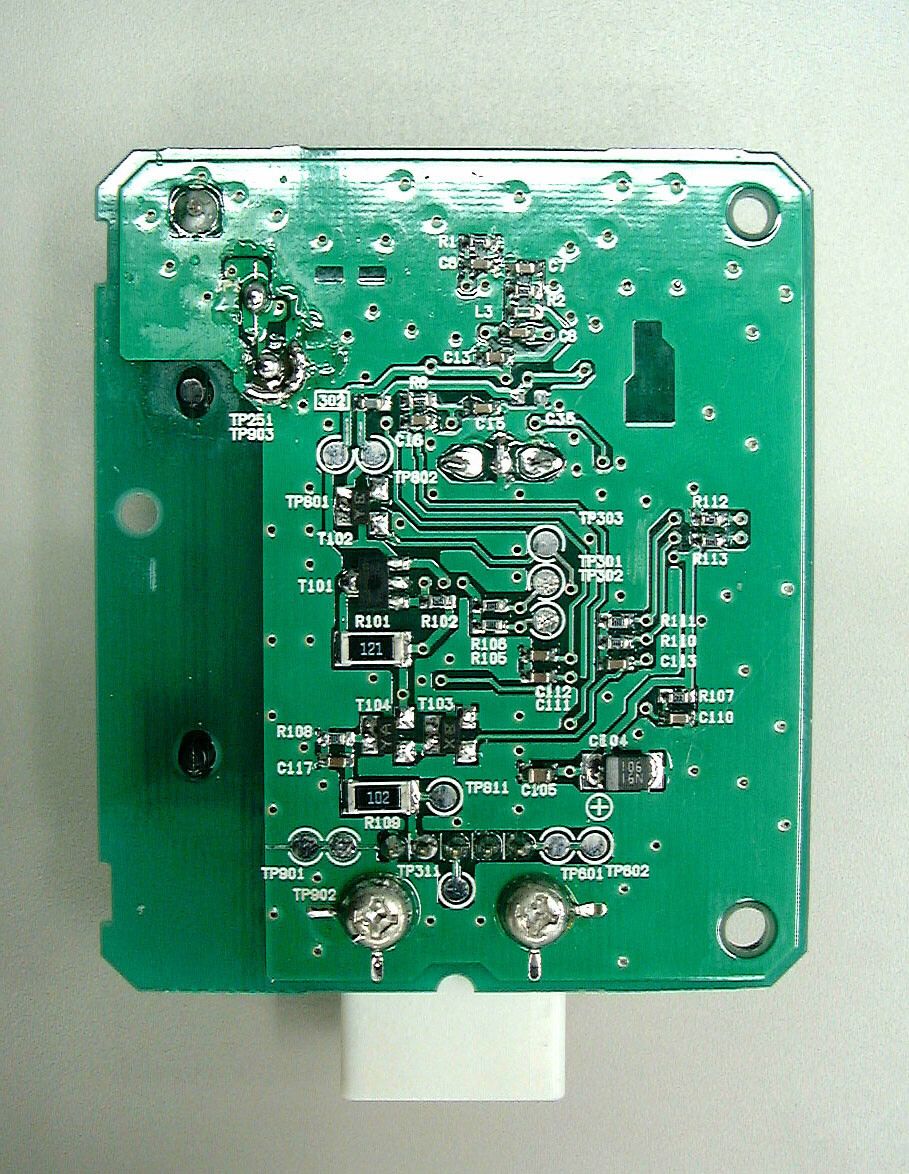

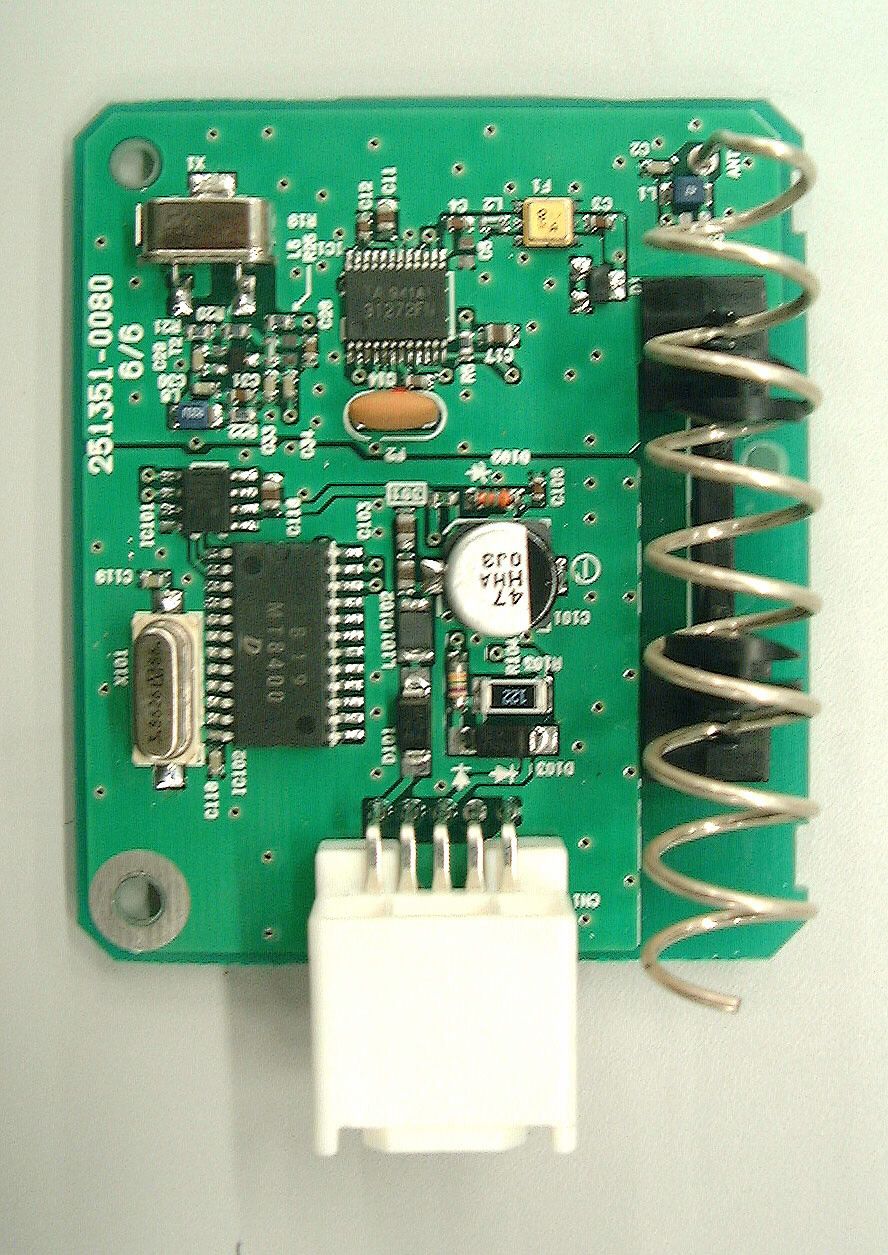

HYQ13BBLSuperheterodyne Receiver

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5922 Fax : +81-566-25-4548 BABT Product Service, Inc. 4855 Patrick Henry Dr, Bldg. 6 Santa Clara, CA 95054 Subject: Compliance Statement for the Receiver 13BBL To whom it may concern, We do not issue any instruction manual for the receiver 13BBL. The compliance statement according to FCC paragraph 15.19 (a)(3) will be printed on the unit itself. We will inform the car manufacturer that this compliance statement also has to be written in the car users manual. The car users manual is used as a replacement for the receiver users manual. Kazuo Sakakibara Manager Engineering Administration Department DENSO CORPORATION

TÜV MANAGEMENT SERVICEPhone: (651) 631 2487 TÜV PRODUCT SERVICE INC.Fax: (651) 638 0285 1775 Old Highway 8 NW, Suite 104email [email protected] New Brighton MN 55112-1891http:://www.tuvglobal.com Divisions of TÜV America Inc., a subsidiary of TÜV Süddeutschland and TÜV Nord Group TÜV PRODUCT SERVICE INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of DENSO Corporation Remote Keyless Entry System Model No: 13BBL I am an Electromagnetic Compatibility Engineer for TÜV PRODUCT SERVICE INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV PRODUCT SERVICE INC has been authorized by Kazuo Sakakibara, Engineering Administration Department, of DENSO Corporation, to act as the authorized representative in the preparation of applications for registration of equipment under Part 15 of the Rules and regulations of Communications and/or the Government of Canada Department of Communications Radio Standards Procedure RSP-100. These tests were made by me or under my supervision at our Wild River Laboratory which is on file with the FCC under Paragraph 2.948 of the FCC Rules. Test data required by the TCB is included in this report. It is submitted that the above equipment meets the FCC Part 15, Subpart B Requirements and Certification is hereby requested. Joel T. Schneider Minnesota Wild River Lab TÜV Product Service [email protected] Dated: 14 December 2000

Technical Document for Type Approval for Remote Keyless Entry System TYPE : 13BBL Details of contentPage 1. Description of manufacturer...1 2. Technical description of the system...2 3. Outline of the system...3 4. Block diagram...4 5. Circuit diagram...5 6. Component listing...6 7. Marking location and layout...7 November 2000 DENSO CORPORATION 1. Description of manufacturer 1.1. Trade mark : 1.2. Name and address of manufacturer - Name: DENSO CORPORATION - Address: 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan 1.3. Name and address of applicant - Name: DENSO CORPORATION - Address: 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan 1 2. Technical description of the system 2.1. Type number - Receiver: 13BBL 2.2. Specifications of receiver - Nominal frequency: 314.35 MHz - Micro computer clock frequency: 3.86 MHz - Type of receiving system: Super-heterodyne - Power Supply - Nominal supply voltage: 12 VDC (vehicle battery) - Antenna: Built-in type (Fixed) 2 3. Outline of the system 3.1. Description of the system operation This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter send a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. 3.2. Installation in vehicle The receiver is installed inside the vehicle. 3 4 4. Block diagram 4.1. Receiver Fig. Block diagram of receiver RF AMP IF FILTER IF AMP DET RSSI COMPRATEER Low PASS FILTER to CPU to CPU 60.73 MHz MIXER OSC RF FILTER Fig. Circuit diagram of receiver 5. Circuit diagram 5.1 Receiver 1000 pF 1000pF 1000 pF 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 IC 1000 pF 1000pF-4700F 0.01uF 470-2k 20-82nH 0.01uF 314.1 MHz 10.7 MHz 680pF-0. 01uF 22pF-47pF 0.18uH-0.68uH 0.01uF 5 pF-15pF 4.7k-10k 12k-24k 10nH-68nH 60.73 MHz 84-120 0.01uF 10 k 470-2k 1 pF-20pF 10pF-30pF 470-2k 0-82 nH 0.01uF-0.1uF 0.01uF nothing or 10nH-82nH ANT1 nothing or 1pF-330pF nothing or 10pF-100pF nothing or 1pF-330pF 0. 1uF 0.01uF to CPU to CPU to CPU 47k-120k to CPU 5 6. Component listing 6.1. Receiver 6 Part NameDescriptionNumber of Units IC Transister Diode Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Capaciter Resistor Resistor Resistor Resistor Resistor Resistor Inductor Inductor Inductor Inductor Inductor Crystal Filter Filter Antenna - - - 0.01uF 1000pF 0.1uF nothing or 1pF-330pF 1pF-20F nothing or 10pF-100pF 10pF-30pF 5pF-15pF 22pF-47pF 1000pF-4700pF 680pF-0.01uF 0.01uF-0.1uF 84-120 470-2k 4.7k-10k 12k-24k 47k-120k 10k nothing or 10nH-82nH 0-82nH 20nH-82nH 10nH-68nH 0.18uH- 0.68uH 60.73MHz 314.1MHz 10.7MHz - 1 1 1 6 4 1 2 1 1 1 1 1 1 1 1 1 3 1 1 1 1 1 1 1 1 1 1 1 1 1 7 Fig. Marking location and layout of receiver 7. Marking location and layout 7.1. Receiver Note: Compliance statement of marking will not be changed. But marking layout and size may be changed.

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 15 SUBPART B Class B Limit MANUFACTURER'S NAMEDenso Corporation NAME OF EQUIPMENTSuperheterodyne Receiver for remote keyless entry system in vehicle MODEL NUMBER 13BBL APPLICANT'S ADDRESS1-1 Showa-cho, Kariya-shi Aichi-ken, 448-8661 Japan TEST REPORT NUMBERW0557 TEST DATE23 October 2000 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15. Date:05 December 2000 Location:Taylors Falls MNG. S. JakubowskiJ. T. Schneider USATest EngineerNVLAP Signatory Not Transferable File No. WC1H055701, Page 1 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: WC1H055701 Date of issue:05 December 2000 Model / Serial No.: 13BBL / Product Type: Superheterodyne Receiver for remote keyless entry system in vehicle Applicant: Denso Corporation Manufacturer: Denso Corporation License holder: Denso Corporation Address: 1-1 Showa-cho, Kariya-shi : Aichi-ken, 448-8661 Japan Test Result: nn Positiveoo Negative Test Project Number: Reference(s) W0557 Total pages including Appendices20 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. WC1H055701, Page 2 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 – 10 Directory2 Test Regulations3 Deviations from standard / Summary10 Test-setups (Photos)11 – 12 Test-setup (drawing)Appendix A B)Test data Conducted emissions10/150 kHz - 30 MHz5, 9 Radiated emissions10 kHz - 30 MHz5, 9 Radiated emissions30 MHz - 1000 MHz6, 9 Interference power30 MHz - 300 MHz6, 9 Equivalent Radiated emissions1 GHz - 18 GHz7, 9 C)Appendix A Test Data Sheets and Test Setup Drawing(s) A2 – A3 D)Appendix B Constructional Data Form B2 Product Information Form(s) B3 E)Appendix C Measurement ProtocolC1 - C2 File No. WC1H055701, Page 3 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1994o - Class Ao - Class B o - BS o - VCCIo - Class Ao - Class B n - FCCo - Class An - Class B o - AS 3548 (1992)o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1993) o - Class Ao - Class B File No. WC1H055701, Page 4 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 22 °C Relative Humidity: 48 % Atmospheric pressure: 98 kPa Power supply system: 12 VDC Sign Explanations: o - not applicable n - applicable File No. WC1H055701, Page 5 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: n - Test not applicable o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Site) o - Wild River Lab Screen Room o - New Brighton Lab Shielded Room Test equipment used : Model NumberManufacturerDescriptionSerial NumberCal Date Emissions Test Conditions: RADIATED EMISSIONS (Below 30 MHz) The RADIATED EMISSIONS (MAGNETIC FIELD) measurements were performed at the following test location: o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Te…

Text truncated - open the document above for the full version.

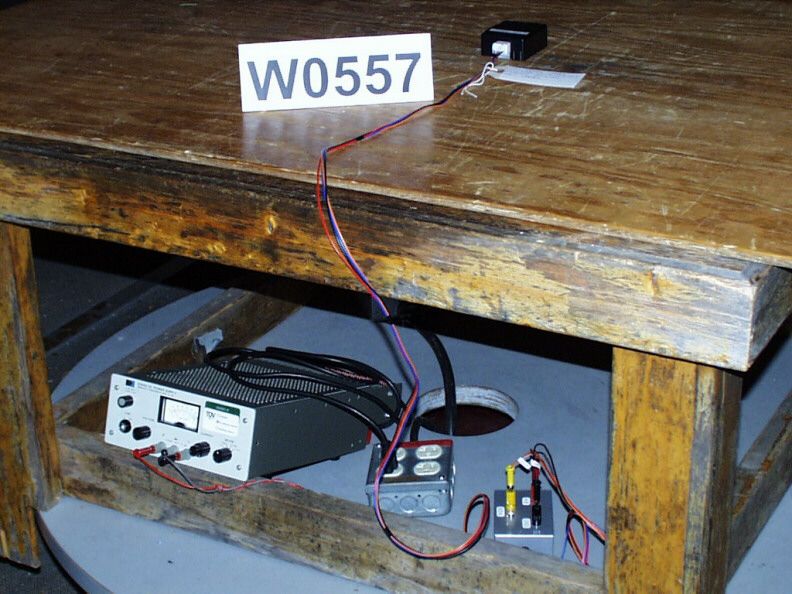

File No. W101574001, Page A2 of A9 EMM0094 REV 09.95 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA
