HYQ13BBYTire Pressure Monitor System Receiver

8. Manual requirement Our product HYQ13BBY, a receiver for a Tire Pressure Monitoring System for car, will be already installed in cars (as original equipment) when placed into the U.S. market. We must hereby request that the following statements per CFR 47, Part 15 must be added to the car’s manual. This is a requirement from the Federal Communications Commission in Washington, D.C.: Per CFR 47, Part 15, Paragraph 15.21 the following statement must be added to the car’s manuals: The title "CAUTION TO USER:" or "FCC WARNING:" or "NOTE:" or relevant title, and " Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” Per CFR 47, Part 15, Paragraph 15.19(a)(3) the following statement must be added to the car’s manual: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation.” 9. User Manual Tire Pressure Monitor System is used for monitoring and indicating about information of air pressure in vehicle’s tires. Transmitter sends to receiver the data that are information of air pressure in vehicle’s tire. The data also include temperature and battery voltage and identity code of transmitter. The receiver and the ECU judge the data. If the data of air pressure and others are not normal condition and then the receiver send signal to a warning lamp through control ECU. The warning lamp warns drivers.

Rev 2 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 Certification Agreement Terms and Conditions A1 Revision Date Description Approved 0 12/16/99 Original 1 3/8/00 Modified in accordance with changes to OP1 Deleted Certification Mark statements 2 2/9/01 Update for 2001 Review 3 1/18/02 Update per client comments: added signature; clarified “client” and “applicant” Rev 2 CERTIFICATION AGREEMENT TERMS AND CONDITIONS In consideration of the mutual covenants in this Agreement, AmericanTCB or its subcontractors will perform certification inspection services to determine if Client's device(s) are in compliance with the laws, regulations and technical standards under the Scope of Accreditation of AmericanTCB. General ATCB retains full discretion to determine if the Devices are compliant with the Certification Regulations of the Countries. In the event that certification is not issued for the aforementioned Devices, ATCB agrees to advise Client in writing of the reasons therefore. This Agreement may not be assigned to or acquired by any other person, firm, or corporation without ATCB's written authorization. In this agreement, “Client” and “Applicant” shall have the same meaning. 1 Scope of Performance 1.1 The scope of performance is delineated in the Quotation or Invoicing rendered to the client. 1.2 ATCB may agree to accept test data from any ISO/IEC Guide 25 accredited laboratory or FCC-listed Laboratory and evaluate the Devices on the basis of this data. ATCB may also choose to accept test data from ISO Guide 25 accredited laboratories owned by Client. 1.3 If requested, Client shall supply ATCB, at no charge, with at least one test sample of each Device, including the necessary peripherals, connecting cables, accessories or other hardware or software (hereinafter collectively referred to as "support equipment") required for testing, evaluation, and assessment. 1.4 Client shall supply ATCB, at no charge, with all technical documentation and materials required for the testing, evaluation, and/or assessment of such Devices and support equipment. 1.5 Client recognizes that Device samples, including support equipment, may be damaged or completely destroyed when subjected to ATCB's testing and evaluation process. Client shall hold ATCB harmless for any such damage or destruction to its equipment. 1.6 ATCB shall test, evaluate, and assess Client's equipment in accordance with its good engineering judgment, and in conformance with the applicable technical standards and procedures. 1.7 Where testing, evaluation, and assessment results in certification, ATCB shall certify Client's equipment as compliant with the applicable laws, regulations and/or standards within 30 business days from the date testing, evaluation, and assessment is completed. This performance may be dependent upon a timely response by the United States Federal Communications Commission (FCC) or its foreign equivalent. 1.8 In the event of product certification, Client may request that ATCB return or destroy Client's Device sample(s), equipment support, and technical documentation. Client shall bear all costs associated with the return or destruction of such equipment test sample(s) and support equipment. 1.9 Client shall notify ATCB immediately of any modifications made or planned in the design or technical construction of a Device, or of any planned or implemented changes in Client's approved quality assurance system which may render ATCB's certification inapplicable to a Device produced. 1.10 Client's certification is revocable for cause, which includes, but is not limited to, the following: 1.11 ATCB is directed to revoke certification by the FCC or its foreign equivalent. 1.12 Client instructs ATCB in writing to revoke certification for a Device. For devices certified under the FCC TCB program, this can only be performed with 30 days of the original certification. 1.13 Client fails to pay any fees required by this Agreement. 1.14 Client breaches any of the terms, conditions or specifications listed in the Terms and Conditions.

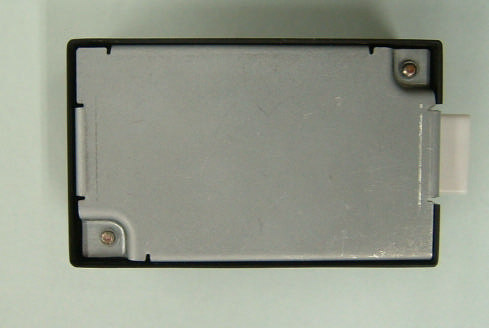

DENSO CORPORATION Tire Pressure Monitor System FCC ID: HYQ13BBY (External Photos) Front view DENSO CORPORATION Tire Pressure Monitor System FCC ID: HYQ13BBY Rear view DENSO CORPORATION Tire Pressure Monitor System FCC ID: HYQ13BBY Broad Overview

7. Marking 7.1. Marking location and layout Fig7-1. Marking location and layout of receiver Note: Compliance statement of marking will not be changed. But marking layout and size maybe changed. 7.2. Marking Marking is molded on the plastic case of the receiver.

DENSO CORPORATION Tire Pressure Monitor System FCC ID: HYQ13BBY (Internal photos) PCB Component side View of Receiver DENSO CORPORATION Tire Pressure Monitor System FCC ID: HYQ13BBY PCB Solder side View of Receiver DENSO CORPORATION Tire Pressure Monitor System FCC ID: HYQ13BBY PCB Component side View of Receiver (without cover)

1. Description of manufacturer 1.1. Trade mark : 1.2. Name and address of manufacturer - Name : DENSO CORPORATION - Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan 1.3. Name and address of applicant - Name : DENSO CORPORATION - Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan 2. Technical description of the system 2.1. Type number - Receiver : 13BBY 2.2. FCC/IC ID - FCC : HYQ13BBY - IC : 1551A-13BBY 2.3. Specification of receiver - Nominal frequency : 314.98 MHz - Type of receiving system : Super-heterodyne - Power Supply - Nominal supply voltage : 5 VDC (from ECU) - Antenna : Internal type (Fixed) 3. Outline of the system 3.1. Description of the system operation Tire Pressure Monitor System is used for monitoring and indicating about information of air pressure in vehicle’s tires. Transmitter sends to receiver the data that is information of air pressure in vehicle’s tire. The data also include temperature of tire and battery voltage and identity code of transmitter. The receiver judges the data. If the data of air pressure and others are not normal condition and then the receiver sends signal to a warning lamp through control ECU. The warning lamp warns drivers. 3.2. Installation in vehicle The receiver is installed inside the vehicle. 4. Block diagram 4.1. Receiver Fig.4-1 Block diagram of receiver

Test report No. : 23GE0051-HO-1 Page : 2 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b(23.04.02) CONTENTS PAGE SECTION 1 : Client information 3 SECTION 2 : Equipment under test (E.U.T.) 3 SECTION 3 : Test specification, procedures and results 4 SECTION 4 : Operation of E.U.T. during testing 5 SECTION 5 : Radiated emission 7 APPENDIX 1: Photographs of test setup 8 APPENDIX 2: Data of EMI test 8 APPENDIX 3: Test instruments 8 Test report No. : 23GE0051-HO-1 Page : 3 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b(23.04.02) SECTION 1: Client information Company Name : DENSO CORPORATION Brand Name : DENSO Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-4783 Facsimile Number : +81-566-25-4915 Contact Person : RYOZO OKUMURA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Tire Pressure Monitor System Model No. : 13BBY Serial No. : 001 Country of Manufacture : Japan Receipt Date of Sample : February 26, 2003 Condition of EUT : Engineering prototype 2.2 Product description DENSO CORPORATION, Model: 13BBY (referred to as the EUT in this report) is a Tire Pressure Monitor System. Model:13BBY Tire Pressure Monitor System is used for monitoring and indicating about information of air pressure in vehicle’s tires. Transmitter sends to receiver the data that are information of air pressure in vehicle’s tire. The data also include temperature and battery voltage and identity code of transmitter. The receiver judges the data. If data of air pressure and others are not normal condition and then the receiver send signal to a warning lamp through control ECU. The warning lamp warns drivers. Type of receiver : Super Heterodyne Receiving frequency : 314.98MHz Local Oscillator Frequency : 304.28MHz Intermediate Frequency : 10.7MHz Information Antenna : Internal Type (Fixed) Operation Voltage : DC 5V (from ECU) Test report No. : 23GE0051-HO-1 Page : 4 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b(23.04.02) SECTION 3: Test specification, procedures and results 3.1 Test specification Test Specification : FCC Part 15 Subpart B Class B Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Specification Deviation Worst margin Result Conducted emission ANSI C63.4: 2001 Section 15.107(a) Excluded * N/A N/A Radiated emission ANSI C63.4: 2001 Section 15.109(a) N/A 13.7dB (304.28MHz: Horizontal) Complied *The test is not applicable since the EUT does not have AC Mains. 3.3 Confirmation A-Pex International Co., Ltd. hereby confirms that E.U.T. , in the configuration tested, complies with the specifications FCC Part 15 Subpart B Class B. 3.4 Uncertainty Radiated emission test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. □ The data listed in this test report may exceed the test limit because it does not have enough margin. ■The data listed in this test report has enough margin, more than the site margin. 3.5 Test location A-Pex International Co., Ltd. EMC Head Office Division. No.2 semi anechoic chamber 7.5 x 5.8 x 5.2m 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 This site has been fully described in a report submitted to FCC office, and listed on June 05, 2002 (Registration number: 846015). Industry Canada number: IC4247-2 *NVLAP Lab. code: 200572-0 3.6 Test setup, Data of EMI and Test instruments Refer to APPENDIX 1 to 3. Test report No. : 23GE0051-HO-1 Page : 5 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b(23.04.02) SECTION 4: Operation of E.U.T. during testing 4.1 Operating modes The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. The operating mode/system was as follows: Operation mode : Receiving Justification : The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals Top View Front View *Cabling was taken into consideration and test data was taken under worse case conditions. B C A 1 2 AC100V/60Hz A C B EUT 1 2 AC100V/60Hz EUT 3 3 Test report No. : 23GE0051-HO-1 Page : 6 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b(23.04.02) Description of EUT No. Item Model number Serial number Manufacturer FCC ID/DoC/others A Receiver 13BBY 001 DENSO HYQ13BBY S upport equipment No. Item Model number Serial number Manufacturer FCC ID B Check bench - 001 DENSO N/A C DC Power Supply PMC35-2A 13090501 KIKUSUI N/A List of cables used No. Name Length (m) Shield Remark 1 DC Power Cable 0.5 N Polyvinyl chloride 2 Extended harness 0.7 N Polyvinyl chloride 3 AC Power Cable 1.8 N Polyvinyl chloride Test report No. : 23GE0051-HO-1 Page : 7 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24…

Text truncated - open the document above for the full version.

Test report No. : 23GE0051-HO-1 Page : 9 of 12 Issued date : March 12, 2003 FCC ID : HYQ13BBY A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF060b(23.04.02) APPENDIX 1: Photographs of test setup Radiated emission
