HYQ13BBZCommunication Receiver used w/Pt 15 Tx

Product Description This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter sends a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

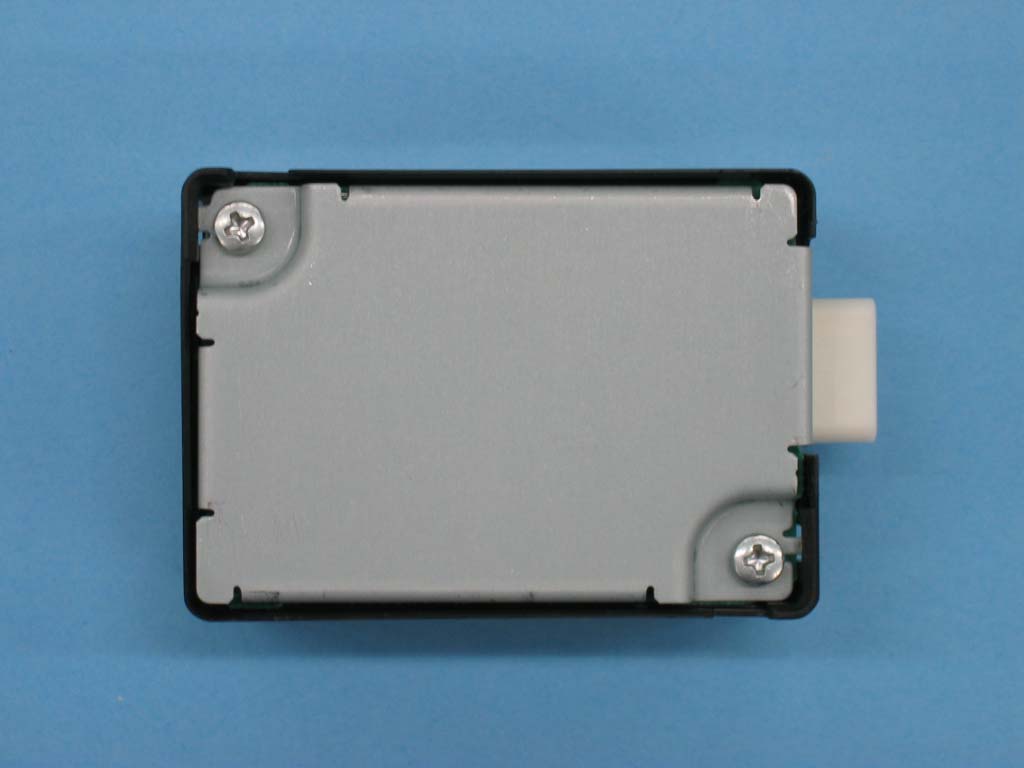

W i reless Re mote Co nt rol Re ceiver Model name:13BBZ FCC ID: HYQ13BBZ IC Numbe r :1551A-13BBZ DENSO CORPORA T ION (External Photos) Front view W i reless Re mote Co nt rol Re ceiver Model name:13BBZ FCC ID: HYQ13BBZ IC Numbe r :1551A-13BBZ DENSO CORPORA T ION Re ar vie w

6 7. Marking location and layout 7.1 Receiver Scale: free Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. Fig. Marking location and layout of Receiver

W i reless Re mote Co nt rol Re ceiver Model name:13BBZ FCC ID: HYQ13BBZ IC Numbe r :1551A-13BBZ DENSO CORPORA T ION (Int ernal photos) PCB C o mp o n ent sid e V i ew of R e ceiv er W i reless Re mote Co nt rol Re ceiver Model name:13BBZ FCC ID: HYQ13BBZ IC Numbe r :1551A-13BBZ DENSO CORPORA T ION PCB Sold er sid e V i ew of R e ceiver

Test report No. : 25BE0315-HO-2 Page : 2 of 11 Issued date : October 7, 2004 FCC ID : HYQ13BBZ UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information.......................................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................3 SECTION 3: Test specification, procedures and results ...............................................................4 SECTION 4: Operation of E.U.T. during testing...........................................................................5 SECTION 5: Radiated emission ......................................................................................................6 APPENDIX 1: Photographs of test setup.........................................................................................7 Radiated Emission ...............................................................................................................................7 Worst Case Position (Horizontal : Z-axis/ Vertical: Y-axis) ............................................................8 APPENDIX 2: Test Instruments......................................................................................................9 APPENDIX 3: Data of EMI ...........................................................................................................10 Test report No. : 25BE0315-HO-2 Page : 3 of 11 Issued date : October 7, 2004 FCC ID : HYQ13BBZ UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho Kariya-shi Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-2523 Facsimile Number : +81-566-25-4915 Contact Person : Tomokazu Miyashita SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Remote Control Receiver Model No. : 13BBZ Serial No. : 1-1 Rating : DC12V Country of Manufacture : JAPAN Receipt Date of Sample : October 4, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description DENSO CORPORATION, Model No: 13BBZ is the Wireless Remote Control Receiver. The system is mainly used as a Remote Keyless Entry. Type of Receiver : Super Heterodyne Frequency of operation : 314.35MHz Intermediate frequency : 10.7MHz Method of Frequency Generation : Crystal Operating Temperature : -30 deg. C. -+65 deg. C. It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 25BE0315-HO-2 Page : 4 of 11 Issued date : October 7, 2004 FCC ID : HYQ13BBZ UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures and results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2004 Class B Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC power line conducted emission measurements Class B N/A N/A*1) N/A Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 16.6dB (1260.0MHz: Horizontal) Complied * １ )The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. Note: UL Apex’s EMI Work procedures No. QPM05 3.3 Uncertainty Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this test report has enough margin. 3.4 Test location UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 No.1 semi anechoic chamber has been fully described in a report submitted to FCC office, and listed on February 01, 2002. (Registration number: No.1:313583 Industry Canada: No.1: IC4247) No.2 semi anechoic chamber has been fully described in a report submitted to FCC office, and listed on June 05, 2002. (Registration number: No.2:846015 Industry Canada: No.2: IC4247-2) *NVLAP Lab. code: 200572-0 Test room Width x Depth x Height (m) Size of reference ground plane(m) Other rooms No.1 semi-anechoic chamber 19.2 x 11.2 x 7.7m 7.0 x 6.0m Preparation room No.2 semi-anechoic chamber 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 shielded room 4.7 x 7.5 x 2.7m 4.7 x 7.5m - No.4 measurement room 3.1 x 5.0 x 2.7m N/A - 3.5 Photographs of test setup, Test instruments and Data of EMI Test Refer to APPENDIX 1 to 3 Test report No. : 25BE0315-HO-2 Page : 5 of 11 Issued date : October 7, 2004 FCC ID : HYQ13BBZ UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 4: Operation of E.U.T. during testing 4.1 Operating Modes The EUT exercise program used during the radiated testing was designed to exercise the various system components in a manner similar to typical use. Test sequence is used : Receiving *The test was performed under the signal from the transmitter Justification : The system was configured in a typical fashion (as a customer would normally use it) for testing. 4.2 Configuration and peripherals B 2 3 A…

Text truncated - open the document above for the full version.

Test report No. : 25BE0315-HO-2 Page : 7 of 11 Issued date : October 7, 2004 FCC ID : HYQ13BBZ UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 25BE0315-HO-2 Page : 8 of 11 Issued date : October 7, 2004 FCC ID : HYQ13BBZ UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal : Z-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis
