HYQ13BZHKeyless Entry System Receiver

Product Description This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter sends a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

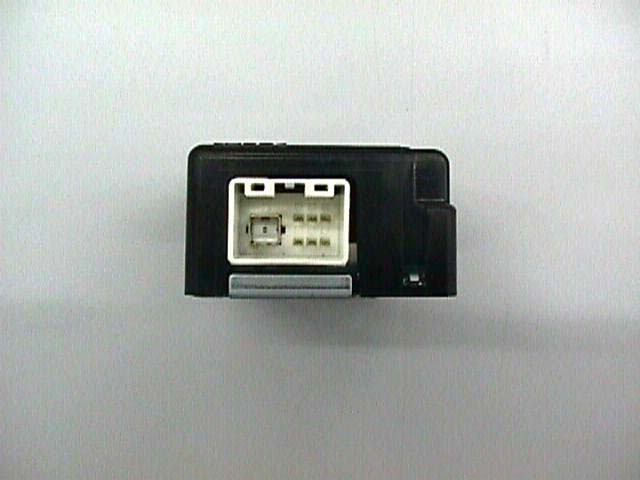

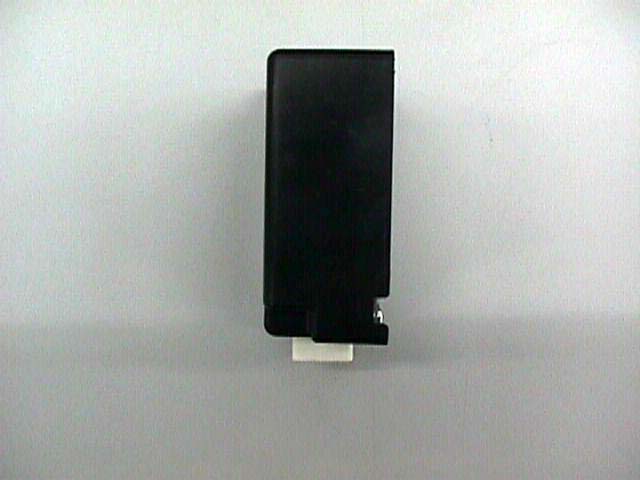

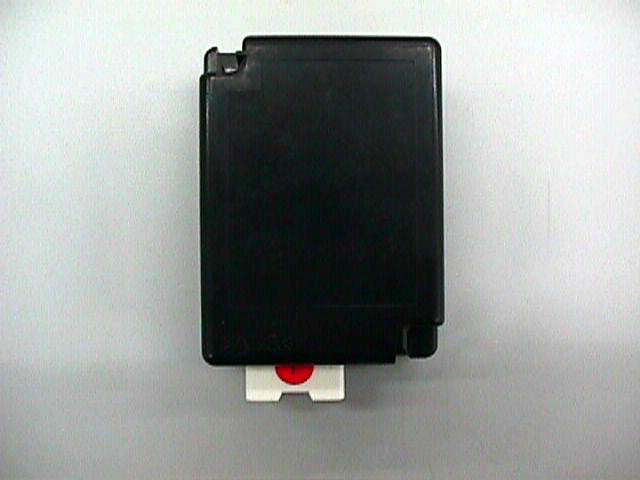

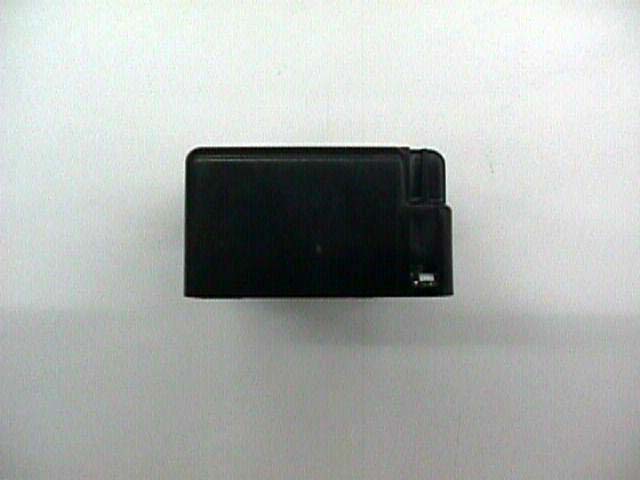

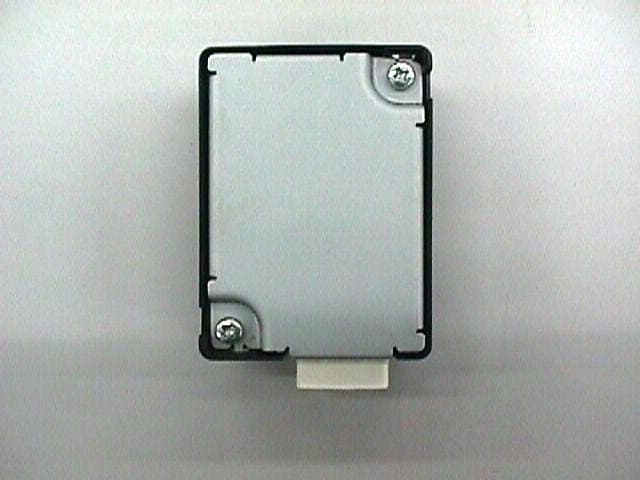

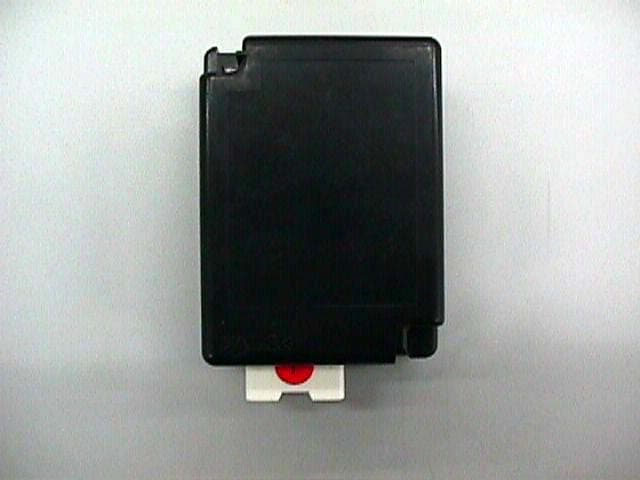

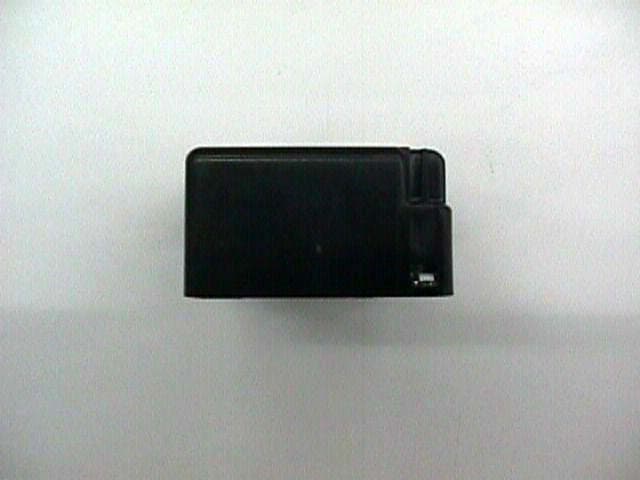

DENSO CORPORATION Remote Keyless Entry System(Receiver) FCC ID : HYQ13BZH (External photos) Front view Rear view DENSO CORPORATION Remote Keyless Entry System(Receiver) FCC ID : HYQ13BZH Left view Right view DENSO CORPORATION Remote Keyless Entry System(Receiver) FCC ID : HYQ13BZH To p v i e w Bottom view

7. Marking location and layout 7.1 Receiver Scale : free Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. Fig. Marking location and layout of Receiver -6-

DENSO CORPORATION Remote Keyless Entry System(Receiver) FCC ID : HYQ13BZH (Internal photos) Comp side Sold side

Test report No. : 24HE0210-HO-1 Page : 2 of 15 Issued date : April 30, 2004 Revised date : June 22, 2004 FCC ID : HYQ13BZH UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information........................................................................................................3 SECTION 2: Equipment under test (E.U.T.)....................................................................................3 SECTION 3: Test specification, procedures and results.................................................................4 SECTION 4: Operation of E.U.T. during testing..............................................................................5 SECTION 5: Radiated emission.......................................................................................................6 APPENDIX 1: Photographs of test setup..........................................................................................7 Radiated Emission.................................................................................................................................................7 Worst Case Position (Horizontal : X-axis/ Vertical: X-axis).......................................................................9 APPENDIX 2: Test Instruments.....................................................................................................10 APPENDIX 3: Data of EMI............................................................................................................11 Test report No. : 24HE0210-HO-1 Page : 3 of 15 Issued date : April 30, 2004 Revised date : June 22, 2004 FCC ID : HYQ13BZH UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho Kariya-shi Aichi-ken 448-8661, Japan Telephone Number : +81-566-61-2523 Facsimile Number : +81-566-25-4915 Contact Person : Toshifumi Shimoda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Receiver) Model No. : 13BZH Serial No. : 002 Rating : DC 5V(Supplied from the other ECU) Country of Manufacture : Japan Receipt Date of Sample : April 27, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product description DENSO CORPORATION, Model No: 13BZH is the Remote Keyless Entry System (Receiver). Type of receiver : Super Heterodyne Frequency of Operation : 314.35MHz Local Oscillator Frequency : 40.63125MHz Intermediate Frequency : 10.7MHz Antenna Type : Built-in Type (Fixed) Test report No. : 24HE0210-HO-1 Page : 4 of 15 Issued date : April 30, 2004 Revised date : June 22, 2004 FCC ID : HYQ13BZH UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures and results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2003 Class B Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2001 Class B N/A N/A*1) N/A Radiated emission ANSI C63.4: 2001 Class B N/A 15.1dB (1199.75MHz: Vertical) Complied *1) The test in not applicable since the EUT does not have AC Mains. Note: UL Apex’s EMI Work procedures No. QPM05 3.3 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications, FCC Part15 Subpart B 2003 Class B. 3.4 Uncertainty Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this test report has enough margin. 3.5 Test location UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 No.1 semi anechoic chamber has been fully described in a report submitted to FCC office, and listed on February 01, 2002. (Registration number: No.1:313583 Industry Canada: No.1: IC4247) No.2 semi anechoic chamber has been fully described in a report submitted to FCC office, and listed on June 05, 2002. (Registration number: No.2:846015 Industry Canada: No.2: IC4247-2) *NVLAP Lab. code: 200572-0 Test room Width x Depth x Height (m) Size of reference ground plane(m) Other rooms No.1 semi-anechoic chamber 19.2 x 11.2 x 7.7m 7.0 x 6.0m Preparation room No.2 semi-anechoic chamber 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 shielded room 4.7 x 7.5 x 2.7m 4.7 x 7.5m - No.4 shielded room 3.1 x 5.0 x 2.7m N/A - 3.6 Photographs of test setup, Test instruments and Data of EMI Test, Refer to APPENDIX 1 to 3 Test report No. : 24HE0210-HO-1 Page : 5 of 15 Issued date : April 30, 2004 Revised date : June 22, 2004 FCC ID : HYQ13BZH UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 4: Operation of E.U.T. during testing 4.1 Operating modes The EUT exercise program used during radiated testing was designed to exercise the various system components in a manner similar to typical use. Test sequence is used : Continuous Receiving mode *The test was made with the sample in the maximum receiving mode, without the transmitter. *The representative antenna was used on the EUT during the tests. The antenna which is equivalent to this representative antenna is to be connected to the…

Text truncated - open the document above for the full version.

Test report No. : 24HE0210-HO-1 Page : 7 of 11 Issued date : April 30, 2004 FCC ID : HYQ13BZH UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 24HE0210-HO-1 Page : 8 of 11 Issued date : April 30, 2004 FCC ID : HYQ13BZH UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal : X-axis/ Vertical: X-axis) X-axis Y-axis Z-axis
