HYQ13BZSVehicle Entry System Receiver

Product Description This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter sends a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

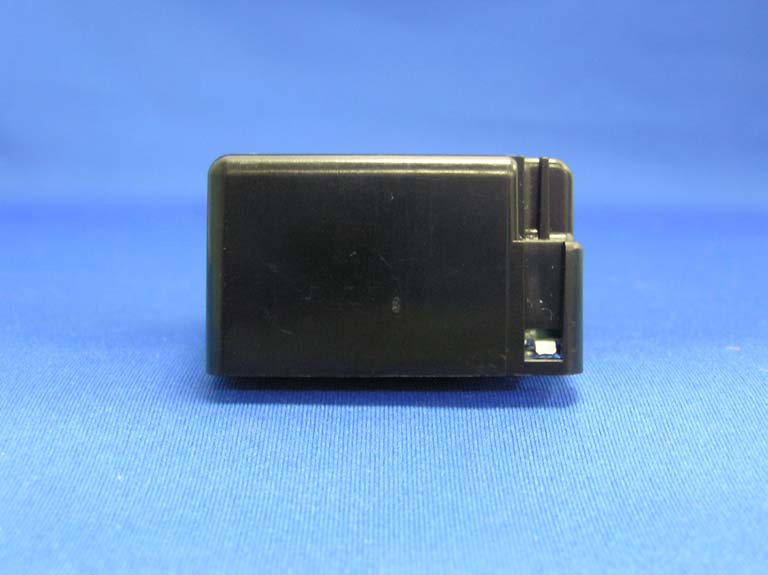

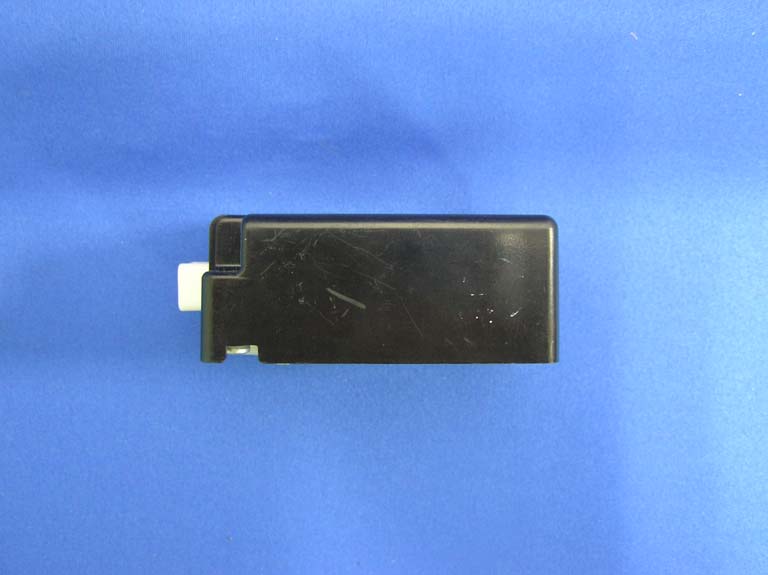

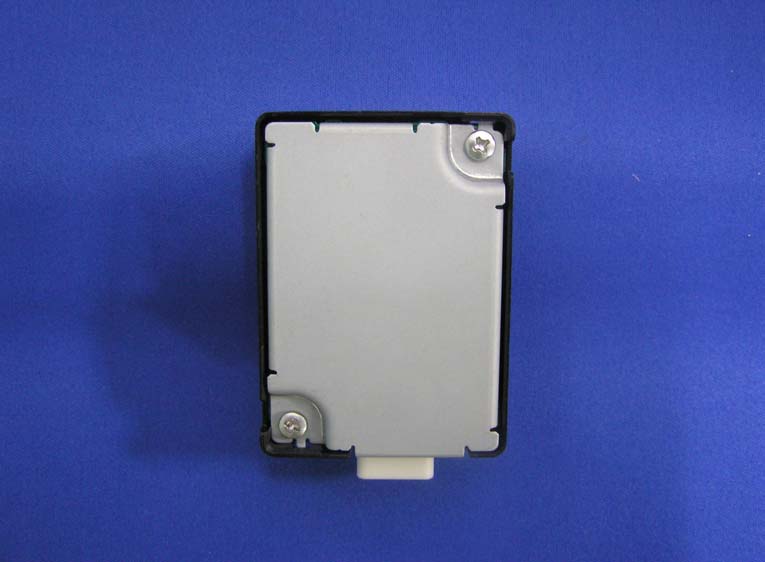

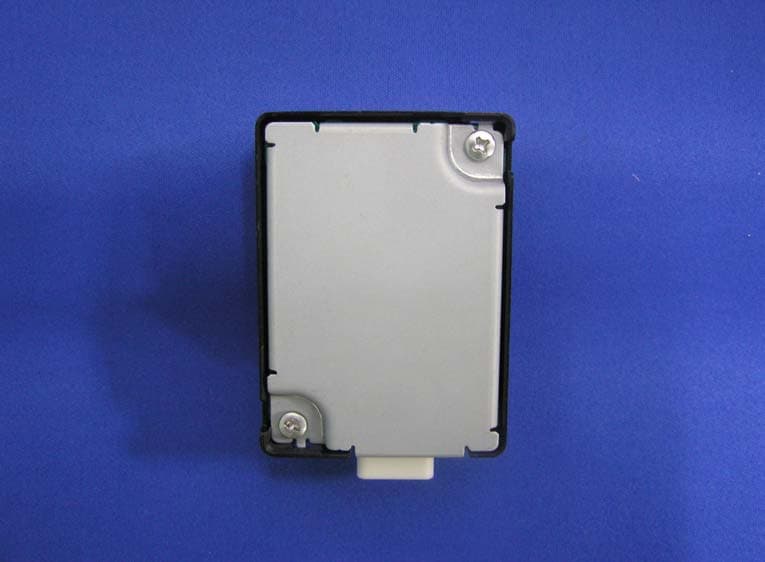

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13BZS IC: 1551A-13BZS External Photo Top Bottom DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13BZS IC: 1551A-13BZS Left Right DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13BZS IC: 1551A-13BZS Rear Front

7. Marking location and layout Scale: free Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. Fig. Marking location and layout of Receiver

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13BZS IC Number:1551A-13BZS Internal Photos Component Side Solder Side

Test report No. : 27CE0103-HO-A-1 Page : 1 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) EMI TEST REPORT Test Report No. : 27CE0103-HO-A-1 Applicant : DENSO CORPORATION Type of Equipment : Remote Keyless Entry System (Receiver) Model No. : 13BZS FCC ID : HYQ13BZS Test standard : FCC Part 15 Subpart B 2006 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test: ______________________________ Tested by: ______________________________ Mitsuru Fujimura EMC Services Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://ulapex.jp/emc/nvlap.htm November 11, 2006 Test report No. : 27CE0103-HO-A-1 Page : 2 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information............................................................................................. 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing.................................................................. 6 SECTION 5: Radiated Emission ............................................................................................ 7 APPENDIX 1: Photographs of test setup............................................................................... 8 Radiated Emission ......................................................................................................................... 8 Worst Case Position....................................................................................................................... 9 APPENDIX 2: Data of EMI test ........................................................................................... 10 Radiated Emission (below 1GHz)............................................................................................... 10 APPENDIX 3: Test instruments ........................................................................................... 12 Test report No. : 27CE0103-HO-A-1 Page : 3 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Receiver) Model No. : 13BZS Serial No. : No.1 Rating : DC5.0V Country of Manufacture : Japan Receipt Date of Sample : October 27, 2006 Condition of EUT : Production model Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: 13BZS (referred to as the EUT in this report) is the Remote Keyless Entry System (Receiver). Equipment Type : Receiver Receiving frequency : 314.35MHz Local oscillator frequency : 40.63125MHz * 8 = 325.05MHz Intermediate Frequency : 10.7MHz ITU code : A1D Type of Receiving system : Super Heterodyne Antenna Type : Built-in type (Fixed) * FCC 15.111 (b) The receiving antenna is installed inside the EUT and cannot be removed. Therefore, the EUT complies with the requirement in section 15.111 (b). Test report No. : 27CE0103-HO-A-1 Page : 4 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin *0) Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Except for Class A N/A N/A N/A *1) Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Except for Class A N/A 13.1dB 325.013MHz, Vert., QP Complied *Note: UL Apex’s EMI Work Procedure QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *1) The test was not performed since the EUT does not have AC power port. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications, FCC Part15 Subpart B 2006. 3.4 Uncertainty Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Loop antenna is ±4.41dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.59dB(3m). The measurement uncertainty (with a 95% confide…

Text truncated - open the document above for the full version.

Test report No. : 27CE0103-HO-A-1 Page : 8 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 27CE0103-HO-A-1 Page : 9 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal : Y-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis

Test report No. : 27CE0103-HO-A-1 Page : 10 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Data of EMI test Radiated Emission (below 1GHz) DATA OF RADIATED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2006/11/11 11:35:16 Company : DENSO CORPORATIONReport No.:27CE0103-HO Kind of EUT : Remote Keyless Entry System (Receiver) Power:DC 13.2V Model No.: 13BZS Temp./Humi.:25deg.C. / 57% Serial No.: No.1 Operator:Mitsuru Fujimura Mode / Remarks : Rx 314.35MHz Hori(Y-axis) Vert(Y-axis) LIMIT : FCC Part15 Sub part B (3m)/USA, below1GHz:QP Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE：-30MHz LOOP,30-300MHz BICONICAL,300MHz-1000MHz LOGPERIODIC,1000MHz- HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30M 1G 50M 70M 100M200M300M500M700M 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DET FactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 40.630 25.5 QP 13.9-24.914.576284Hori.40.025.5 40.630 28.8 QP 13.9-24.917.8325100Vert.40.022.2 314.350 22.5 QP 15.0-22.215.3245100Vert.46.030.7 314.350 22.6 QP 15.0-22.215.4359100Hori.46.030.6 325.013 39.6 QP 15.4-22.132.9246100Vert.46.013.1 325.022 39.4 QP 15.4-22.132.7166212Hori.46.013.3 365.681 25.5 QP 16.8-21.920.4246100Vert.46.025.6 365.681 25.4 QP 16.8-21.920.3166212Hori.46.025.7 Test report No. : 27CE0103-HO-A-1 Page : 11 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Radiated Emission (above 1GHz) DATA OF RADIATED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2006/11/11 15:08:55 Company : DENSO CORPORATION Report No.:27CE0103-HO Kind of EUT: Remote Keyless Entry System (Receiver) Power:DC 13.2V Model No.: 13BZS Temp./Humi.:25deg.C. / 57% Serial No.: No.1 Operator:Mitsuru Fujimura Mode / Remarks : Rx 314.35MHz Hori(Y-axis) Vert(Y-axis) LIMIT : FCC Part15 Subpart B (3m)/USA, above1GHz:PK FCC Part15 Subpart B (3m)/USA, above1GHz:AV CHART:WITH FACTOR ANT TYPE：-30MHz LOOP,30-300MHz BICONICAL,300MHz-1000MHz LOGPERIODIC,1000MHz- HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 1G 2G 0 10 20 30 40 50 60 70 80 90 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DET FactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz] [dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 1197.00031.6 AV 25.9-33.224.31100Vert.53.929.6 1197.00042.6 PK 25.9-33.235.31100Vert.73.938.6 1257.40041.9 PK 25.9-32.934.91100Hori.73.939.0 1257.40031.7 AV 25.9-32.924.71100Vert.53.929.2 1257.40043.7 PK 25.9-32.936.71100Vert.73.937.2 1257.40031.7 AV 25.9-32.924.71100Hori.53.929.2 1300.20041.2 PK 25.9-32.834.31100Vert.73.939.6 1300.20031.9 AV 25.9-32.825.01100Vert.53.928.9 1300.20042.3 PK 25.9-32.835.41100Hori.73.938.6 1300.20031.7 AV 25.9-32.824.81100Hori.53.929.1 1571.25042.7 PK 26.5-32.037.21100Vert.73.936.7 1571.25031.2 AV 26.5-32.025.71100Vert.53.928.2 1571.75042.1 PK 26.5-32.036.61100Hori.73.937.3 1571.75031.1 AV 26.5-32.025.61100Hori.53.928.3 Test report No. : 27CE0103-HO-A-1 Page : 12 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 3: Test instruments Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MAEC-03 Anechoic Chamber TDK Semi Anechoic Chamber 3m RE 2006/03/03 * 12 MOS-12 Thermo- Hygrometer Custom CTH-180 RE 2006/01/19 * 24 MSA-04 Spectrum Analyzer Agilent E4448A RE 2006/06/02 * 12 MDPS-05 DC Power Supply KENWOOD TMI PW8-3ATP RE Pre Check MCB-03 Car Battery YUASA 40B19L RE Pre Check MBA-03 Biconical Antenna Schwarzbeck BBA9106 RE 2006/01/29 * 12 MLA-03 Logperiodic Antenna Schwarzbeck USLP9143 RE 2006/01/29 * 12 MCC-51 Coaxial cable UL Apex - RE 2006/03/11 * 12 MAT-30 Attenuator(6dB) TME UFA-01 RE 2006/03/11 * 12 MPA-13 Pre Amplifier SONOA INSTRUMENT 310 RE 2006/03/25 * 12 MHA-20 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D RE 2006/04/06 * 12 MCC-56 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 RE 2006/04/15 * 12 MPA-11 MicroWave System Amplifier Agilent 83017A RE 2006/03/27 * 12 MSTW-14 EMI measurement program TSJ TEPTO-DV RE 2006/06/19 * 60 MJM-07 Measure PROMART SEN1955 RE - The expiration date of the calibration is the end of the expired month. All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item： RE: Radiated emission

Test report No. : 27CE0103-HO-A-1 Page : 8 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 27CE0103-HO-A-1 Page : 9 of 12 Issued date : November 21, 2006 Revised date : November 30, 2006 FCC ID : HYQ13BZS UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal : Y-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis
