HYQ13CZDRemote Keyless Entry System - Receiver

Product Description This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter sends a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. <For vehicles sold in U.S.A.> NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

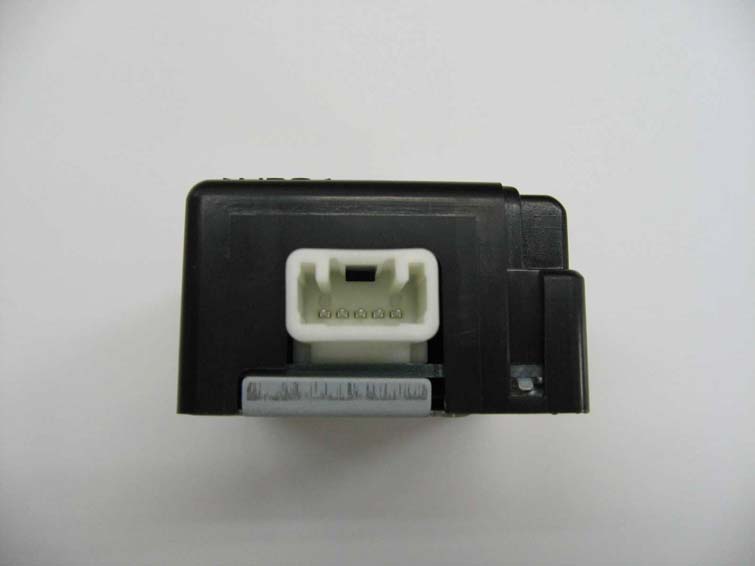

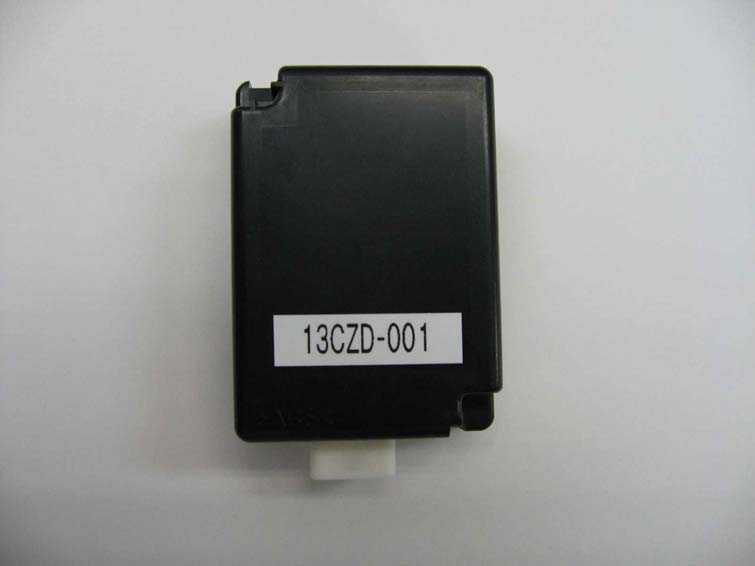

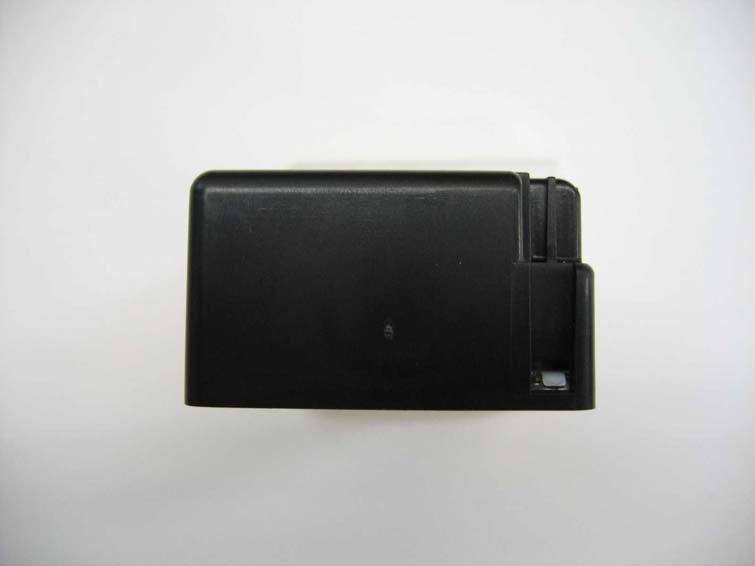

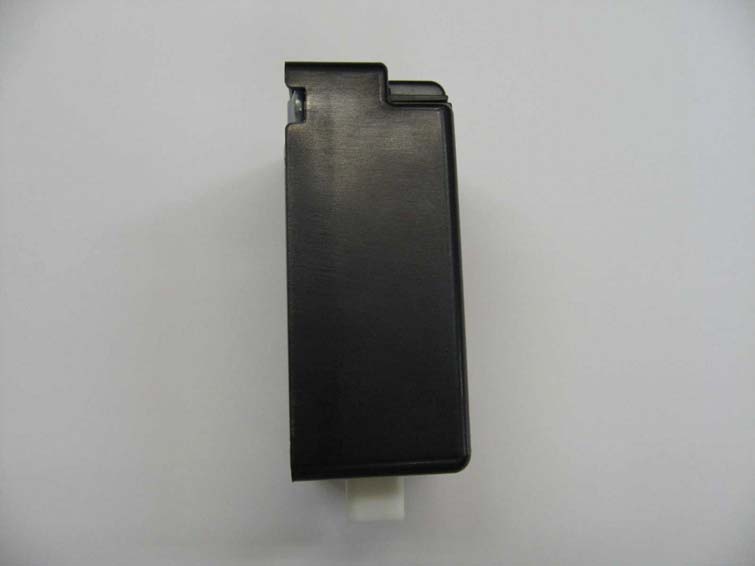

External Photo DENSO CORPORATION Remote Keyless Entry System (Receiver)[Model: 13CZD] FCC ID: HYQ13CZD Front Rear External Photo DENSO CORPORATION Remote Keyless Entry System (Receiver)[Model: 13CZD] FCC ID: HYQ13CZD Top Bottom External Photo DENSO CORPORATION Remote Keyless Entry System (Receiver)[Model: 13CZD] FCC ID: HYQ13CZD Right Left

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZD Internal Photos Component Side Solder Side

Test report No. : 28BE0010-HO-A Page : 2 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) CONTENTS PAGE SECTION 1 : Client information 3 SECTION 2 : Equipment under test (E.U.T.) 3 SECTION 3 : Test specification, procedures and results 4 SECTION 4 : Operation of E.U.T. during testing 6 SECTION 5 : Radiated emission 7 Contents of Appendixes 8 APPENDIX 1: Photographs of test setup 9 APPENDIX 2: Data of EMI test 11 APPENDIX 3: Test instruments 15 Test report No. : 28BE0010-HO-A Page : 3 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Receiver) Model No. : 13CZD Serial No. : 13CZD-001 Rating : DC5V (Normal supply voltage) Country of Manufacture : Japan Receipt Date of Sample : September 18, 2007 Condition of EUT : Engineering prototype (Not for sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: 13CZD (referred to as the EUT in this report) is a Remote Keyless Entry System (Receiver). Equipment type : Receiver Frequency of operation : 314.35MHz Oscillator frequency : 39.28125MHz (Crystal) Type of demodulation : FSK Type of receiving system : Super-heterodyne Antenna type : Built-in FCC15.111(b ) The receiving antenna (of this EUT) is installed inside the EUT and cannot be removed. Therefore, this EUT complies with the requirement in section 15.111(b). Test report No. : 28BE0010-HO-A Page : 4 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) SECTION 3: Test specification, procedures and results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements CISPR Pub.22 N/A *1 N/A N/A Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements FCC§15.109 (a) N/A 17.5dB (942.75MHz, Horizontal, QP) Complied Antenna power conduction for receivers ANSI C63.4: 2003 12.1.5 Antenna-conducted power measurements FCC §15.111(a) N/A *2 N/A N/A Note: UL Japan’s EMI Work Procedures No. QPM05 *1) The test is not applicable to the EUT since the EUT has no AC mains. *2) The test is not applicable to the EUT since the EUT does not have antenna port. 3.3 Addition from standards No addition, exclusion or deviation has been made from the standards. 3.4 Confirmation UL Japan, Inc. hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart B: 2007. 3.5 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 open site No.2 open site No.1 anechoic chamber Radiated emission (3m) 30-300MHz 4.5 dB 4.4 dB 4.5 dB 300-1000MHz 4.3 dB 4.3 dB 4.3 dB 1GHz< 5.7 dB 5.7 dB 5.7 dB Radiated Emission Test The data listed in this test report has enough margin, more than site margin. Test report No. : 28BE0010-HO-A Page : 5 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) 3.6 Test location UL Japan, Inc. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken 258-0124 JAPAN Telephone number : +81 465 77 1011 Facsimile number : +81 465 77 2112 NVLAP Lab. code : 200441-0 No. 1 test site has been fully described in a report submitted to FCC office, and accepted on August 26, 2005 (Registration No.: 95486). IC Registration No. : 2973B-1 No. 2 test site has been fully described in a report submitted to FCC office, and accepted on April 4, 2005 (Registration No.: 466226). IC Registration No. : 2973B-3 No. 1 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on November 2, 2005 (Registration No.: 95967). IC Registration No. : 2973B-2 Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 shielded room 8.0 x 5.0 x 2.5 10.0 x 7.5 x 5.7 No.2 shielded room 5.0 x 4.0 x 2.5 No.1 Semi-anechoic chamber No.3 shielded room 4.0 x 5.0 x 2.7 Open test site Maximum measurement distance No.1 open test site 30m No.2 open test site 10m 3.7 Test Setup, Data of EMI & Test instruments Refer to Appendix 1 to 3. Test report No. : 28BE0010-HO-A Page : 6 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) SECTION 4: Operation of E.U.T. during testing 4.1 Operating modes The EUT exercise program used during testing was designed to exercise the various system components in a manner similar to typical use. Operation: Receiving Justification: The system was configured in typical fashion (as a customer would normally use it) for testing. 4.2 Configuration of Tested System Front View Top View * Test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model number Serial number Manufacturer FCC ID (Remarks) A Remote Keyless Entry System (Receiver) 13CZD 13CZD-001 DENSO HYQ13CZD (EUT) B Checker …

Text truncated - open the document above for the full version.

DATA OF RADIATION TEST UL Japan, Inc. YAMAKITA No.2 OPEN TEST SITE Report No.: 28BE0010-HO Applicant : DENSO CORPORATION Kind of Equipment : Remote Keyless Entry System Model No. : 13CZD Serial No. : 13CZD-001 Power : DC 5V Mode : Receiving Remarks : - Date : 9/18/2007 Test Distance : 3 m Temperature : 27 °C Engineer : Tatsuya Arai Humidity : 61 ％ Regulation : FCC Part15B §15.109(a) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 39.28 BB 21.4 24.8 14.0 28.1 1.3 6.0 14.6 18.0 40.0 25.4 22.0 2. 78.56 BB 23.6 23.5 6.4 27.9 1.8 6.0 9.9 9.8 40.0 30.1 30.2 3. 117.84 BB 21.5 22.0 12.3 27.9 2.2 6.0 14.1 14.6 43.5 29.4 28.9 4. 314.25 BB 21.8 21.5 15.7 27.4 3.9 6.0 20.0 19.7 46.0 26.0 26.3 5. 628.50 BB 20.8 20.9 20.2 28.9 5.6 6.0 23.7 23.8 46.0 22.3 22.2 6. 942.75 BB 20.8 20.7 23.2 28.6 7.1 6.0 28.5 28.4 46.0 17.5 17.6 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KBA-04(BBA9106)30-299.99MHz/KLA-02(USLP9143)300-1000MHz ■AMP:KAF-03(8447D) ■RECEIVER:KTR-04(ESVS10) ■CABLE:KCC-20/21/22/23/29 Page: DATA OF RADIATION TEST UL Japan, Inc. YAMAKITA No.2 OPEN TEST SITE Report No.: 28BE0010-HO Applicant : DENSO CORPORATION Kind of Equipment : Remote Keyless Entry System Model No. : 13CZD Serial No. : 13CZD-001 Power : DC 5V Mode : Receiving Remarks : - Date : 9/18/2007 Test Distance : 3 m Temperature : 27 °C Engineer : Tatsuya Arai Humidity : 61 ％ Regulation : FCC Part15B §15.109(a) Emission Level [dBμV/m] Frequency [MHz] □Horizontal×Vertical 0 10 20 30 40 50 60 70 30 100 500 1000 Page: DATA OF RADIATION TEST UL Japan, Inc. YAMAKITA No.2 OPEN TEST SITE Report No.: 28BE0010-HO Applicant : DENSO CORPORATION Kind of Equipment : Remote Keyless Entry System Model No. : 13CZD Serial No. : 13CZD-001 Power : DC 5V Mode : Receiving Remarks : AV (RBW: 1MHz, VBW: 10Hz) Date : 9/18/2007 Test Distance : 3 m Temperature : 27 °C Engineer : Tatsuya Arai Humidity : 61 ％ Regulation : FCC Part15B §15.109(a) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 1257.00 BB 31.6 31.5 25.3 36.2 3.3 0.0 24.0 23.9 54.0 30.0 30.1 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KBA-04(BBA9106)30-299.99MHz/KLA-02(USLP9143)300-1000MHz ■AMP:KAF-03(8447D) ■RECEIVER:KTR-04(ESVS10) ■CABLE:KCC-20/21/22/23/29 Page: DATA OF RADIATION TEST UL Japan, Inc. YAMAKITA No.2 OPEN TEST SITE Report No.: 28BE0010-HO Applicant : DENSO CORPORATION Kind of Equipment : Remote Keyless Entry System Model No. : 13CZD Serial No. : 13CZD-001 Power : DC 5V Mode : Receiving Remarks : PK (RBW: 1MHz, VBW: 1MHz) Date : 9/18/2007 Test Distance : 3 m Temperature : 27 °C Engineer : Tatsuya Arai Humidity : 61 ％ Regulation : FCC Part15B CLASS B(PK) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 1257.00 BB 43.3 43.1 25.3 36.2 3.3 0.0 35.7 35.5 74.0 38.3 38.5 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KBA-04(BBA9106)30-299.99MHz/KLA-02(USLP9143)300-1000MHz ■AMP:KAF-03(8447D) ■RECEIVER:KTR-04(ESVS10) ■CABLE:KCC-20/21/22/23/29 Page: UL Japan, Inc. Page : Test Report No：28BE0010-HO APPENDIX 3 Test Instruments EMI test equipment Control No.InstrumentManufacturerModel NoTest ItemCalibration Date * Interval(month) YA-RERadiated emission(software) UL JapanRE(Ver.1.5)RE - KAF-03Pre AmplifierHewlett Packard8447DRE 2006/09/26 * 12 KAT6-04AttenuatorINMET18N-6dBRE 2007/03/28 * 12 KBA-04Biconical AntennaSchwarzbeckVHA9103/BBA9106RE 2007/06/15 * 12 KCC-20/21/22 /23/29/KRM-0 2 Coaxial Cable/RF Relay Matrix Fujikura/Suhner/TSJ8D-2W/12D-SFA/S042 72B/S04272B/RFM-E3 21 RE 2006/09/22 * 12 KLA-02Logperiodic AntennaSchwarzbeckUSLP9143RE 2007/07/27 * 12 KOTS-02Open Test SiteJSE10mRE 2007/08/05 * 12 KOS-06Humidity IndicatorCustomCTH-190RE 2006/07/14 * 24 KSA-02Spectrum AnalyzerAdvantestR3265ARE 2006/12/02 * 12 KTR-04Test ReceiverRohde & SchwarzESVS10RE 2006/10/26 * 12 KJM-04MeasureTAJIMAGL19-55RE - KAF-04Pre AmplifierAgilent8449BRE 2007/04/24 * 12 KCC-D14/D15Coaxial cableSuhnerSUCOFLEX 104RE 2006/12/13 * 12 KHA-02Horn AntennaSchwarzbeckBBHA9120DRE 2007/04/14 * 12 The expiration date of the calibration is the end of the expired month . All equipment is calibrated with traceable calibrations . Each calibration is traceable to the national or international standards. Test Item： RE: Radiated emission,

Test report No. : 28BE0010-HO-A Page : 9 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) Radiated emission Test report No. : 28BE0010-HO-A Page : 10 of 15 Issued date : October 5, 2007 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (18.06.07) Pre-check of the worst position X-axis Y-axis Z-axis
