HYQ13CZWRemote Keyless Entry System (Receiver)

Manual Requirement of FCC / IC Our product (13CZW) is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. FCC WARNING: Changes or modifications not expressly approved by the party responsible fo r compliance could void the user’s authority to operate the equipment. 1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-GEN, following statement will be included in the user’s manual. NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Request for Confidentiality Date: April 5, 2010 Underwriters Laboratories, Inc. 333 Pfingsten Rd. Northbrook, IL 60062 USA RE: Certification Application FCC ID: HYQ13CZW Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Block Diagram Schematics Theory of Operation Parts List The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kazuo Sakakibara Senior Manager Engineering Administration Department

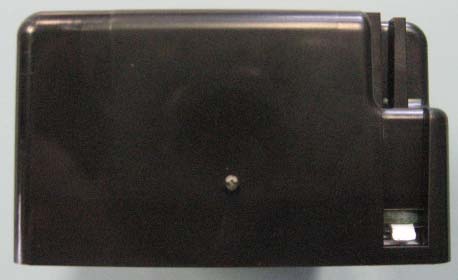

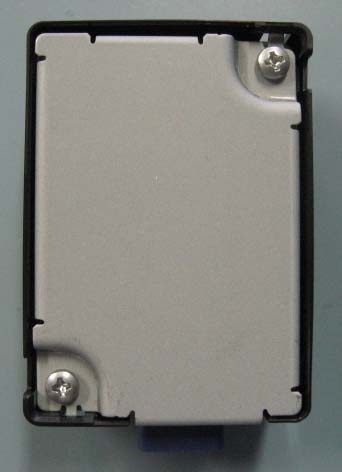

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW External Photos (5 pin type) Front Rear DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW External Photos (5 pin type) Top Bottom DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW External Photos (5 pin type) Right Left

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW External Photos (12 pin type) Front Rear DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW External Photos (12 pin type) Top Bottom DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW External Photos (12 pin type) Right Left

8. Marking location and layout (37) (47.2) Scale: free Fig. Marking location and layout of Receiver Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed.

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW Internal Photos (5 pin type) Component Side Antenna DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW Internal Photos (5 pin type) Solder Side

DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW Internal Photos (12 pin type) Component Side Antenna DENSO CORPORATION Remote Keyless Entry System (Receiver) FCC ID: HYQ13CZW IC Number: 1551A-13CZW Internal Photos (12 pin type) Solder Side

Test report No. : 30HE0225-HO-01-A Page : 2 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 6 SECTION 5: Radiated Emission ............................................................................................ 7 APPENDIX 1: Photographs of test setup............................................................................... 8 Radiated Emission ......................................................................................................................... 8 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ....................................................... 9 APPENDIX 2: Data of EMI test ........................................................................................... 10 Radiated Emission ....................................................................................................................... 10 APPENDIX 3: Test instruments ........................................................................................... 14 Test report No. : 30HE0225-HO-01-A Page : 3 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-5214 Facsimile Number : +81-566-25-4837 Contact Person : Jun Namizaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry System (Receiver) Model No. : 13CZW Serial No. : Refer to Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : April 23, 2010 Country of Mass-production : Japan and America Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification Frequency of Operation : 312.10MHz / 314.35MHz Oscillator Frequency : 25.2MHz (Crystal) Local Oscillator Frequency : 301.20MHz / 303.45MHz Type of modulation : FSK (F1D) Type of receiver : Super-heterodyne Intermediate frequency : 10.9MHz Operating voltage (inner) : DC 5.0V Antenna type : Built-in <Variant model> This EUT (12pin connector type) has a variant model. The variant model is 5pin connector type. (The difference between EUT and a variant model is connector only.) The test was performed with EUT (12pin connector type) as a representative since there had been no difference in the pre-check result between EUT and a variant model. FCC15.111(b ) The receiving antenna (of this EUT) is installed inside the EUT and cannot be removed (permanently attached). Therefore, Radiated emission test was performed. Test report No. : 30HE0225-HO-01-A Page : 4 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Conducted emission IC: RSS-Gen 7.2.2 Receiver N/A N/A *1) N/A FCC: ANSI C63.4: 2003 8. Radiated emission measurements Radiated emission IC: RSS-Gen 4.10 Receiver N/A 18.2dB (910.350MHz/ QP/ Vertical and Horizontal/ Receiving (Rx) mode, 314.35MHz) Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. 3.3 Addition to standard Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Radiated emission Radiated emission (10m*)(+dB) (3m*)(+dB) (1m*)(+dB) Test room (semi- anechoic chamber) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 2.7dB 4.8dB 5.0dB 2.9dB 4.8dB 5.0dB 3.9dB 4.5dB 4.4dB No.2 - - - 3.5dB 4.8dB 5.1dB 4.0dB 4.3dB 4.2dB No.3 - - - 3.8dB 4.6dB 4.7dB 4.0dB 4.5dB 4.4dB No.4 - - - 3.5dB 4.4dB 4.9dB 4.0dB 4.6dB 4.5dB *10m/3m/1m = Measurement distance Radiated emission test(3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 30HE0225-HO-01-A Page : 5 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 2973C-1 19.2 x 11.2 x 7.7m 7.0 x 6.0m No.1 Power source room No.2 semi-anechoic chamber 65…

Text truncated - open the document above for the full version.

Test report No. : 30HE0225-HO-01-A Page : 10 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission Rx 312.1MHz DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/23 Company : DENSO CORPORATION Report No. : 30HE0225-HO-01 Kind of EUT : Remote Keyless Entry System Power : DC 12V / 5V Model No. : 13CZW (Receiver) Temp./Humi. : 22deg.C. / 53% Serial No. : 12Pin No,1 Engineer : Norihisa Hashimoto Mode / Remarks : Rx 312.1MHz / Worst axis:X LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMarginFrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] 34.95222.7QP16.6-24.914.429100Hori.40.025.6 34.98522.7QP16.6-24.914.4303100Vert.40.025.6 145.65122.2QP14.8-23.513.541124Hori.43.530.0 146.55124.3QP14.8-23.515.68100Vert.43.527.9 199.64922.5QP16.8-23.016.3177151Hori.43.527.2 199.64823.6QP16.8-23.017.4235100Vert.43.526.1 301.20022.1QP16.0-22.215.9356395Hori.46.030.1 301.20022.1QP16.0-22.215.9176100Vert.46.030.1 602.40022.4QP20.0-20.621.8226100Vert.46.024.2 602.40022.3QP20.0-20.621.7221167Hori.46.024.3 903.60022.1QP23.8-18.427.5273301Hori.46.018.5 903.60022.0QP23.8-18.427.40100Vert.46.018.6 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 30HE0225-HO-01-A Page : 11 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Rx 314.35MHz DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/23 Company : DENSO CORPORATION Report No. : 30HE0225-HO-01 Kind of EUT : Remote Keyless Entry System Power : DC 12V / 5V Model No. : 13CZW (Receiver) Temp./Humi. : 22deg.C. / 53% Serial No. : 12Pin No,1 Engineer : Norihisa Hashimoto Mode / Remarks : Rx 314.35MHz / Worst axis:X LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 3010005070100200300500700 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMarginFrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] 34.80622.3QP16.6-25.013.9253186Hori.40.026.1 34.97522.7QP16.6-24.914.472106Vert.40.025.6 146.55022.4QP14.8-23.513.7192214Hori.43.529.8 146.45024.6QP14.8-23.515.926100Vert.43.527.6 199.64924.2QP16.8-23.018.0158299Hori.43.525.5 199.64923.5QP16.8-23.017.388100Vert.43.526.2 303.45022.0QP16.0-22.215.8351102Vert.46.030.2 303.45022.6QP16.0-22.216.4158145Hori.46.029.6 606.90022.4QP20.2-20.622.082100Vert.46.024.0 606.90022.3QP20.2-20.621.9294227Hori.46.024.1 910.35022.2QP24.0-18.427.8213100Vert.46.018.2 910.35022.2QP24.0-18.427.880174Hori.46.018.2 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 30HE0225-HO-01-A Page : 12 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Rx 312.1MHz DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/23 Company : DENSO CORPORATION Report No. : 30HE0225-HO-01 Kind of EUT : Remote Keyless Entry System Power : DC 12V / 5V Model No. : 13CZW (Receiver) Temp./Humi. : 22deg.C. / 53% Serial No. : 12Pin No,1 Engineer : Norihisa Hashimoto Mode / Remarks : Rx 312.1MHz / Worst axis:X LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:AV CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 10002000 0 10 20 30 40 50 60 70 80 90 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMarginFrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] 1506.00045.8PK25.3-30.940.2199100Hori.73.933.7 1506.00045.6PK25.3-30.940.0350113Vert.73.934.0 1506.00032.0AV25.3-30.926.4350113Vert.53.927.5 1506.00032.0AV25.3-30.926.4199100Hori.53.927.5 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 30HE0225-HO-01-A Page : 13 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Rx 314.35MHz DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/23 Company : DENSO CORPORATION Report…

Text truncated - open the document above for the full version.

Test report No. : 30HE0225-HO-01-A Page : 8 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 30HE0225-HO-01-A Page : 9 of 14 Issued date : May 12, 2010 FCC ID : HYQ13CZW UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
