HYQ14AABKeyless Entry Vehicle Transmitter

Locking/Unlocking the doors INSTRUCTIONS When you push the ‘Lock’ button on the transmitter, all the doors can be locked from outside the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the ‘Unlock’ button on the transmitter, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the ‘Trunk’ button on the transmitter, the car trunk lid can be opened from outside the vehicle. (If applicable) When you push the ‘Back Window’ button on the transmitter, the back window can be opened from outside the vehicle. (If applicable) When you push the ‘Panic’ button on the transmitter, alarms can be operated/unoperated from outside the vehicle. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

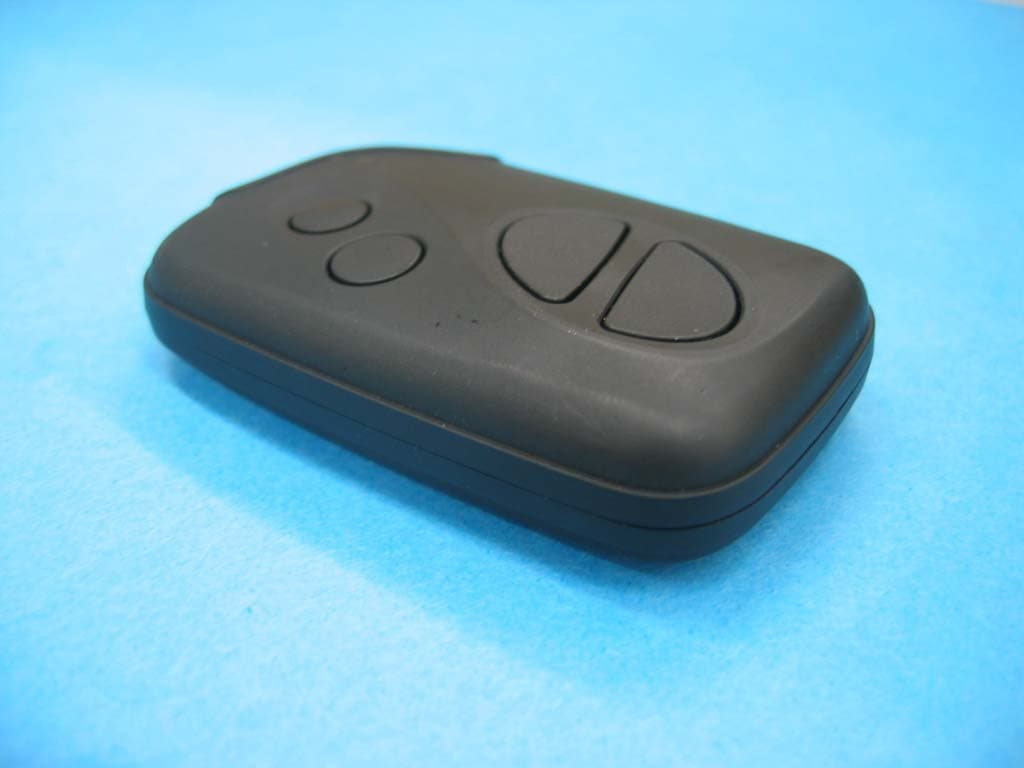

DENSO CORPORATION Electronic Key FCC ID : HYQ14AAB (External photos) Front view Rear view DENSO CORPORATION Electronic Key FCC ID : HYQ14AAB Side view Integral view

1 7. Marking location and layout Transmitter Fig. Marking location and layout of Transmitter Note : Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. Marking location FCC ID : HYQ14AAB IC : 1551A-14AAB DENSO

DENSO CORPORATION Electronic Key FCC ID : HYQ14AAB (Internal photos) Comp side Sold side

Test report No. : 24IE0247-HO-1 Page : 2 of 17 Issued date : May 20, 2004 FCC ID : HYQ14AAB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 7 APPENDIX 1: Photographs of test setup........................................................................................ 8 Radiated emission(Worst case position)............................................................................................................8 Worst Case Position (Horizontal : X-axis/ Vertical: Y-axis) ...........................................................................9 APPENDIX 2:Test Instruments...................................................................................................... 10 APPENDIX 3: Data of EMI test ..................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental ) .....................................................................11 Radiated Emission (Electric Field Strength of Spurious Emission) ............................................................12 Test report No. : 24IE0247-HO-1 Page : 3 of 17 Issued date : May 20, 2004 FCC ID : HYQ14AAB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho Kariya-shi Aichi-ken 448-8661, Japan Telephone Number : +81-566-61-7934 Facsimile Number : +81-566-25-4915 Contact Person : Mitsugi Ohtsuka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14AAB Serial No. : 001 (Normal) 002 (Continuous) Country of Manufacture : JAPAN Receipt Date of Sample : April 29, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description DENSO CORPORATION., Model No: 14AAB is the Electronic Key. The clock frequency of EUT is 4MHz. The specification is as following; Carrier frequency : 314.35MHz Type of Modulation : AM Antenna Type : Printed Pattern Antenna Emission designation : A1D FCC 15.31 (e) complies with the power supply:3VDC (one lithium battery). FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 24IE0247-HO-1 Page : 4 of 17 Issued date : May 20, 2004 FCC ID : HYQ14AAB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C :2003 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz Section 15.209 Radiated emission limits, general requirements 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate ANSI C63.4:2003 Section 15.231(a)(1) N/A - Complied 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 Section 15.231(b) N/A 14.5dB 314.35MHz Horizontal Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 Section 15.205 Section 15.209 Section 15.231(b) N/A 8.1dB 943.02MHz Horizontal Complied 4 -20dB Bandwidth ANSI C63.4:2003 Section 15.231(c) N/A - Complied Note: UL Apex’s EMI Work procedures No. QPM05 3.3 Addition to standards No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 99 ％ Occupied Band Width RSS-210(issue 5): 2001 + Amendment:2002 + Amendment2:2003 + Amendment3:2004 RSS-210(issue 5): 2001 + Amendment:2002 + Amendment2:2003 + Amendment3:2004 Conducted N/A N/A N/A 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart C : 2003 Section 15.209, Section 15.231. 3.5 Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is + 4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is + 5.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn Antenna is + 6.6dB. The data listed in this test report has enough margin. Test report No. : 24IE0247-HO-1 Page : 5 of 17 Issued date : May 20, 2004 FCC ID : HYQ14AAB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) 3.6 Test Location UL Apex Co., Ltd. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Listed date (for NVLAP) FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber February 01, 2002 313583 IC4247 19.2 x 11.2 x 7.7m 7.0 x 6.0m Prepa…

Text truncated - open the document above for the full version.

Test report No. : 24IE0247-HO-1 Page : 8 of 17 Issued date : May 20, 2004 FCC ID : HYQ14AAB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated emission(Worst case position) Front Rear Test report No. : 24IE0247-HO-1 Page : 9 of 17 Issued date : May 20, 2004 FCC ID : HYQ14AAB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal : X-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis
