HYQ14AAFVehicle Door Lock Portable Transmitter

Locking/Unlocking the doors INSTRUCTIONS When you push the ‘Lock’ button on the transmitter, all the doors can be locked from outside the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the ‘Unlock’ button on the transmitter once, the driver side door can be unlocked, and when you push the ‘Unlock’ button twice, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the ‘Panic’ button on the transmitter, alarms can be operated/unoperated from outside the vehicle. (If applicable) When you push the ‘Trunk’ button on the transmitter, the car trunk lid can be opened from outside the vehicle. (If applicable) When you push the ‘Back Window’ button on the transmitter, the back window can be opened from outside the vehicle. (If applicable) When you push the ‘Back Door’ button on the transmitter, the back door can be opened or closed from outside the vehicle. (If applicable) When you push the ‘Right slide door’ button on the transmitter, the right slide door can be opened or closed from outside the vehicle. (If applicable) When you push the ‘Left slide door’ button on the transmitter, the left slide door can be opened or closed from outside the vehicle. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

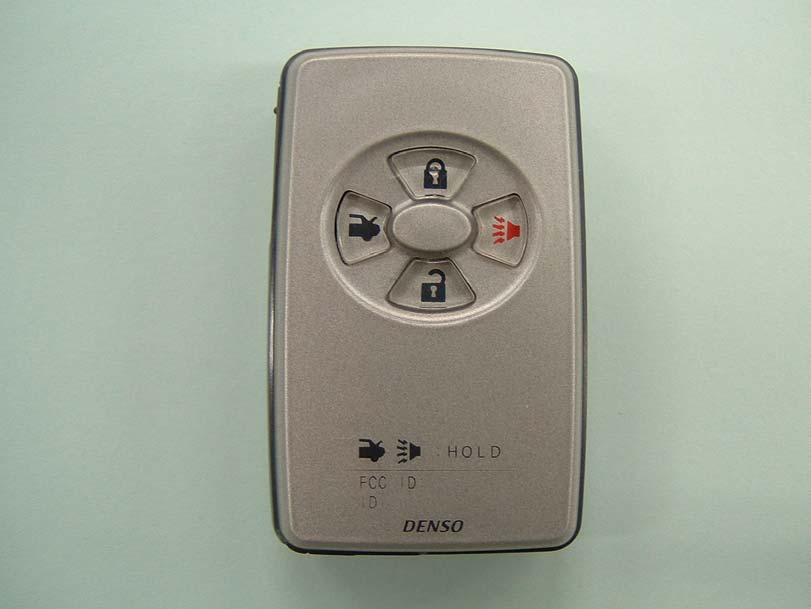

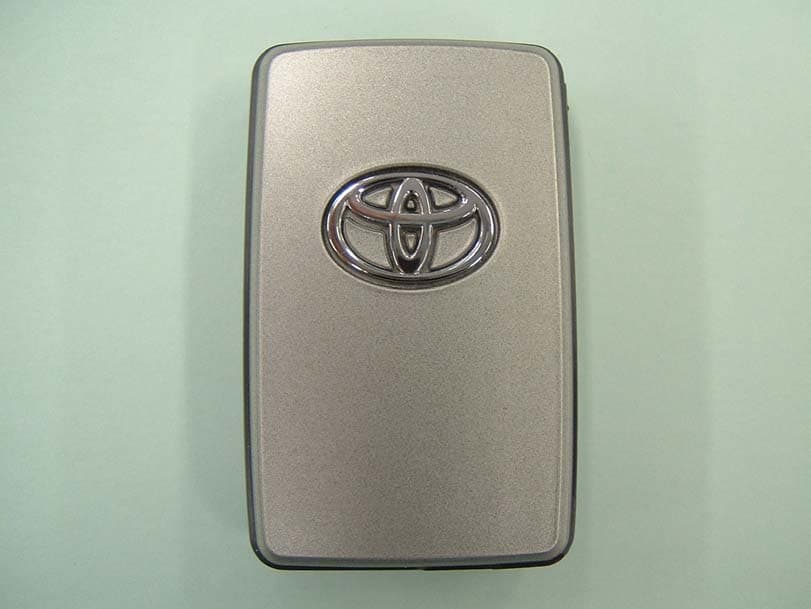

External Photo Electronic Key FCC ID : HYQ14AAF DENSO CORPORATION Front view Rear view External Photo Electronic Key FCC ID : HYQ14AAF DENSO CORPORATION Bottom view Side view

7. Marking location and layout Transmitter (56) (35.2) Marking location Fig. Marking location and layout of Transmitter Note : Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed.

Internal Photo Electronic Key FCC ID : HYQ14AAF DENSO CORPORATION Solid Side Comp Side

Test report No. : 24KE0233-HO-1 Page : 2 of 15 Issued date : July 14, 2004 Revised date : July 23, 2004 FCC ID : HYQ14AAF UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information.................................................................................................3 SECTION 2: Equipment under test (E.U.T.)..............................................................................3 SECTION 3: Test specification, procedures & results...............................................................4 SECTION 4: Operation of E.U.T. during testing.......................................................................6 SECTION 5: Radiated emission (Fundamental and Spurious Emission)..................................7 APPENDIX 1: Photographs of test setup....................................................................................8 Radiated emission.................................................................................................................................8 X, Y, Z axis............................................................................................................................................9 APPENDIX 2:Test Instruments..................................................................................................10 APPENDIX 3: Data of EMI test..................................................................................................11 Radiated emission...............................................................................................................................11 -20dB Bandwidth and Automatically deactivate.............................................................................14 APPENDIX 4:Detail of Transmitting mode: Duty cycle............................................................15 Test report No. : 24KE0233-HO-1 Page : 3 of 15 Issued date : July 14, 2004 FCC ID : HYQ14AAF UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-city, Aichi-prefecture, 448-8661, Japan Telephone Number : +81-566-61-7934 Facsimile Number : +81-566-25-4915 Contact Person : Mitsugi Ohtsuka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14AAF Serial No. : No.1 Rating : DC3V Country of Manufacture : Japan Receipt Date of Sample : July 2, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: 14AAF(referred to as the EUT in this report) is an Electronic Key. The specification is as following; Carrier frequency : 314.35MHz Local Frequency : 314.35MHz SAW resonator, 1MHz CR Oscillator Circuit Type of Modulation : A1D Information Antenna : Built-in type (Fixed) FCC 15.31 (e) complies with the power supply:3VDC (one lithium battery). *FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 24KE0233-HO-1 Page : 4 of 15 Issued date : July 14, 2004 Revised date : July 23, 2004 FCC ID : HYQ14AAF UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C :2004 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(a)(1) N/A - Complied 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(b) N/A 4.1dB 314.338MHz Horizontal Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.205 Section 15.209 Section 15.231(b) N/A 2.3dB 1886.030MHz Vertical Complied 4 -20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(c) N/A - Complied 5 Conducted emission AC Mains ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 N/A*1) N/A N/A Note: UL Apex’s EMI Work procedures No. QPM05 *1) The test is not applicable since the EUT is DC drive and is not connected to the public utility (AC) power line. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is + 4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is + 5.2dB The measurement uncertainty (with a 95% confidence level) for this test using Horn Antenna is +6.6dB. The data listed in this report meets the limits unless the uncertainty is taken into consideration. Test report No. : 24KE0233-HO-1 Page : 5 of 15 Issued date : July 14, 2004 FCC ID : HYQ14AAF UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) 3.4 Test Location UL Apex Co., Ltd. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Listed date (for FCC) FCC Registration Number IC Number Width x Depth x H…

Text truncated - open the document above for the full version.

Test report No. : 24KE0233-HO-1 Page : 8 of 15 Issued date : July 14, 2004 FCC ID : HYQ14AAF UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 24KE0233-HO-1 Page : 9 of 15 Issued date : July 14, 2004 FCC ID : HYQ14AAF UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) X, Y, Z axis X-axis Y-axis Z-axis
