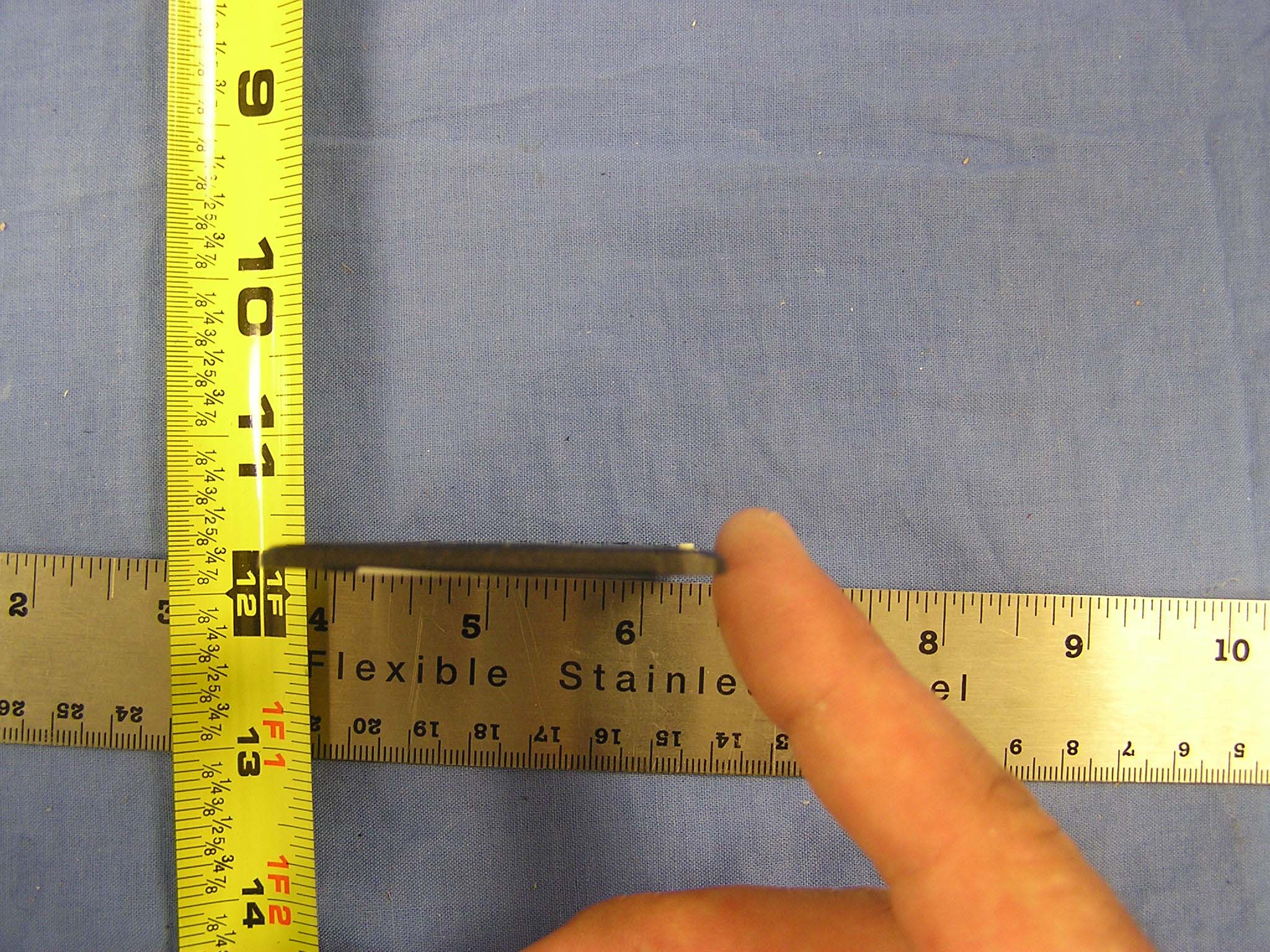

HYQ14ABBSmart Card Key

Locking/Unlocking the doors of the vehicle INSTRUCTIONS When the engine switch is off and you push the lock button on the outside door handle while carrying Smart Card Key, all doors will be locked. Make sure all the doors are locked when you leave the vehicle. When you take hold the back side of the outside door handle on the driver’s door carrying Smart Card Key, the driver’s door will be unlocked. When you take hold the back side of the outside door handle except on the driver’s door, carrying Smart Card Key, all the doors will be unlocked. When you push the trunk button on the trunk lid while carrying Smart Card Key, the trunk lid will be unlocked. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

1 Helen Zhao Subject: FW: answer: Denso Corporation, FCC ID: HYQ14ABB, Assessment NO.: AN06T5415, Notice#1 Request for confidentiality(re... 05I3889-1B FCC 15.231 Report.... Component List.pdf From: Claire Hoque Sent: Friday, January 20, 2006 11:42 AM Cc: Thu Chan; Michael Heckrotte; Kathy Yao Subject: answer: Denso Corporation, FCC ID: HYQ14ABB, Assessment NO.: AN06T5415, Notice#1 Hi Helen, Here are the answers. Question #1: The schematic in the filing does not show value of the components, instead it refers to a Component List. Please submit the Component List. <answer> pls see attached Component List. Question #2: Form 731 indicates this is a "DSC - Part 15 Remote control/Security Transmitter device", instead a "DSR - Part 15 Remote Control/Security Transceiver Device". The test report does not indicate this clearly. But the block diagram shows the device has a separate antenna to receive RF signal from vehicle. Please provide FCC ID of the transceiver that works with the device in the filing. Please also provide fundamental frequency of the RF signal received. <answer>FCC ID is NI4TMLF-4. The fundamental frequency of the RF signal received is 134.2kHz. Question #3: The block diagram shows the device has a separate antenna to receive RF signal from vehicle. The schematic shows Ant 1, Ant2, Ant3, please explain whether they are just three elements of one signal antnna or actually three antennas, if they are three antennas, then please explain which is TX antenna, which is RX antenna. <answer> Ant 1, Ant 2, Ant 3 are elements of one RX antenna. For TX antenna, since this antenna is patterned antenna, there is no part number on the schematics. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION DENSO CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: HYQ14ABB FCC ID LABEL

14ABB Antenna location 14ABB

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR SMART CARD KEY MODEL NUMBER: 14ABB FCC ID: HYQ14ABB REPORT NUMBER: 05I3889-1, Revision B ISSUE DATE: JANUARY 13, 2006 Prepared for DENSO CORP. 1-1 SHOWA-CHO, KARIYA, AICHI 448-8661, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05I3889-1B DATE: JAUNUARY 13, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 2 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 1/4/06 Initial Issue Thu B 1/13/06 Clarified that transmitter is activated automatically in accordance with 15.231 (a)(2) and changed vehicle batteries to battery in section 5.4. MH REPORT NO: 05I3889-1B DATE: JAUNUARY 13, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 3 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.4. DESCRIPTION OF TEST SETUP ................................................................................................ 6 5.5. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.6. DETAILS OF TESTED SYSTEM .................................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M%) .................................................................. 13 7.3. TRANSMITTER ACTIVATION ................................................................................................... 22 7.4. RADIATED EMISSIONS.............................................................................................................23 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 23 8. SETUP PHOTOS................................................................................................................................ 28 REPORT NO: 05I3889-1B DATE: JAUNUARY 13, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 4 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME : DENSO CORP. 1-1 SHOWA-CHO KARIYA, AICHI 448-8661, JAPAN EUT DESCRIPTION: SMART CARD KEY MODEL: 14ABB SERIAL NUMBER: 01656 DATE TESTED: JANUARY 03, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN CHIN PANG ENGINEERING SUPERVISOR EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 05I3889-1B DATE: JAUNUARY 13, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 5 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in th…

Text truncated - open the document above for the full version.

REPORT NO: 05I3889-1 DATE: JAUNUARY 04, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 28 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS PHOTO REPORT NO: 05I3889-1 DATE: JAUNUARY 04, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 29 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS PHOTO REPORT NO: 05I3889-1 DATE: JAUNUARY 04, 2006 EUT: SMART CARD KEY FCC ID: HYQ14ABB Page 30 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS PHOTO
