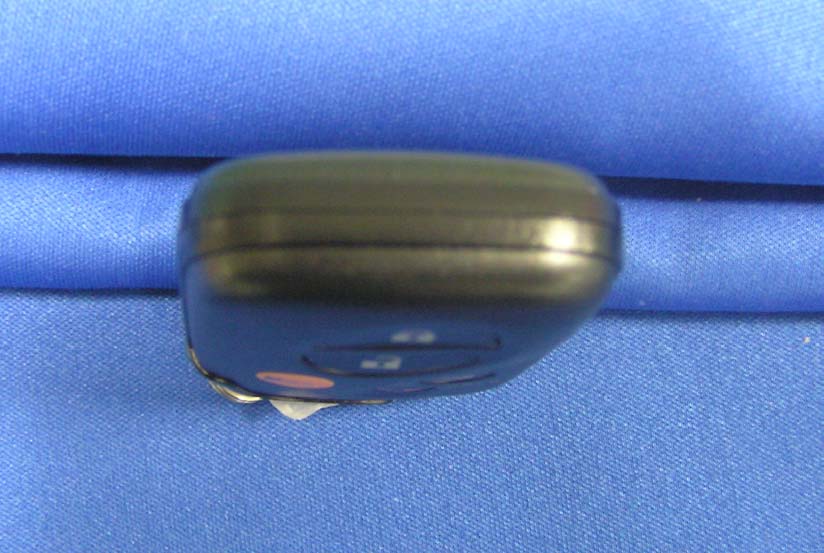

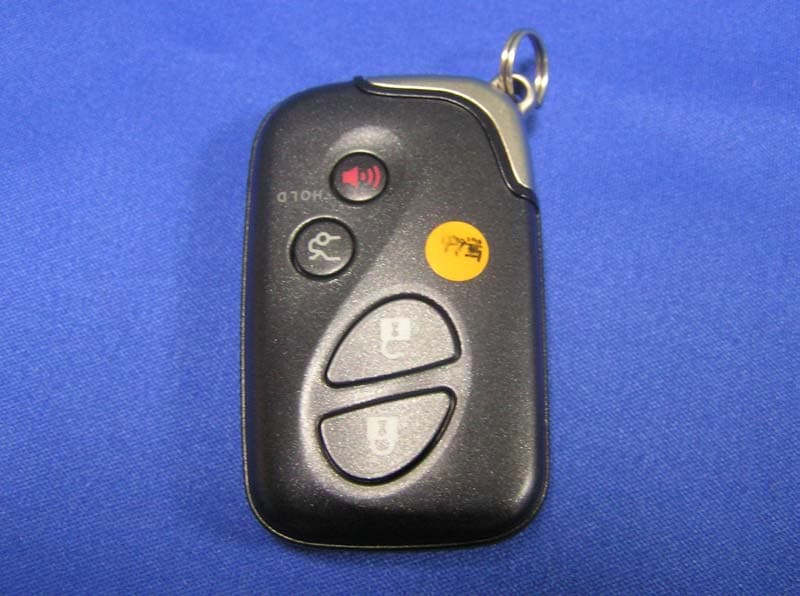

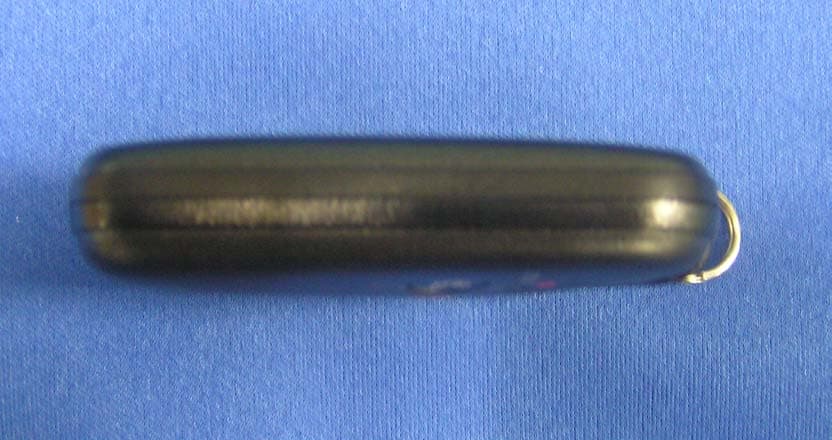

External Photo Electronic Key FCC ID : HYQ14ABK DENSO CORPORATION Front view Rear view External Photo Electronic Key FCC ID : HYQ14ABK DENSO CORPORATION Bottom view To p v i e w External Photo Electronic Key FCC ID : HYQ14ABK DENSO CORPORATION Side A view Side B view
7. Marking location and layout Transmitter FCC ID : HYQ14ABK IC : 1551A-14ABK DENSO Marking location Fig. Marking location and layout of Transmitter Note: Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed.
DENSO CORPORATION Electronic Key FCC ID : HYQ14ABK (Internal Photos) Comp Side Sold Side
Test report No. : 26DE0191-HO-1b Page : 1 of 15 Issued date : December 15, 2005 FCC ID : HYQ14ABK UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) RADIO TEST REPORT Test Report No. : 26DE0191-HO-1b Applicant : DENSO CORPORATION Type of Equipment : Electronic Key Model No. : 14ABK Test standard : FCC Part 15 Subpart C Section 15.231:2005 FCC ID : HYQ14ABK Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test : December 1, 2005 Tested by : Makoto Kosaka EMC Services Approved by : Naoki Sakamoto Group Leader of EMC Services Test report No. : 26DE0191-HO-1b Page : 2 of 15 Issued date : December 15, 2005 FCC ID : HYQ14ABK UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 7 APPENDIX 1: Photographs of test setup........................................................................................ 8 Radiated emission ........................................................................................................................................ 8 X, Y, Z axis (X-axis: Horizontal/ Z-axis: Vertical) ................................................................................... 9 APPENDIX 2:Test Instruments...................................................................................................... 10 APPENDIX 3: Data of EMI test ..................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 11 Duty Cycle .................................................................................................................................................. 12 -20dB Bandwidth ....................................................................................................................................... 13 Automatically deactivate ........................................................................................................................... 14 99% Occupied Bandwidth ........................................................................................................................ 15 Test report No. : 26DE0191-HO-1b Page : 3 of 15 Issued date : December 15, 2005 FCC ID : HYQ14ABK UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho Kariya-shi Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-7934 Facsimile Number : +81-566-25-4915 Contact person : Mitsugi Ohtsuka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14ABK Serial No. : 001 Country of Manufacture : Japan Receipt Date of Sample : November 25, 2005 Condition of EUT : Production prototype (Not for Sale: this sample is equivalent to mass-produced items.) 2.2 Product Description Model No: 14ABK is the Electronic Key. Equipment Type Transmitter Nominal frequency 312.15MHz Other clock frequency 4MHz Type of modulation AM Antenna Type Built-in (Fixed) Method of frequency Generation SAW Resonator Operating voltage (inner) DC3V (CR1632 x 1) ITU Code A1D Test report No. : 26DE0191-HO-1b Page : 4 of 15 Issued date : December 15, 2005 FCC ID : HYQ14ABK UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to this EUT during the tests. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate ANSI C63.4:2003 Section 15.231(a)(1) N/A - Complied 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 Section 15.231(b) N/A 6.1dB 312.17MHz Horizontal Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 Section 15.205 Section 15.209 Section 15.231(b) N/A 1.0dB 1872.99MHz Vertical, AV Complied 4 -20dB Bandwidth ANSI C63.4:2003 Section 15.231(c) N/A - Complied Note: UL Apexโs EMI Work procedures No. QPM05 3.3 Addition to standards No. Item Test โฆ
Text truncated - open the document above for the full version.
Test report No. : 26DE0191-HO-1 Page : 8 of 15 Issued date : December 12, 2005 FCC ID : HYQ14ABK UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 26DE0191-HO-1 Page : 9 of 15 Issued date : December 12, 2005 FCC ID : HYQ14ABK UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) X, Y, Z axis (X-axis: Horizontal/ Z-axis: Vertical) X-axis Y-axis Z-axis
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 312.15 MHz - 312.15 MHz | - |
