HYQ14ADFElectronic Key

Locking/Unlocking the doors <For vehicles sold in U.S.A.> INSTRUCTIONS When you push the ‘Lock’ button on the transmitter, all the doors can be locked from outside the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the ‘Unlock’ button on the transmitter, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the ‘Trunk’ button on the transmitter, the car trunk lid can be opened from outside the vehicle. (If applicable) When you push the ‘Power Back Door’ button on the transmitter, the back door can be opened from outside the vehicle. (If applicable) When you push the ‘Panic’ button on the transmitter, alarms can be operated/unoperated from outside the vehicle. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Request for Confidentiality February 29, 2008 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: HYQ14ADF Please be advised that the following information is to be held confidential and behalf of, DENSO CORPORATION , referring to the FCC rules 0.457 and 0.459: Block Diagram Schematics Theory of Operation Parts List The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kazuo Sakakibara Senior Manager Engineering Administration Department

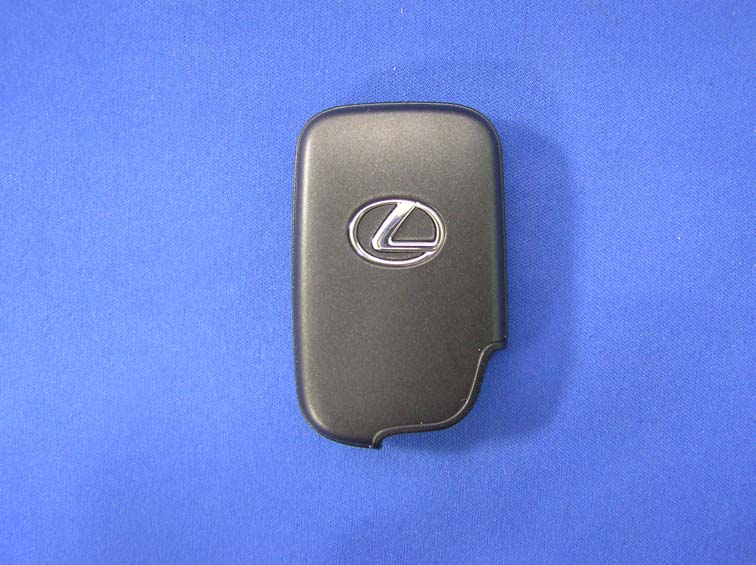

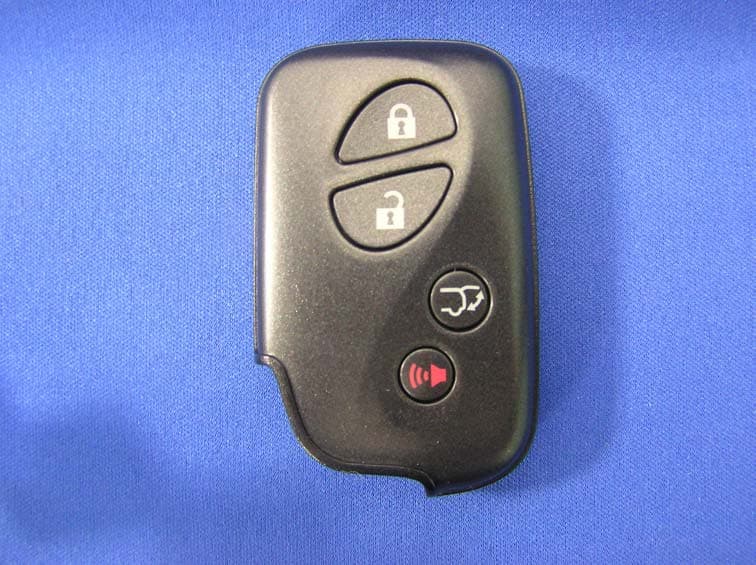

DENSO CORPORATION Electronic Key (External Photos) FCC ID: HYQ14ADF IC Number: 1551A-14ADF Top Bottom DENSO CORPORATION Electronic Key (External Photos) FCC ID: HYQ14ADF IC Number: 1551A-14ADF Top Bottom DENSO CORPORATION Electronic Key (External Photos) FCC ID: HYQ14ADF IC Number: 1551A-14ADF Right Left

Marking location and layout Transmitter Fig. Marking location and layout of Transmitter Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. Marking location FCC ID : HYQ14ADF IC : 1551A-14ADF 14ADF DENSO

DENSO CORPORATION Electronic Key FCC ID: HYQ14ADF IC: 1551A-14ADF Comp Side Sold Side (Internal Photos) (Internal Photos without battery holder) Comp Side Sold Side

Test report No. : 28FE0180-HO-A Page : 2 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...............................................................................................3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing .......................................................................... 8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 9 APPENDIX 1: Photographs of test setup ..................................................................................... 10 Radiated emission....................................................................................................................................... 10 Worst case position .................................................................................................................................... 11 APPENDIX 2: Data of EMI test .................................................................................................... 12 Automatically deactivate ........................................................................................................................... 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ....................... 13 -20dB Bandwidth........................................................................................................................................ 14 99% Occupied Bandwidth......................................................................................................................... 15 Duty Cycle(Fundamental) ......................................................................................................................... 16 APPENDIX 3: Test Instruments ...................................................................................................17 Test report No. : 28FE0180-HO-A Page : 3 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14ADF Serial No. : 1, 2 Country of Manufacture : Japan Receipt Date of Sample : February 13, 2008 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: 14ADF (referred to as the EUT in this report) is the Electronic Key. Equipment Type : Transmitter Clock frequency(ies) : CPU clock:8MHz SAW RESONATOR : 312.15MHz Frequency of Operation : 312.15MHz ± 10kHz Type of modulation : FSK Antenna Type : Built-in Type (Fixed) Operating Voltage (Inner) : DC3.0V (Battery CR1632) Test report No. : 28FE0180-HO-A Page : 4 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2008, final revised on January 30, 2008 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 28FE0180-HO-A Page : 5 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Section 15.231(a)(1) <IC> RSS-210 A1.1.1 N/A - Complied 2 Electric Field Strength of Fundamental Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.8 <FCC> Section 15.231(b) <IC> RSS-210 A1.1.2 N/A 6.0dB 312.15MHz Horizontal, QP Complied 3 Electric Field Strength of Spurious Emission <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> RSS-Gen 4.9 <FCC> Section 15.205 Section 15.209 Section 15.231(b) <IC> RSS-210 A1.1.2, 2.6, 2.7 N/A 19.1dB 624.30MHz Vertical, QP Complied 4 -20dB Bandwidth <FCC> ANSI C63.4:2003 13. Measurement of intentional radiators <IC> - <FCC> Section 15.231(c) <IC> Reference data N/A - Complied 5 Conducted emission <FCC> ANSI C63.4:2003 7. AC powerline conducted emission measurements <IC> RSS-Gen 7.2.2 <FCC> Section 15.207 <IC> RSS-Gen 7.2.2 - N/A*1) N/A *1) The test is not applicable since the EUT does not have AC Mains. 3.3 Addition to standards No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 99 ％ Occupied Band Width <IC> RSS-Gen 4.6.1 <IC> RSS-210 A1.1.3 ConductedN/A N/A N/A Test report No. : 28FE0180-HO-A Page : 6 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office …

Text truncated - open the document above for the full version.

Test report No. : 28FE0180-HO-A Page : 12 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 28FE0180-HO EQUIPMENT: Electronic Ke yREGULATION: FCC Part 15 Subpart C 15.231(a)(1) MODEL: 14ADFTEST DISTANCE: - S/N: 2DATE: 02/14/2008 POWER: DC 3.0V (CR1632)TEMPERATURE: 21 deg.C. Mode: Normal use modeHUMIDITY: 25% Axis: -ENGINEER: Kazufumi Nakai Time ofLimit Result Transmitting [sec][sec] 0.555.00Pass Test report No. : 28FE0180-HO-A Page : 13 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 28FE0180-HO EQUIPMENT: Electronic KeyREGULATION: FCC Part15 Subpart C 15.231(b) / 15.205 / 15.209 MODEL: 14ADFTEST DISTANCE: 3 m S/N: 1DATE: 02/14/2008 POWER: DC 3.0V (CR1632)TEMPERATURE: 21 deg.C. Mode: Transmitting modeHUMIDITY: 25% Axis: Hor.: X-axis , Ver.: Z-axisENGINEER: Kazufumi Nakai QP DETECT (BW 120kHz) No.FREQT/R READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 1312.1572.269.513.927.210.5-69.466.775.46.08.7 2624.3031.732.619.328.112.5-35.436.355.420.019.1 3936.4525.424.122.427.214.1-34.733.455.420.722.0 PK DETECT (RBW: 1MHz , VBW: 1MHz)(Inside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 51560.7545.145.225.236.72.4-36.036.173.937.937.8 82497.2045.344.327.136.43.0-39.038.073.934.935.9 92809.3543.243.527.736.53.1-37.537.873.936.436.1 AV (PK DETECT) (RBW: 1MHz , VBW: 10Hz)(Inside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 51560.7531.731.625.236.72.4-22.622.553.931.331.4 82497.2030.930.927.136.43.0-24.624.653.929.329.3 92809.3530.030.027.736.53.1-24.324.353.929.629.6 PK DETECT (RBW: 1MHz , VBW: 1MHz)(Outside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41248.6045.545.824.836.92.3-35.736.075.439.739.4 61872.9045.945.325.736.52.6-37.737.175.437.738.3 72185.0544.044.626.336.42.8-36.737.375.438.738.1 103121.5044.443.628.236.53.4-39.538.775.435.936.7 AV (PK DETECT) (RBW: 1MHz , VBW: 10Hz)(Outside Restricted bands) No.FREQS/A READINGANTAMPLOSSDutyRESULTLimitMARGIN HORVERFactorGAINFactorHORVERHORVER [MHz][dB/m][dB][dB][dB][dBuV/m][dB][dB] 41248.6032.232.324.836.92.3-22.422.555.433.032.9 61872.9031.631.625.736.52.6-23.423.455.432.032.0 72185.0530.830.726.336.42.8-23.523.455.431.932.0 103121.5030.230.128.236.53.4-25.325.255.430.130.2 REMARKSANTENNA TYPE:30-300MHz Biconical / 300-1000MHz Logperiodic / 1-3.2GHz Horn CALCULATION RESULT=Reading + ANT Factor - Amp Gain + LOSS (Cable+ ATTEN.)+Duty factor [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] [dBuV][dBuV/m] *In the frequency over the 4th harmonic, the noise from the EUT was not seen.The data above is its base noise. * The result is rounded off to the second decimal place, so some differences might be observed. *The limit was converted from V to dBuV, and it is rounded off to the second decimal place. *Except for the above table : All other spurious emissions were less than 20dB for the limit. The carrier level (or, noise levels) was (or were) measured at each position of all three axes X, Y and Z, and the position that has the maximum noise was determined. With the position, the noise levels of all the frequencies was measured. Test report No. : 28FE0180-HO-A Page : 14 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB Bandwidth UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 28FE0180-HO EQUIPMENT : Electronic Ke yREGULATION: FCC Part 15 Subpart C 15.231(c) MODEL: 14ADFTEST DISTANCE: 3 m S/N: 1DATE: 02/14/2008 POWER: DC 3.0V (CR1632)TEMPERATURE: 21 deg.C. Mode: Transmitting modeHUMIDITY: 25% Axis: Hor.: X-axis ENGINEER: Kazufumi Nakai Bandwidth Limit : Fundamental Frequency 312.15 MHz X 0.25% = 780.38kHz -20dB BandwidthResult [kHz] 70.14Pass Bandwidth Limit [kHz] 780.38 Test report No. : 28FE0180-HO-A Page : 15 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 99% Occupied Bandwidth UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 28FE0180-HO EQUIPMENT: Electronic Ke yREGULATION: RSS-210 A1.1.3 MODEL: 14ADFTEST DISTANCE: 3 m S/N: 1DATE: 02/14/2008 POWER: DC 3.0V (CR1632)TEMPERATURE: 21 deg.C. Mode: Transmitting modeHUMIDITY: 25% Axis: Hor.: X-axis ENGINEER: Kazufumi Nakai Bandwidth Limit : Fundamental Frequency 312.15 MHz X 0.25% = 780.38 kHz Result Pass Bandwidth Limit [kHz] 780.38 99% Occupied Bandwidth [kHz] 60.12 Test report No. : 28FE0180-HO-A Page : 16 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle(Fundamental) UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber COMPANY: DENSO CORPORATIONREPORT NO: 28FE0180-HO EQUIPMENT: Electronic KeyREGULATION: FCC 15.231(b) / 15.35(c) MODEL: 14ADFTEST D…

Text truncated - open the document above for the full version.

Test report No. : 28FE0180-HO-A Page : 10 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 28FE0180-HO-A Page : 11 of 17 Issued date : February 21, 2008 FCC ID : HYQ14ADF UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Z-axis) X-axis Y-axis Z-axis
