HYQ14AHBElectronic Key

Manual Requirement of FCC Our product (14AHB) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4546 Letter of Authorization Date: June 23, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : HYQ14AHB Applicant: DENSO CORPORATION To whom it may conern: Please be advised we authorize Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4546 Request for Confidentiality June 23, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: HYQ14AHB Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Parts List Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

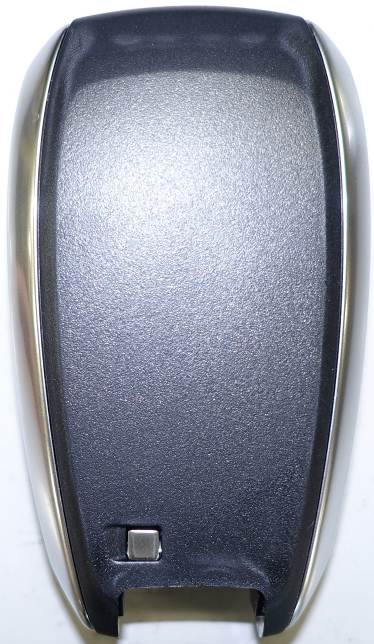

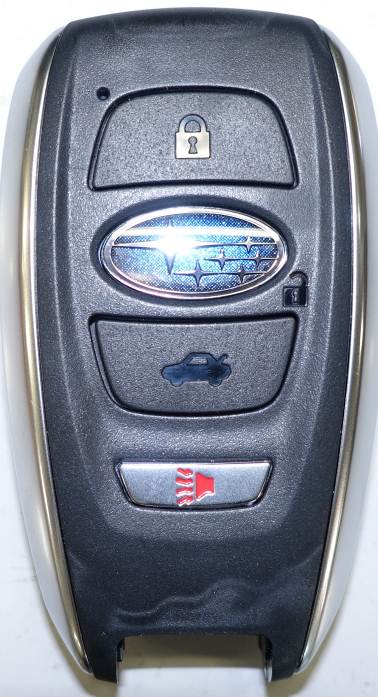

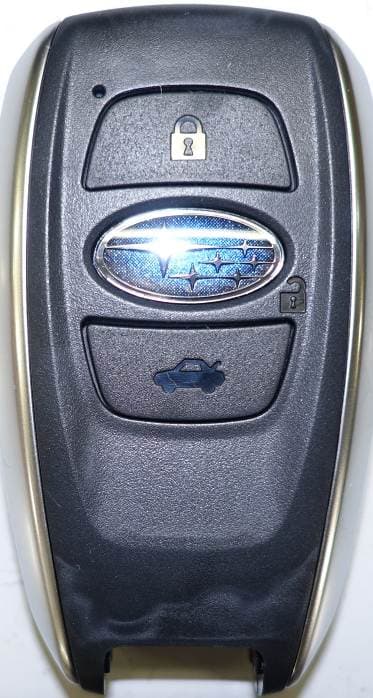

DENSO CORPORATION Electronic Key FCC ID: HYQ14AHB External Photos <Front View> 4-Button type 3-Button type <Rear View (Common)> Note: Appearance may vary, but the difference has no influence on RF performance. Mechanical Key is made by other manufacturer.

Marking location and layout Marking location Note: Marking layout, size and other indications may be changed. This device is too small to place the label requirements. FCC compliance statement will be included in the user manual, as it is not practical to place on the device according to FCC Rules § 15.19. FCC ID: HYQ14AHB

DENSO CORPORATION Electronic Key FCC ID: HYQ14AHB Internal Photos <Component Side> Antenna 4-Button type 3-Button type <Solder Side (Common)> Note: The difference in the number of switches has no influence on RF performance.

Test report No. : 10817935H Page : 2 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10817935H Revision Test report No. Date Page revisedContents - (Original) 10817935H June 22, 2015 - - Test report No. : 10817935H Page : 3 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Test data ···························································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 -20dB and 99% Occupied Bandwidth ............................................................................................... 14 APPENDIX 2: Test Instruments ················································································· 14 APPENDIX 3: Photographs of test setup ······································································· 16 Radiated emission ............................................................................................................................. 16 Worst case position ........................................................................................................................... 17 Test report No. : 10817935H Page : 4 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-5242 Facsimile Number : +81-566-25-4837 Contact Person : MASAYUKI YAMAMOTO SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14AHB Serial No. : Refer to Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : May 30, 2015 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: 14AHB (referred to as the EUT in this report) is the Electronic Key. Radio Type : Transceiver Frequency of Operation : 433.92 MHz Oscillator frequency : 8 MHz (IC Clock) 433.92 MHz SAW resonator (RF) Modulation : FSK (F1D) Power Supply (radio part input) : DC 3.0V Type of Battery : One lithium battery Antenna type : Built-in type (Fixed) Receiving frequency of Operation : 134.2kHz *1) *1) The test of receiver part was performed separately from this test report, and the conformability is confirmed. Test report No. : 10817935H Page : 5 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 8.8 IC: RSS-Gen 8.8 Automatically Deactivate FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(b) 7.4 dB Vertical, Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 6.12 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 8.4 dB 4339.200 MHz Vertical PK with Duty factor Complied Radiated IC: RSS-Gen 6.13 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 8.9 -20dB Bandwidth FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. FCC Part 15.31 (e) This test was performed with the New Battery (DC 3.0V) during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 10817935H Page : 6 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0…

Text truncated - open the document above for the full version.

Test report No. : 10817935H Page : 16 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10817935H Page : 17 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Below 1GHz Horizontal: X-axis/Vertical : Z-axis Above 1GHz Horizontal: X-axis/Vertical : Y-axis X-axis Y-axis Z-axis Test report No. : 10817935H Page : 18 of 18 Issued date : June 22, 2015 FCC ID : HYQ14AHB UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Mechanical Key (Inserted) Worst End of Report
