HYQ14CBASmart Card Key

Manual Requirement of FCC / IC Our product (14CBA) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-GEN, following statement will be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: February 21, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: DENSO CORPORATION FCC ID: HYQ14CBA To whom it may concern: We, the undersigned, hereby authorize Naoki Sakamoto of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kazuo Sakakibara General Manager Engineering Administration Department

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: HYQ14CBA To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara General Manager Engineering Administration Department January 27, 2011

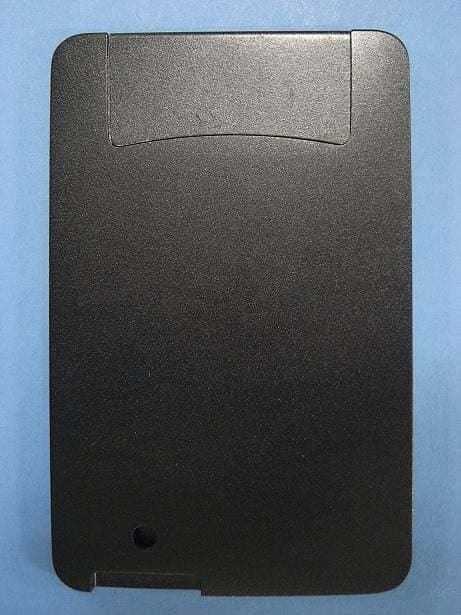

DENSO CORPORATION Smart Card Key FCC ID: HYQ14CBA IC Number: 1551A-14CBA Front External Photos Top Front Bottom Left Right Rear NOTE: Mechanical Key is made by other manufacturer .

6. Marking location and layout Fig. Marking location and layout Note: Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. FCC ID : HYQ14ABB IC : 1551A-14ABB DENSO FCC ID : HYQ14ABB IC : 1551A-14ABB DENSO Marking location FCC I D:HYQ14CBA IC:1551A-14CBA 14CBA DENSO FCC ID:HYQ14CBA IC:1551A-14CBA MODEL:14CBA DENSO - 7 -

DENSO CORPORATION Smart Card Key FCC ID: HYQ14CBA IC Number: 1551A-14CBA Internal Photos Comp. Side Solder Side

Test report No. : 31EE0217-HO-01-A-R1 Page : 2 of 24 Issued date : February 21, 2011 Revised date : March 4, 2011 FCC ID : HYQ14CBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ············································································· 3 SECTION 2: Equipment under test (E.U.T.) ··································································· 3 SECTION 3: Test specification, procedures & results ························································ 4 SECTION 4: Operation of E.U.T. during testing ······························································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ········································································ 11 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 11 APPENDIX 1: Photographs of test setup ······································································ 12 Radiated emission ............................................................................................................................. 12 Worst case position ........................................................................................................................... 13 APPENDIX 2: Data of EMI test ················································································· 15 Automatically deactivate .................................................................................................................. 15 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 16 -20dB and 99% Occupied Bandwidth ............................................................................................... 18 Duty Cycle ........................................................................................................................................ 20 Receiver Spurious Emission ............................................................................................................. 22 APPENDIX 3:Test Instruments ·················································································· 23 Test report No. : 31EE0217-HO-01-A-R1 Page : 3 of 24 Issued date : February 21, 2011 Revised date : March 4, 2011 FCC ID : HYQ14CBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-city, Aichi-ken, 448-8661, Japan Telephone Number : +81-566-61-7086 Facsimile Number : +81-566-25-4837 Contact Person : Mitsuru Nakagawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smart Card Key Model No. : 14CBA Serial No. : Refer to Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : February 1, 2011 Country of Mass-production : Japan Condition of EUT : Engineer prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description General Specification Oscillator frequency : 8MHz (IC Clock) Radio Specification Frequency of Operation : 314.35 MHz / 312.10MHz* Receiving frequency : 134.2kHz Oscillator frequency : 33.6 MHz Type of modulation : FSK(F1D) Operating voltage (inner) : DC 3.0V Antenna Type : Built-in type (Fixed) *These two different frequencies are not emitted simultaneously. For one transmitting sequence which is triggered by 134.2kHz radio receiving signal, after one transmitting frequency stops, another frequency is not transmitted. Test report No. : 31EE0217-HO-01-A-R1 Page : 4 of 24 Issued date : February 21, 2011 Revised date : March 4, 2011 FCC ID : HYQ14CBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(2) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 25.0dB 312.100MHz, Horizontal, PK with Duty factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 15.2dB 2829.150MHz Horizontal, PK with Duty factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Receiver Spurious Emissions FCC: ANSI C63.4:2003 12. Measurement of unintentional radiators other than ITE FCC: Section 15.109(a) Section 15.209 90.2dB 0.40260MHz,AV Complied Radiated IC: RSS-Gen 4.10 IC: RSS-Gen 6(a) RSS-210 2.5.1, RSS-Gen 7.2.5 Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT c…

Text truncated - open the document above for the full version.

Test report No. : 31EE0217-HO-01-A-R1 Page : 15 of 24 Issued date : February 21, 2011 Revised date : March 4, 2011 FCC ID : HYQ14CBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 31EE0217-HO-01 Date 02/07/2011 Temperature/ Humidity 22 deg.C./ 29% Engineer Motoya Imura Mode Normal use mode 312.10MHz Time of Transmitting [sec] Limit [sec] Result 0.133 5.00 Pass 314.35MHz Time of Transmitting [sec] Limit [sec] Result 0.133 5.00 Pass 312.10MHz 314.35MHz Test report No. : 31EE0217-HO-01-A-R1 Page : 16 of 24 Issued date : February 21, 2011 Revised date : March 4, 2011 FCC ID : HYQ14CBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 31EE0217-HO-01 Date 02/07/2011 Temperature/ Humidity 22 deg.C./ 29% Engineer Motoya Imura Mode Transmitting mode 312.10MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 312.100 PK66.362.316.09.731.9-60.156.195.435.339.3 Carrier 624.200 PK33.033.420.511.632.1-33.033.475.442.442.0 Outside 936.300 PK37.837.125.113.131.2-44.844.175.430.631.3 Outside 1248.400 PK51.454.124.82.334.0-44.547.275.430.928.2 Outside 1560.500 PK51.552.926.02.633.2-46.948.373.927.025.6 Inside 1872.600 PK47.047.026.92.732.6-44.044.075.431.431.4 Outside 2184.700 PK47.446.727.22.932.2-45.344.675.430.130.8 Outside 2496.800 PK45.043.027.23.132.1-43.241.273.930.732.7 Inside 2808.900 PK49.145.327.73.331.9-48.244.473.925.729.5 Inside 3121.000 PK46.844.628.33.431.8-46.744.575.428.730.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 312.100 PK66.362.316.09.731.9-9.750.446.475.425.029.0 Carrier 624.200 PK33.033.420.511.632.1-9.723.323.755.432.131.7 Outside 936.300 PK37.837.125.113.131.2-9.735.134.455.420.321.0 Outside 1248.400 PK51.454.124.82.334.0-9.734.837.555.420.617.9 Outside 1560.500 PK51.552.926.02.633.2-9.737.238.653.916.715.3 Inside 1872.600 PK47.047.026.92.732.6-9.734.334.355.421.121.1 Outside 2184.700 PK47.446.727.22.932.2-9.735.634.955.419.820.5 Outside 2496.800 PK45.043.027.23.132.1-9.733.531.553.920.422.4 Inside 2808.900 PK49.145.327.73.331.9-9.738.534.753.915.419.2 Inside 3121.000 PK46.844.628.33.431.8-9.737.034.855.418.420.6 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) The value obtained from the test on March 3, 2011 was used for Duty Factor in the above list. *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] * The test above 1GHz was performed with PK detect. Average emission measurements were not calculated with PK detect and Duty cycle factor since the PK measurement value did not exceed the AV limit. Test report No. : 31EE0217-HO-01-A-R1 Page : 17 of 24 Issued date : February 21, 2011 Revised date : March 4, 2011 FCC ID : HYQ14CBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 31EE0217-HO-01 Date 02/07/2011 Temperature/ Humidity 22 deg.C./ 29% Engineer Motoya Imura Mode Transmitting mode 314.35MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 314.350 PK65.462.316.09.831.9-59.356.295.536.239.3 Carrier 628.700 PK35.634.020.611.632.1-35.734.175.539.841.4 Outside 943.050 PK39.934.225.313.131.2-47.141.475.528.434.1 Outside 1257.400 PK53.556.624.92.333.9-46.849.975.528.725.6 Outside 1571.750 PK51.152.026.02.633.2-46.547.473.927.426.5 Inside 1886.100 PK46.947.026.92.732.5-44.044.175.531.531.4 Outside 2200.450 PK47.847.227.22.932.2-45.745.173.928.228.8 Inside 2514.800 PK43.643.127.23.132.1-41.841.375.533.734.2 Outside 2829.150 PK49.346.527.73.331.9-48.445.673.925.528.3 Inside 3143.500 PK46.447.828.43.431.8-46.447.875.529.127.7 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 314.350 PK65.462.316.09.831.9-9.749.646.575.525.929.0 Carrier 628.700 PK35.634.020.611.632.1-9.726.024.455.529.531.1 Outside 943.050 PK39.934.225.313.131.2-9.737.431.755.518.123.8 Outside 1257.400 PK53.556.624.92.333.9-9.737.140.255.518.415.3 Outside 1571.750 PK51.152.026.02.633.2-9.736.837.753.917.116.2 Inside 1886.100 PK46.947.026.92.732.5-9.734.334.455.521.221.1 Outside 2200.450 PK47.847.227.22.932.2-9.736.035.453.917.918.5 Inside 2514.800 PK43.643.127.23.132.1-9.732.131.655.523.423.9 Outside 2829.150 PK49.346.527.73.331.9-9.738.735.953.915.218.0 Inside 3143.500 PK46.447.828.43.431.8-9.736.738.155.518.817.4 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) The value obtained from the test on March 3, 2011 was used for Duty Factor in the above list. *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] *The test above 1GHz was performed with PK detect. Av…
