HYQ14CGFSmart Card Key

Manual Requirement of FCC Our product (14CGF) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC requirement. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Letter Of Agency Date: August 7, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: HYQ14CGF To Whom It May Concern: Please be advised DENSO CORPORATION authorizes Yoshinobu Asai of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel: +81-566-25-5947 Fax: +81-566-25-4548 Request for Confidentiality Date: August 7, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: HYQ14CGF Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Parts List Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

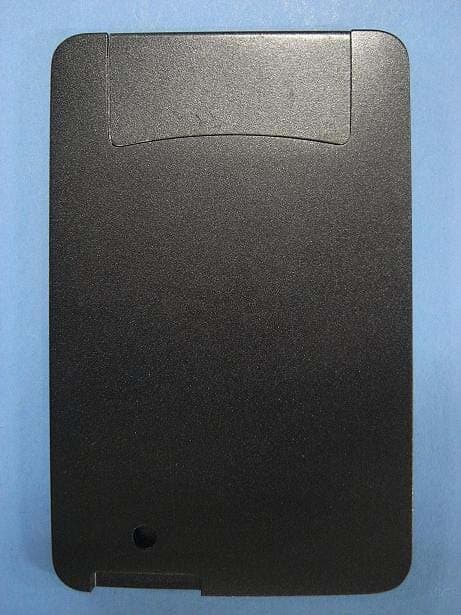

DENSO CORPORATION Smart Card Key FCC ID: HYQ14CGF External Photos Top View Left View Front View Right View Rear View Bottom View Note: Mechanical Key is made by other manufacturer.

6. Marking location and layout Note: Marking layout, size and other indications may be changed. FCC ID : HYQ14ABB IC : 1551A-14ABB DENSO FCC ID : HYQ14ABB IC : 1551A-14ABB DENSO Marking location 7 FCC ID: HYQ14CGF 7

DENSO CORPORATION Smart Card Key FCC ID: HYQ14CGF Internal Photos Antenna Component Side Solder Side

Test report No. : 10448780H-R1 Page : 2 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10448780H Revision Test report No. Date Page revisedContents - (Original) 10448780H September 16, 2014 - - 1 10448780H-R1 September 18, 2014 P.8 Correction of note *1) and *2) in Clause 4.2. Test report No. : 10448780H-R1 Page : 3 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 Duty Cycle ........................................................................................................................................ 15 -20dB and 99% Occupied Bandwidth ............................................................................................... 17 APPENDIX 2: Test Instruments ················································································· 19 APPENDIX 3: Photographs of test setup ······································································· 20 Radiated emission ............................................................................................................................. 20 Worst case position ........................................................................................................................... 21 Test report No. : 10448780H-R1 Page : 4 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-5242 Facsimile Number : +81-566-25-4837 Contact Person : MASAYUKI YAMAMOTO SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smart Card Key Model No. : 14CGF Serial No. : Refer to Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : August 8, 2014 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: 14CGF (referred to as the EUT in this report) is the Smart Card Key. General Specification Clock frequency(ies) in the system : 8 MHz (IC Clock) Radio Specification Radio Type : Transceiver Frequency of Operation : 315.10 MHz / 314.35 MHz * Modulation : FSK (F1D) Power Supply (radio part input) : DC 3.0V Type of Battery : One lithium battery Antenna type : Built-in type (Fixed) *These two different frequencies are not emitted simultaneously. Test report No. : 10448780H-R1 Page : 5 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on May 1, 2014 and effective June 2, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 13.0dB Horizontal PK with Duty factor (Tx 314.35MHz) Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 6.5dB 2829.150MHz Horizontal PK with Duty factor (Tx 314.35MHz) Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Batter…

Text truncated - open the document above for the full version.

Test report No. : 10448780H-R1 Page : 20 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10448780H-R1 Page : 21 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Below 1GHz Horizontal: X-axis/Vertical : Y-axis Above 1GHz Horizontal: X-axis/Vertical : Z-axis X-axis Y-axis Z-axis Test report No. : 10448780H-R1 Page : 22 of 22 Issued date : September 16, 2014 Revised date : September 18, 2014 FCC ID : HYQ14CGF UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Mechanical Key (Inserted) Worst End of Report
