HYQ14FBAElectronic Key

Manual Requirement of FCC / IC Our product (14FBA) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. FCC WARNING: Changes or modifications not expressly approved by the party responsible fo r compliance could void the user’s authority to operate the equipment. 1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-GEN, following statement will be included in the user’s manual. NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Request for Confidentiality Date: April 5, 2010 Underwriters Laboratories, Inc. 333 Pfingsten Rd. Northbrook, IL 60062 USA RE: Certification Application FCC ID: HYQ14FBA Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Block Diagram Schematics Theory of Operation Parts List The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kazuo Sakakibara Senior Manager Engineering Administration Department

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Letter Of Agency Date: April 5, 2010 Underwriters Laboratories, Inc. 333 Pfingsten Rd. Northbrook, IL 60062 USA FCC ID: HYQ14FBA To Whom It May Concern: Please be advised that DENSO CORPORATION authorizes Naoki Sakamoto of Application Section, EMC Services Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to Underwriters Laboratories, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Kazuo Sakakibara Senior Manager Engineering Administration Department

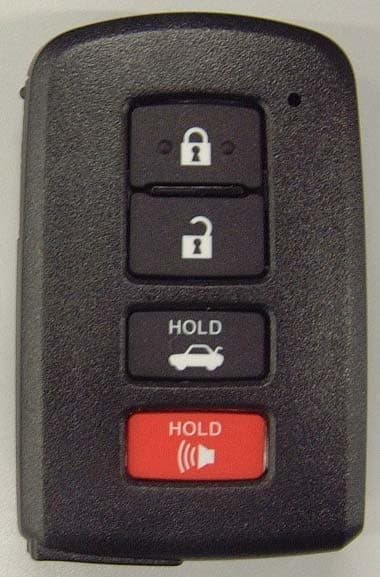

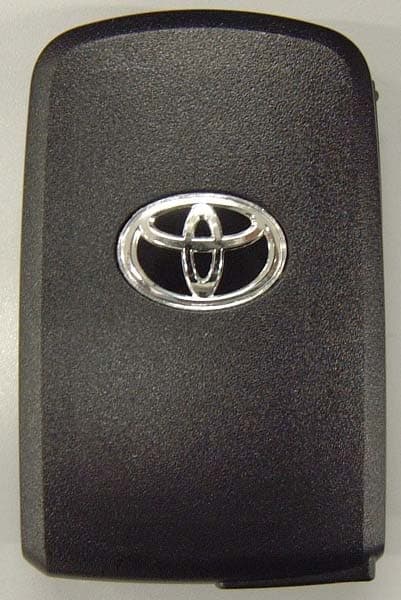

DENSO CORPORATION FCC ID: HYQ14FBA IC Number: 1551A-14FBA External Photos Front view Rear view NOTE: Mechanical Key is made by other manufacturer.

7. Marking location and layout Transmitter FCC ID : HYQ14FBA IC : 1551A-14FBA DENSO 14FBA Marking location Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed.

DENSO CORPORATION Electronic Key FCC ID: HYQ14FBA IC Number: 1551A-14FBA (Internal Photos) (Internal Photos without battery holder) Pattern Antenna Comp. Side Sold Side Comp. Side Sold Side

Test report No. : 30HE0224-HO-01-A-R2 Page : 2 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information··········································································································· 3 SECTION 2: Equipment under test (E.U.T.) ···························································································· 3 SECTION 3: Test specification, procedures & results ············································································· 4 SECTION 4: Operation of E.U.T. during testing······················································································ 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)· 9 SECTION 6: Automatically deactivate ···································································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth··············································································· 10 APPENDIX 1: Photographs of test setup ································································································· 11 Radiated emission .............................................................................................................................11 Worst case position ...........................................................................................................................12 APPENDIX 2: Data of EMI test ················································································································· 14 Automatically deactivate...................................................................................................................14 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................16 -20dB and 99% Occupied Bandwidth...............................................................................................18 Duty Cycle ........................................................................................................................................20 APPENDIX 3:Test Instruments ················································································································· 26 Test report No. : 30HE0224-HO-01-A-R2 Page : 3 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-4721 Facsimile Number : +81-566-25-4837 Contact Person : Mitsuru Nakagawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14FBA Serial No. : Refer to Clause 4.2 Rating : DC 2.5V – DC3.2V Receipt Date of Sample : April 23, 2010 Country of Mass-production : Japan and North America and China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification Frequency of Operation : 314.35 MHz / 312.10MHz Oscillator frequenty : 33.6 MHz Crystal Type of modulation : FSK(F1D) Operating voltage (inner) : DC 3.0V Antenna Type : Built-in type (Fixed) Test report No. : 30HE0224-HO-01-A-R2 Page : 4 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz Test report No. : 30HE0224-HO-01-A-R2 Page : 5 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 Conducted emission IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 N/A N/A*1) - FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) Automatically Deactivate IC: - IC: RSS-210 A1.1.1 N/A Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) Electric Field Strength of Fundamental Emission IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 9.9dB (314.350MHz / Horizontal / Transmitting mode (Tx), 314.35MHz) Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) Electric Field Strength of Spurious Emission IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.6, 2.7 3.9dB (2808.900MHz / Horizontal / Transmitting mode (Tx), 312.1MHz) Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) -20dB Bandwidth IC: - IC: Reference data N/A Complied Radiated Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace…

Text truncated - open the document above for the full version.

Test report No. : 30HE0224-HO-01-A-R2 Page : 14 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30HE0224-HO-01 Date 04/23/2010 Temperature/ Humidity 22 deg.C./ 45% Engineer Hiroyuki Furutaka Mode Normal use mode 312.10MHz Time of Transmitting [sec] Limit [sec] Result 0.7667 5.00 Pass Test report No. : 30HE0224-HO-01-A-R2 Page : 15 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Automatically deactivate Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30HE0224-HO-01 Date 05/21/2010 Temperature/ Humidity 23 deg.C./ 48% Engineer Hiroyuki Furutaka Mode Normal use mode 314.35MHz Time of Transmitting [sec] Limit [sec] Result 0.7667 5.00 Pass Test report No. : 30HE0224-HO-01-A-R2 Page : 16 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30HE0224-HO-01 Date 04/23/2010 Temperature/ Humidity 22 deg.C./ 45% Engineer Hiroyuki Furutaka Mode Transmitting mode 312.10MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 312.100 PK76.071.216.29.731.9-70.065.295.425.430.2 Carrier 624.200 PK33.032.720.611.632.1-33.132.875.442.342.6 Outside 936.300 PK32.632.024.913.131.2-39.438.875.436.036.6 Outside 1248.400 PK45.245.824.52.234.0-37.938.575.437.536.9 Outside 1560.500 PK44.044.525.42.433.2-38.639.173.935.334.8 Inside 1872.600 PK44.945.225.82.632.6-40.741.075.434.734.4 Outside 2184.700 PK46.248.026.42.832.2-43.245.075.432.230.4 Outside 2496.800 PK46.146.326.92.932.1-43.844.073.930.129.9 Inside 2808.900 PK56.153.727.63.131.9-54.952.573.919.021.4 Inside 3121.000 PK52.951.628.43.331.8-52.851.575.422.623.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 312.100 PK76.071.216.29.731.9-4.965.160.375.410.315.1 Carrier 624.200 PK33.032.720.611.632.1-4.928.227.955.427.227.5 Outside 936.300 PK32.632.024.913.131.2-4.934.533.955.420.921.5 Outside 1248.400 PK45.245.824.52.234.0-4.933.033.655.422.421.8 Outside 1560.500 PK44.044.525.42.433.2-4.933.734.253.920.219.7 Inside 1872.600 PK44.945.225.82.632.6-4.935.836.155.419.619.3 Outside 2184.700 PK46.248.026.42.832.2-4.938.340.155.417.115.3 Outside 2496.800 PK46.146.326.92.932.1-4.938.939.153.915.014.8 Inside 2808.900 PK56.153.727.63.131.9-4.950.047.653.93.96.3 Inside 3121.000 PK52.951.628.43.331.8-4.947.946.655.47.58.8 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] Margin [dB] Test report No. : 30HE0224-HO-01-A-R2 Page : 17 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30HE0224-HO-01 Date 04/23/2010 Temperature/ Humidity 23 deg.C./ 68% Engineer Hiroyuki Furutaka Mode Transmitting mode 314.35MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 314.350 PK76.471.516.29.831.9-70.565.695.525.029.9 Carrier 630.700 PK33.632.920.711.632.1-33.833.175.541.742.4 Outside 946.050 PK32.832.025.213.131.2-39.939.175.535.636.4 Outside 1257.400 PK44.045.524.52.233.9-36.838.375.538.737.2 Outside 1571.750 PK44.244.125.42.533.2-38.938.873.935.035.1 Inside 1886.100 PK45.745.125.82.632.5-41.641.075.533.934.5 Outside 2200.450 PK46.946.826.42.832.2-43.943.873.930.030.1 Inside 2514.800 PK46.445.526.93.032.1-44.243.375.531.332.2 Outside 2829.150 PK55.654.627.73.231.9-54.653.673.919.320.3 Inside 3143.500 PK52.353.128.43.331.8-52.253.075.523.322.5 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 314.350 PK76.471.516.29.831.9-4.965.660.775.59.914.8 Carrier 630.700 PK33.632.920.711.632.1-4.928.928.255.526.627.3 Outside 946.050 PK32.832.025.213.131.2-4.935.034.255.520.521.3 Outside 1257.400 PK44.045.524.52.233.9-4.931.933.455.523.622.1 Outside 1571.750 PK44.244.125.42.533.2-4.934.033.953.919.920.0 Inside 1886.100 PK45.745.125.82.632.5-4.936.736.155.518.819.4 Outside 2200.450 PK46.946.826.42.832.2-4.939.038.953.914.915.0 Inside 2514.800 PK46.445.526.93.032.1-4.939.338.455.516.217.1 Outside 2829.150 PK55.654.627.73.231.9-4.949.748.753.94.25.2 Inside 3143.500 PK52.353.128.43.331.8-4.947.348.155.58.27.4 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] …

Text truncated - open the document above for the full version.

Test report No. : 30HE0224-HO-01-A-R2 Page : 11 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 30HE0224-HO-01-A-R2 Page : 12 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position MHz (Horizontal: X-axis/Vertical : Y-axis) GHz (Horizontal: X-axis/Vertical : Z-axis) X-axis Y-axis Z-axis Test report No. : 30HE0224-HO-01-A-R2 Page : 13 of 26 Issued date : May 17, 2010 Revised date : June 2, 2010 FCC ID : HYQ14FBA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Mechanical Key (Inserted) Worst
