Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Manual Requirement of FCC Our product (14FFA) is one of vehicle parts. Therefore, we will not supply the userโs manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle userโs manual in accordance with FCC requirement. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the userโs manual. 1.1.2. In accordance with requirement of FCCยง15.19(a)(5), following statement will be included in the userโs manual. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the userโs authority to operate the equipment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: January 27, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: DENSO CORPORATION FCC ID: HYQ14FFA To whom it may concern: We, the undersigned, hereby authorize Naoki Sakamoto of Application Section, EMC Services Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kazuo Sakakibara General Manager Engineering Administration Department
1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: HYQ14FFA To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commissionโs rules (47 CFR ยงยง 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara General Manager Engineering Administration Department January 27, 2011
DENSO CORPORATION Electronic Key FCC ID: HYQ14FFA External Photos NOTE: Mechanical Key is made by other manufacturer. Variations in the number of buttons do not affect RF performance. To p Right Left Front Bottom Rear (4-button) Rear (3-button (A)) Rear (3-button (B)) Rear (2-button)
7. Marking location and layout Note. Compliance statement of marking will not be changed. But marking layout, size and other indications maybe changed. FCC ID : HYQ14FFA Marking location

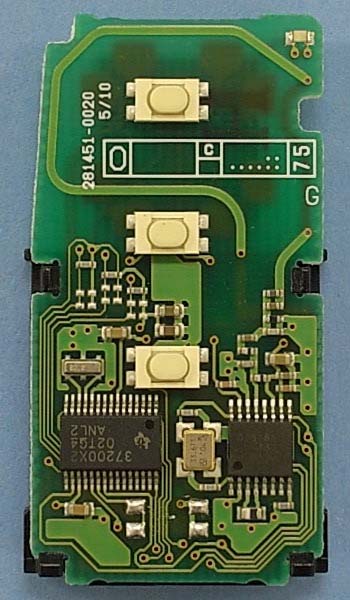

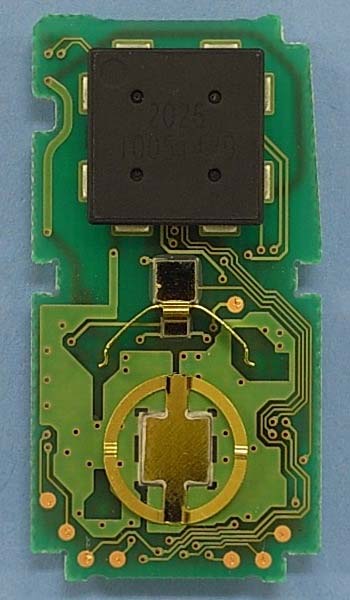

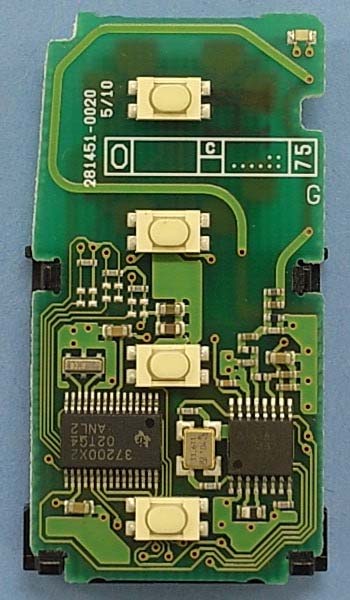

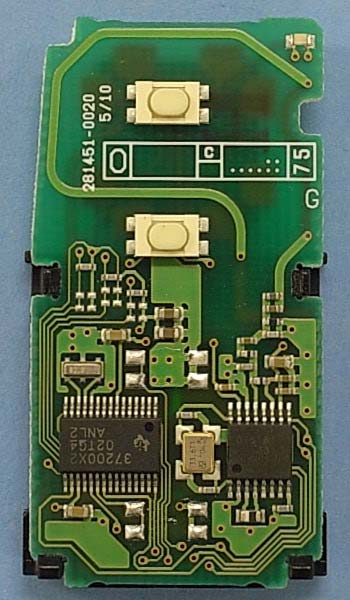

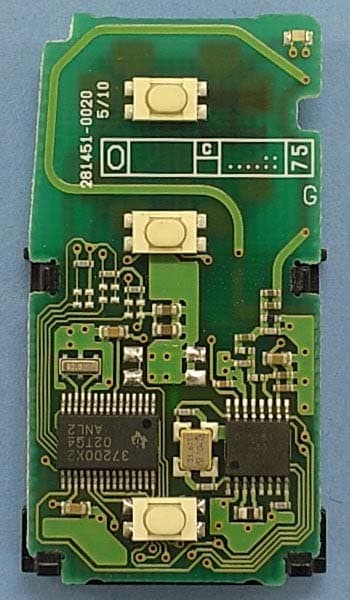

DENSO CORPORATION Electronic Key FCC ID: HYQ14FFA Internal Photos Pattern Antenna Comp. Side Sold Side 4-button 3-button (A) 3-button (B) 2-button Common Sold Side without Battery Holders Common NOTE: Variations in the number of buttons do not affect RF performance.
Test report No. : 31FE0144-HO-01 Page : 2 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 3 SECTION 2: Equipment under test (E.U.T.) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 3 SECTION 3: Test specification, procedures & resultsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 4 SECTION 4: Operation of E.U.T. during testing ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 8 SECTION 6: Automatically deactivate ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 11 SECTION 7: -20dB and 99% Occupied Bandwidth ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 11 APPENDIX 1: Photographs of test setup ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 12 Radiated emission ............................................................................................................................. 12 Worst case position ........................................................................................................................... 13 APPENDIX 2: Data of EMI test ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 15 Automatically deactivate................................................................................................................... 15 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 16 -20dB and 99% Occupied Bandwidth ............................................................................................... 18 Duty Cycle ........................................................................................................................................ 20 Receiver Spurious Emission ............................................................................................................. 22 APPENDIX 3:Test Instruments ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 24 Test report No. : 31FE0144-HO-01 Page : 3 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-20-3957 Facsimile Number : +81-566-25-4837 Contact Person : TAKAYUKI AONO SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14FFA Serial No. : Refer to Clause 4.2 Rating : DC3.0V Receipt Date of Sample : January 29, 2011 Country of Mass-production : Japan, China, and United States of America Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 33.6 MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 312.10 MHz / 313.10MHz* Receiving Frequency : 134.2kHz Modulation : FSK(F1D) Power Supply (radio part input) : DC3.0V Antenna type : Built-in type (Fixed) * These two different frequencies are not emitted simultaneously. Test report No. : 31FE0144-HO-01 Page : 4 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 12.6dB 313.10MHz Horizontal PK with Duty Factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 6.2dB 3131.000MHz Horizontal PK with Duty Factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Receiver Spurious Emissions FCC: ANSI C63.4:2003 12. Measurement of unintentional radiators other than ITE FCC: Section 15.109(a) Section 15.209 90.6dB 0.40260MHz AV Complied Radiated IC: RSS-Gen 4.10 IC: RSS-Gen 6 RSS-210 2.3 Note: UL Japan, Inc.โs EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment coโฆ
Text truncated - open the document above for the full version.
Test report No. : 31FE0144-HO-01 Page : 15 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31FE0144-HO-01 Date 02/02/2011 Temperature/ Humidity 22 deg.C./ 30% Engineer Keisuke Kawamura Mode Normal use mode 312.10MHz Time of Transmitting [sec] Limit [sec] Result 0.73 5.00 Pass 313.10MHz Time of Transmitting [sec] Limit [sec] Result 0.73 5.00 Pass 312.10MHz 313.10MHz Test report No. : 31FE0144-HO-01 Page : 16 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31FE0144-HO-01 Date 02/02/2011 Temperature/ Humidity 22 deg.C./ 30% Engineer Keisuke Kawamura Mode Transmitting mode 312.10MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 312.100 PK74.170.015.510.031.8-67.863.795.427.631.7 Carrier 624.200 PK32.630.019.711.932.0-32.229.675.443.245.8 Outside 936.300 PK31.931.022.613.430.8-37.136.275.438.339.2 Outside 1248.400 PK42.742.526.01.934.4-36.236.075.439.239.4 Outside 1560.500 PK42.243.027.02.233.6-37.838.673.936.135.3 Inside 1872.600 PK45.845.027.92.433.0-43.142.375.432.333.1 Outside 2184.700 PK42.641.828.02.632.6-40.639.875.434.835.6 Outside 2496.800 PK49.247.227.62.932.4-47.345.373.926.628.6 Inside 2808.900 PK40.741.628.63.132.2-40.241.173.933.732.8 Inside 3121.000 PK53.649.329.33.332.1-54.149.875.421.325.6 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 312.100 PK74.170.015.510.031.8-5.362.558.475.412.917.0 Carrier 624.200 PK32.630.019.711.932.0-5.326.924.355.428.531.1 Outside 936.300 PK31.931.022.613.430.8-5.331.830.955.423.624.5 Outside 1248.400 PK42.742.526.01.934.4-5.330.930.755.424.524.7 Outside 1560.500 PK42.243.027.02.233.6-5.332.533.353.921.420.6 Inside 1872.600 PK45.845.027.92.433.0-5.337.837.055.417.618.4 Outside 2184.700 PK42.641.828.02.632.6-5.335.334.555.420.120.9 Outside 2496.800 PK49.247.227.62.932.4-5.342.040.053.911.913.9 Inside 2808.900 PK40.741.628.63.132.2-5.334.935.853.919.018.1 Inside 3121.000 PK53.649.329.33.332.1-5.348.844.555.46.610.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). [dBuV][dBuV/m] Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] * The test above 1GHz was performed with PK detect. Average emission measurements were not calculated with PK detect and Duty cycle factor since the PK measurement value did not exceed the AV limit. Test report No. : 31FE0144-HO-01 Page : 17 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 31FE0144-HO-01 Date 02/02/2011 Temperature/ Humidity 22 deg.C./ 30% Engineer Keisuke Kawamura Mode Transmitting mode 313.10MHz PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 313.100 PK73.970.015.510.031.8-67.663.795.527.931.8 Carrier 626.200 PK30.730.819.711.932.0-30.330.475.545.245.1 Outside 939.300 PK32.431.622.613.430.8-37.636.875.537.938.7 Outside 1252.400 PK43.743.526.01.934.4-37.237.075.538.338.5 Outside 1565.500 PK42.642.927.12.233.6-38.338.673.935.635.3 Inside 1878.600 PK44.844.527.92.432.9-42.241.975.533.333.6 Outside 2191.700 PK42.442.128.02.732.6-40.540.275.535.035.3 Outside 2504.800 PK49.246.627.62.932.4-47.344.775.528.230.8 Outside 2817.900 PK41.541.928.63.132.2-41.041.473.932.932.5 Inside 3131.000 PK53.548.829.33.332.1-54.049.375.521.526.2 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 313.100 PK73.970.015.510.031.8-4.762.959.075.512.616.5 Carrier 626.200 PK30.730.819.711.932.0-4.725.625.755.529.929.8 Outside 939.300 PK32.431.622.613.430.8-4.732.932.155.522.623.4 Outside 1252.400 PK43.743.526.01.934.4-4.732.532.355.523.023.2 Outside 1565.500 PK42.642.927.12.233.6-4.733.633.953.920.320.0 Inside 1878.600 PK44.844.527.92.432.9-4.737.537.255.518.018.3 Outside 2191.700 PK42.442.128.02.732.6-4.735.835.555.519.720.0 Outside 2504.800 PK49.246.627.62.932.4-4.742.640.055.512.915.5 Outside 2817.900 PK41.541.928.63.132.2-4.736.336.753.917.617.2 Inside 3131.000 PK53.548.829.33.332.1-4.749.344.655.56.210.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] Margin [dB] ReadingResult Reading [dBuV] *The test above 1GHz was performed with PK detect. Average emission measurements were not calculated with PK detect and Duty cycle factor since the PK measurement value did not exceed the AV limit. Test report No. : 31FE0144-HO-01 Page : 18 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lโฆ
Text truncated - open the document above for the full version.
Test report No. : 31FE0144-HO-01 Page : 12 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 31FE0144-HO-01 Page : 13 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis Test report No. : 31FE0144-HO-01 Page : 14 of 24 Issued date : February 10, 2011 FCC ID : HYQ14FFA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Mechanical Key (Inserted) Worst
4383-326 Asama-cho, Ise-shi ยท Mie-ken ยท Japan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15.231 | 313.1 MHz - 313.1 MHz | - |
