HYQ14FGKElectronic Key

Manual Requirement of FCC Our product (14FGK) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC requirement. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user’s manual. 1.2. For FCC Note: The way to replace the battery must be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC ID is affixed inside the equipment. You can find the ID when replacing the battery.

Letter of Authorization Date: October 15, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : HYQ14FGK Applicant : DENSO CORPORATION To whom it may conern: Please be advised we authorize Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Confidentiality Date: October 15, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE : Certification Application FCC ID : HYQ14FGK Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Parts List Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Short-Term Confidentiality Date: October 28, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : HYQ14FGK Applicant : DENSO CORPORATION To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

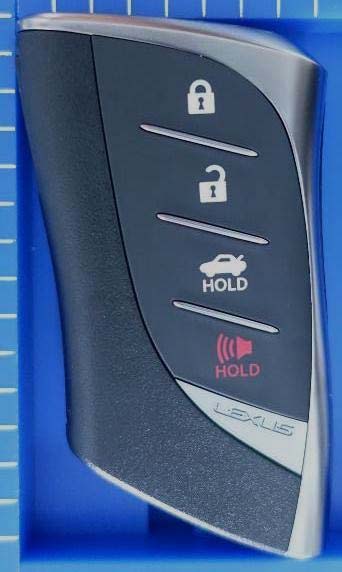

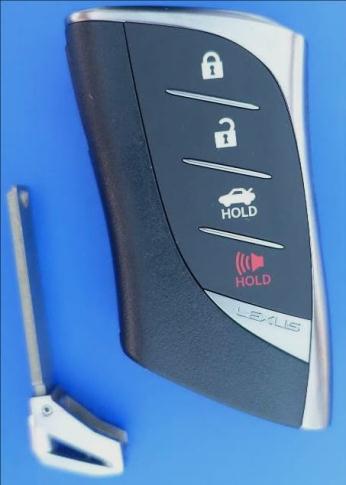

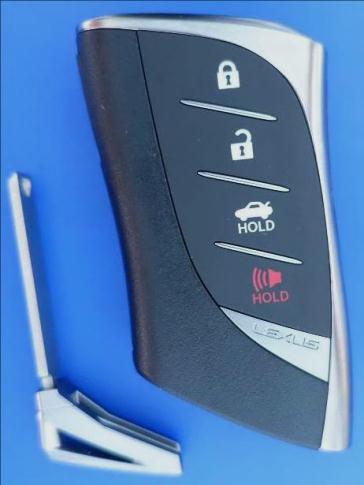

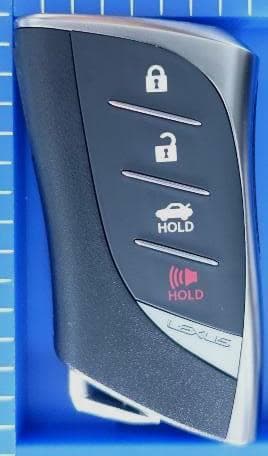

DENSO CORPORATION Electronic Key FCC ID: HYQ14FGK External Photos <Type A> <Type B> Note: Appearance may vary, but the difference has no influence on RF performance. DENSO CORPORATION Electronic Key FCC ID: HYQ14FGK Explanation of variation [Appearance of 4-Button] [Appearance of 3-Button] [Appearance of 2-Button] [Rear View (Common)] Note: The difference in appearance has no influence on RF performance. Explanation document of Mechanical Key for Electronic Key 14FGK Key groove varies according to each key. <Type A> Mechanical Key Mechanical Key detached Mechanical Key attached <Type B> Mechanical Key Mechanical Key detached Mechanical Key attached

9. Mark Marking Note: Markin g cover in The pro included Rules § king location g location g layout, siz n the outer c oduct is too d in the use § 15.19. n and layout ze and other case and is small to pl a er manual, a t r indications accessible ace the labe as it is not p FCC ID: HYQ14FGK s may be ch e without an el requireme practical to p * Schema hanged. Th y special to ents. FCC place on the atic drawing of e marking is ools. complianc e e device acc f a module par s on the mo e statement cording to F rt odule t will be FCC 10

Internal Ph <Compon e 4-B u 2-B u Note: The differe n otos ent Side> utton utton nce in the n Antenn a umber and l <Solder Si d a location of s 3 de (Commo switches has -Button on)> <Mar s no influenc DEN rking locatio Marking ce on RF pe NSO COR Ele FCC ID: on> g location erformance. RPORATI ectronic K HYQ14F ION Key FGK

Test report No. : 11034482H Page : 2 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 11034482H Revision Test report No. Date Page revised Contents - (Original) 11034482H December 10, 2015 - - Test report No. : 11034482H Page : 3 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20 dB and 99 % Occupied Bandwidth ························································ 10 APPENDIX 1: Test data ···························································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 16 APPENDIX 2: Test Instruments ·················································································· 18 APPENDIX 3: Photographs of test setup ······································································· 19 Radiated emission ............................................................................................................................. 19 Worst case position ........................................................................................................................... 20 Test report No. : 11034482H Page : 4 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-5242 Facsimile Number : +81-566-25-4837 Contact Person : MASAYUKI YAMAMOTO SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 14FGK Serial No. : Refer to Clause 4.2 Rating : DC 3.0 V Receipt Date of Sample : November 6, 2015 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: 14FGK (referred to as the EUT in this report) is the Electronic Key. Radio Type : Transceiver Frequency of Operation : 315.10 MHz / 314.35 MHz * Clock frequency(ies) in the system : 8 MHz (IC Clock) 18.37 MHz crystal (RF) Modulation : FSK (F1D) Power Supply (radio part input) : DC 3.0 V Type of Battery : One lithium battery Antenna type : Built-in type (Fixed) Receiving frequency of Operation : 134.2 kHz *1) * These two different frequencies are not emitted simultaneously. *1) The test of receiver part was performed separately from this test report, and the conformability is confirmed. * Original model: 14FGK has Type A and Type B in the shape of keyhole. Also, it has 4 buttons. Variation models have 3 buttons and 2 buttons. They are completely identical in RF characteristics. The worst case was confirmed with pre-check for both type, as a result, test was performed with Type B as representative. Test report No. : 11034482H Page : 5 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on November 23, 2015 *Some parts are effective on and after December 17, 2015 or December 23, 2015 . The revision does not affect the test specification applied to the EUT. Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 8.8 IC: RSS-Gen 8.8 Automatically Deactivate FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(b) 2.8 dB Horizontal, PK (PK with Duty factor) (Tx 315.10 MHz) Complied Radiated IC: RSS-Gen 6.12 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 10.4 dB 2205.700 MHz Horizontal, PK (PK with Duty factor) 2835.900 MHz Horizontal PK (PK with Duty factor) (Tx 315.10 MHz) Complied Radiated IC: RSS-Gen 6.13 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 8.9 -20dB Bandwidth FCC: ANSI C63.4:2009 13. Measurement of intentional radi…

Text truncated - open the document above for the full version.

Test report No. : 11034482H Page : 19 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 11034482H Page : 20 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Z-axis) X-axis Y-axis Z-axis Test report No. : 11034482H Page : 21 of 21 Issued date : December 10, 2015 FCC ID : HYQ14FGK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Mechanical Key (Inserted) Worst End of Report
