HYQ1AAElectronic Key

Manual Requirement of FCC / IC Our product (1AA) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a) (5), following statement will be included in the user’s manual. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-GEN, following statement will be included in the user’s manual. 1.3. For both FCC and IC Note: The way to replace the battery must be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The FCC ID/IC Certification number is affixed inside the equipment. You can find the ID/number when replacing the battery.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Letter Of Agency Date: February 20, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: HYQ1AA To Whom It May Concern: Please be advised DENSO CORPORATION authorizes Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Kazuo Sakakibara Manager DENSO CORPORATION

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Request for Confidentiality Date: February 20, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: HYQ1AA Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Parts List Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kazuo Sakakibara Manager DENSO CORPORATION

DENSO CORPORATION Electronic Key FCC ID: HYQ1AA IC Number: 1551A-1AA External Photos Front View Rear View NOTE: Mechanical Key is made by other manufacturer.

7. Marking location and layout Note: Compliance statement of marking will not be changed. But marking layout, size and other indications may be changed. The markin g is accessible without any special tools. Marking location Fig: Marking location and layout

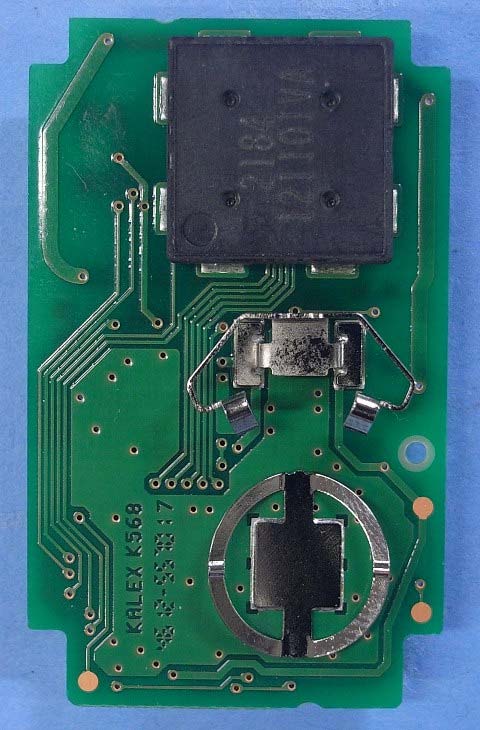

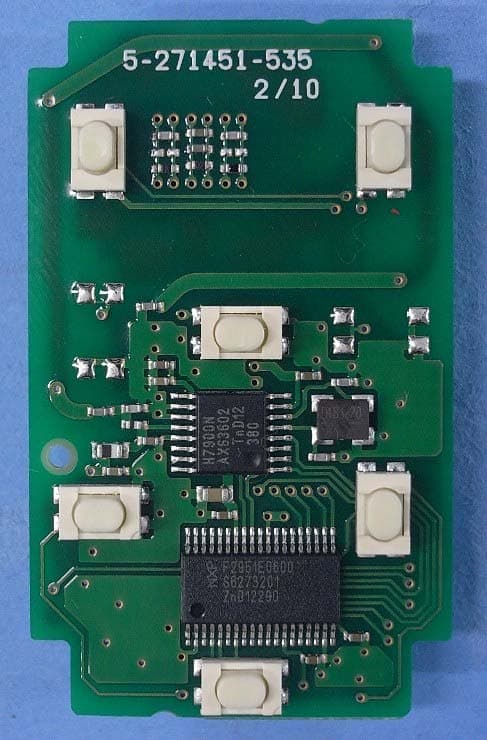

DENSO CORPORATION Electronic Key FCC ID: HYQ1AA IC Number: 1551A-1AA Internal Photos Antenna Comp. Side Sold. Side

Test report No. : 10005487H-A Page : 2 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10005487H-A Revision Test report No. Date Page revised Contents - (Original) 10005487H-A March 15, 2013- - Test report No. : 10005487H-A Page : 3 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 -20dB and 99% Occupied Bandwidth ............................................................................................... 15 Duty Cycle ........................................................................................................................................ 17 APPENDIX 2:Test Instruments ··················································································· 22 APPENDIX 3: Photographs of test setup ······································································· 23 Radiated emission ............................................................................................................................. 23 Worst case position ........................................................................................................................... 24 Test report No. : 10005487H-A Page : 4 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-7076 Facsimile Number : +81-566-25-4792 Contact Person : TAKAHIDE KITAHARA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Electronic Key Model No. : 1AA Serial No. : Refer to Clause 4.2 Rating : DC 3.0V Receipt Date of Sample : February 23, 2013 Country of Mass-production : Japan, United States of America, China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: 1AA (referred to as the EUT in this report) is the Electronic Key. The EUT (1AA) transmits radio wave signals of FSK and ASK. The radio wave signals of FSK and ASK are not transmitted simultaneously. Either one of FSK and ASK is transmitted by operator's action. End users cannot control which of FSK and ASK to be transmitted. General Specification Clock frequency(ies) in the system : 16 MHz RC oscillator (IC clock) 18.37 MHz Crystal (RF) Radio Specification Radio Type : Transceiver Frequency of Operation : 314.9MHz Modulation : FSK (F1D) / ASK (A1D) Power Supply (radio part input) : DC 3.0V Type of Battery : One lithium battery Antenna type : Built-in type (Fixed) Test report No. : 10005487H-A Page : 5 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) [FSK] 11.3dB 314.900MHz Horizontal PK with Duty factor [ASK] 6.3dB 314.900MHz Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) [FSK] 4.9dB 2834.100MHz Horizontal PK with Duty factor [ASK] 3.3dB 2834.100MHz Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators KDB 926416 FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Note: UL Japa…

Text truncated - open the document above for the full version.

Test report No. : 10005487H-A Page : 23 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10005487H-A Page : 24 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis Test report No. : 10005487H-A Page : 25 of 25 Issued date : March 15, 2013 FCC ID : HYQ1AA UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Mechanical Key (Inserted) Worst End of Report
