HYQBT0501AModular Bluetooth Transmitter

Denso Corporation
Modular Bluetooth Transmitter - FCC ID HYQBT0501A - Denso Corporation
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 30, 2005
Application Purpose
Original Equipment
Date of Application
Mar 30, 2005
Equipment Note
Modular Bluetooth Transmitter
Frequency Range
2402.00000000 - 2480.00000000
Company
Denso Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

6.User’s manual requirement 6.1.Operation manual (1) Registration of the cellular phone Transmits the registration signal from the cellular phone to the navigation system and register the cellular phone at the navigation system. (2) Selection of the cellular phone Transmits the selection signal from the navigation system to the cellular phone and connect the navigation system with the cellular phone. (3) Call Call by inputting the phone number with the touch sensitive panel installed in the navigation system. Get the phone by operating the touch sensitive panel installed in the navigation system. Bluetooth RF signal Bluetooth RF signal Bluetooth RF signal Cellular RF signal 6.2.User’s Manual Requirement of FCC rule BT0501A is installed in the navigation system, so BT0501A has no manual for user. FCC user’s manual requirements that are FCC rule Part 15.21 and 15.105 are described on user’s manual of the vehicle. Fig 6.2. FCC rule requirement for user’s manual FCC and RSS-210 Regulations This device complies with Part 15of the FCC Rules and RSS-210 Rules Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION : Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs). Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 6.3. Installation Description BT0501A shall be installed in the navigation system as shown in Fig.6.3. When BT0501A is installed in the navigation system, we as OEM shall consider the following points; 1. Since BT0501A owns its FCC ID number, we shall affix an exterior label on the outside of the navigation system if the FCC ID is not visible. The exterior label shall use wording such as either “Contains Transmitter Module FCC ID: HYQBT0501A” or “Contains FCC ID: HYQBT0501A“. 2. BT0501A complies with requirements of sub-sections 15.203, 15.205, 15.209 and 15.247 in FCC Rules Part 15. We shall install BT0501A in accordance with their requirements. 3. BT0501A complies with requirements of the sub-section 2.1091. When installers install BT0501A into the navigator system, they shall ensure that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines in accordance with the sub-section 15.247(b)(4) in FCC Rules Part 15.

External Photos

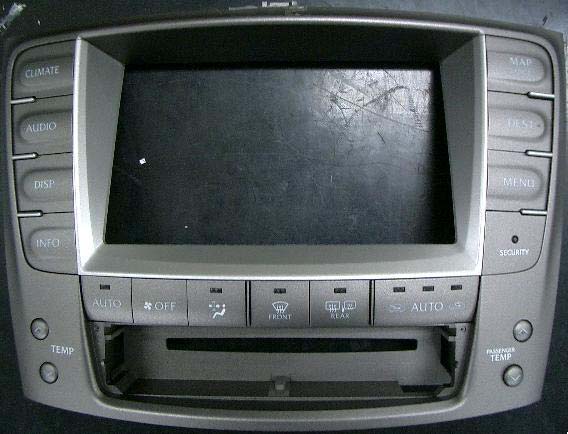

DENSO CORPORATION Bluetooth ASSY FCC ID: HYQBT0501A External Photos RF Shield Front of Bluetooth ASSY Rear of Bluetooth ASSY DENSO CORPORATION Bluetooth ASSY FCC ID: HYQBT0501A BT0501A DENSO CORPORATION Bluetooth ASSY FCC ID: HYQBT0501A External Photos BT0501A Fig. 6.3. Installation Description

ID Label/Location Info

4.6.1. FCC and IC ID Label layout and location on Navigation ASSY Top view Front view Fig. 4.6.1. FCC and IC Label Location on Navigation ASSY 4.6.2. FCC and IC ID Label on Navigation ASSY Unit : mm Fig. 4.6.2. FCC and IC ID Label layout Note : Compliance statement of marking will not be changed. But marking layout and size maybe changed. Stick the Yupo pape r label on the matal case. (15) (30) Contains: MODEL:BT0501A FCC ID:HYQBT0501A IC :1551A-BT0501A

Internal Photos

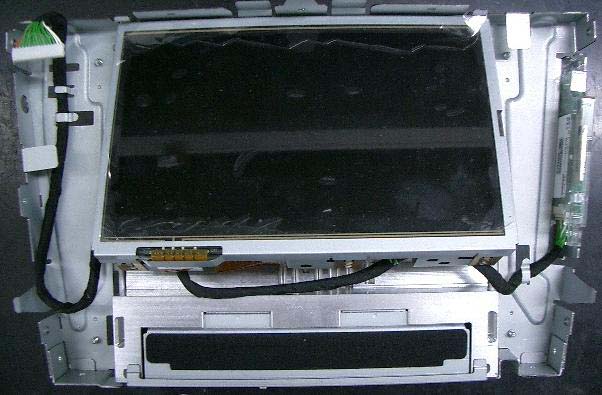

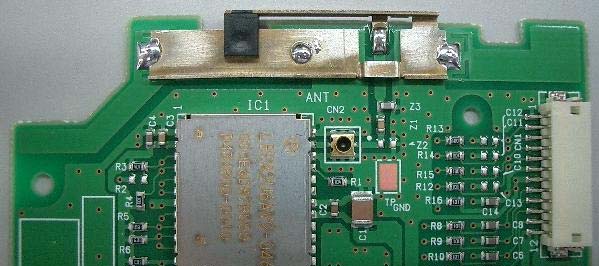

DENSO CORPORATION Bluetooth ASSY FCC ID: HYQBT0501A Internal Photos Front of BT-module Rear of BT-module

Test Report

Test report No. : 25GE0132-HO-1 Page : 1 of 39 Issued date : March 18, 2005 Revised date : March 28, 2005 FCC ID : HYQBT0501A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 25GE0132-HO-1 Applicant : DENSO CORPORATION Type of Equipment : BLUETOOTH ASSY Model No. : BT0501A Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247 : 2004 FCC ID : HYQBT0501A Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: _____________________________ ______________________________ Keiichi Aoki EMC Service Makoto Kosaka EMC Service ______________________________ Hiroka Umeyama EMC Service Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Service March 3 to 28, 2005 Test report No. : 25GE0132-HO-1 Page : 2 of 39 Issued date : March 18, 2005 Revised date : March 28, 2005 FCC ID : HYQBT0501A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information .................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 4 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 6 SECTION 5: Conducted Emission................................................................................................................. 7 SECTION 6: Spurious Emission .................................................................................................................... 8 SECTION 7: 20dB Bandwidth ....................................................................................................................... 9 SECTION 8: Maximum Peak Output Power ............................................................................................... 9 SECTION 9: Carrier Frequency Separation ................................................................................................ 9 SECTION 10: Number of Hopping Frequency ............................................................................................ 9 SECTION 11: Dwell time ............................................................................................................................... 9 APPENDIX 1: Photographs of test setup .................................................................................................... 10 Conducted Emission...............................................................................................................................................10 Spurious Emission (Radiated) ............................................................................................................................... 11 Worst Case Position X-Axis : Horizontal, Y-Axis : Vertical) .....................................................................12 APPENDIX 2: Test instruments .................................................................................................................. 13 APPENDIX 3: Data of EMI test................................................................................................................... 14 Conducted Emission...............................................................................................................................................14 Carrier Frequency Separation ..............................................................................................................................18 20dB Bandwidth .....................................................................................................................................................20 Number of Hopping Frequency ............................................................................................................................22 Dwell time ...............................................................................................................................................................24 Maximum Peak Output Power .............................................................................................................................27 Radiated Spurious Emission..................................................................................................................................29 Conducted Spurious Emission ..............................................................................................................................35 99% Occupied Bandwidth .....................................................................................................................................39 Test report No. : 25GE0132-HO-1 Page : 3 of 39 Issued date : March 18, 2005 Revised date : March 28, 2005 FCC ID : HYQBT0501A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-25-5947 Facsimile Number : +81-566-25-4548 Contact Person : Toshih…
