HYQBTAU01AAudio Bluetooth Hands Free Unit

6. User’s manual requirement 6.1.Operation manual (1) Registration of the cellular phone Bluetooth RF signal Transmits the registration signal from the cellular phone to the audio system and register the cellular phone at the audio system. (2) Selection of the cellular phone Bluetooth RF signal Transmits the selection signal from the audio system to the cellular phone and connect the audio system with the cellular phone. (3) Call Cellular RF signal Bluetooth RF signal Call by selecting the phone book with the audio switch installed in the audio system. Get the phone by operating the audio switch installed in the audio system. 6.2.User’s Manual Requirement of FCC rule BTAU01A and BTAU02A are installed in vehicle’s Audio System, so BTAU01A and BTAU02A has no manual for user. FCC user’s manual requirements that are FCC rule Part 15.21 and 15.105 are described on user’s manual of the vehicle as followings. FCC and RSS-210 Regulations This device complies with Part 15 of the FCC Rules and RSS-210 Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different form that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION : Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

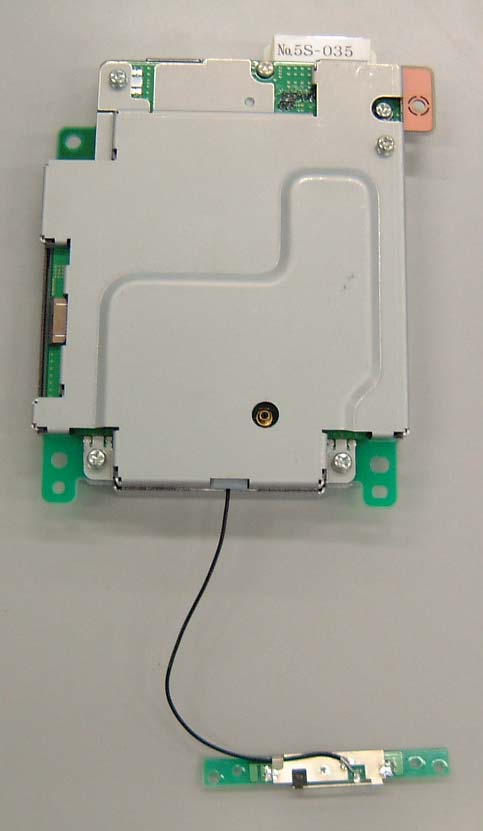

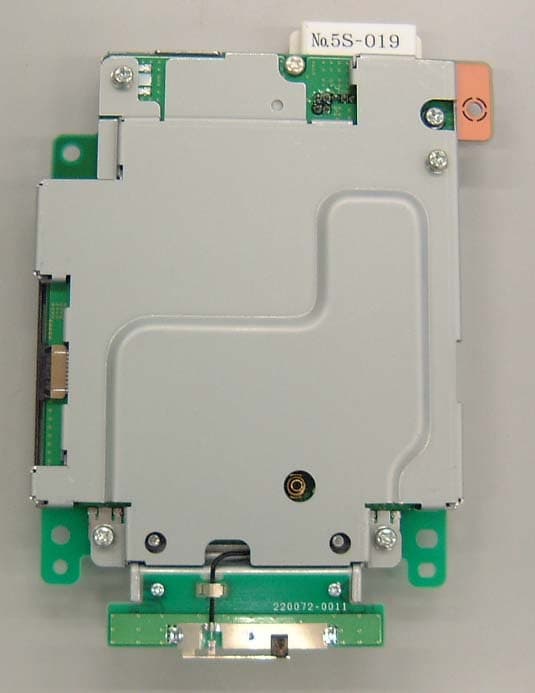

FCC ID: HYQBTAU01A DENSO CORPORATION External Photos Audio Bluetooth Hands Free Unit (BTAU01A) FCC ID: HYQBTAU01A DENSO CORPORATION External Photos Audio Bluetooth Hands Free Unit (BTAU02A)

4.5.Appearance and F CC and IC Label Loc ation 4.5.1a. Appe arance of Au dio Bluet ooth Hands Free Unit (BT A U01A) XXXXXX-X XXX XXXXXXXXXXX XXXXX-XXXXX (40) (36) S t ick the Y upo p a e r label on the met a llic case. Label La yo ut Unit : mm Note : Compliance st atement of marking will not be changed. But marking layout and size maybe chang ed. Fig. 4.5.1a. L abel Locatio n on Audi o Bluetooth Han d s Free Unit(BT A U01A) XXXXXXXXXXX XXXXXX-X XXX HY Q BT AU 01 A BT AU01A XXXXX-XXXXX Label La yo ut Unit : mm Note : Compliance st atement of marking will not be changed. But marking layout and size maybe chang ed. (40) (36) Fig. 4.5.1b. L abel Locat io n on Audio Bluetooth Han d s Free Unit (BT A U02A) S t ick the Y upo p a e r label on the met a llic case. Note : W e can not make the exterior lab e l that is required by FCC Pub lic Notice DA 00-14 07 for audio systems. Be cause we do n o t manufacture the audio system. So we will inform and request to audio system manufacturer must att a ch the exterior label accord ance with requireme nt of DA 00-1 407. 4.5.1b. Appe arance of Au dio Bluet ooth Hands Free Unit (BT A U02A)

FCC ID: HYQBTAU01A DENSO CORPORATION Internal Photos RF Shield Front Bluetooth Block FCC ID: HYQBTAU01A DENSO CORPORATION Internal Photos Rear Bluetooth Block FCC ID: HYQBTAU01A DENSO CORPORATION Internal Photos Front of BT-module without Shield Rear of BT-module

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: DENSO Corporation Type of Equipment : Audio Bluetooth Hands Free Unit M odel No. : BTAU01A, BTAU02A FCC ID: HYQBTAU01A DENSO Corporation declares that M odel : Audio Bluetooth Hands Free Unit complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “BTAU01A, BTAU02A“ has 0.76 mW of conducted Peak Output power and 1.23 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW (TCB Exclusion List) so that SA R testing is excluded. The Follow ing calculation is the reference data for 20cm distance. RF Exposure Calculations: The follow ing inform ation provides the m inim um separation distance for the highest gain antenna provided with the “BTAU01A, BTAU02A“ as calculated from FC C O ET Bulletin 65 A ppendix A , Table (B) Lim its for G eneral Population / U ncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used w as: S = (P * G ) / (4* π * r 2 ) Where P = 0.76 mW (Maximum peak output power) G = 1.62 Numerical Antenna gain; equal 2.10 dBi r =20.0 cm For: BTAU01A, BTAU02AS = 0.00024 mW/cm 2 No. : 25GE0283-HO-1 RF Exposure / SAR Statement

Test report No. : 25GE0283-HO-1 Page : 1 of 43 Issued date : May 25, 2005 Revised date : June 3, 2005 FCC ID : HYQBTAU01A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) EMI TEST REPORT Test Report No. : 25GE0283-HO-1 Applicant : DENSO CORPORATION Type of Equipment : Audio Bluetooth Hands Free Unit Model No. : BTAU01A, BTAU02A Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247 : 2005 FCC ID : HYQBTAU01A Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: _____________________________ _____________________________ Kenichi Adachi EMC Service Makoto Kosaka EMC Service Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Service April 19 to 21, 2005 Test report No. : 25GE0283-HO-1 Page : 2 of 43 Issued date : May 25, 2005 Revised date : June 3, 2005 FCC ID : HYQBTAU01A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information ......................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)..................................................................................................... 3 SECTION 3: Test specification, procedures & results ..................................................................................... 4 SECTION 4: Operation of E.U.T. during testing .............................................................................................. 6 SECTION 5: Conducted Emission...................................................................................................................... 7 SECTION 6: Spurious Emission ......................................................................................................................... 8 SECTION 7: Bandwidth ...................................................................................................................................... 9 SECTION 8: Maximum Peak Output Power .................................................................................................... 9 SECTION 9: Carrier Frequency Separation ..................................................................................................... 9 SECTION 10: Number of Hopping Frequency ................................................................................................. 9 SECTION 11: Dwell time .................................................................................................................................... 9 APPENDIX 1: Photographs of test setup ......................................................................................................... 10 Conducted Emission .............................................................................................................................................. 10 Spurious Emission (Radiated) ...............................................................................................................................11 Worst Case Position , Type A (X-axis:Horizontal / Y-axis:Vertical) .................................................................. 12 Worst Case Position , Type B’s Antenna (X-axis:Horizontal / Z-axis:Vertical) .............................................. 13 APPENDIX 2:Test instruments ......................................................................................................................... 14 APPENDIX 3: Data of EMI test......................................................................................................................... 15 Conducted Emission .............................................................................................................................................. 15 Carrier Frequency Separation ............................................................................................................................. 20 20dB Bandwidth .................................................................................................................................................... 22 Number of Hopping Frequency............................................................................................................................ 24 Maximum Peak Output Power............................................................................................................................. 29 Radiated Spurious Emission (Type A) ................................................................................................................. 31 Radiated Spurious Emission (Type B) (Reference data) .................................................................................... 37 Conducted Spurious Emission (FHSS) ................................................................................................................ 39 99% Occupied Bandwidth(FHSS) ....................................................................................................................... 43 Test report No. : 25GE0283-HO-1 Page : 3 of 43 Issued date : May 25, 2005 Revised date : June 3, 2005 FCC ID : HYQBTAU01A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : DENSO CORPORATION Address : 1-1,Showa-cho,Kariya-shi,Aich…
