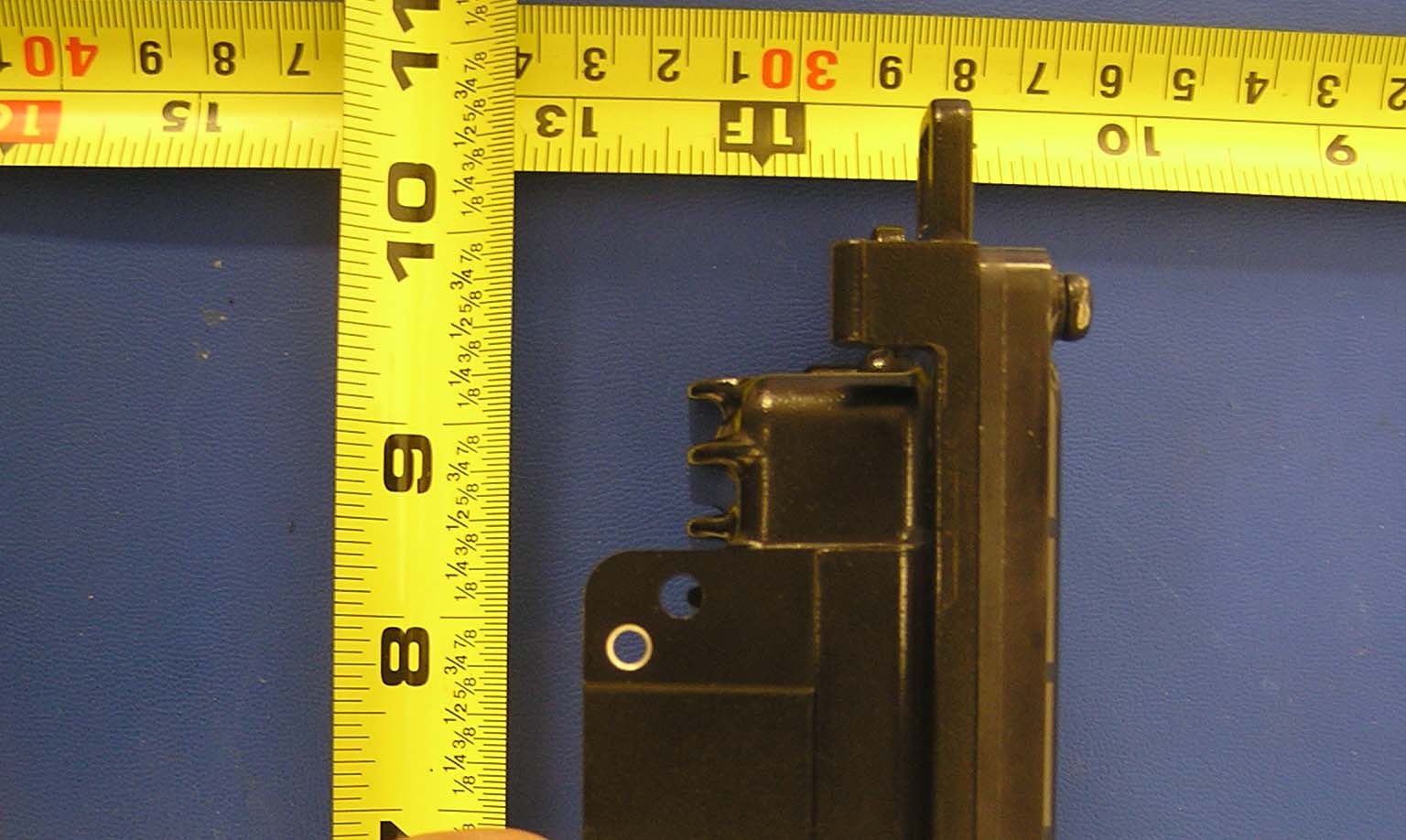

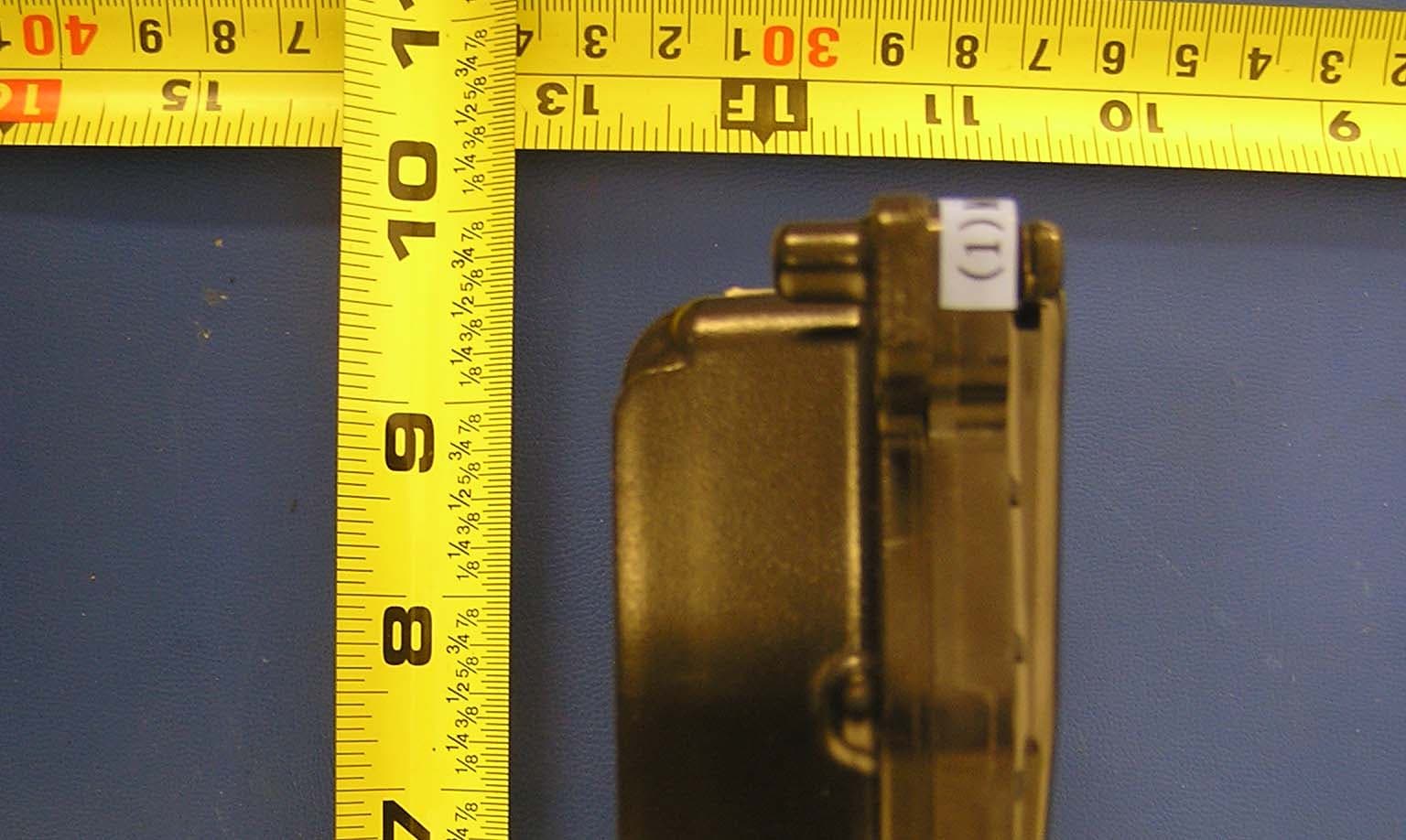

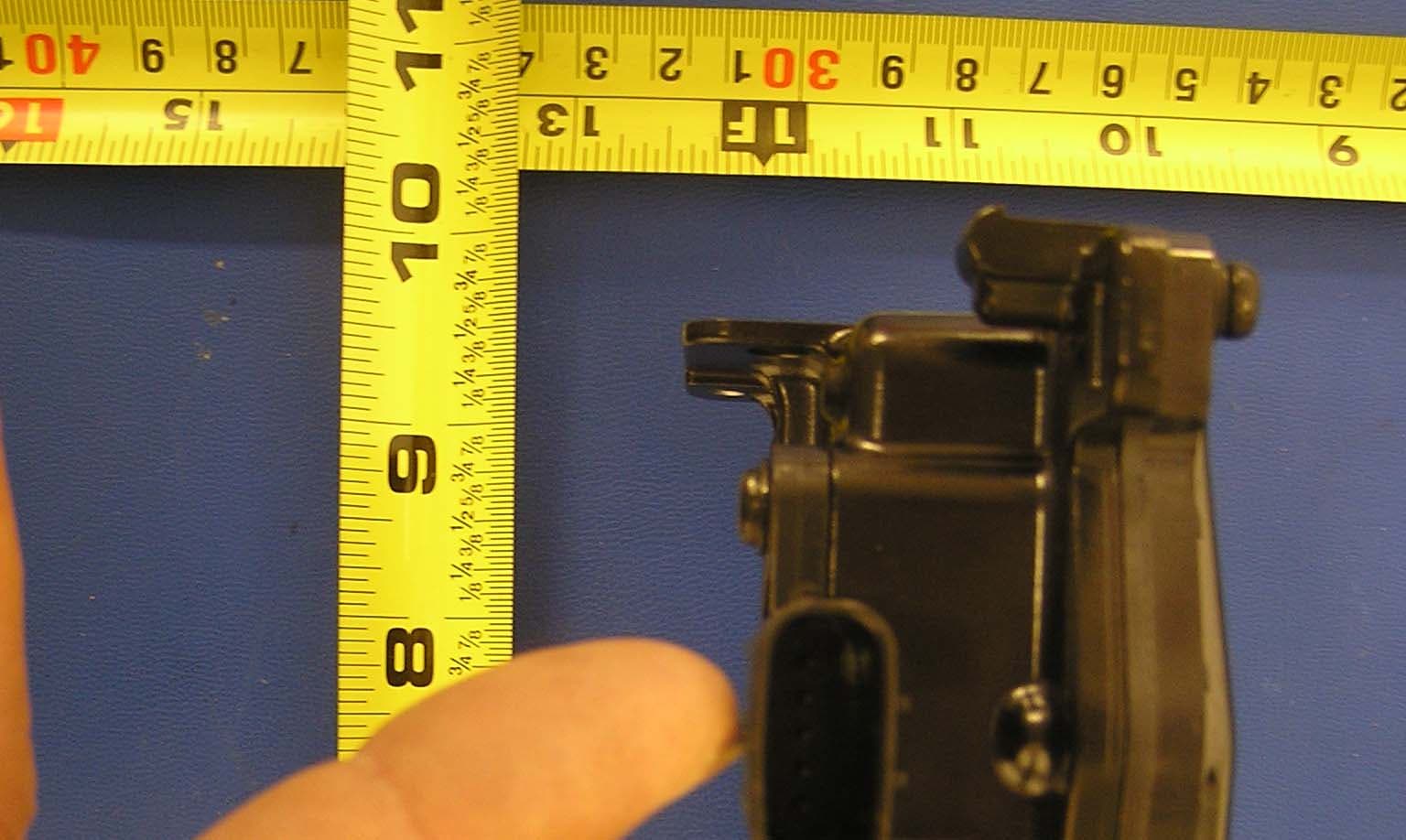

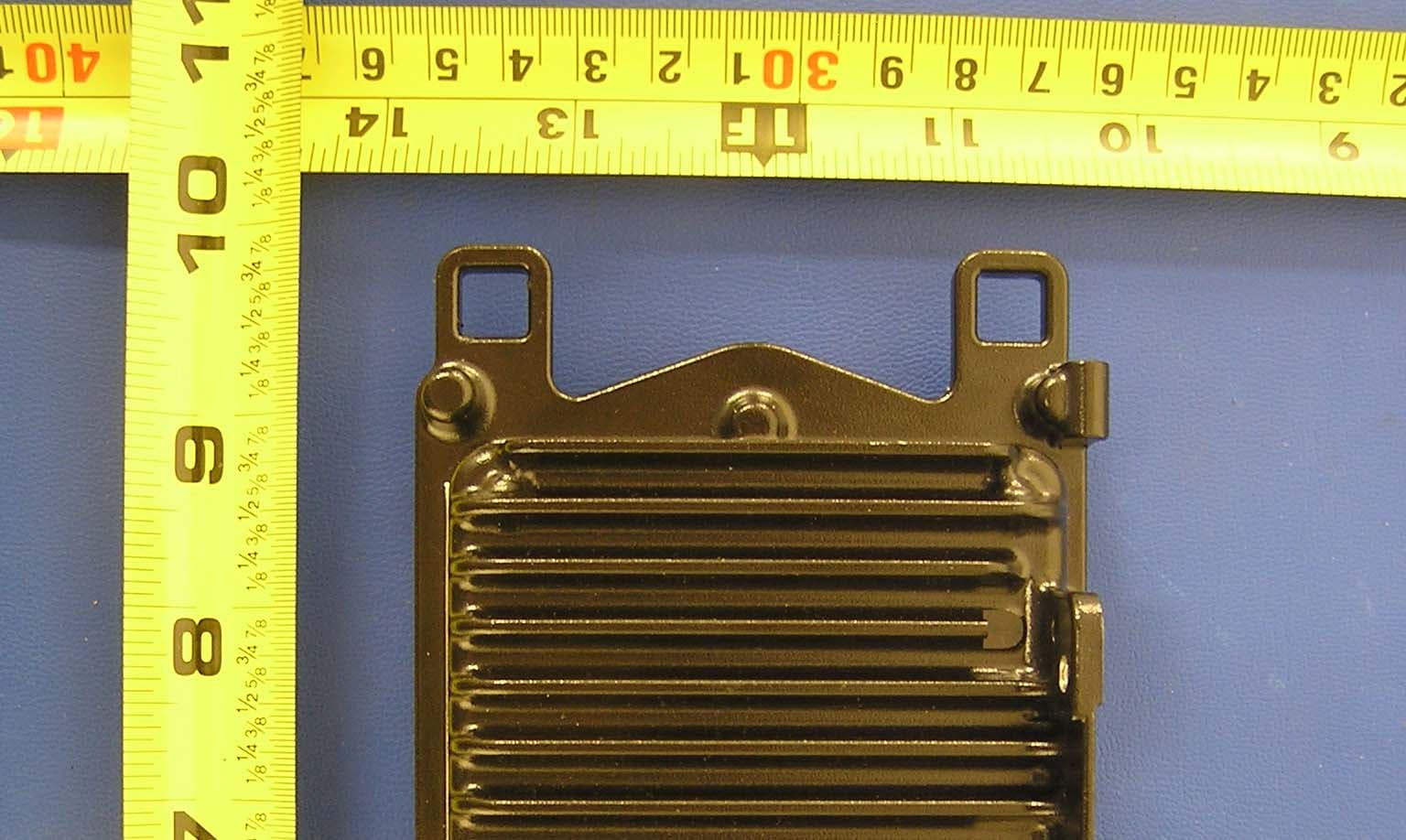

HYQDNMWR004MILLIMETER WAVE RADAR SENSOR 76 GHz VEHICLE MOUNT

Manual Requirement of FCC / IC Our product (DNMWR004) is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user’s manual and service manual of the product. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual and service manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC RF exposure, following statement will be included in the user’s manual. 1.1.3. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-Gen, following statement will be included in the user’s manual. 2. Service manual In accordance with SAR requirement of FCC rule, following statement will be included in the user’s manual. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF exposure Information This device complies with the FCC RF exposure requirements . Caution: Radio Frequency Exposure This device complies with applicable FCC radio frequency exposure requirements, and must be adjusted with a distance of at least 20cm (7.9 inches) between the RF aperture of device and the body of any person at all times during adjustment. This device complies with Part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To: XXXXXXXXXXXXXXX The following statements are FCC and IC requirements for user’s manual and service manual. Therefore, the following statements must be included in user’s manual and service manual. Please include the following statements in your user’s manual and service manual. 1. Requirement statement for user’s manual 1.1. FCC Requirement 1.2. IC Requirement 2. Requirement statement for service manual Note: Above sheet is the English translated version. In general, we use the Japanese one. As the above sheet is a draft version, some changes may be made. However, content of information will not be changed. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF exposure Information This device complies with the FCC RF exposure requirements. Caution: Radio Frequency Exposure This device complies with applicable FCC radio frequency exposure requirements, and must be adjusted with a distance of at least 20cm (7.9 inches) between the RF aperture of device and the body of any person at all times during adjustment. This device complies with Part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 3. Outline of operation and Service manual Our product is one of vehicle parts incorporated into the vehicle as the original equipment. Therefore, we will not supply the user’s manual and service manual of the product. We describe the operation and service method as follows. - Operation Our product will be placed in the stand-by state ready for radio frequency radiation when the ignition is ON. Then, the product will radiate radio wave by stepping on the vehicle’s accelerator and changing vehicle into the motion. - Service The axis of RF beam is adjusted according to the following steps. 1. For the adjustment of vertical RF beam axis - The screw for vertical adjustment of Millimeter wave radar sensor is turned by a wrench, and the vertical angle of RF beam is adjusted. 2. For the adjustment of Horizontal RF beam axis - The Ignition of vehicle is turned ON. - The inspection equipment is connected to the vehicle. - Gap of a horizontal axis is checked according to the work procedure displayed on the screen of inspection equipment. - Based on the inspection result, the right-and-left adjustment screw of Millimeter wave radar sensor is adjusted by a wrench.

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: November 12, 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; 1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kazuo Sakakibara, Senior Manager Regulatory Affairs and Certification Center Engineering Administration Dept. DENSO CORPORATION

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: HYQDNMWR004 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara, Senior Manager Regulatory Affairs and Certification Center Engineering Administration Dept. DENSO CORPORATION

47173 Benicia Street, Fremont CA 94538 Tel: 510-771-1000, Fax: 510-661-0888 Federal Communication Commissions 7435 Oakland Mills Road Columbia MD 21046 Subject: Request FCC to replace previous submitted user manual Ref: Applicant: Porta Phone Company Inc. FCC ID: HYQDNMWR004 TCB Assessment no.: AN07T7440 Grant date: 12/20/2007 To Whom It May Concern: CCS-TCB issued the grant on Dec. 20, 2007, during the upload the process, CCS mistakenly upload previous version of test report and RF Exposure information. CCS-TCB is requesting FCC to delete the following files from database: RF exposure infoRF Exposure Info12/20/2007pdf12/20/2007 Test report Test Report 12/20/2007pdf12/20/2007 The correct test report and RF exposure information have been uploaded to FCC with description of “updated test report” and “updated RF exposure Info”. Best Regards Mike Kuo / V.P. Compliance Certification Services Dec. 21, 2007

1-1,Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality (Short Term) FCC ID: HYQDNMWR004 To Whom It May Concern: Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short- term confidentiality request on the following attachments in 45 days: External Photos Internal Photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara, Senior Manager Regulatory Affairs and Certification Center Engineering Administration Dept. DENSO CORPORATION

FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004

REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 20 of 20 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. MAXIMUM PERMISSIBLE EXPOSURE 8.1. RULES FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 21 of 21 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 22 of 22 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8.2. EQUATIONS FROM OET BULLETIN 65 NEAR-FIELD BOUNDARY For the high-gain aperature antenna used with the EUT the extent of the near-field can be described by the following equation (D and λ in same units): (OET 65 equation 12) Rnf = (D^2) / (4 * λ) where Rnf = extent of near-field D = maximum dimension of antenna (diameter if circular) λ = wavelength MAXIMUM NEAR-FIELD POWER DENSITY The magnitude of the on-axis (main beam) power density varies according to location in the near-field. However, the maximum value of the near-field, on-axis, power density can be expressed by the following equation: (OET 65 equation 13) Snf = (16 * η * P) / (π * D^2) where Snf = maximum near-field power density η = aperture efficiency P = power fed to the antenna D = antenna diameter The antenna for the EUT is rectangular rather than circular. Substituting the formula for the area of a retangle in place of the area of a circle yields: (modified equation 13) Snf = (4 * η * P) / (L * W) where Snf = maximum near-field power density η = aperture efficiency P = power fed to the antenna L = antenna length W = antenna width REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 23 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. APERTURE EFFICIENCY Aperture efficiency can be estimated, or a reasonable approximation for circular apertures can be obtained from the ratio of the effective aperture area to the physical area as follows: (OET 65 equation 14) η = ((G * λ^2) / (4 * π)) / ((π * D^2) / 4) where η = aperture efficiency for circular apertures G = power gain in the direction of interest relative to an isotropic radiator λ = wavelength D = antenna diameter Substituting the formula for the area of a retangle in place of the area of a circle yields: (modified equation 14) η = ((G * λ^2) / (4 * π)) / (L * W) η = aperture efficiency for rectangular apertures G = power gain in the direction of interest relative to an isotropic radiator λ = wavelength L = antenna length W = antenna width FAR-FIELD BOUNDARY For purposes of evaluating RF exposure, the distance to the beginning of the far-field region (farthest extent of the transition region) can be approximated by the following equation: (OET 65 equation 16) Rff = (0.6 * (D^2)) / λ where Rff = extent of near-field D = antenna diameter λ = wavelength REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 24 of 24 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TRANSITION REGION Power density in the transition region decreases inversely with distance from the antenna, while power density in the far-field (Fraunhofer region) of the antenna decreases inversely with the square of the distance. The transition region will then be the region extending from Rnf, calculated from Equation (12), to Rff. If the location of interest falls within this transition region, the on axis power density can be determined from the following equation: (OET 65 equation 17) St = Snf * Rnf / R where St = power density in the transition region Snf = maximum power density for near-field calculated above Rnf = extent of near-field calculated aboveS R = distance to point of interest FAR-FIELD REGION The power density in the far-field or Fraunhofer region of the antenna pattern decreases inversely as the square of the distance. The power density in the far-field region of the radiation pattern can be estimated by the general equation discussed earlier: (OET 65 equation 18) Sff = P * G / (4 * π * (R^2)) where Sff = power density (on axis) P = power fed to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the point of interest REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 25 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BEN…

Text truncated - open the document above for the full version.

REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 20 of 20 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. MAXIMUM PERMISSIBLE EXPOSURE 8.1. RULES FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 21 of 21 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 22 of 22 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8.2. EQUATIONS FROM OET BULLETIN 65 NEAR-FIELD BOUNDARY For the high-gain aperature antenna used with the EUT the extent of the near-field can be described by the following equation (D and λ in same units): (OET 65 equation 12) Rnf = (D^2) / (4 * λ) where Rnf = extent of near-field D = maximum dimension of antenna (diameter if circular) λ = wavelength MAXIMUM NEAR-FIELD POWER DENSITY The magnitude of the on-axis (main beam) power density varies according to location in the near-field. However, the maximum value of the near-field, on-axis, power density can be expressed by the following equation: (OET 65 equation 13) Snf = (16 * η * P) / (π * D^2) where Snf = maximum near-field power density η = aperture efficiency P = power fed to the antenna D = antenna diameter The antenna for the EUT is rectangular rather than circular. Substituting the formula for the area of a retangle in place of the area of a circle yields: (modified equation 13) Snf = (4 * η * P) / (L * W) where Snf = maximum near-field power density η = aperture efficiency P = power fed to the antenna L = antenna length W = antenna width REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 23 of 23 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. APERTURE EFFICIENCY Aperture efficiency can be estimated, or a reasonable approximation for circular apertures can be obtained from the ratio of the effective aperture area to the physical area as follows: (OET 65 equation 14) η = ((G * λ^2) / (4 * π)) / ((π * D^2) / 4) where η = aperture efficiency for circular apertures G = power gain in the direction of interest relative to an isotropic radiator λ = wavelength D = antenna diameter Substituting the formula for the area of a retangle in place of the area of a circle yields: (modified equation 14) η = ((G * λ^2) / (4 * π)) / (L * W) η = aperture efficiency for rectangular apertures G = power gain in the direction of interest relative to an isotropic radiator λ = wavelength L = antenna length W = antenna width FAR-FIELD BOUNDARY For purposes of evaluating RF exposure, the distance to the beginning of the far-field region (farthest extent of the transition region) can be approximated by the following equation: (OET 65 equation 16) Rff = (0.6 * (D^2)) / λ where Rff = extent of near-field D = antenna diameter λ = wavelength REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 24 of 24 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TRANSITION REGION Power density in the transition region decreases inversely with distance from the antenna, while power density in the far-field (Fraunhofer region) of the antenna decreases inversely with the square of the distance. The transition region will then be the region extending from Rnf, calculated from Equation (12), to Rff. If the location of interest falls within this transition region, the on axis power density can be determined from the following equation: (OET 65 equation 17) St = Snf * Rnf / R where St = power density in the transition region Snf = maximum power density for near-field calculated above Rnf = extent of near-field calculated aboveS R = distance to point of interest FAR-FIELD REGION The power density in the far-field or Fraunhofer region of the antenna pattern decreases inversely as the square of the distance. The power density in the far-field region of the radiation pattern can be estimated by the general equation discussed earlier: (OET 65 equation 18) Sff = P * G / (4 * π * (R^2)) where Sff = power density (on axis) P = power fed to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the point of interest REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 25 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 471…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR MILLIMETER WAVE RADAR SENSOR (76 GHz VEHICLE MOUNT) MODEL NUMBER: DNMWR004 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 REPORT NUMBER: 07J11347-1, Revision B ISSUE DATE: DECEMBER 20, 2007 Prepared for DENSO CORPORATION 1-1 SHOWA-CHO, KARIYA AICHI 448-8661, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 2 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 12/17/2007 Initial Issue M. Heckrotte A 12/18/2007 Added 99% BW, added reference to OET 65, clarified environmental envelope for frequency stability tests, revised MPE calculations. M. Heckrotte B 12/20/2007 Added average measurements of fundamental. M. Heckrotte REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 3 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. OUTPUT POWER .......................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. AMBIENT OPERATING ENVIRONMENT ...................................................................... 6 5.5. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.6. WORST-CASE CONDITION .......................................................................................... 7 5.7. DESCRIPTION OF TEST SETUP .................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 9 7. LIMITS AND RESULTS ...................................................................................................... 10 7.1. 20 dB AND 99% BANDWIDTH..................................................................................... 10 7.2. IN BAND EMISSIONS .................................................................................................. 12 7.3. OUT OF BAND EMISSIONS ........................................................................................ 15 7.4. FREQUENCY STABILITY ............................................................................................ 18 8. MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 20 8.1. RULES..........................................................................................................................20 8.2. EQUATIONS FROM OET BULLETIN 65 ..................................................................... 22 8.3. CALCULATIONS .......................................................................................................... 25 8.4. MAXIMUM POWER DENSITY AT A DISTANCE OF 20 cm ........................................ 27 8.5. VALIDATION OF APPLICABILITY OF OET 65 EQUATIONS...................................... 28 9. SETUP PHOTOS................................................................................................................. 29 REPORT NO: 07J11347-1B DATE: DECEMBER 20, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 4 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: DENSO CORPORATION 1-1 SHOWA-CHO KARIYA, AICHI 448-8661, JAPAN EUT DESCRIPTION: MILLIMETER WAVE RADAR SENSOR (VEHICLE MOUNT) MODEL: DNMWR004 SERIAL NUMBER: CCS2041 DATE TESTED: OCTOBER 17 TO DECEMBER 18, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C No Non-Compliance Noted RSS-210 Issue 7 Annex 13 and RSS-GEN Issue 2 No Non-Compliance Noted Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carri…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR MILLIMETER WAVE RADAR SENSOR (76 GHz VEHICLE MOUNT) MODEL NUMBER: DNMWR004 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 REPORT NUMBER: 07J11347-1, Revision B1 ISSUE DATE: DECEMBER 21, 2007 Prepared for DENSO CORPORATION 1-1 SHOWA-CHO, KARIYA AICHI 448-8661, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07J11347-1B1 DATE: DECEMBER 21, 2007 FCC ID: HYQDNMWR004 IC: 1551A-DNMWR004 Page 2 of 31 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMON…
