HYQDNMWR006Millimeter Wave Radar Sensor

Manual Requirement of FCC / IC Our product (DNMWR006) is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user’s manual and service manual of the product. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual and service manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC RF exposure, following statement will be included in the user’s manual. 1.1.3. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-Gen, following statement will be included in the user’s manual. 1.2.2. In accordance with requirement of RSS-102, following statement will be included in the user’s manual. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiofrequency radiation exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator (antenna) and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiofrequency radiation exposure Information: This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. 2. Service manual In accordance with SAR requirement of FCC and IC rules, following statement will be included in the user’s manual. Radiofrequency radiation exposure Information: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be kept with minimum distance of 20 cm between the radiator (antenna) and your body at all times during adjustment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Date: October 11, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: DENSO CORPORATION FCC ID: HYQDNMWR006 To whom it may concern: We, the undersigned, hereby authorize Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kazuo Sakakibara General Manager Engineering Administration Division

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: HYQDNMWR006 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days from the date of grant: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kazuo Sakakibara General Manager Engineering Administration Division October 20, 2011

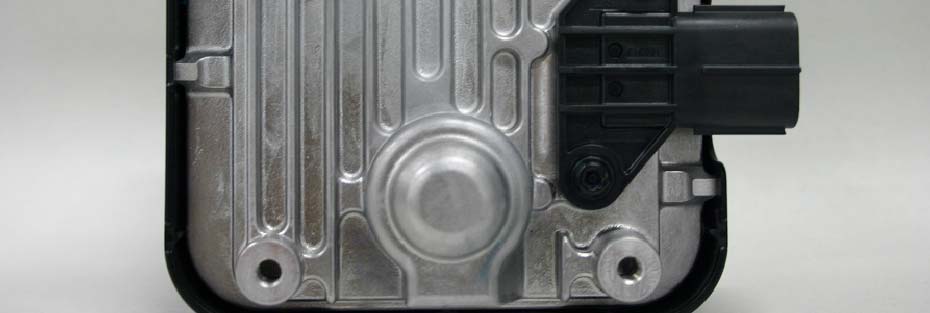

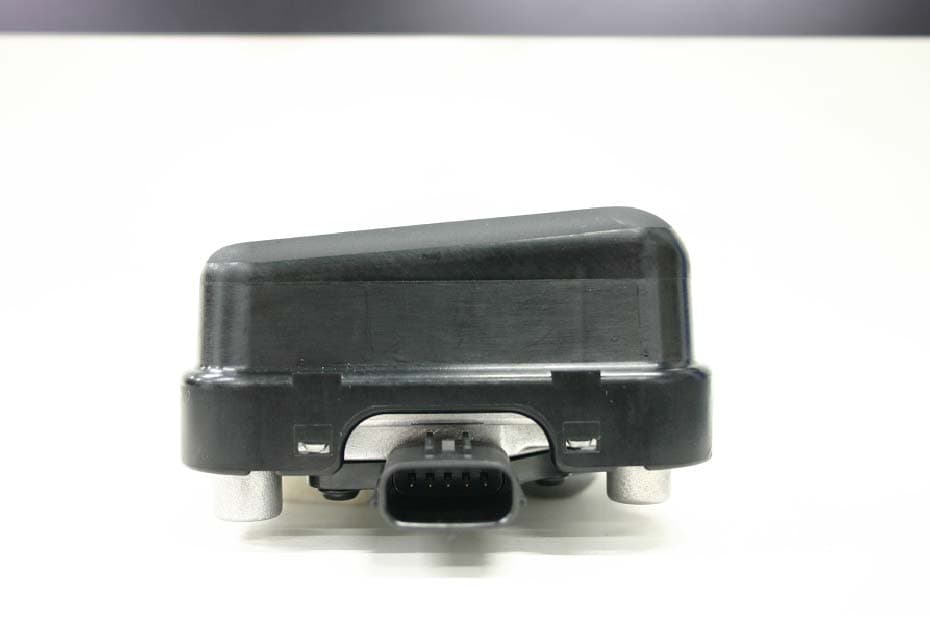

DENSO CORPORATIONMillimeter Wave Radar SensorFCC ID: HYQDNMWR006IC Number: 1551A-DNMWR006 External Photos DENSO CORPORATIONMillimeter Wave Radar SensorFCC ID: HYQDNMWR006IC Number: 1551A-DNMWR006 2/5 External Photos DENSO CORPORATIONMillimeter Wave Radar SensorFCC ID: HYQDNMWR006IC Number: 1551A-DNMWR006 External Photos DENSO CORPORATIONMillimeter Wave Radar SensorFCC ID: HYQDNMWR006IC Number: 1551A-DNMWR006 4/5 External Photos DENSO CORPORATIONMillimeter Wave Radar SensorFCC ID: HYQDNMWR006IC Number: 1551A-DNMWR006 5/5 External Photos DENSO CORPORATIONMillimeter Wave Radar SensorFCC ID: HYQDNMWR006IC Number: 1551A-DNMWR006 External Photos

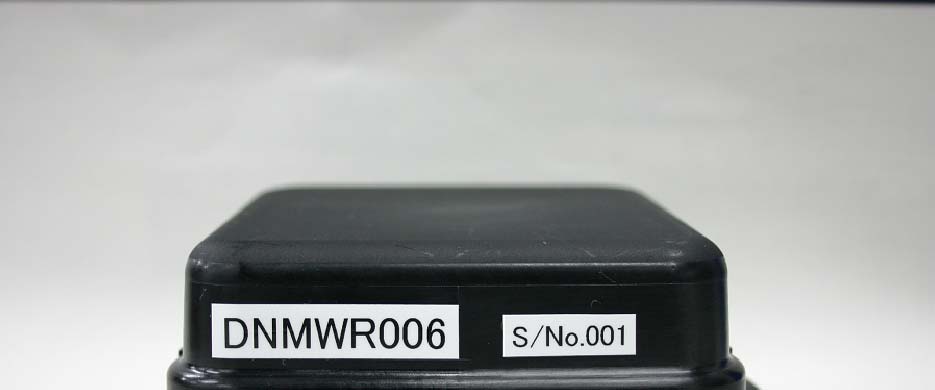

Model: DNMWR006 Marking layout and location Fig. Marking Layout Fig. Marking Location （６４．０） Marking location Note: Marking layout, size and other indications maybe changed. Due to design constrains*, the space available for marking is limited to the position as illustrated above. * The radio wave is emitted from the front surface. Existence of any object on the surface may affect equipment’s RF performance, and no labels can be attached. Heat release fins are made on the back side, and there is no flat surface to attach labels. （１７．０） Unit: mm

Internal Photos DENSO CORPORATION Millimeter Wave Radar Sensor FCC ID: HYQDNMWR006 IC Number: 1551A-DNMWR006 Millimeter Wave Board Component side Antenna side Internal Photos DENSO CORPORATION Millimeter Wave Radar Sensor FCC ID: HYQDNMWR006 IC Number: 1551A-DNMWR006 Power Supply Board Component side A Component side B

Test report No. : 32AE0195-HO-01 Page : 1 of 3 FCC ID : HYQDNMWR006 IC Number : 1551A-DNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Statement for RF Exposure JOB No. : 32AE0195-HO-01 Applicant : DENSO CORPORATION Type of Equipment : Millimeter Wave Radar Sensor Model No. : DNMWR006 Test standard : FCC Part 15 Subpart C: 2011 Section 15.253(f) RSS-Gen Issue 3: December 2010 RSS-Gen 5.5 Test result : Complied [FCC rule] §1.1310 Radiofrequency radiation exposure limits. The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Test report No. : 32AE0195-HO-01 Page : 2 of 3 FCC ID : HYQDNMWR006 IC Number : 1551A-DNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 [IC rule] RSS-102 §4 Exposure Limits For the purpose of this standard, Industry Canada has adopted the SAR and RF field strength limits established in Health Canada’s RF exposure guideline, Safety Code 6. §4.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2 * 6 300-1500 1.585f 0.5 0.0042f 0.5 f/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000/f 1.2 Note: f is frequency in MHz. * Power density limit is applicable at frequencies greater than 100 MHz. Test report No. : 32AE0195-HO-01 Page : 3 of 3 FCC ID : HYQDNMWR006 IC Number : 1551A-DNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 [Results] ModeDuty Factor [dBm][mW][dB][dBm][mW] In motion35.853850.1-7.6928.16655.1 Not in motion30.141031.6-7.6922.44175.5 Separation DistancePower DensityLimitPower DensityLimit [cm][mW/cm2][mW/cm2][W/m2][W/m2] 200.13011.30310 200.03510.34910 Calculating formula: Average EIRP = Peak EIRP + Duty Factor Power Density = Average EIRP / (4 * Pi * Separation Sistance ^ 2) FCCIC Peak EIRPAverage EIRP (Peak with Duty Factor)

Test report No. : 32AE0195-HO-01-A-R1 Page : 2 of 26 Issued date : October 17, 2011 Revised date : October 24, 2011 FCC ID : HYQDNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Radiated Emission (Spurious Emission, Power Density) ................................................. 9 SECTION 6: Frequency Stability ........................................................................................................... 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 26dB and 99% Bandwidth ................................................................................................................ 12 Power Density ................................................................................................................................... 13 Spurious Emission ............................................................................................................................. 14 Receiver Spurious Emission ............................................................................................................. 16 Frequency Stability ........................................................................................................................... 17 APPENDIX 2: Duty Cycle ....................................................................................................................... 18 APPENDIX 3: RF Exposure .................................................................................................................... 19 APPENDIX 4: Test instruments ............................................................................................................. 22 APPENDIX 5: Photographs of test setup ............................................................................................... 24 Spurious Emission ............................................................................................................................. 24 Carrier Frequency Measurement ....................................................................................................... 25 Frequency Stability ........................................................................................................................... 26 Test report No. : 32AE0195-HO-01-A-R1 Page : 3 of 26 Issued date : October 17, 2011 Revised date : October 24, 2011 FCC ID : HYQDNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-25-5947 Facsimile Number : +81-566-25-4548 Contact Person : Madoka Shimotsuru SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Millimeter Wave Radar Sensor Model No. : DNMWR006 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12V (Car battery), DC9V to 16V(Operating range) Receipt Date of Sample : September 6, 2011 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description This radar sensor (DNMWR006) is the 76GHz - 77GHz vehicle-mounted field disturbance sensor that is a millimeter wave frequency modulated continuous wave (FM-CW) radar operating at 76.0GHz to 77.0GHz (Nominal: 76.5GHz). General Specification Clock frequency(ies) in the system : Microcomputer: 20MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 76-77GHz Modulation : FM-CW Antenna Type : Internal Antenna Antenna Connector : None Antenna Gain : 21.5dBi Antenna beam width (-3dB) : +/-10deg. (Horizontal), +/-2.5deg. (Vertical) Steerable Antenna : Electronically (Receiving Part only) Usage location : Forward-looking, vehicle-mounted Power Supply (inner) : DC -4.5V, DC 5V, DC6.5V Test report No. : 32AE0195-HO-01-A-R1 Page : 4 of 26 Issued date : October 17, 2011 Revised date : October 24, 2011 FCC ID : HYQDNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2011, final revised on July 8, 2011 and effective August 8, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.253 Operation within the bands 46.7-46.9GHz and 76.0-77.0GHz. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC power line Conducted Emission measurements FCC: Section 15.207 N/A N/A *1) IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 26dB Bandwidth FCC: "MILLIMETER WAVE TEST PROCEDURES" FCC: Section 15.253(e) See data. Complied Radiated IC: - IC: RSS-210 A13.1.5 Power Density FCC: "MILLIMETER WAVE TEST PROCEDURES" FCC: Section 15.253(b), (d) Complied Radiated *2) IC: - IC: RSS-210 A13.1.2(1) Spurious Emissions FCC: ANSI C63.4:2003, "MILLIMETER WAVE TEST PROCEDURES" FCC: Section 15.253(c) , (d) 2.0dB 432.067MHz, Hori. QP Complied Radiated *2) IC: RSS-Gen 4.9 IC: RSS-210 A13.1.2…

Text truncated - open the document above for the full version.

Test report No. : 32AE0195-HO-01-A-R1 Page : 24 of 26 Issued date : October 17, 2011 Revised date : October 24, 2011 FCC ID : HYQDNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 5: Photographs of test setup Spurious Emission Photo 1 Photo 2 Test report No. : 32AE0195-HO-01-A-R1 Page : 25 of 26 Issued date : October 17, 2011 Revised date : October 24, 2011 FCC ID : HYQDNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Carrier Frequency Measurement Photo 1 Photo 2 Test report No. : 32AE0195-HO-01-A-R1 Page : 26 of 26 Issued date : October 17, 2011 Revised date : October 24, 2011 FCC ID : HYQDNMWR006 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Frequency Stability Photo 1
