HYQDNMWR011Millimeter Wave Radar Sensor

Manual Requirement of FCC / ISED Model: DNMWR011 Our product is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user manual. However, we will ask the vehicle manufacturer to include following statements in the user manual of the vehicle in accordance with FCC and ISED requirements. 1. Requirement for User manual of the vehicle 1.1. FCC Requirement In accordance with 15.21 of FCC rule, following statement will be included in the user manual of the vehicle. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user manual of the vehicle. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In accordance with requirement of FCC RF exposure, following statement will be included in the user manual of the vehicle. Radiofrequency radiation exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator (antenna) and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Manual Requirement of FCC / ISED Model: DNMWR011 1.2. ISED Requirement In accordance with requirement of RSS-GEN, following statement will be included in the user manual of the vehicle. NOTE This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. In accordance with requirement of RSS-102 of the ISED radio frequency Exposure rules, following statement will be included in the user manual of the vehicle. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person’s body. 2. Service manual In accordance with SAR requirement of FCC rule, following statement will be included in the service manual. Radiofrequency radiation exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be kept with minimum distance of 20 cm between the radiator (antenna) and your body at all times during adjustment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Letter of Authorization Date: August 20, 2020 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : HYQDNMWR011 Applicant : DENSO CORPORATION To whom it may concern: We, the undersigned, hereby authorize Shuichi Ohyama of Consumer Technology Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Confidentiality Date: August 20, 2020 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 RE: Certification Application FCC ID : HYQDNMWR011 Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Theory of Operation Parts list The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Short-Term Confidentiality Date: August 20, 2020 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : HYQDNMWR011 Applicant : DENSO CORPORATION To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: Internal Photos External Photos Test Setup Photos User Manual The application contains technical inform ation, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

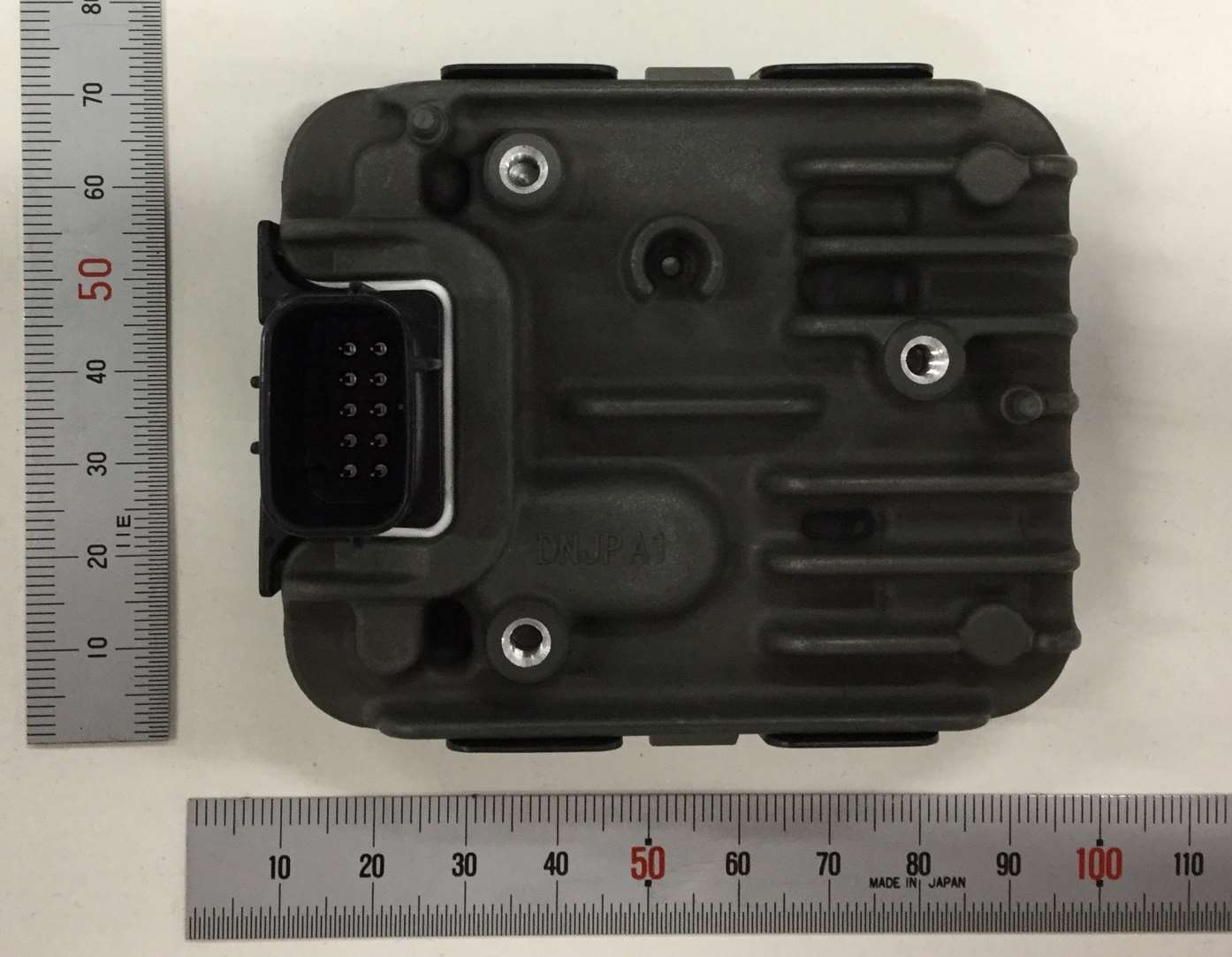

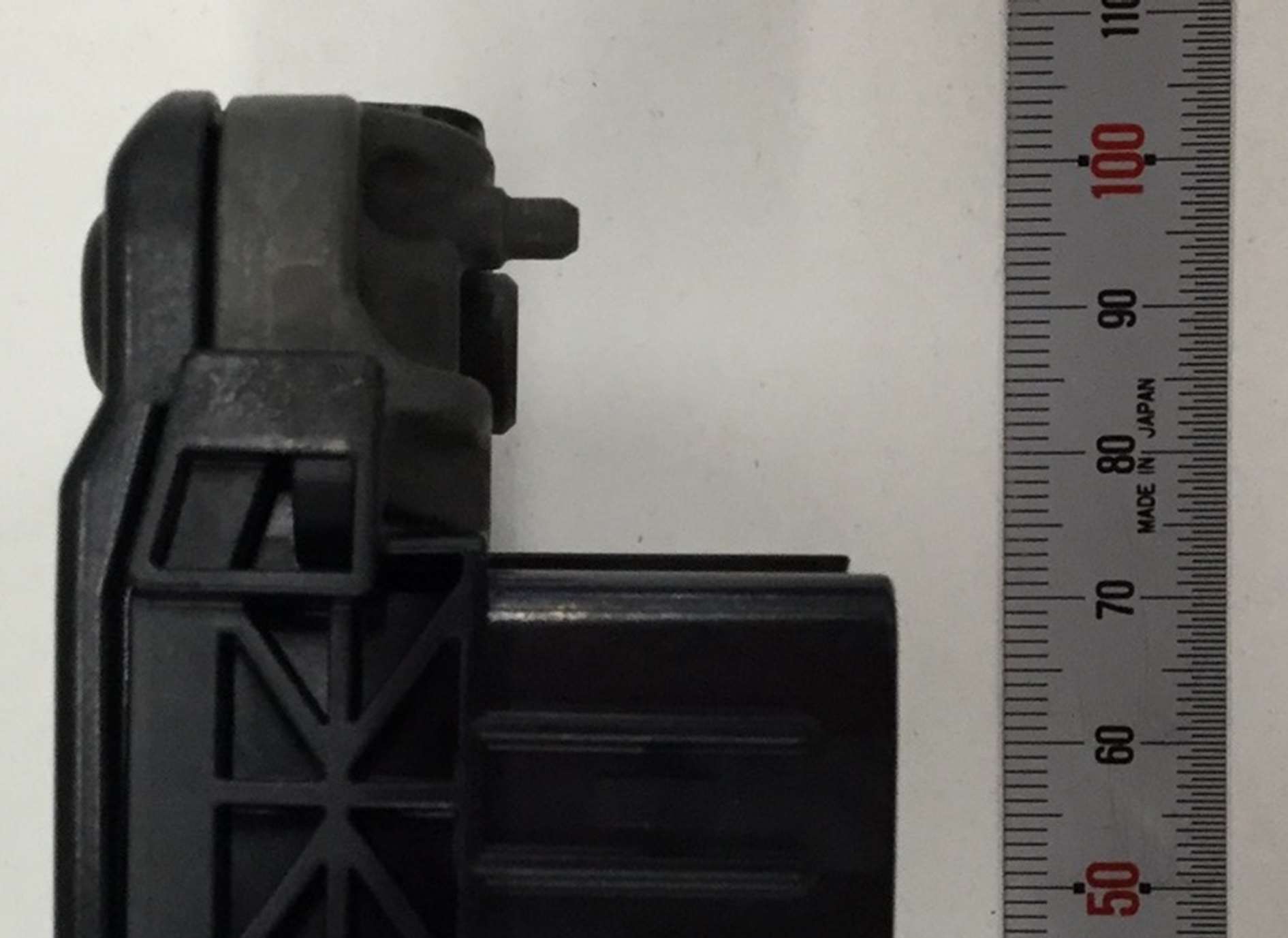

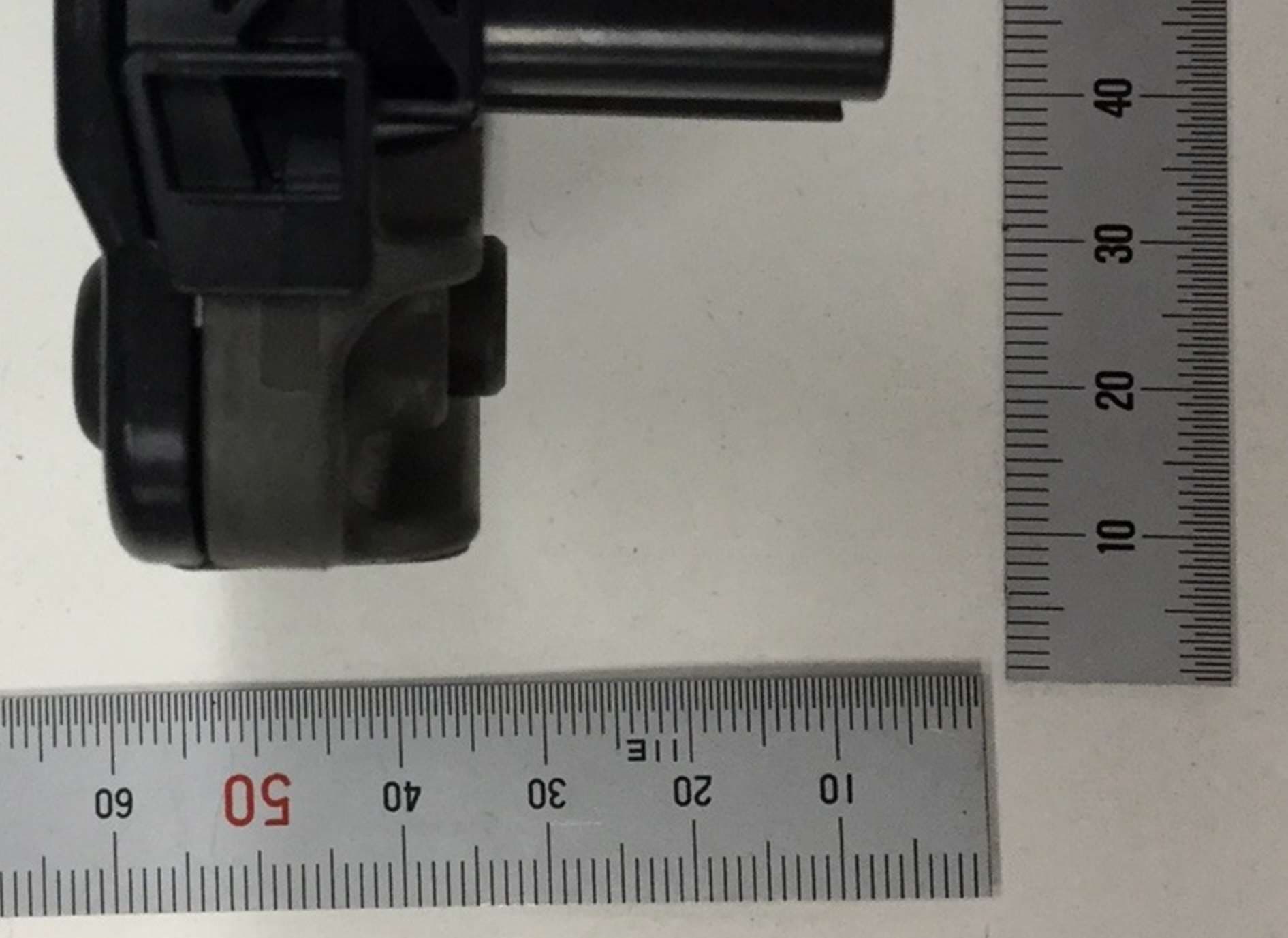

DENSO CORPORATION Millimeter Wave Radar Sensor FCC ID: HYQDNMWR011 IC Number: 1551A-DNMWR011 External Photos 1/3 DENSO CORPORATION Millimeter Wave Radar Sensor FCC ID: HYQDNMWR011 IC Number: 1551A-DNMWR011 External Photos 2/3 DENSO CORPORATION Millimeter Wave Radar Sensor FCC ID: HYQDNMWR011 IC Number: 1551A-DNMWR011 External Photos 3/3

Product: Millimeter Wave Radar Sensor Model: DNMWR011 Marking location: Note: Marking layout, size and other indications may be changed Due to design constrains*, the space available for marking is limited to the position as illustrated above. *Heat release fins are made on the back side, and there is no flat surface to attach labels.

DENSO CORPORATION Millimeter Wave Radar Sensor FCC ID: HYQDNMWR011 IC Number: 1551A-DNMWR011 Internal Photos 1/1 RF Board Component side Antenna side

Test report No. : 13408006H Page : 1 of 2 Issued date : August 25, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Statement for RF Exposure Order No. : 13408006H Applicant : DENSO CORPORATION Type of Equipment : Millimeter Wave Radar Sensor Model No. : DNMWR011 Test standard : FCC Part 95 Subpart M: 2017 Test result : Complied [FCC rule] §1.1310 Radiofrequency radiation exposure limits. The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Test report No. : 13408006H Page : 2 of 2 Issued date : August 25, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 [Results] ModeAverageSeparation EIRPDistanceResultLimit [mW][cm] [mW/c m 2 ][mW/cm 2 ] Average Power280.98200.061 Calculating formula: Power Density = Average EIRP / (4 * Pi * Separation Distance ^ 2) Power Density This EIRP was measured in sufficient far field of 1.5 m distance and calculated at 20 cm.

Test report No. : 13408006H-A-R2 Page : 1 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 17.0 RADIO TEST REPORT Test Report No. : 13408006H-A-R2 Applicant : DENSO CORPORATION Type of Equipment : Millimeter Wave Radar Sensor Model No. : DNMWR011 Test regulation : FCC Part 95 Subpart M: 2017 FCC ID : HYQDNMWR011 Test Result : Complied (Refer to SECTION 3.2) Date of test: July 20 to September 7, 2020 Representative test engineer: Yuichiro Yamazaki Engineer Consumer Technology Division Approved by: Tsubasa Takayama Leader Consumer Technology Division CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non- Radio test related Requirements. (if applicable) 7. The all test items in this test report a re conducted by UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in Section 1. 10 This report is a revised version of 13408006H-A-R1. 13408006H-A-R1 is replaced with this report. Test report No. : 13408006H-A-R2 Page : 2 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13408006H-A Revision Test report No. Date Page revised Contents - (Original) 13408006H-A August 25, 2020 - - 1 13408006H-A-R1 September 8, 2020 P.14 Addition of the following descriptive text in SECTION 5; The Peak Power results was applied to the desensitization correction factor by KDB653005 4.(c). The derivation of the FMCW Desensitization Factor is given in Keysight Application Note 5952 1039 Appendix B. Desensitization factor was calculated from follow equation. 훼ൌ 1 ඨ 1൅൬ 2퐼푛ሺ2ሻ 휋 ൰ ଶ ቀ 퐹푠 푇푠 퐵 ଶ ቁ ଶ ర And FMCW Desensitization factor = 20 Log (α) Where Fs = FMCW Sweep Width or Chirp Width Ts = FMCW Sweep Time B = -3dB bandwidth of Gaussian RBW Filter For the values of Fs, Ts and B, refer to Theory of O peration-Specification. 1 13408006H-A-R1 September 8, 2020 P.16 Addition of the following sentence under the data table; Since the transmitter signal is CW it is impractical to use a RBW setting of 1 - 5 % of the emission bandwidth since the emission bandwidth will be proportional to the RBW. 1 13408006H-A-R1 September 8, 2020 P.16, 18 Replacement of data by retest of CW ch1, ch2, ch3 for Occupied bandwidth test. 1 13408006H-A-R1 September 8, 2020 P.19, 22, 23 Replacement of data by retest of CW and FCM1 Avera ge power for Radiated Power test. 1 13408006H-A-R1 September 8, 2020 P.19 Addition of the following sentence under the Radiated Power data; The derivation of the FMCW Desensitization Factor is given in Keysight Application Note 5952 1039 Appendix B. 1 13408006H-A-R1 September 8, 2020 P.77 Addition of Test equipment by retest. 2 13408006H-A-R2 September 14, 2020 P.1 Correction of the test date on the cover page. 2 13408006H-A-R2 September 14, 2020 P.19 Correction of the following Desensitization Factor value in Radiated Power; FCM1 Low: from 3.84 dB to 4.67 dB FCM1 Mid: from 3.84 dB to 4.68 dB FCM1 High: from 3.84 dB to 4.68 dB FCM2 ch1: from 4.92 dB to 5.36 dB FCM2 ch2: from 4.92 dB to 5.36 dB FCM2 ch3: from 4.92 dB to 5.36 dB Test report No. : 13408006H-A-R2 Page : 3 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectr…

Text truncated - open the document above for the full version.

Test report No. : 13408006H-A-R2 Page : 49 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability Report No. 13408006H Test place Ise EMC Lab. No.6 Measurement Room Date August 6, 2020 Tem perature / Humidity 23 deg. C / 56 % RH Enginee r Yuichiro Yamazaki Mode Tx FCM 1 Low Remarks T emp erat urePower Sup p lyLower ResultUp p er Result [deg. C][V][GHz][GHz] 6012.076.13276.517 Customer requested temp erature 5012.076.13376.517 4012.076.13276.517 3012.076.13376.517 2012.076.13376.517 2010.276.13376.518 85 % of the minimum op erating voltage, DC 12V * 0.85 2013.876.13376.517 115 % of the maximum op erating voltage, DC 12 V * 1.15 1012.076.13476.517 012.076.13476.517 -1012.076.13476.517 -2012.076.13476.517 -3012.076.13476.516 Test ConditionM easured -20 dBc Frequency Fundamental emissions were contained within the frequency band 76 GHz to 77 GHz during all conditions of operation. Test report No. : 13408006H-A-R2 Page : 50 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability 60 deg. C, DC 12.0 V 50 deg. C, DC 12.0 V 40 deg. C, DC 12.0 V 30 deg. C, DC 12.0 V 20 deg. C, DC 12.0 V 20 deg. C, DC 10.2 V Test report No. : 13408006H-A-R2 Page : 51 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability 20 deg. C, DC 13.8 V 10 deg. C, DC 12.0 V 0 deg. C, DC 12.0 V -10 deg. C, DC 12.0 V -20 deg. C, DC 12.0 V -30 deg. C, DC 12.0 V Test report No. : 13408006H-A-R2 Page : 52 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability Report No. 13408006H Test place Ise EMC Lab. No.6 Measurement Room Date August 6, 2020 Tem perature / Humidity 23 deg. C / 56 % RH Enginee r Yuichiro Yamazaki Mode Tx FCM 1 Mi d Remarks T emp erat urePower Sup p lyLower ResultUp p er Result [deg. C][V][GHz][GHz] 6012.076.33276.717 Customer requested temp erature 5012.076.33276.717 4012.076.33376.717 3012.076.33376.718 2012.076.33376.718 2010.276.33276.719 85 % of the minimum op erating voltage, DC 12V * 0.85 2013.876.33376.718 115 % of the maximum op erating voltage, DC 12 V * 1.15 1012.076.33376.718 012.076.33476.718 -1012.076.33476.718 -2012.076.33476.718 -3012.076.33576.717 Test ConditionM easured -20 dBc Frequency Fundamental emissions were contained within the frequency band 76 GHz to 77 GHz during all conditions of operation. Test report No. : 13408006H-A-R2 Page : 53 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability 60 deg. C, DC 12.0 V 50 deg. C, DC 12.0 V 40 deg. C, DC 12.0 V 30 deg. C, DC 12.0 V 20 deg. C, DC 12.0 V 20 deg. C, DC 10.2 V Test report No. : 13408006H-A-R2 Page : 54 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability 20 deg. C, DC 13.8 V 10 deg. C, DC 12.0 V 0 deg. C, DC 12.0 V -10 deg. C, DC 12.0 V -20 deg. C, DC 12.0 V -30 deg. C, DC 12.0 V Test report No. : 13408006H-A-R2 Page : 55 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability Report No. 13408006H Test place Ise EMC Lab. No.6 Measurement Room Date August 6, 2020 Tem perature / Humidity 23 deg. C / 56 % RH Enginee r Yuichiro Yamazaki Mode Tx FCM 1 Hi gh Remarks T emp erat urePower Sup p lyLower ResultUp p er Result [deg. C][V][GHz][GHz] 6012.076.53276.918 Customer requested temp erature 5012.076.53276.918 4012.076.53276.918 3012.076.53376.918 2012.076.53376.918 2010.276.53376.918 85 % of the minimum op erating voltage, DC 12V * 0.85 2013.876.53376.918 115 % of the maximum op erating voltage, DC 12 V * 1.15 1012.076.53376.918 012.076.53476.918 -1012.076.53476.918 -2012.076.53476.918 -3012.076.53476.918 Test ConditionM easured -20 dBc Frequency Fundamental emissions were contained within the frequency band 76 GHz to 77 GHz during all conditions of operation. Test report No. : 13408006H-A-R2 Page : 56 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability 60 deg. C, DC 12.0 V 50 deg. C, DC 12.0 V 40 deg. C, DC 12.0 V 30 deg. C, DC 12.0 V 20 deg. C, DC 12.0 V 20 deg. C, DC 10.2 V Test report No. : 13408006H-A-R2 Page : 57 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability 20 deg. C, DC 13.8 V 10 deg. C, DC 12.0 V 0 deg. C, DC 12.0 V -10 deg. C, DC 12.0 V -20 deg. C, DC 12.0 V -30 deg. C, DC 12.0 V Test report No. : 13408006H-A-R2 Page : 58 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability Report No. 13408006H Test place Ise EMC Lab. No.6 Measurement Room Date August 13, 2020 Tem perature / Humidity 23 deg. C / 52 % RH Enginee r Yuichiro Yamazaki Mode Tx FMC 2 ch 1 Remarks T emp erat urePower Sup p lyLower ResultUp p er Result [deg. C][V][GHz][GHz] 6012.…

Text truncated - open the document above for the full version.

Test report No. : 13408006H-A-R2 Page : 78 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Power Photo 1 Photo 2 Test report No. : 13408006H-A-R2 Page : 79 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Field strength of spurious radiation (Below 1 GHz) Photo 1 Photo 2 Test report No. : 13408006H-A-R2 Page : 80 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Field strength of spurious radiation (Above 1 GHz) Photo 1 Photo 2 Test report No. : 13408006H-A-R2 Page : 81 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Test report No. : 13408006H-A-R2 Page : 82 of 82 Issued date : September 14, 2020 FCC ID : HYQDNMWR011 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Frequency Stability Photo 1 End of Report
