HYQDNNS075Display Control Unit

Manual Requirement of FCC / IC Our product (DNNS075) is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user manual. However, we will ask the vehicle manufacturer to include following statements in the user manual of the vehicle in accordance with FCC and IC requirements. 1. Requirement for User manual of the vehicle 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user manual of the vehicle. 1.1.2 In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user manual of the vehicle. 1.1.3 In accordance with requirement of FCC radio frequency Exposure Guidelines, following statement will be included in the user manual of the vehicle. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio freque ncy (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person’s body. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 1.2. IC Requirement 1.2.1. In accordance with requirement of RSS-GEN, following statement will be included in the user manual of the vehicle. 1.2.2 In accordance with requirement of RSS-102 of the IC radio frequency Exposure rules, following statement will be included in the user manual of the vehicle. The antenna cannot be removed (and changed) by user. NOTE This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAUTION: Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person’s body. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Letter of Agency Date: September 5, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: HYQDNNS075 To Whom It May Concern: Please be advised DENSO CORPORATION authorizes Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager DENSO CORPORATION

1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan Tel : +81-566-25-5947 Fax : +81-566-25-4548 Request for Confidentiality Date: September 5, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: HYQDNNS075 Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Parts List Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager DENSO CORPORATION

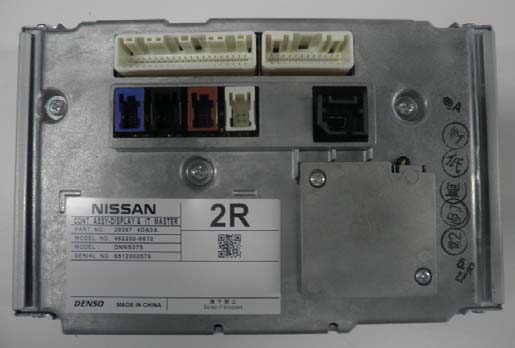

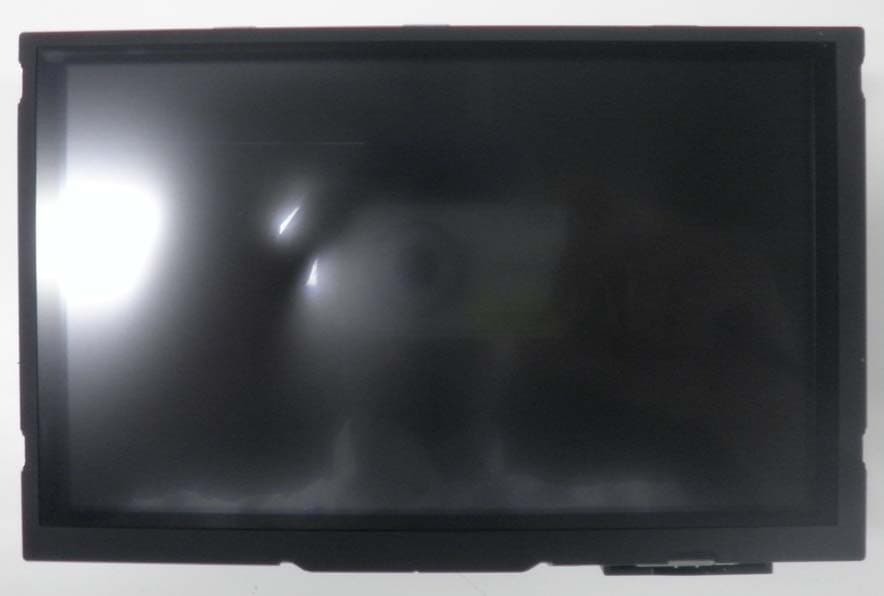

DENSO CORPORATION Display Control Unit FCC ID: HYQDNNS075 IC Number: 1551A-DNNS075 1 External Photos (1) Bluetooth Antenna Position Front view Top view Bluetooth Antenna Bluetooth Antenna cover A A A Bluetooth Antenna A DENSO CORPORATION Display Control Unit FCC ID: HYQDNNS075 IC Number: 1551A-DNNS075 2 External Photos (2) Appearance

DENSO CORPORATION Display Control Unit FCC ID: HYQDNNS075 IC Number: 1551A-DNNS075 1 Internal Photos (1) Bluetooth Area Bluetooth Antenna connector (Component Side) (2) Antenna PCB Bluetooth Antenna Bluetooth IC (Antenna side) (Connector side) Bluetooth Antenna connector Bluetooth Area ①Top View (Open the cover) ②Bottom View DENSO CORPORATION Display Control Unit FCC ID: HYQDNNS075 IC Number: 1551A-DNNS075 2 Internal Photos (3) Connection between Bluetooth Area and Antenna PCB Bluetooth Antenna connector Wire Antenna PCB Bluetooth IC Bluetooth Area Power PCB DENSO CORPORATION Display Control Unit FCC ID: HYQDNNS075 IC Number: 1551A-DNNS075 3 Internal Photos (4) Bluetooth Area on Main PCB Bluetooth Area (Component Side) (Solder Side) DENSO CORPORATION Display Control Unit FCC ID: HYQDNNS075 IC Number: 1551A-DNNS075 4 Internal Photos (5) Bluetooth Area and Bluetooth Antenna Bluetooth Area Antenna PCB

Applicant: DENSO CORPORATION Type of Equipment : Display Control Unit Model No. : DNNS075 FCC ID: HYQDNNS075 DENSO CORPORATION declares that Model : DNNS075 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “DNNS075“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.00 mW (Maximum average output power)(declared value) G = 0.79 Numerical Antenna gain; equal to-1.00 dBi r =20.0 cm For: DNNS075S =0.00016 mW/cm 2 No. : 10429374H RF Exposure / MPE Calculation

Test report No. : 10429374H-A-R1 Page : 2 of 46 Issued date : September 24, 2014 Revised date : October 17, 2014 FCC ID : HYQDNNS075 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10429374H-A Revision Test report No. Date Page revised Contents - (Original) 10429374H-A September 24, 2014 - - 1 10429374H-A-R1 October 17, 2014 P5 Update of FCC15 version in Clause 3.1 1 10429374H-A-R1 October 17, 2014 P9 Addition of “Configuration and peripherals” 1 10429374H-A-R1 October 17, 2014 P47 (Original test report) Deletion of “Configuration and peripherals” Test report No. : 10429374H-A-R1 Page : 3 of 46 Issued date : September 24, 2014 Revised date : October 17, 2014 FCC ID : HYQDNNS075 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Radiated Spurious Emission ............................................................................................ 10 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 12 Number of Hopping Frequency ........................................................................................................ 15 Dwell time ......................................................................................................................................... 17 Maximum Peak Output Power .......................................................................................................... 20 Radiated Spurious Emission ............................................................................................................. 22 Conducted Spurious Emission .......................................................................................................... 29 Conducted Emission Band Edge compliance ................................................................................... 41 99%Occupied Bandwidth ................................................................................................................. 43 APPENDIX 2: Test instruments ............................................................................................................. 45 APPENDIX 3: Photographs of test setup ............................................................................................... 46 Radiated Spurious Emission ............................................................................................................. 46 Test report No. : 10429374H-A-R1 Page : 4 of 46 Issued date : September 24, 2014 Revised date : October 17, 2014 FCC ID : HYQDNNS075 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-20-2880 Facsimile Number : +81-566-25-4920 Contact Person : Isamu Suzuki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Display Control Unit Model No. : DNNS075 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12V Receipt Date of Sample : September 2, 2014 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : Bluetooth: 26MHz Radio Specification [Bluetooth (Ver. 3.0 with EDR function)] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS, GFSK, π/4DQPSK, 8DPSK Power Supply (radio part input) : DC 3.3V Antenna type : Chip Antenna Antenna Gain : -1.0dBi (max) Test report No. : 10429374H-A-R1 Page : 5 of 46 Issued date : September 24, 2014 Revised date : October 17, 2014 FCC ID : HYQDNNS075 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on August 15, 2014 and effective October 14, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on August 15, 2014 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst Margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 - N/A *1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Carrier Frequency Separation FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) See data. Complied Conducted IC: - IC: RSS-210 A8.1 (b) 20dB Bandwidth FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) Complied Conducted IC: - IC: RSS-210 A8.1 (a) Number of Hopping Frequency …

Text truncated - open the document above for the full version.

Test report No. : 10429374H-A-R1 Page : 46 of 46 Issued date : September 24, 2014 Revised date : October 17, 2014 FCC ID : HYQDNNS075 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 End of Report
