HYQDNNS097Control Box

Manual Requirement of FCC / ISED Model: DNNS097 Our product is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user manual. However, we will ask the vehicle manufacturer to include following statements in the user manual of the vehicle in accordance with FCC and ISED requirements. 1. Requirement for User manual of the vehicle 1.1. FCC Requirement In accordance with 15.21 of FCC rule, following statement will be included in the user manual of the vehicle. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user manual of the vehicle. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In accordance with requirement of FCC radio frequency Exposure Guidelines, following statement will be included in the user manual of the vehicle. CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Manual Requirement of FCC / ISED Model: DNNS097 1.2. ISED Requirement In accordance with requirement of RSS-GEN, following statement will be included in the user manual of the vehicle. The antenna cannot be removed (and changed) by user. NOTE This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. In accordance with requirement of RSS-102 of the IC radio frequency Exposure rules, following statement will be included in the user manual of the vehicle. CAUTION: Radio Frequency Radiation Exposure This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Letter of Authorization Date: September 9, 2019 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan FCC ID : HYQDNNS097 Applicant : DENSO CORPORATION To whom it may concern: Please be advised we authorize Rie Fujiwara of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Confidentiality Date: September 9, 2019 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan RE : Certification Application FCC ID : HYQDNNS097 Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Theory of Operation Parts List The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Short-Term Confidentiality Date: September 9, 2019 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan FCC ID : HYQDNNS097 Applicant : DENSO CORPORATION To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

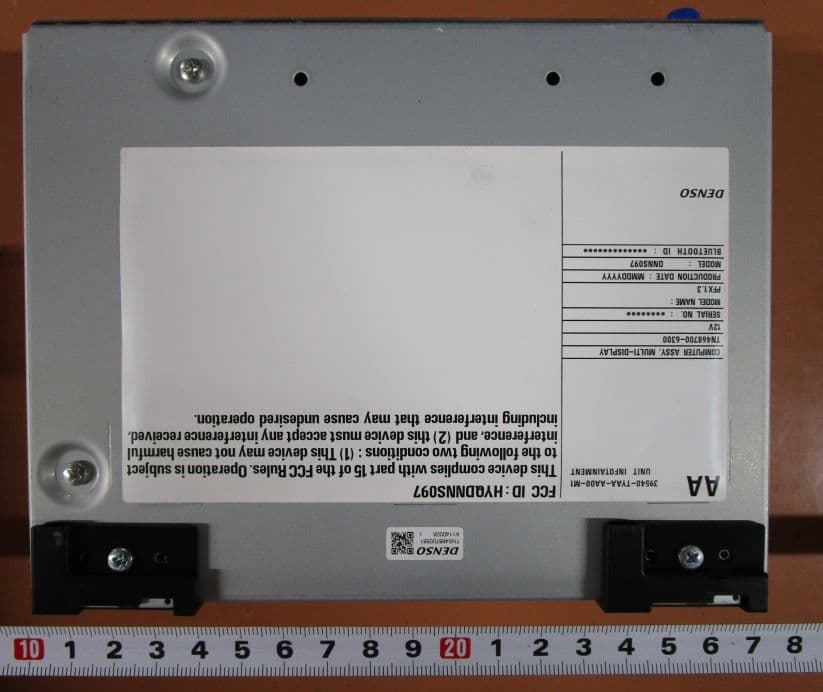

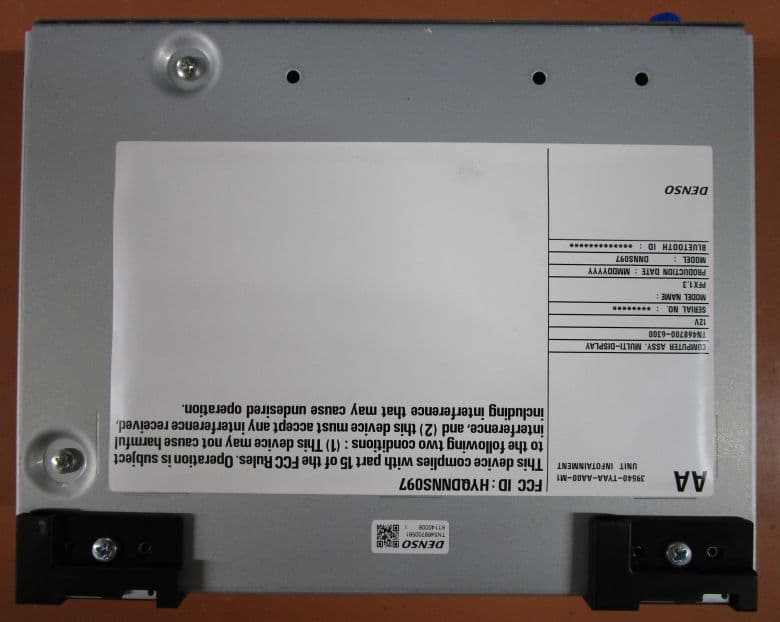

DENSO CORPORATION Control Box FCC ID: HYQDNNS097 IC Number: 1551A-DNNS097 External Photos 1/2 DENSO CORPORATION Control Box FCC ID: HYQDNNS097 IC Number: 1551A-DNNS097 External Photos 2/2 ASSEMBLY Wi-Fi Antenna position is shown with a red frame border. Front Top Antenna 1 Antenna 2

Product: Control Box Model: DNNS097 Marking location and layout: Note: Compliance statement of marking will not be changed. Marking layout, size and other indications maybe changed and added. 25 12.2 1. USA

DENSO CORPORATION Control Box FCC ID: HYQDNNS097 IC Number: 1551A-DNNS097 Internal Photos 2/6 Sub PCB Component Side Solder Side DENSO CORPORATION Control Box FCC ID: HYQDNNS097 IC Number: 1551A-DNNS097 Internal Photos 4/6 BT and Wi-Fi Area is shown with a red dotted line. BT and Wi-Fi Module IC (Top view without cover) (Bottom view) ASSEMBLY BT and Wi-Fi Antenna (Antenna connector is shown with a red circle.) Front Back BT and Wi-Fi Module IC BT and Wi-Fi antenna 1 BT and Wi-Fi antenna 2 Connector for BT and Wi-Fi antenna 2 Connector for BT and Wi-Fi antenna 1 DENSO CORPORATION Control Box FCC ID: HYQDNNS097 IC Number: 1551A-DNNS097 Internal Photos 6/6 Connection between BT and Wi-Fi connectors and ASSEMBLY BT and Wi-Fi antennas (Connectors for BT and Wi-Fi antennas are shown with a red circle.) BT and Wi-Fi antenna 1 BT and Wi-Fi antenna 2 Connector for GPS and GLONASS antenna

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 RF Exposure / MPE Calculation No. : 12804674H-C-R1 Applicant : DENSO Corporatio n Type of Equipment : Control Box Model No. : DNNS097 * WLAN (5 GHz band) part FCC ID : HYQDNNS097 DENSO Corporation declares that Model: DNNS097 complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “DNNS097“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. [WLAN (5 GHz band) part] This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P =21.43 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-averaging Burst power average was used for the above value in consideration of worst condition. G =0.513 Numerical Antenna gain; equal to -2.9 dBi r =20 cm (Separation distance) 0.00219 mW/cm 2 Power Density Result S = 2 4r GP S     UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: [Bluetooth (Low Energy) part] This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P = 0.81 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-averaging Burst power average was used for the above value in consideration of worst condition. G = 0.513 Numerical Antenna gain; equal to -2.9 dBi r = 20 cm (Separation distance) 0.00008 mW/cm 2 Power Density Result S = 2 4r GP S     Therefore, if WLAN (5 GHz band) and Bluetooth transmit simultaneously, S = 0.00219 mW/cm 2 + 0.00008 mW/cm 2 = 0.00227 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the limits.

Test report No. : 12804674H-E-R2 Page : 1 of 23 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 15.0 RADIO TEST REPORT Test Report No. : 12804674H-E-R2 Applicant : DENSO Corporation Type of Equipment : Control Box Model No. : DNNS097 FCC ID : HYQDNNS097 Test regulation : FCC Part 15 Subpart E: 2019 (DFS test only) *Client without radar detection Test Result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 6. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. 7. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 8. The information provided from the customer for this report is identified in SECTION 1. 9. This report is a revised version of 12804674H-E-R1.12804674H-E-R1 is replaced with this report. Date of test: September 9, 2019 Representative test engineer: Takumi Shimada Engineer Consumer Technology Division Approved by: Satofumi Matsuyama Engineer Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredited/ Test report No. : 12804674H-E-R2 Page : 2 of 23 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 12804674H-E Revision Test report No. Date Page revised Contents - (Ori ginal) 12804674H-E September 26, 2019 - - 1 12804674H-E-R1 November 19, 2019 P.6 - Addition of Clock frequency (maximum) in Radio Specification 1 12804674H-E-R1 November 19, 2019 P.14 Correction of Cable No. 5 and 16 information: - Cable’s shield: from Shielded to Unshielde d 2 12804674H-E-R2 November 28, 2019 P.14 Correction of Name of Cable No.16 from Signal Cable to Signal and DC Cable Test report No. : 12804674H-E-R2 Page : 3 of 23 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 12804674H-E-R2 Page : 4 of 23 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596…

Text truncated - open the document above for the full version.

Test report No. : 12804674H-C-R2 Page : 1 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 15.0 RADIO TEST REPORT Test Report No. : 12804674H-C-R2 Applicant : DENSO Corporation Type of Equipment : Control Box Model No. : DNNS097 FCC ID : HYQDNNS097 Test regulation : FCC Part 15 Subpart E: 2019 (Except for DFS) Test Result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 6. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. 7. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 8. The information provided from the customer for this report is identified in SECTION 1. 9. This report is a revised version of 12804674H-C-R1. 12804674H-C-R1 is replaced with this report. Date of test: July 30 to November 15, 2019 Representative test engineer: Junki Nagatomi Engineer Consumer Technology Division Approved by: Satofumi Matsuyama Engineer Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredited/ Test report No. : 12804674H-C-R2 Page : 2 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 12804674H-C Revision History Revision Test report No. Date Page revised Contents - (Original) 12804674H-C October 10, 2019 - - 1 12804674H-C-R1 November 19, 2019 P.6 - Deletion of Clock frequency(ies) in the system - Addition of Clock frequency (maximum) in Radio Specification 1 12804674H-C-R1 November 19, 2019 P.8 Update the Uncertainty table. 1 12804674H-C-R1 November 19, 2019 P.10, 11 Addition of Tested Frequency at Additional band: - 20 MHz band: 5720 MHz - 40 MHz band: 5710 MHz - 80 MHz band: 5690 MHz 1 12804674H-C-R1 November 19, 2019 P.12 Correction of Cable No. 5 and 12 information: - Cable’s shield: from Shielded to Unshielde d 1 12804674H-C-R1 November 19, 2019 P.17, 18, 50 to 55, 62 to 67, 74 to 79, 115, 131, 144, Addition of Test data following frequencies: - 20 MHz band: 5720 MHz - 40 MHz band: 5710 MHz - 80 MHz band: 5690 MHz 1 12804674H-C-R1 November 19, 2019 P.18 Correction of test data -11n-40 26 dB Emission Bandwidth (5310 MHz to 5670 MHz) -11ac-40 26 dB Emission Bandwidth (5310 MHz to 5670 MHz) 1 12804674H-C-R1 November 19, 2019 P.20, 22, 24 to 27, 30, 33, 36, 38, 40, 41, 81, 84, 87, 90, 93, 96, 98, 100, 102 to 104 Addition of Wave forms following frequencies: - 20 MHz band: 5720 MHz - 40 MHz band: 5710 MHz - 80 MHz band: 5690 MHz 1 12804674H-C-R1 November 19, 2019 P.27 Correction of Antenna number: From Antenna 1 to Antenna 2 1 12804674H-C-R1 November 19, 2019 P.40 Correction of 11n-40 6 dB Bandwidth data at 5795 MHz 1 12804674H-C-R1 November 19, 2019 P.62 to 67 Addition of Result (Burst power avera ge) 1 12804674H-C-R1 November 19, 2019 P.68 to 70 Deletion of SISO Wave forms 1 12804674H-C-R1 November 19, 2019 P.71 to 73 Addition of Burst rate confirmation (SAR Power) 1 12804674H-C-R1 November 19, 2019 P.79 Correction of Antenna 1+2 table: PSD (Conducted and e.i.r.p.) value at 5290 MHz 1 12804674H-C-R1 November 19, 2019 P.105, 107, 108, 110, 112, 113, 116, 118, 119, 121, 123, 124, 126, 128, 129, 132, 134 Correction of Distance factor for 1 GHz to 10 GHz 1 12804674H-C-R1 November 19, 2019 P.124 Deletion of 5250 MHz data 1 12804674H-C-R1 November 19, 2019 P.132, 134, 140, 142 Correction of Limit 1 12804674H-C-R1 November 19, 2019 P151, 152 Addition of Test instruments used on October 26 to November 15, 2019 2 12804674H-C-R2 November 28, 2019 P.12 Correction of Name of Cable No.12 from Signal Cable to Signal and DC Cable Test report No. : 12804674H-C-R2 Page : 3 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power S…

Text truncated - open the document above for the full version.

Test report No. : 12804674H-C-R2 Page : 72 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Burst rate confirmation (SAR Power) Report No. 12804674H Test place Ise EMC Lab. No.6 Measurement Room Date Se ptember 4, 2019 October 26, 2019 Temperature / Humidity 22 deg. C / 60 % RH 22 deg. C / 54 % RH Engineer Takumi Shimada Takafumi Noguchi Mode Tx 11ac-20 MCS 0 SISO Antenna 1 11ac-20 MCS 0 MIMO Antenna 1 Tx on / (Tx on + Tx off) = 0.934 Tx on / (Tx on + Tx off) * 100 = 93.4 % Duty factor = 10 * log (1.448 / 1.353) = 0.29 dB Tx on / (Tx on + Tx off) = 0.934 Tx on / (Tx on + Tx off) * 100 = 93.4 % Duty factor = 10 * log (1.445 / 1.35) = 0.30 dB 11n-40 MCS 0 SISO Antenna 1 11n-40 MCS 0 MIMO Antenna 1 Tx on / (Tx on + Tx off) = 0.875 Tx on / (Tx on + Tx off) * 100 = 87.5 % Duty factor = 10 * log (0.7653 / 0.6698) = 0.58 dB Tx on / (Tx on + Tx off) = 0.874 Tx on / (Tx on + Tx off) * 100 = 87.4 % Duty factor = 10 * log (0.7654 / 0.6689) = 0.59 dB Test report No. : 12804674H-C-R2 Page : 73 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Burst rate confirmation (SAR Power) Report No. 12804674H Test place Ise EMC Lab. No.6 Measurement Room Date Se ptember 4, 2019 October 26, 2019 Temperature / Humidity 22 deg. C / 60 % RH 22 deg. C / 54 % RH Engineer Takumi Shimada Takafumi Noguchi Mode Tx 11ac-40 MCS 0 SISO Antenna 1 11ac-40 MCS 0 MIMO Antenna 1 Tx on / (Tx on + Tx off) = 0.874 Tx on / (Tx on + Tx off) * 100 = 87.4 % Duty factor = 10 * log (0.7687 / 0.6721) = 0.58 dB Tx on / (Tx on + Tx off) = 0.873 Tx on / (Tx on + Tx off) * 100 = 87.3 % Duty factor = 10 * log (0.7692 / 0.6712) = 0.59 dB 11ac-80 MCS 0 SISO Antenna 1 11ac-80 MCS 0 MIMO Antenna 2 Tx on / (Tx on + Tx off) = 0.775 Tx on / (Tx on + Tx off) * 100 = 77.5 % Duty factor = 10 * log (0.4335 / 0.3359) = 1.11 dB Tx on / (Tx on + Tx off) = 0.775 Tx on / (Tx on + Tx off) * 100 = 77.5 % Duty factor = 10 * log (0.4335 / 0.3359) = 1.11 dB Test report No. : 12804674H-C-R2 Page : 74 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Maximum Power Spectral Density Report No. 12804674H Test place Ise EMC Lab. No.6 Measurement Room Date September 3, 2019 November 15, 2019 November 15, 2019 Temperature / Humidity 24 deg. C / 64 % RH 24 deg. C / 40 % RH 24 deg. C / 40 % RH Engineer Takumi Shimada Yuta Moriya Yuta Moriya Mode Tx 11a Antenna 1 Applied limit: 15.407, mobile and portable client device Tested PSD Cable Atten. Duty Antenna RBW Frequency Reading Loss Loss Factor Gain Correction Result Limit Margin Result Limit Margin [dBmFactor [dBm [dBm[dBm [dBm [MHz] /MHz] [dB] [dB] [dB] [dBi] [dB] /MHz] /MHz] [dB] /MHz] /MHz] [dB] 5180 -17.444.90 10.061.72-2.90.00 -0.76 11.00 11.76 -3.66 17.00 20.66 5220 -16.834.91 10.061.72-2.90.00 -0.14 11.00 11.14 -3.04 17.00 20.04 5240 -17.014.92 10.061.72-2.90.00 -0.31 11.00 11.31 -3.21 17.00 20.21 5260 -16.814.92 10.061.72-2.90.00 -0.11 11.00 11.11 -3.01 17.00 20.01 5300 -16.924.93 10.061.72-2.90.00 -0.21 11.00 11.21 -3.11 17.00 20.11 5320 -16.894.93 10.061.72-2.90.00 -0.18 11.00 11.18 -3.08 17.00 20.08 5500 -17.264.97 10.061.72-2.90.00 -0.51 11.00 11.51 -3.41 17.00 20.41 5580 -17.024.98 10.061.72-2.90.00 -0.26 11.00 11.26 -3.16 17.00 20.16 5700 -17.015.01 10.061.72-2.90.00 -0.22 11.00 11.22 -3.12 17.00 20.12 5720 -14.732.90 10.121.72-2.90.000.01 11.00 10.99 -2.89 17.00 19.89 5745 -19.755.02 10.061.72-2.90.27 -2.68 30.00 32.68 -5.58 36.00 41.58 5785 -19.255.03 10.061.72-2.90.27 -2.17 30.00 32.17 -5.07 36.00 41.07 5825 -19.745.03 10.061.72-2.90.27 -2.66 30.00 32.66 -5.56 36.00 41.56 Sample Calculation: PSD: Power Spectral Density The PSD within 5725 MHz to 5825 MHz are based on any 500 kHz band. RBW Correction Factor = 10 * log (Specified bandwidth / Measured bandwidth) PSD Result (Conducted) = Reading + Cable Loss (including the cable(s) customer supplied) + Atten. Loss + Duty Factor + RBW Correc t PSD Result (e.i.r.p.) = Conducted PSD Result + Antenna Gain PSD (Conducted)PSD (e.i.r.p.) Test report No. : 12804674H-C-R2 Page : 75 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Maximum Power Spectral Density Report No. 12804674H Test place Ise EMC Lab. No.6 Measurement Room Date September 3, 2019 November 15, 2019 Temperature / Humidity 24 deg. C / 64 % RH 24 deg. C / 40 % RH Engineer Takumi Shimada Yuta Moriya Mode Tx 11n-20 Antenna 1+2 Applied limit: 15.407, mobile and portable client device Tested FrequencyResult Limit MarginResult Limit Margin 12Sum12Sum [MHz] [mW/MHz] [mW/MHz] [mW/MHz] [dBm/MHz] [dBm/MHz] [dB] [mW/MHz] [mW/MHz] [mW/MHz] [dBm/MHz] [dBm/MHz] [dB] 51800.840.761.602.05 11.00 8.950.430.390.82 -0.85 17.00 17.85 52200.940.791.732.39 11.00 8.610.480.410.89 -0.51 17.00 17.51 52400.830.771.612.06 11.00 8.940.430.400.82 -0.84 17.00 17.84 52600.900.831.722.36 11.00 8.640.460.420.88 -0.54 17.00 17.54 53000.830.811.632.13 11.00 8.870.420.410.84 -0.77 17.00 17.77 53200.840.731.571.95 11.00 9.050.430.370.80 -0.95 17.00 17.95 55000.810.711.521.81 11.00 9.190.410.360.78 -1.09 17.00 18.09 55800.880.811.692.28 11.00 8.720.450.420.87 -0.62 17.00 17.62 57000.960.841.802.55 11.00 8.450.490.430.92 -0.35 17.00 17.35 57200.940.871.822.59 11.00 8.410.480.450.93 -0.31 17.00 17.31 57450.500.440.94 -0.25 30.00 30.250.260.230.48 -3.15 36.00 39.15 57850.570.481.050.20 30.00 29.800.290.250.54 -2.70 36.00 38.70 58250.540.461.000.00 30.00 30.000.280.230.51 -2.90 36.00 38.90 Antenna 1Antenna 2 Tested Duty RBW PSD Cable Atten. AntennaPSD Cable Atten. Antenna Freq…

Text truncated - open the document above for the full version.

Test report No. : 12804674H-E-R2 Page : 23 of 23 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 2: Photographs of test setup Photo 1 Photo 2 End of Report

Test report No. : 12804674H-C-R2 Page : 151 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 12804674H-C-R2 Page : 152 of 152 Issued date : November 28, 2019 FCC ID : HYQDNNS097 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Below 1 GHz Horizontal: X-axis/ Vertical: X-axis) (Above 1 GHz Horizontal: Z-axis/ Vertical: X-axis) X-axis Y-axis Z-axis End of Report
