HYQDNNS117Cockpit Control Unit (CCU)

Manual Requirement of FCC / ISED Model: DNNS117 Our product is one of vehicle parts incorporated into the vehicle as original equipment. Therefore, we will not supply the user manual. However, we will ask the vehicle manufacturer to include following statements in the user manual of the vehicle in accordance with FCC and ISED requirements. 1. Requirement for User manual of the vehicle 1.1. FCC Requirement In accordance with 15.21 of FCC rule, following statement will be included in the user manual of the vehicle. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user manual of the vehicle. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In accordance with requirement of FCC radio frequency Exposure Guidelines, following statement will be included in the user manual of the vehicle. CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Manual Requirement of FCC / ISED Model: DNNS117 1.2. ISED Requirement In accordance with requirement of RSS-GEN, following statement will be included in the user manual of the vehicle. The antenna cannot be removed (and changed) by user. NOTE This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. In accordance with requirement of RSS-102 of the ISED radio frequency Exposure rules, following statement will be included in the user manual of the vehicle. CAUTION: Radio Frequency Radiation Exposure This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Letter of Authorization Date: September 24, 2020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan FCC ID : HYQDNNS117 Applicant : DENSO CORPORATION To whom it may concern: Please be advised we authorize Rie Fujiwara of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Confidentiality Date: September 24, 2020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan RE : Certification Application FCC ID : HYQDNNS117 Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Short-Term Confidentiality Date: September 24, 2020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan FCC ID : HYQDNNS117 Applicant : DENSO CORPORATION To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Takashi Yamamoto Manager Engineering Development Promotion Div. DENSO CORPORATION

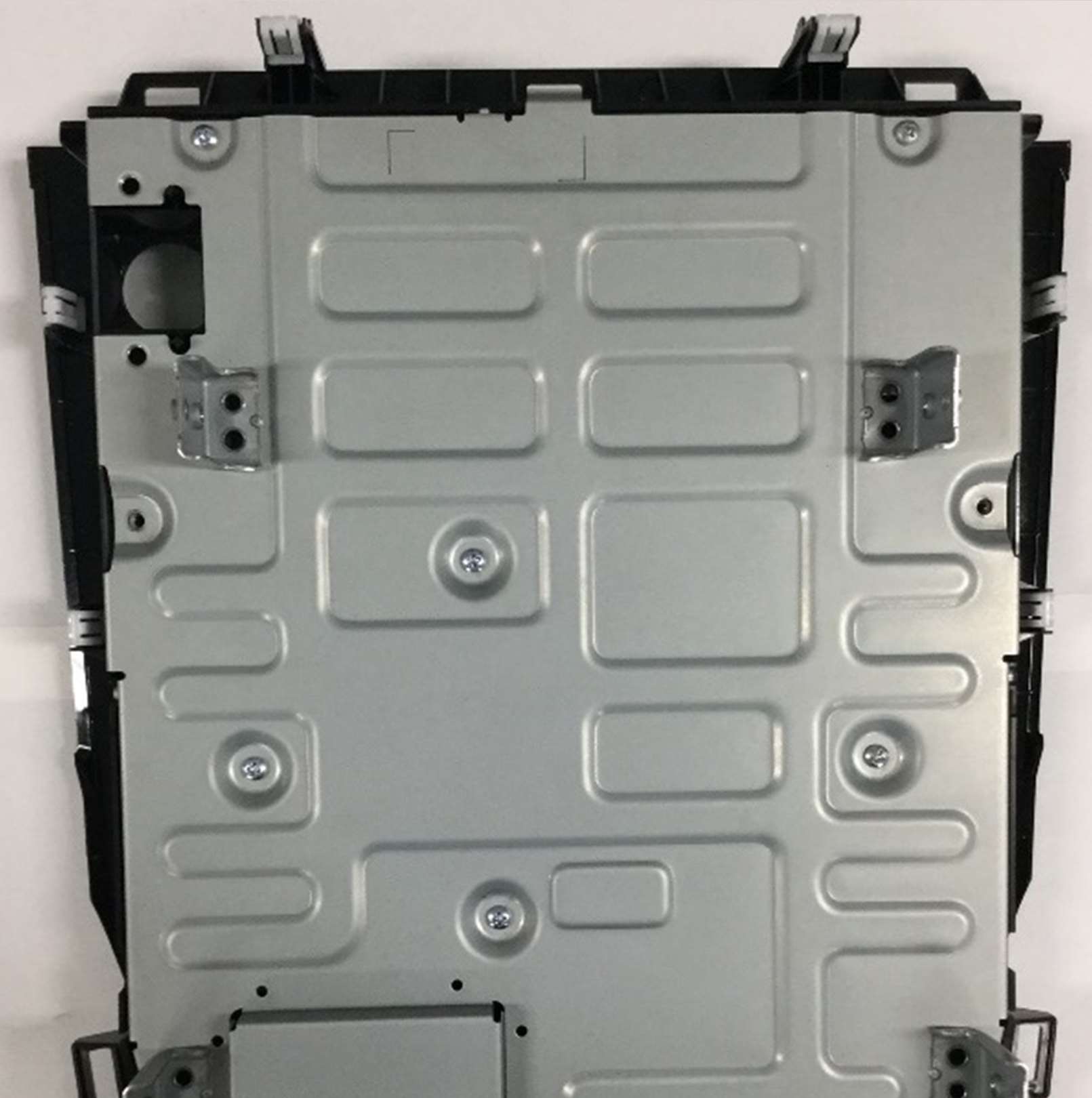

DENSO CORPORATION Cockpit Control Unit Model: DNNS117 External Photos 1/3 DENSO CORPORATION Cockpit Control Unit Model: DNNS117 External Photos 2/3 Bluetooth/WiFi Antenna are implemented in CID (Center Information Display) connected to CCU(Cockpit Control Unit). ASSEMBLY Bluetooth/WiFi Antenna position are shown with a red circle. Front Back Bluetooth Antenna WiFi Antenna DENSO CORPORATION Cockpit Control Unit Model: DNNS117 External Photos 3/3 Connection parts of the CCU and CID CCU-CID- Bluetooth-CABLE CCU-CID- WiFi-CABLE

Product: Cockpit Control Unit Model: DNNS117 Marking location and layout: Note: Compliance statement of marking will not be changed. Marking layout, size and other indications maybe changed and added. Product: Cockpit Control Unit Model: DNNS117 Marking location and layout:

DENSO CORPORATION Cockpit Control Unit Model: DNNS117 Internal Photos 1/6 Component Side (Main PCB) Solder Side (Main PCB) DENSO CORPORATION Cockpit Control Unit Model: DNNS117 Internal Photos 3/6 Bluetooth and Wi-Fi Area are shown with a red frame border. (Bluetooth and Wi-Fi Module IC are shown with a red circle.) Bluetooth and Wi-Fi Antenna connectors on Main PCB are shown with red circles. Wi-Fi connector on CCU Bluetooth and Wi-Fi Module IC Bluetooth connector on CCU DENSO CORPORATION Cockpit Control Unit Model: DNNS117 Internal Photos 4/6 ASSEMBLY Bluetooth and Wi-Fi Antenna are shown with red circles. (Antenna connectors are shown with red dotted circles.) Center Infomation Display ASSEMBLY Wi-Fi Antenna ASSEMBLY Bluetooth Antenna Wi-Fi Antenna Connector Bluetooth Antenna Connector Wi-Fi Connector on CID Bluetooth Connector on CID DENSO CORPORATION Cockpit Control Unit Model: DNNS117 Internal Photos 5/6 ASSEMBLY Wi-Fi Antenna (Antenna connector is shown with a red circle.) Front Back ASSEMBLY Bluetooth Antenna (Antenna connector is shown with a red circle.) Front Back DENSO CORPORATION Cockpit Control Unit Model: DNNS117 Internal Photos 6/6 Connection between Bluetooth and Wi-Fi Area and ASSEMBLY Bluetooth and Wi-Fi Antenna. (Bluetooth and Wi-Fi Antenna connector are shown with a red circle.) ASSEMBLY Bluetooth Antenna ASSEMBLY WiFi Antenna Bluetooth and Wi-Fi Module IC Bluetooth Antenna Connector Wi-Fi Antenna Connector

RF Exposure / MPE Calculation No. : 13367627H-B Applicant : DENSO CORPORATION T ype of Equipment : Cockpit Control Unit (CCU) Model No. : DNNS117 * Bluetooth part FCC ID : HYQDNNS117 DENSO CORPORATION declares that Model: DNNS117 complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “DNNS117“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P =0.37 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-averaging Burst power average was used for the above value in consideration of worst condition. G =1.365 Numerical Antenna gain; equal to 1.35 dBi r =20 cm (Separation distance) 0.00010 mW/cm 2 Power Density Result S = 2 4r GP S     Even taking into account the tolerance, this device can be satisfied with the limits.

Test report No. : 13367627H-B-R1 Page : 1 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 17.0 RADIO TEST REPORT Test Report No. : 13367627H-B-R1 Applicant : DENSO CORPORATION Type of EUT : Cockpit Control Unit (CCU) Model Number of EUT : DNNS117 FCC ID : HYQDNNS117 Test regulation : FCC Part 15 Subpart C: 2020 *Bluetooth part Test Result : Complied (Refer to SECTION 3.2) Date of test: May 24 to September 19, 2020 Representative test engineer: Yuta Moriya Engineer Consumer Technology Division Approved by: Tsubasa Takayama Leader Consumer Technology Division CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. This test report covers Radio technical requirements. It does not cove r administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13367627H-B. 13367627H-B is replaced with this report. Test report No. : 13367627H-B-R1 Page : 2 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13367627H-B Revision Test report No. Date Page revised Contents - (Original) 13367627H-B September 25, 2020 - - 1 13367627H-B-R1 October 20, 2020 P.14 Addition of Remarks for Cable No.3 Test report No. : 13367627H-B-R1 Page : 3 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13367627H-B-R1 Page : 4 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures & results .........................................................................…

Text truncated - open the document above for the full version.

Test report No. : 13367627H-B-R1 Page : 52 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 13367627H-B-R1 Page : 53 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: 0 degrees / Vertical:0 degrees) 0 degrees 30 degrees Test report No. : 13367627H-B-R1 Page : 54 of 54 Issued date : October 20, 2020 FCC ID : HYQDNNS117 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Antenna Terminal Conducted Tests] Photo 1 Photo 2 End of Report
