HYQDNSRR001Blind Spot Monitor Sensor

Manual Requirement of FCC Our product (DNSRR001) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC requirement. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user’s manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Letter of Authorization Date: October 15, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : HYQDNSRR001 Applicant : DENSO CORPORATION To whom it may conern: Please be advised we authorize Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

Request for Confidentiality Date: October 15, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: HYQDNSRR001 Please be advised that the following information is to be held confidential on behalf of DENSO CORPORATION, referring to the FCC rules 0.457 and 0.459: Schematic Diagram Block Diagram Parts List Theory of Operation The application contains technical information which DENSO CORPORATION deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Keiji Nagura General Manager Engineering Development Promotion Div. DENSO CORPORATION

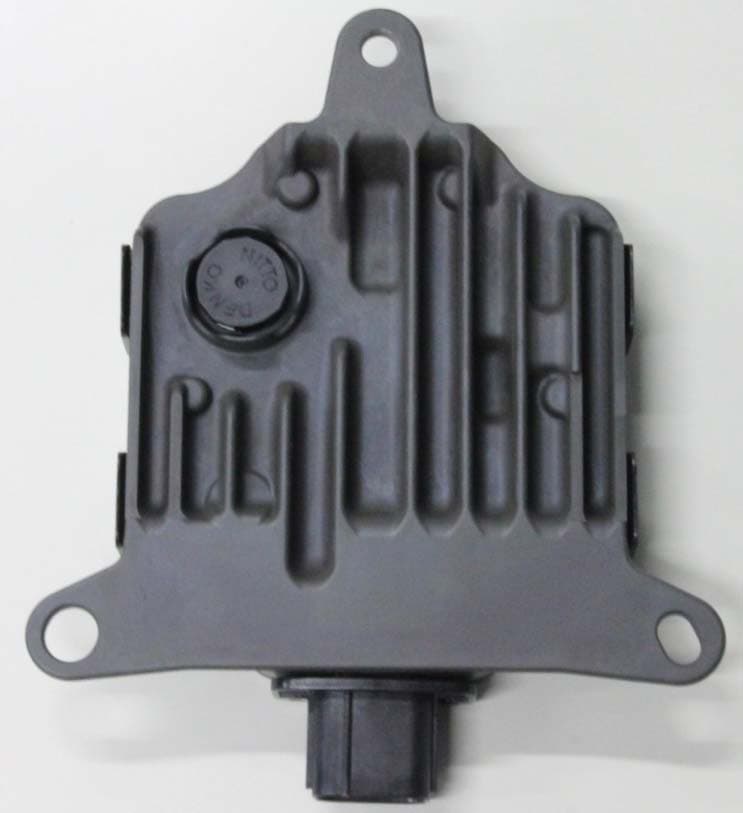

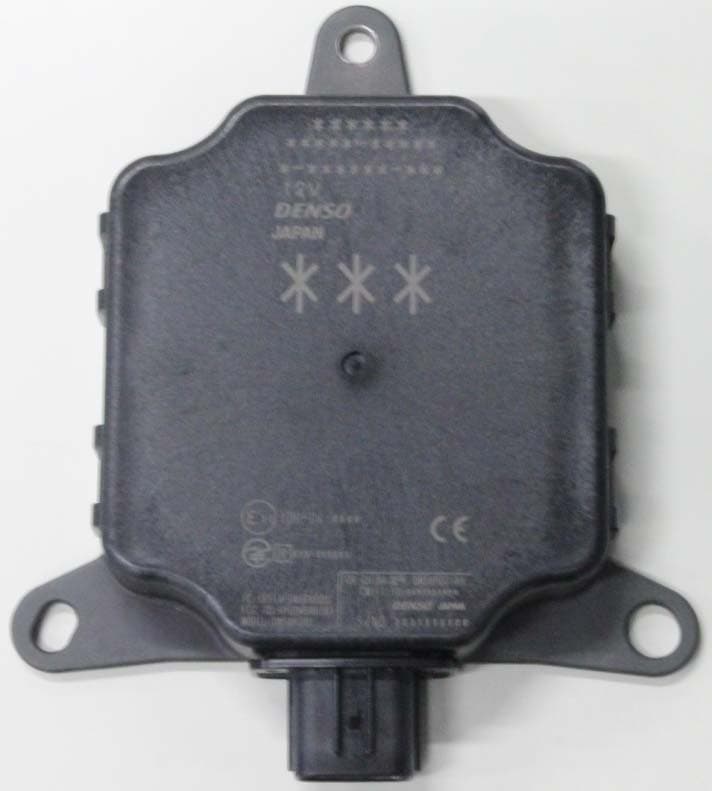

DENSO CORPORATION Blind Spot Monitor Sensor FCC ID: HYQDNSRR001 External Photos 1/2 Front Rear DENSO CORPORATION Blind Spot Monitor Sensor FCC ID: HYQDNSRR001 External Photos 2/2 Top Bottom Right Left

10. Mark Note: Marking This de v FCC com device a king location g layout, size vice will be i mpliance sta according to n and layout e and other i nstalled insi atement will FCC Rule s t indications m ide vehicle a be included §15.19. maybe chan and end-use d in User Ma nged. er will not se anual as it is ee the label. s not practica al to place oon the 14

Internal P h hotos Co A omponent s Antenna sid Blin side de DENSO d Spot FCC ID: CORPO Monitor HYQDN RATION Sensor SRR001

Test report No. : 10903739H-A Page : 2 of 28 Issued date : September 24, 2015 FCC ID : HYQDNSRR001 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10903739H-A Revision Test report No. Date Page revised Contents - (Original) 10903739H-A September 24, 2015 - - Test report No. : 10903739H-A Page : 3 of 28 Issued date : September 24, 2015 FCC ID : HYQDNSRR001 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)10 SECTION 6: 20dB Bandwidth, 99% Occupied Bandwidth and Duty Cycle ···························· 12 APPENDIX 1: Test data ···························································································· 13 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 13 20dB Bandwidth, 99% Occupied Bandwidth ................................................................................... 20 Duty Cycle ........................................................................................................................................ 23 APPENDIX 2: Test Instruments ·················································································· 25 APPENDIX 3: Photographs of test setup ······································································· 27 Radiated Emission (Fundamental emission) ..................................................................................... 27 Radiated Emission (Spurious emission) ........................................................................................... 28 Test report No. : 10903739H-A Page : 4 of 28 Issued date : September 24, 2015 FCC ID : HYQDNSRR001 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO CORPORATION Address : 1-1, Showa-cho, Kariya-shi, Aichi-ken, 448-8661 Japan Telephone Number : +81-566-61-4724 Facsimile Number : +81-566-25-4683 Contact Person : Junshi Utsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Blind Spot Monitor Sensor Model No. : DNSRR001 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12 V (Car battery) Receipt Date of Sample : August 6, 2015 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description This Radar Sensor (DNSRR001) is a vehicle-mounted field disturbance sensor which uses millimeter wave for detecting obstacles located diagonally backward. General Specification Clock frequency(ies) in the system : Microcomputer: 240 MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 24.15 GHz Modulation : Frequency modulation Antenna Type : Internal Antenna Antenna Connector : None Antenna Gain : 9.3dBi (Broad beam), 12.5dBi (Narrow beam) Steerable Antenna : Electronically Usage location : Vehicle-mounted Power Supply (inner) : DC 3.3 V Test report No. : 10903739H-A Page : 5 of 28 Issued date : September 24, 2015 FCC ID : HYQDNSRR001 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on September 8, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz and 24.0-24.25GHz * The revision on September 8, 2015 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure SpecificationDeviationWorst margin Results Conducted Emission FCC: ANSI C63.4-2009 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A - N/A *1) IC: RSS-Gen 8.8 IC: RSS-Gen 8.8 Electric Field Strength of Fundamental Emission ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.249(a)(c)(e) N/A 8.3 dB 24150.00 MHz, Horizontal, (Peak with Duty factor) Narrow beam (Left / Right) Complied IC: RSS-Gen 6.12 IC: RSS-310 3.10 Electric Field Strength of Spurious Emission ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.205(a)(b)(d) Section 15.209(a) Section 15.249(a)(c)(d)(e) N/A 3.0 dB 24250.00 MHz, Horizontal, (Peak with Duty factor) Narrow beam (Right) Complied IC: RSS-Gen 6.13 IC: RSS-310 3.10 RSS-Gen 8.9 20 dB Bandwidth ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.215 N/A See data. Complied IC: - IC: Reference data Frequency Tolerance ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.249(b) N/A - N/A *2) IC: - IC: - 99 % Occupied Bandwidth FCC: - FCC: Reference data N/A See data. Complied IC: RSS-Gen 6.6 IC: - *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. *2) The test is not applicable since the EUT does not operate with Fixed point-to-point operation within 24.05 GHz to 24.25 GHz. Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. Mi…

Text truncated - open the document above for the full version.

Test report No. : 10903739H-A Page : 27 of 28 Issued date : September 24, 2015 FCC ID : HYQDNSRR001 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission (Fundamental emission) Photo 1 Photo 2 Test report No. : 10903739H-A Page : 28 of 28 Issued date : September 24, 2015 FCC ID : HYQDNSRR001 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Emission (Spurious emission) Photo 1 Photo 2 End of Report
