HZB-5054-LR802.11a Wireless Tsunami 5054-R Radio

F Regulatory Compliance/Professional Installation • Safety Information (USA, Canada, & European Union) This product has been evaluated to, and complies with, the Safety requirements of UL60950:2000, and IEC60950:1999; the Standards for the Safety of Information Technology Equipment. When using this device, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Operate and install this product as described in this manual. This device must be installed and used in strict accordance with the manufacturer's instructions. • This product is suitable for installation in air handling spaces (plenum). • Use only the AC/DC power supply adapter provided. For replacement, contact your local supplier or distributor. • To avoid the risk of electric shock from lightning, do not use this product during an electrical storm. • Installation of this product must conform to local regulations and codes. • When using this product with an external antenna, see the installation documentation provided with the antenna system. • No user serviceable parts; all repairs and service must be handled by a qualified service center. Federal Communications Commission (FCC) Compliance This device operates at 5.25 - 5.35 GHz, and 5.75 - 5.85 in compliance with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. To comply with the FCC radio frequency exposure requirements, the following antenna installation and device operating configurations must be satisfied: • Product models using external antennas require professional installation. The antennas used for professional installation must be fixed-mounted on indoor/outdoor permanent structures with a separation distance of at least 100 cm from all persons. • Antennas must not be co-located and must not operate in conjunction with any other antenna or transmitter. Modifications Changes or modifications to this device that are not expressly approved by the manufacturer of the product could void the user’s authority to operate the equipment. Warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection again harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help 2 Adjusting Tx Output Power Use the following formula in combination with the table of EIRP limits in US and EU countries to calculate system transmit power (based on ERIP limits) of these countries: Tx Power (dBm) = EIRP Limit (dBm) + FL (dB) – G (dB) where: Tx Power = Output power measured at the antenna input EIRP Limit = EIRP limits specified below FL = Feeder loss including loss of connectors G = Antenna Gain EIRP Limit (dBm) Frequency (GHz) Bandwidth (MHz) USA EU 5.25 - 5.35 — 30 20 5.725 - 5.850 (Point to multipoint) — 36 14 5.725-5.850 (Point to point) — no 14 Antenna Types and Maximum Gain For devices using external antennas, professional installers should select only the antenna types listed in the following table, with gain not exceeding the listed maximum gain for each type. Antenna Type Maximum Gain Omni 10 Sector 17 3

Part Number 72235r1 Tsunami MP.11 Models 2454-R, 5054-R, and 5054-R-LR Installation and Management Version 2.4 Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Notices 2 COPYRIGHT ©2006 Proxim Wireless Corporation, San Jose, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This manual and the software described herein are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Wireless Corporation. TRADEMARKS Tsunami, Proxim, and the Proxim logo are trademarks of Proxim Wireless Corporation. All other trademarks mentioned herein are the property of their respective owners. REGULATORY COMPLIANCE Please refer to the Tsunami MP.11 Models 2454-R and 5054-R Safety and Regulatory Compliance flyer for detailed regulatory compliance information about your product. Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Contents 3 Contents CHAPTER 1. OVERVIEW .........................................................................................................................................6 About This Book ...................................................................................................................................................6 Reference Manual .........................................................................................................................................7 Wireless Network Topologies...............................................................................................................................7 Point-to-Point Link .........................................................................................................................................8 Point-to-Multipoint Network ...........................................................................................................................8 Power-over-Ethernet ............................................................................................................................................9 Finding a Suitable Location..................................................................................................................................9 CHAPTER 2. INSTALLATION ................................................................................................................................10 1) Verify Package Contents ...............................................................................................................................10 Mounting Hardware .....................................................................................................................................11 2) Pre-Assemble the Hardware..........................................................................................................................12 3) Connect the Cables .......................................................................................................................................14 4) Powering On the Unit .....................................................................................................................................15 5) View LEDs......................................................................................................................................................15 6) Installing Documentation and Software .........................................................................................................16 7) Mounting the Unit ...........................................................................................................................................17 8) Aligning the Antenna ......................................................................................................................................17 Antenna Alignment Commands ...................................................................................................................18 9) Completing Installation...................................................................................................................................19 Other Connections .............................................................................................................................................19 Power and Ethernet Connection..................................................................................................................19 Serial Connection ........................................................................................................................................19 External Antenna Connection ......................................................................................................................20 CHAPTER 3. MANAGEMENT OVERVIEW............................................................................................................21 The Interfaces ....................................................................................................................................................21 IP Address..........................................................................................................................................................22 Setting the IP Address .................................................................................................................................22 Starting the Web Interface .................................................................................................................................24 Changing Basic Configuration Information ........................................................................................................25 Country and Related Settings..............................................................................................................…

Text truncated - open the document above for the full version.

Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Chapter 5. Using the Web Interface 82 Prevent Messages Destined for a Specific Multicast Group from Being Forwarded to the Wireless LAN If there are devices on your Ethernet network that use multicast packets to communicate and these packets are not required by your wireless clients, you can set up a Static MAC filter to preserve wireless bandwidth. For example, if routers on your network use a specific multicast address (such as 01:00:5E:00:32:4B) to exchange information, you can set up a filter to prevent these multicast packets from being forwarded to the wireless network: • Wired MAC Address: 01:00:5E:00:32:4B • Wired Mask: FF:FF:FF:FF:FF:FF • Wireless MAC Address: 00:00:00:00:00:00 • Wireless Mask: 00:00:00:00:00:00 Result: The unit does not forward any packets that have a destination address of 01:00:5E:00:32:4B to the wireless network. Configure Storm Threshold Filtering Click the Configure button, the Filtering tab, and the Storm Threshold sub-tab to use threshold limits to prevent broadcast/multicast overload. Storm Threshold is an advanced Bridge setup option that you can use to protect the network against data overload by specifying: • A maximum number of frames per second as received from a single network device (identified by its MAC address). • An absolute maximum number of messages per port. The Storm Threshold parameters let you specify a set of thresholds for each port of the unit, identifying separate values for the number of broadcast messages per second and multicast messages per second. When the number of frames for a port or identified station exceeds the maximum value per second, the unit ignores all subsequent messages issued by the particular network device, or ignores all messages of that type. Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Chapter 5. Using the Web Interface 83 Field Descriptions Per Address Threshold Enter the maximum allowed number of packets per second. Ethernet Threshold Enter the maximum allowed number of packets per second. Wireless Threshold Enter the maximum allowed number of packets per second. Configure Broadcast Protocol Filtering Click the Configure button, the Filtering tab, and the Broadcast Protocol sub-tab to deny specific IP broadcast, IPX broadcast, and multicast traffic. Click the Edit Table Entries button to display an editable window such as the following. You can configure whether this traffic must be blocked for Ethernet to wireless, wireless to Ethernet, or both. Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Chapter 5. Using the Web Interface 84 Configure IP Access Table Filtering The IP Access Table limits in-band management access to the IP addresses or range of IP addresses specified in the table. This feature applies to all management services (SNMP, HTTP, and CLI) except for CLI management t over the serial port. To add an entry, click the Add Table Entries button, specify the IP address and mask of the wireless stations to which you want to grant access, and click Add. To edit or delete table entries, click the Edit/Delete Table Entries button, make your changes, and click OK. For example, 172.17.23.0/255.255.255.0 allows access from all wireless stations with an IP address in the 172.17.23.xxx range. Ensure that the IP address of the management PC you use is within the first entry in the table, as this filter takes effect immediately. Otherwise, you have locked yourself out. When you do lock yourself out, you may try to give the PC the correct IP address; otherwise you must reset the unit. Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Chapter 5. Using the Web Interface 85 9) Configure Intra-Cell Blocking (Base Station only) The Intra-Cell Blocking feature lets traffic be blocked between two SUs registered to the same Base Station. There are two potential reasons to isolate traffic among wireless subscribers: • To provide better security to the subscribers by isolating the traffic from one subscriber to another in a public space. • To block unwanted traffic between subscribers to prevent this traffic from using bandwidth. You can form groups of SUs at the Base Station, which define the filtering criteria. All data to or from SUs belonging to the same group are bridged. All other data from SUs that do not belong to a particular group are automatically forwarded through the Ethernet interface of the Base Station. If an SU does not belong to any group, the Base Station discards the data. You can also configure a Security Gateway to block traffic between SUs connected to different BSUs. All packets destined for SUs not connected to the same Base Station are forwarded to the Security Gateway MAC address (configured in the Security Gateway tab). When you change the device from Bridge to Routing mode, Intra-Cell Blocking stops working with or without a reboot. When you change the device from Routing to Bridge mode, Intra-Cell Blocking starts working with or without a reboot. Enable Intra-Cell Blocking The Group Table tab lets you enable the Intra-Cell Blocking feature and to configure Intra-Cell Blocking Groups. Field Descriptions Intra-Cell Blocking Status Enables or disables the Intra-Cell Blocking feature. Group Table Entries in this table show the Intra-Cell Blocking filter groups that have been configured. When Intra-Cell Blocking is enabled, the Base Station Unit discards all packets coming from one SU to another SU, if both SUs do not belong to the same filter group. Tsunami MP.11 2454-R, 5054-R, and 5054-R-LR Installation and Management Chapter 5. Using the Web Interface 86 Configure Intra-Cell Blocking Groups Click the Add Table Entries button to add groups to the Group Table. Enter the group name, and click Add. The group is assigned an Index and appears in the Group Table. Up to 16 groups can be configured per Base Station. You can enable, disable or delete an exist…

Text truncated - open the document above for the full version.

HZB-5054-LR Block Diagram (Electrical) RS-232 (RJ-11) Alpha-1 RS232 Ethernet 12V / I2C Daughter board Peltier ABG MiniPCI Atheros 5213+5112 Peltier Controller POE Supply 48V 12V I2C GPIO SPKR 12V Temp Sensor 23 dBi Antenna Connector Or Type-N Connector Ethernet (RJ-45) 8241 166 MHz I2C TC74 Temp IC

2115 O'Nel Drive, San Jose, CA 95131 P 408.731.2700 F 408.731.3675 www.proxim.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: HZB-5054-LR Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: - schematics - BOM - Theory of operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Caroline Yu Regulatory Compliance Manager 6/13/2006

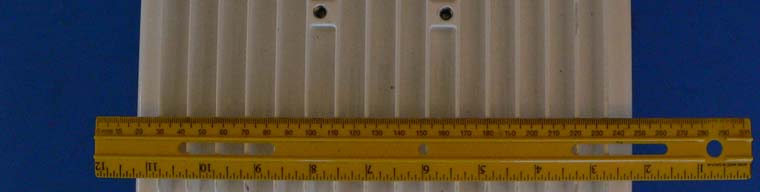

EXHIBIT C - EUT PHOTOGRAPHS EUT Front View EUT Side View 1 EUT Back View EUT Side View 2

EXHIBIT A - FCC ID LABEL INFORMATION FCC ID Label Contents Proposed Label Location on EUT Label Location FCC ID: HZB-5054-LR This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

EUT Cover Off Control Board 1 & RF Board Control Board 1 Control Board 2 Control Board 1 - Front Control Board 1 - Back Control Board 2 - Front Control Board 2 - Back RF Board with Shield on – Front RF Board with Shield Off – Front RF Board With Shield On – Back RF Board With Shield Off – Back

§1.1307(b)(1) & §2.1091 - RF EXPOSURE According to §15.247(e)(1) & 15.407 and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 802.11a 5250 – 5350 MHz: Maximum peak output power at antenna input terminal: 22.19 (dBm ) Maximum peak output power at antenna input terminal: 165.58 (mW) Prediction frequency: 5300 (MHz) Antenna Gain (typical): 17.0 (dBi) antenna gain: 50.12 (numeric) Prediction distance: 26 (cm) Power density at prediction frequency at 26 cm: 0.977 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) 5745-5825 MHz: Maximum peak output power at antenna input terminal: 7.8 (dBm ) Maximum peak output power at antenna input terminal: 6.026 (mW) Prediction frequency: 5745 (MHz) Antenna Gain (typical): 33.4 (dBi) antenna gain: 2187.76 (numeric) Prediction distance: 32.8(cm) Power density at prediction frequency at 32.8 cm: 0.976 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is of fixed outdoor installation, point -to-point or point-to-multipoint. 1mW/ cm 2 limit applies. The prediction distance for the 5GHz antenna is 32.8 cm.

FCC PART 15.247 & 15.407 EMI MEASUREMENT AND TEST REPORT For Proxim Wireless Corporation 2115 O’Nel Drive San Jose, CA 95131, USA FCC ID: HZB-5054-LR This Report Concerns: Original Report Product Type: Tsunami 5054-R Outdoor Wireless Point To Multi Point System Test Engineer: James Ma Report No.: R0605231 Report Date: 2006-07-12 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Ave Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §1.1307(B)(1) & §2.1091 - RF EXPOSURE.................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................11 STANDARD APPLICABLE............................................................................................................................................11 §15.205, §15.209(A), §15.407(B)(5), §15.407(B)(6), §15.247(C) - SPURIOUS RADIATED EMISSION .............12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................13 RECEIVER SETUP.......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................14 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................14 SUMMARY OF TEST RESULTS.....................................................................................................................................14 §15.207(A) – AC LINE CONDUCTED EMISSIONS ..............................................................................................31 MEASUREMENT UNCERTAINTY..................................................................................................................................31 EUT SETUP................................................................................................................................................................31 RECEIVER SETUP.......................................................................................................................................................31 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................31 TEST PROCEDURE..............................................................................................................................................…
