HZB-GIGA5Startum X5 Gigabit 5 GHz Radio

Proxim Wireless Corporation
Startum X5 Gigabit 5 GHz Radio - FCC ID HZB-GIGA5 - Proxim Wireless Corporation
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Sep 21, 2023
Application Purpose
Original Equipment
Date of Application
Sep 19, 2023
Equipment Note
Startum X5 Gigabit 5 GHz Radio
Frequency Range
5725.00000000 - 5850.00000000
Company
Proxim Wireless Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WORP Driving the Internet of Things ® WORP Driving the Internet of Things ® WORP Driving the Internet of Things ® P/N 765-00419 Version 1.0 1 Copyright © 2023 Proxim Wireless P/N 765-00419 Version 1.0 2 Copyright © 2023 Proxim Wireless P/N 765-00419 Version 1.0 3 Copyright © 2023 Proxim Wireless Stratum TM -X5 Series Quick Installation Guide Introduction The Stratum™ X5 is a highly efficient radio endpoint that delivers gigabit-plus throughput in both point-to-point and multipoint wide area network configurations. Able to operate in MIMO 4x4, with either integrated or external antenna (software switchable on some variant), the Stratum™ X5 is ideally suited to high-capacity backhaul, high-resolution video surveillance, or high-density multipoint deployments. Powered by Proxim WORP® (Wireless Outdoor Router Protocol), managed via web GUI, CLI, Bluetooth-enabled Proxim BlueConnect™ and SNMP for ProximVision® Advanced, this high-speed platform offers advanced Quality of Service, granular service level management, and very secure networking. Products Covered in This Guide Package Contents Each shipment includes the items listed in the following table. Please verify that you have received all the parts in the shipment, prior to the installation. Device Overview Figure 1: SX5-1040A Figure 2: SX5-1042A The device contains the following features (not all features are available for every variant): Weatherproofing RJ45 Connection The following steps explain how to weatherproof the RJ45 connection: Figure 3: Weatherproof the RJ45 connection 1. Use an outdoor rated CAT5e/CAT6 cable with a straight-through terminated on both ends. 2. Insert the CAT5e/CAT6 cable through the Sealing Nut (D) and install the Compression Washer (C) to the cable. Compression Washer (C) has a slit in the middle for quick installation onto the cable. 3. Install the parts (D) and (C) in the direction as shown in Figure 2. 4. Insert the Flat Washer (A) onto the Connector Body (B) and then insert the CAT5e/CAT6 cable through the Connector Body (B). 5. Connect the cable end of RJ45 connector into Ethernet port of the device. 6. Make sure that the locking latch of RJ45 Connector is properly inserted into the Ethernet port. 7. Fasten the Connector Body Assembly to the Device Ethernet port hole and fully tighten it. 8. Slide and Insert the Compression Washer (C) into the Connector Body Assembly. 9. Fasten the Sealing Nut (D) to the Connector Body Assembly and fully tighten it to weatherproof the cable. Additional Weatherproofing Steps To add an additional layer of protection to connectors against the environment, do the following: 1. Wrap vinyl tape in a half-lapped fashion, from the weatherproof connector end and continue wrapping down 3 inches onto the CAT5e/CAT6 cable. 2. Next, wrap a layer of the butyl mastic tape over the adhesive side of the tape, covering all of the tape and connector. 3. Wrap a final layer of vinyl tape over the butyl layer and cover the entire tape assembly. 4. Place a small zip tie over the last wrap of tape to prevent it from unwrapping over time. For detailed explanation of RJ45 connectors and RP-SMA connections weatherproofing, refer to Stratum TM X5 Series Hardware Installation Guide at http://support.proxim.com. Assemble the Mounting Hardware 1. Fix the Mounting Plate (A) onto the bottom of the device using the provided screws and washers such that the antennas will be vertically and horizontally polarized when mounted; also, it is recommended to partially fasten the screws with washers into all the mounting holes, prior to final tightening of each screw. Torque the screws to 75 Lbf-in (86 Kgf-cm) 2. Fix the Extension Arm (B) to the fixed Mounting Plate (A) with the provided bolt, nut, and washers. The Extension Arm (B) gives the device more possible tilt, letting you adjust for azimuth or elevation over a larger angle. Figure 4: Assemble the Mounting Hardware Mount the Device 1. To pole-mount the device, insert the provided bolts through Bracket (D), mate with Bracket (C) around the pole, and secure with supplied washers torquing to 100 Lbf-in (115 Kgf-cm). The supplied screws (Hex. Cap 5/16” x 4”long) are designed for pole diameters from 32 to 89 mm (1.25 to 3.5 inches). 2. Fix the fixed Extension Arm (B) to the Mounting Bracket (C) with the provided bolt, nut, and washers. Partially tighten the joints J1 and J2 to allow for alignment of the device. 3. Once satisfied with the alignment, tighten the assembled parts by applying torque 130 Lbf-in (150 Kgf-cm). 4. While installing the device, make sure that the device Ethernet Port-1 with cable installation (using cable gland) faces downward only as shown in Figure 5 below: Figure 5: Pole Mounting Model SX5-1040ASX5-1042A What’s in the KitSX5-1040ASX5-1042A Stratum Device PoE Injector with country specific power cord US & TH - US power cord WD - US and EU power cord Connector Weather Proofing Kit Pole Mounting Kit Grounding Kit Quick Installation Guide IMPORTANT! For regulatory information and latest product updates, including firmware and the MIBs, please visit Proxim’s support site at http://support.proxim.com. The device must be installed by a trained professional who is familiar with radio frequency ItemFeaturesDescription 1Ethernet Port-1• 2.5 Gbps Ethernet • 802.3at/bt PoE In 2Ethernet Port-2• 1 Gbps Ethernet • 802.3at PoE Out 3SFP+ Port• SFP+ Port with 10 Gbps Data transfer 4Access Port• 12v External DC IN Supply A1,A2, A3&A 4 5 GHz Antenna Ports (A1,A2,A3&A4) • A provision to connect external antenna in MIMO 4x4 mode. • Connect A1 to Antenna Vertical Polarity port and A2 to Antenna Horizontal Polarity port. • Connect A3 and A4 to Antenna Slant Polarity ports. 5GPS Connector• A provision to connect passive GPS antenna for device positioning. 6View LEDs & RSSI LEDs Display • Displays boot up information (see View LEDs section). • RSSI LEDs behavior Information (see RSSI LEDs Behavior Section). 7Mounting Holes• A provision to connect 10000-UMK moun…

Text truncated - open the document above for the full version.

Users Manual

 Stratum TM X5 Safety and Regulatory Guide Products Covered Stratum™ X5 -SX5-1040A -SX5-1042A -SX5-1040A Quickbridge -SX5-1042A Quickbridge Stratum TM X5 - Safety and Regulatory Guide 2 Copyright © 2023 Proxim Wireless Corporation, San Jose, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. The content described herein are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Wireless Corporation. Trademarks Stratum TM , Proxim ® and the Proxim logo are the trademarks of Proxim Wireless Corporation. All other trademarks mentioned herein are the property of their respective owners. Disclaimer Proxim reserves the right to revise this publication and to make changes in content from time-to-time without obligation on the part of Proxim to provide notification of such revision or change. Proxim may make improvements or changes in the product(s) described in this guide at any time. When using these devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons. GPL License Note Stratum TM products include, in part, some free software that is developed by Free Software Foundation. A user is granted license to this software under the terms of either the GNU General Public License or GNU Lesser General Public License (See http:// www.gnu.org/licenses/licenses.html ). This license allows the user to freely copy, modify and redistribute this software and no other statement or documentation from us. To get a copy of this software, or for any other information, please contact our customer support team). OpenSSL License Note Stratum TM products contains software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/) and that is subject to the following copyright and conditions: Copyright (c) 1998-2016 The OpenSSL Project. All rights reserved. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to refer to, endorse, or promote the products or for any other purpose related to the products without prior written permission. For written permission, please contact [email protected]. This software is provided by the OpenSSL Project “as is” and any expressed or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall the OpenSSL Project or its contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage. Stratum TM X5 - Safety and Regulatory Guide Documentation Version:1.0 P/N 765-00424, September 2023. Stratum TM X5 - Safety and Regulatory Guide3 Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1 Stratum™ Series - Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Safety Information (USA, Canada and European Union and UK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Federal Communications Commission (FCC) Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installation within TDWR Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Industry Canada Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 IC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 European (ETSI) and UK Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Countries of Operation and Conditions of Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 5 GHz Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Transmit Power Control (TPC) for 5 GHz operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Certification Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 USA (See USA - Certification) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Canada (See CANADA - Certification). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ETSI (See ETSI - Certification) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 UK (See UK - Certification) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Cover Letter(s)

1 2023 Proxim Wireless Corporation www.proxim.com Stratum X5 Model Naming Date: 09-15-2023 Stratum X5 product family model naming is defined as follow: SX5-UUVWY-ZZ (Example: SX5-1040A-US) With: - SX5 representing Stratum X5 product Family (3 alphanumeric) - Dash (-) - UU representing Frequency (2 digit) No specific meaning implemented as needed (UU): 10 (5 GHz), 20 (6 GHz) ... - V representing MIMO capacity (1 digit): 2 (MIMO 2x2), 4 (MIMO 4x4) - W representing antenna beam Width (1 digit) 0 (connectorized), 1 (10 degree), 2 (20 degree) ... 9 (90 degree) - Y representing Product Type (1 alphanumeric) A: All-purpose unit (Base Station (1 SU max) and Client), B: Base Station (unlimited SU) and Client, C: Client only - Dash (-) - ZZ representing Country code (2 alphanumeric) WD (World), US (USA) All variants use similar hardware (PCBA) and software versions

External Photos

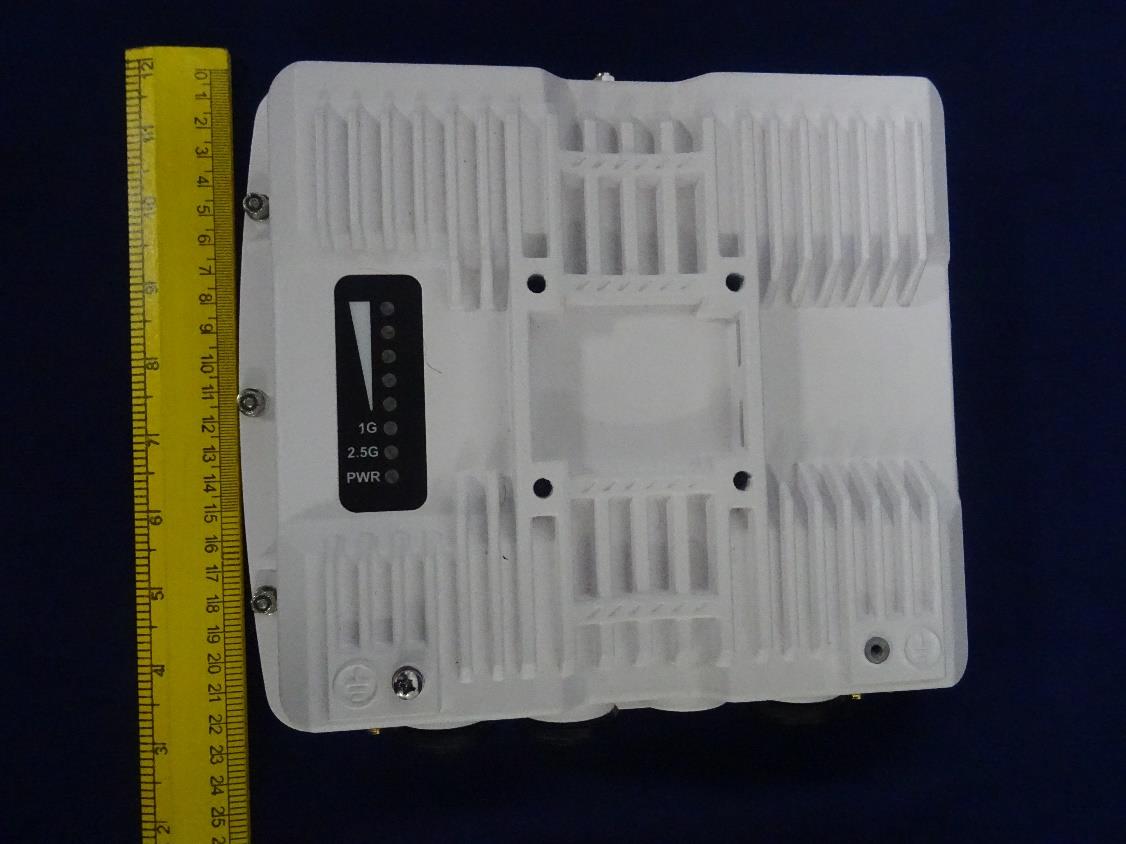

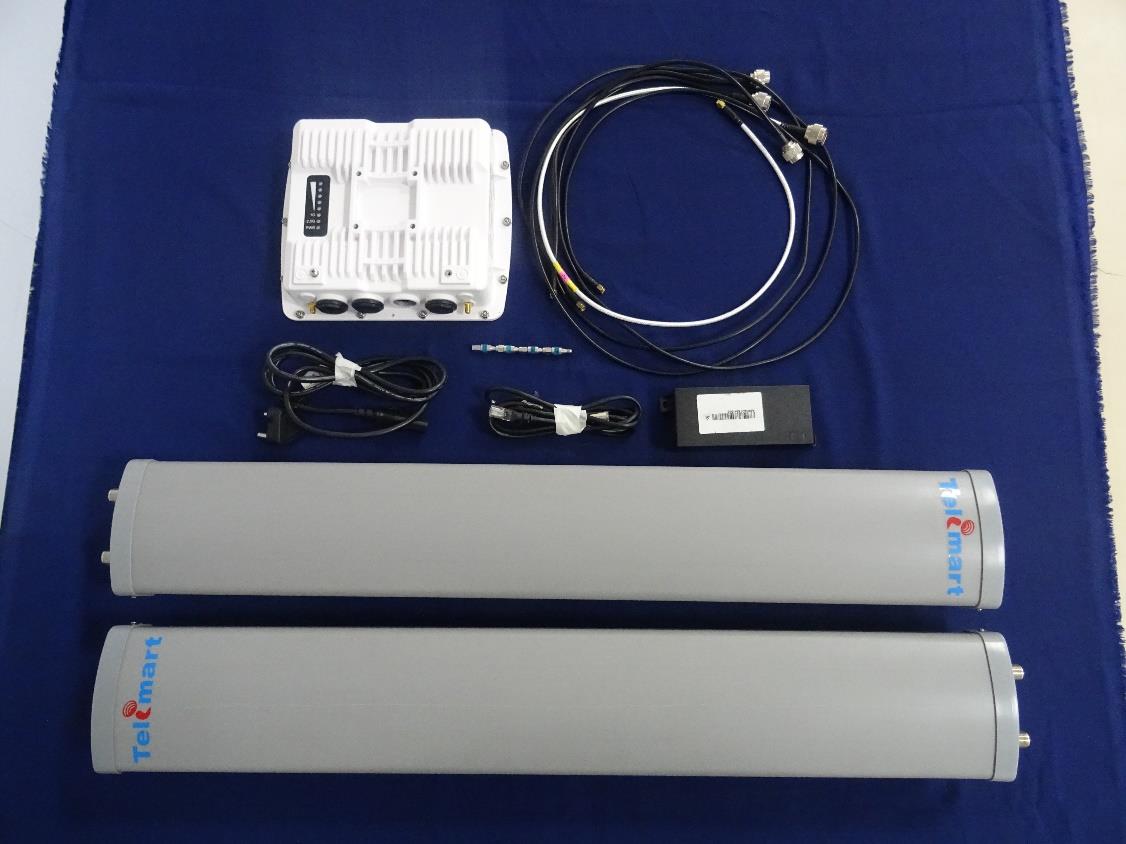

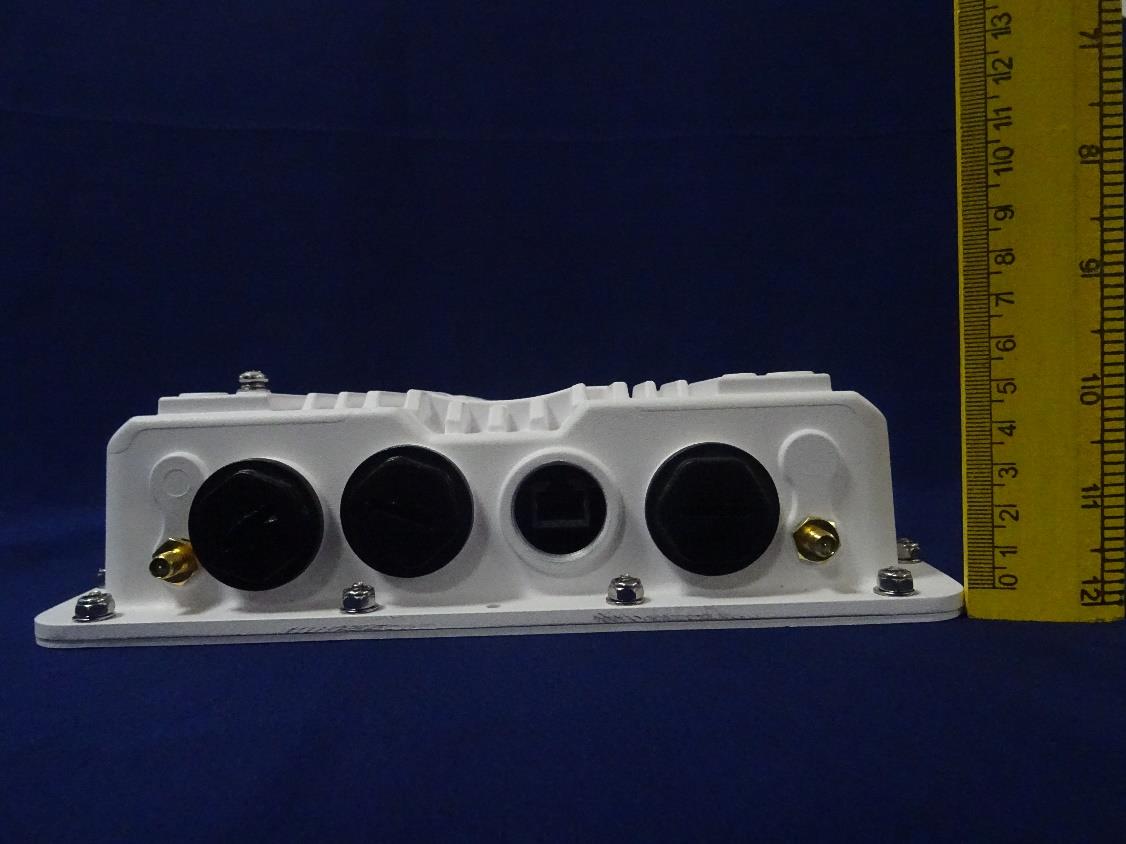

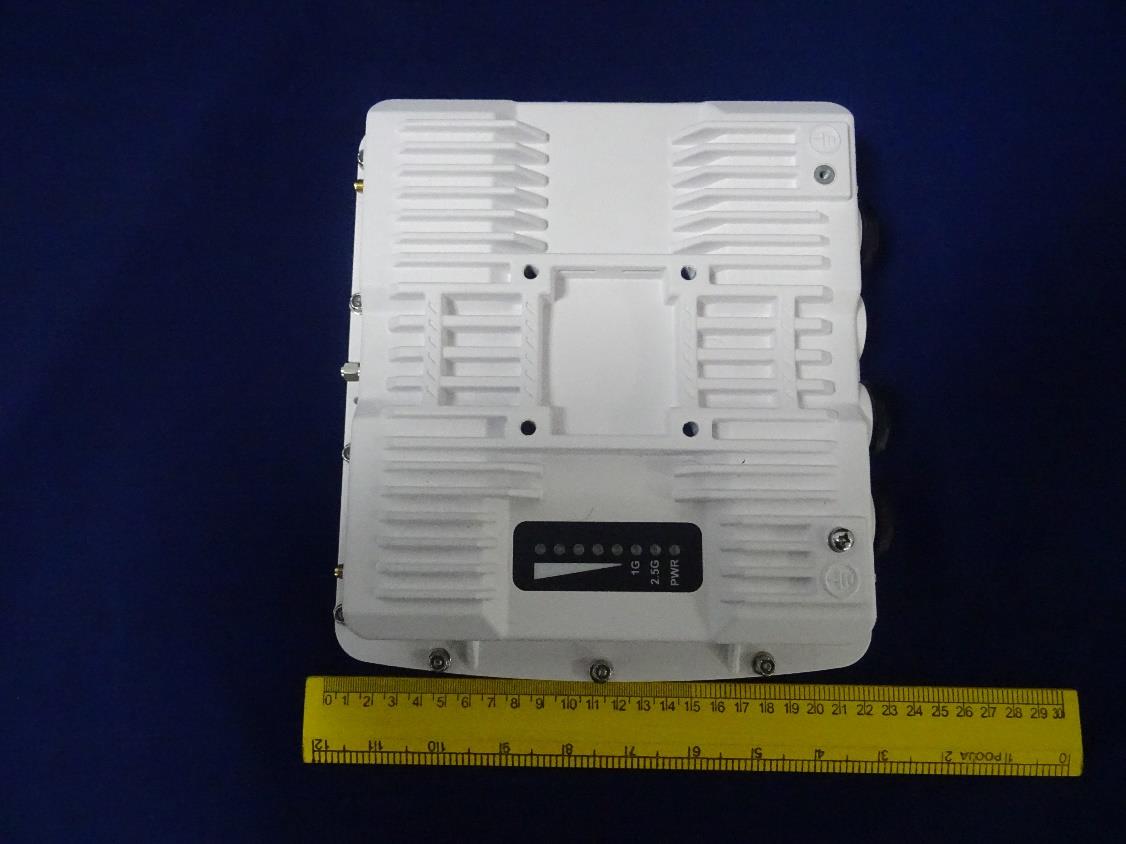

Produkte Products www.tuv.com External Photos Reference test report No: IN23HNHD 001 & IN23HH4B 001 Seite 1 von 5 Page 1 of 5 External Photos Photo 1: EUT front view Photo 2: EUT rear view Produkte Products www.tuv.com External Photos Reference test report No: IN23HNHD 001 & IN23HH4B 001 Seite 2 von 5 Page 2 of 5 Photo 3: EUT dimensional view Photo 4: EUT dimensional view Produkte Products www.tuv.com External Photos Reference test report No: IN23HNHD 001 & IN23HH4B 001 Seite 3 von 5 Page 3 of 5 Photo 5: EUT dimensional view Photo 6: EUT With Omni Antenna Produkte Products www.tuv.com External Photos Reference test report No: IN23HNHD 001 & IN23HH4B 001 Seite 4 von 5 Page 4 of 5 Photo 7: EUT With Sector Antenna Photo 8: EUT With Panel Antenna Produkte Products www.tuv.com External Photos Reference test report No: IN23HNHD 001 & IN23HH4B 001 Seite 5 von 5 Page 5 of 5 Photo 9: Dish Antenna With Accessories Integrated Panel Antenna Front View Integrated Panel Antenna Rear View Photo 10: Integrated Panel Antenna

ID Label/Location Info

1 2023 Proxim Wireless Corporation www.proxim.com Label must contain, • FCC/IC ID and HVIN shall be permanently indicated on the exterior of the product • Identification of the product, e.g., trade name, model, etc • The name and address, and telephone number, or internet contact information of the responsible party • A statement that the product complies with the rules as mentioned below, This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label for USA model 2 2023 Proxim Wireless Corporation www.proxim.com Label for Canada model

Internal Photos

Produkte Products www.tuv.com Internal Photos Reference Test Report No: IN23HNHD 001 & IN23HH4B 001 Seite 1 von 5 Page 1 of 5 Internal Photos PCB Front View PCB Rear View Produkte Products www.tuv.com Internal Photos Reference Test Report No: IN23HNHD 001 & IN23HH4B 001 Seite 2 von 5 Page 2 of 5 PCB Dimensional View PCB Dimensional View Produkte Products www.tuv.com Internal Photos Reference Test Report No: IN23HNHD 001 & IN23HH4B 001 Seite 3 von 5 Page 3 of 5 EUT With encloser EUT Without encloser Produkte Products www.tuv.com Internal Photos Reference Test Report No: IN23HNHD 001 & IN23HH4B 001 Seite 4 von 5 Page 4 of 5 PCB Module with encloser PCB Module without encloser Produkte Products www.tuv.com Internal Photos Reference Test Report No: IN23HNHD 001 & IN23HH4B 001 Seite 5 von 5 Page 5 of 5 BLE Module with Shield Close up View BLE Module without Shield close up View

RF Exposure Info

Prüfbericht – Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: IN23HNHD 001 & IN23HH4B 001 Auftrags-Nr.: Order no.: 146741372 0010 Seite 1 von 5 Page 1 of 5 Kunden-Referenz-Nr.: Client reference no.: 2390953 Auftragsdatum: Order date: 2022-12-01 Auftraggeber: Client: Proxim Wireless Corporation 2114 Ringwood Avenue, San Jose, California 95131 Prüfgegenstand: Test item: Stratum™ X5 Bezeichnung Identification SX5-1040A-US & SX5-1042A-US SX5-1040A-WD & SX5-1042A-WD Auftrags-Inhalt: Order content: Maximum Permissible Expsoure Prüfgrundlage: Test specification: FCC 1.1310, and RSS 102 Issue 5 KDB 447498 D01 Wareneingangsdatum: Date of sample receipt: 2023-04-11 Prüfmuster-Nr.: Test sample no: Serien -Nr.: Serial no.: A003453731-003 001 Prüfzeitraum: Testing period: 2023-04-24 - 2023-06-30 Ort der Prüfung: Place of testing: Wireless laboratory, Bangalore Prüflaboratorium: Testing laboratory: TÜV Rheinland (India) Pvt. Ltd. 27/B,2nd cross road, Electronic city Phase1, Banglore-560100, India FCC Test Site Registration No: 496599 IC Test Site Registration No: 27711 HVIN: Gigabit 5 quad Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023-07-03 Ausstellatum: Issue date: 2023-09-19 Stellung / Position: M.V.Naveen Kumar Senior Engineer Stellung / Position: Madhu K.N Assistant Manager Sonstiges / Other: FCC ID: HZB-GIGA5 IC : 1856A-GIGA5 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (India) Pvt. Ltd, Plot No.27/B, 2nd Cross, Electronic city, Industrial Area, Phase I, Hosur Road Bangalore-560 100, India Mail: [email protected] ∙ Web: www.ind.tuv.com Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: IN23HNHD 001 & IN23HH4B 001 Seite 2 von 5 Page 2 of 5 1 Maximum Permissible Exposure 1.1 RF Exposure Compliance Requirement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 1.2 RF Exposure Limits: 1.2.1 For FCC 1. According to FCC Part 1 Subpart I 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) showed in Table 1. F or ƒ = Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation. Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: IN23HNHD 001 & IN23HH4B 001 Seite 3 von 5 Page 3 of 5 Test Results: Manufacturer has declared the tune-up value as 0 dB is considered in MPE calculation. Antenna details: Manufacturer Antenna Name Antenna Model Antenna Gain/used Frequency range Telimart India Omni Directional Antenna TM55D-HVOMNI-12 2 X 12±0.5/ 5.15 to 5.850GHz Telimart India Dual Polarization Sector Antenna TM55D-HVSCTR-21 2 X 21±0.5/ 5.15 to 5.850GHz Telimart India Dual Polarization Directional Antenna MT-466010/NVH 2 X 28±1.0/ 5.15 to 5.850GHz Telimart India Dish Antenna 4.9 - 5.9 GHz, Dual Polarized, TM55L-DPDISH-35 2 x 35±0.5/ 5.15-5.25GHz & 5.15- 5.85GHz MARS Antennas & RF Systems LTD 4.9-6.425 GHz Quad Polarization MA-WA57- QP4MIMO19 4.9-5.15 @ 4x18 dBi 5.15-6.425 @ 4x19 dBi For BLE uses PCB Antenna with Antenna Gain 2dBi Note: The Conducted output power including Tune-up Tolerance for each antenna/bands as below, which was declared by manufacturer. Antenna Model Frequency Range (MHz) Conducted Output Power including tune-up Tolerance (dBm) TM55D-HVOMNI-12 5150MHz to 5250MHz 22.0 5725MHz to 5850MHz 23.0 TM55D-HVSCTR-21 5150MHz to 5250MHz 16.0 5725MHz to 5850MHz 18.0 MT-466010/NVH 5150MHz to 5250MHz 14.0 5725MHz to 5850MHz 18.0 TM55L-DPDISH-35 5150MHz to 5250MHz 5.0 5725MHz to 5850MHz 18.0 MA-WA57-QP4MIMO19 5150MHz to 5250MHz 19.0 5725MHz to 5850MHz 20.0 PCB Antenna 2402MHz to 2480MHz 3.0 Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: IN23HNHD 001 & IN23HH4B 001 Seite 4 von 5 Page 4 of 5 Radio Protocol Antenna Model Frequency (MHz) Maximum measured RF output power with tune- up procedure (dBm) Max power Including tune-up tolerance * (mW) Antenna Gain in linear Min Separation distance (CM) Power Density (Pd)(mW/cm²) FCC Limit (mW/cm2) Wi-Fi 5GHz TM55D- HVOMNI-12 5150 to 5250 22.0 158.4893 63.3957 33 0.7342 1 5725 to 5850 23.0 199.5262 63…

Text truncated - open the document above for the full version.

Test Report

Prüfbericht – Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: IN23HH4B 001 Auftrags-Nr.: Order no.: 146741372 0010 Seite 1 von 137 Page 1 of 137 Kunden-Referenz-Nr.: Client reference no.: 2390953 Auftragsdatum: Order date: 2022-12-01 Auftraggeber: Client: Proxim Wireless Corporation 2114 Ringwood Avenue, San Jose, California 95131 Prüfgegenstand: Test item: Stratum™ X5 Serien-Nr.: serial no.: 001 Bezeichnung.: Identification .: SX5-1040A-US & SX5-1042A-US SX5-1040A-WD & SX5-1042A-WD Auftrags-Inhalt: Order content: Testing and issue of Test report with Grant Certificate Prüfgrundlage: Test specification: FCC Part 15 Subpart C 15.247,15.207, 15.205 & 15.209, Subpart E 15.407 RSS 247 Issue 3 & RSS Gen Issue 5 Wareneingangsdatum: Date of sample receipt: 2023-04-11 Prüfmuster-Nr & Test sample no & A003453731-003 & A003473785-001 Prüfzeitraum: Testing period: 2023-04-24 - 2023-06-30 Ort der Prüfung: Place of testing: Wireless laboratory, Bangalore Prüflaboratorium: Testing laboratory: TÜV Rheinland (India) Pvt.Ltd., 27/B, 2nd Cross, Electronic City Phase1 Bangalore -560 100, India FCC Test site registration number: 496599 ISED Test site registration number: 27711 HVIN: Gigabit 5 quad Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023-07-03 Ausstellatum: Issue date: 2023-09-19 Stellung / Position: M.V.Naveen Kumar Senior Engineer Stellung / Position: Madhu K.N Assistant Manager Sonstiges / Other: FCC ID: HZB-GIGA5 IC : 1856A-GIGA5 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (India) Pvt. Ltd, Plot No.27/B, 2nd Cross, Electronic city, Industrial Area, Phase I, Hosur Road Bangalore-560 100, India Mail: [email protected] ∙ Web: www.ind.tuv.com Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: IN23HH4B 001 Seite 2 von 137 Page 2 of 137 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen in diesem Prüfbericht basiert auf der "Null-Grenzwert- Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. The decision rule for statements of conformity in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 and IEC Guide 115:2021, unless otherw…

Text truncated - open the document above for the full version.

Test Report

Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 1 von 83 Page 1 of 83 1. Test Plots Wi-Fi 5GHz 1.1 Emission Bandwidth Modulation: 802.111a Data Rate: 54Mbps Channel Frequency:5180MHz Channel Frequency:5240MHz Channel Frequency:5745MHz Channel Frequency:5825MHz Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 2 von 83 Page 2 of 83 Modulation: 802.11n-20MHz Data Rate: MCS7 Channel Frequency:5180MHz Channel Frequency:5240MHz Channel Frequency:5745MHz Channel Frequency:5825MHz Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 3 von 83 Page 3 of 83 Modulation: 802.11ac-20MHz Data Rate: MCS8 Channel Frequency:5180MHz Channel Frequency:5240MHz Channel Frequency:5745MHz Channel Frequency:5825MHz Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 4 von 83 Page 4 of 83 Modulation: 802.11ax-20MHz Data Rate: MCS11 Channel Frequency:5180MHz Channel Frequency:5240MHz Channel Frequency:5745MHz Channel Frequency:5825MHz Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 5 von 83 Page 5 of 83 Modulation: 802.11n-40MHz Data Rate: MCS7 Channel Frequency:5190MHz Channel Frequency:5230MHz Channel Frequency:5755MHz Channel Frequency:5795MHz Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 6 von 83 Page 6 of 83 Modulation: 802.11ac-40MHz Data Rate: MCS9 Channel Frequency:5190MHz Channel Frequency:5230MHz Channel Frequency:5755MHz Channel Frequency:5795MHz Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Level in dBm Frequenc y in MH z Produkte Products www.tuv.com Test Plots IN23HNHD 001 & IN23HH4B 001 Seite 7 von 83 Page 7 of 83 Modulation: 802.11ax-40MHz Data Rate: MCS11 Channel Frequency:5190MHz Channel Frequency:5230M…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ken Lim(Accounting Manager)
[email protected]408 383 7600Fax: 408 383 7680

Test Firm

TUV Rheinland (India) Pvt. Ltd.B R Guruprasad
[email protected]+91 8046498000

Technical Specifications

#Rule PartsFrequency RangePower Output
215E5.72 GHz - 5.85 GHz190.10 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. Professional installation is required. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 2.9 m from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20 MHz and 40 MHz, 80 MHz bandwidth modes. This device contains BLE transmitter.
