HZB-A09UCFUNII/ISM Radio Network Equipment

Tsunami MP.11 and MP.11a Installation and Management Guide CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management COPYRIGHT ©2003 Proxim Corporation, Sunnyvale, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This manual and the software described herein are copyrighted with all rights reserved. No part of this publications may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Corporation. TRADEMARKS Tsunami, Proxim, and the Proxim logo are trademarks of Proxim Corporation. All other trademarks mentioned herein are the property of their respective owners. FCC COMPLIANCE This document provides regulatory information for the following wireless base station products: ▪ Tsunami MP.11 2411 BSU, Tsunami MP.11 2411 SU, Tsunami MP.11 2411 RSU ▪ Tsunami 2411 QuickBridge 11 ▪ Tsunami MP.11a BSU, Tsunami MP.11a SU, Tsunami MP.11a RSU This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. This device must be professionally installed. Changes or modifications not expressly approved by Proxim Corporation could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to attempt to correct the interference by one or more of the following measures: ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation between the equipment and receiver. ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ▪ Consult the dealer or an experienced radio or television technician for help. This device must be professionally installed. Antennas used for the MP.11a product must be fix- mounted on permanent structures with a separation distance of at least 2 meters from all persons during normal operation. Notices 2 CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management Contents Copyright.........................................................................................................................................2 Trademarks.....................................................................................................................................2 FCC COMPLIANCE........................................................................................................................2 CHAPTER 1. OVERVIEW....................................................................................................................5 Wireless Network Topologies.........................................................................................................6 Active Ethernet................................................................................................................................7 CHAPTER 2. INSTALLATION.............................................................................................................8 Identifying Network Topology and Equipment................................................................................8 Finding a Suitable Location............................................................................................................9 Installing the MP.11/a...................................................................................................................10 Switching On the MP.11/a............................................................................................................15 Installing Documentation and Software........................................................................................16 Mounting the MP.11/a...................................................................................................................16 CHAPTER 3. MANAGEMENT OVERVIEW......................................................................................19 MP.11 IP Address.........................................................................................................................19 Web Interface Overview...............................................................................................................22 MP.11a Options............................................................................................................................23 Command Line Interface Overview..............................................................................................24 CHAPTER 4. BASIC MANAGEMENT..............................................................................................27 Rebooting and Resetting..............................................................................................................28 System Status...............................................................................................................................30 System Configuration....................................................................................................................31 IP Configuration..........................................................…

Text truncated - open the document above for the full version.

Tsunami MP.11and MP.11a Installation and Management RADIUS Authentication Click the Configure button, the Security tab, and the Radius Auth sub-tab to set the IP address of the RADIUS server containing the central list of MAC addresses allowed to access the network. In large networks with multiple MP.11/a devices, you can maintain a list of MAC addresses on a centralized location using a RADIUS authentication server that grants or denies access. If you use this kind of authentication, you must specify at least the primary RADIUS server. The backup RADIUS server is optional. Encryption You can protect the wireless data link by using encryption. Encryption keys can be 5 (64-bit), 13 (WEP 128-bit), or 16 (AES 128-bit) characters in length. Both ends of the wireless data link must use the same parameter values. Advanced Encryption Standard (AES) encryption is supported on the MP.11a only. Click the Configure button, the Security tab, and the Encryption sub-tab to set encryption keys for the data transmitted and received by the MP.11/a. Note that all devices in one network must use the same encryption parameters to communicate to each other. Chapter 5. Web Interface 61 CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management 10) Filtering Click the Configure button and the Filtering tab to configure packet filtering. Packet filtering can be used to control and optimize network performance. Filtering sub-tabs are as follows: Ethernet Protocol The Ethernet Protocol Filter blocks or forwards packets based upon the Ethernet protocols they support. Click the Configure button, the Filtering tab, and the Ethernet Protocol Filter sub-tab to enable or disable certain protocols in the table. Entries can be selected from a drop-down box. ▪ To add an entry to the table, click Add Table Entries, select the protocol name from the drop-down box and click the Add button. ▪ To edit or delete table entries, click Edit/Delete Table Entries, make your changes or deletions, and click OK. Chapter 5. Web Interface 62 CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management Ethernet Protocol Filtering Blocks or forwards packets based upon the Ethernet protocols they support: Ethernet: Packets are examined at the Ethernet interface. Wireless: Packets are examined at the Wireless interface. All Interfaces: Packets are examined at both interfaces. Disabled: The filter is not used. Filter Operation Type Passthru: Only the enabled Ethernet Protocols listed in the Filter Table pass through the bridge. Block: the Bridge blocks enabled Ethernet Protocols listed in the Filter Table. Chapter 5. Web Interface 63 CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management Static MAC Pair Filtering The Static MAC Address Filter optimizes the performance of a wireless (and wired) network. Click the Configure button, the Filtering tab, and the Static MAC Pair Filtering sub-tab to access the Static MAC Address Filter. The filter is an advanced feature that lets you limit the data traffic between two specific devices (or between groups of devices based upon MAC addresses) through the wireless interface of the MP.11/a. For example, if you have a server on your network with which you do not want wireless clients to communicate, you can set up a Static MAC Filter to block traffic between these devices. However, note that this is an advanced filter and it may be easier to control wireless traffic through other filter options, such as Protocol Filtering. The entry is enabled automatically when saved. To edit an entry, click Edit. To disable or remove an entry, click Edit and change the Status field from Enable to Disable or Delete. Wired MAC Address Enter the MAC address of the device on the Ethernet network that you want to prevent from communicating with a device on the wireless network. Wired Mask Enter the appropriate bit mask to specify the range of MAC addresses to which this filter is to apply. To specify only the single MAC address you entered in the Wired MAC Address filter, enter FF:FF:FF:FF:FF:FF (all zeroes). Wireless MAC Address Enter the MAC address of the wireless device that you want to prevent from communicating with a device on the wired network. Wireless Mask Enter the appropriate bit mask to specify the range of MAC addresses to which this filter is to apply. To specify only the single MAC address you entered in the Wireless MAC Address file, enter FF:FF:FF:FF:FF:FF (all zeroes). Comment Enter related information. Chapter 5. Web Interface 64 CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management Status The Status field can show Enable, Disable, or Delete. Storm Threshold Click the Configure button, the Filtering tab, and the Storm Threshold sub-tab to prevent broadcast/multicast overload. Storm Threshold is an advanced Bridge setup option that you can use to protect the network against data overload by specifying: ▪ A maximum number of frames per second as received from a single network device (identified by its MAC address). ▪ An absolute maximum number of messages per port. The Storm Threshold parameters let you specify a set of thresholds for each port of the MP.11/a, identifying separate values for the number of broadcast messages per second and multicast messages per second. When the number of frames for a port or identified station exceeds the maximum value per second, the MP.11/a ignores all subsequent messages issued by the particular network device, or ignores all messages of that type. Per Address Threshold Enter the maximum allowed number of packets per second. Ethernet Threshold Enter the maximum allowed number of packets per second. Wireless Threshold Enter the maximum allowed number of packets per second. Chapter 5. Web Interface 65 CPN 65755 Issue Date: August 2003 Tsunami MP.11and MP.11a Installation and Management Broadcast Protocol Filtering Click the Configure button, the Filtering tab,…

Text truncated - open the document above for the full version.

Tsunami MP.11a Antenna Installation Guide CPN 65756 Issue Date: 01 August 2003 Tsunami MP.11a Antenna Installation Guide COPYRIGHT ©2003 Proxim Corporation, Sunnyvale, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This manual and the software described herein are copyrighted with all rights reserved. No part of this publications may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Corporation. TRADEMARKS Tsunami, Proxim, and the Proxim logo are trademarks of Proxim Corporation. All other trademarks mentioned herein are the property of their respective owners. REGULATORY INFORMATION The Tsunami outdoor antenna solution must be installed and used in strict accordance with the instructions as described in this Antenna Installation Guide. Note: Radio approvals for the Tsunami outdoor antenna solution are valid only when using the exact combination of outdoor antenna cabling components and antennas as listed in this Tsunami MP.11a Antenna Installation Guide. Using other combinations of parts and components in outdoor antenna solutions will void the radio type approval and may be in violation of local radio regulations. Proxim Corporation and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from failing to comply with these guidelines. This document provides regulatory information for the following wireless products: ▪ Tsunami MP.11a Base Station Unit, Subscriber Unit, Residential Subscriber Unit This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Proxim Corporation could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to attempt to correct the interference by one or more of the following measures: ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation between the equipment and receiver. ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ▪ Consult the dealer or an experienced radio or television technician for help. This product must be fixed/mounted on permanent structures with a separation distance of at least two meters from all persons during normal operation. Notices 2 CPN 65756 Issue Date: 01 August 2003 Tsunami MP.11a Antenna Installation Guide Contents Copyright...............................................................................................................................................................2 Trademarks...........................................................................................................................................................2 Regulatory Information..........................................................................................................................................2 Contents......................................................................................................................................................................3 About This Book.........................................................................................................................................................5 Who Should Use This Guide.................................................................................................................................5 Finding Additional Information...............................................................................................................................5 About the Tsunami MP.11a...................................................................................................................................6 Point-to-Point Link..........................................................................................................................................6 Point-to-Multipoint Network............................................................................................................................7 Chapter 1. Preparing for Installation........................................................................................................................8 Site Prerequisites..................................................................................................................................................8 Overview of the Indoor Installation........................................................................................................................8 Tsunami MP.11a Hardware...........................................................................................................................8 Cable System...............................................................................................................................................10 Placement of the Surge Arrestor..........................................................................................................…

Text truncated - open the document above for the full version.

935 Stewart Drive, Sunnyvale, CA, USA94085 Tel (408) 731 2700, Fax (408)731 3675 June 26, 2003 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Proxim Corporation, HZB-A09UCF Request for withholding from public disclosure proprietary information submitted pursuant to applications for certification Dear Sir or Madam: Proxim Corporation requests that certain materials submitted with this application for certification of the HZB-A09UCF radio be withheld from public disclosure. This request is made under the provision of Section 0.457 (d) of the Commission’s Rule and Section 552 (b) (4) of the Freedom of Information Act, Trade Secrets. The items marked “Confidential” contain detailed block diagrams, schematic diagrams, a parts list and a detailed theory of operation submitted to the FCC for review with this application. The information contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture), which are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerable more time to assess and develop a workable competitive product. As a result, we believe that disclosure of these company guarded materials would compromise our leading position in this market. We therefore formally request that the materials marked “Confidential” be kept strictly confidential and not made available for inspection by any other party, except on a need to know basis for the sole purpose of the certification process. Caroline Yu Regulatory Compliance Manager Proxim Corporation

935 Stewart Drive, Sunnyvale, CA, USA94085 Tel (408) 731 2700, Fax (408)731 3675 Professional Installation Statement This letter is submitted with regards to professional installation of the HZB-A09UCF radios and the antennas used for testing. The HZB-A09UCF radios must be professionally installed and so is exempt from the antenna restrictions of FCC Part 15.203. The HZB-A09UCF is a group of products manufactured by Proxim Corporation in Sunnyvale, California. The HZB-A09UCF is to be certified for operation under Part 15.247 of the FCC Rules in the 5.25- 5.35 GHz band and 5.725-5.850 GHz band. The equipment is designed for point-to-point or point-to-multipoint communications and will carry data signals using Ethernet interfaces. Due to the unique requirements of installation and integration of these systems, typical consumers or businesses will not have the proper training required for successful implementation of these systems. The HZB-A09UCF is not designed for use by the general public, and will be sold as follows: ƒ Through the Proxim sales force to professional communications users ƒ Through designated and professionally trained Proxim Value Added Resellers to business users under individual reseller agreements. These companies will either use their professional telecommunications engineering staff to carry out the installation or will subcontract to professional installation firms. On occasion, a professional installation firm will purchase the HZB-A09UCF radios directly. Due to the unique technical expertise required in installing and setting up the system, the product is not suitable for distribution to retail channels. In spite of this, Proxim will warn all its resellers against selling to retail channels in compliance to FCC regulations. The HZB-A09UCF radio will be used for fixed, permanent or temporary, outdoor environment. The equipment and their antennas will need professional installers to mount and setup. The output power of the HZB-A09UCF radio will be adjusted to meet any applicable EIRP limits by the professional installer during installation. The method of adjusting the output power is described in the Antenna Installation Manual written for use by professionally trained installers. The HZB-A09UCF radio is typically sold without an antenna, and the customer and/or installation engineer chooses from commercially available antennas. From time to time, Proxim may sell a commercially available antenna along with the HZB-A09UCF radio upon customer request. Proxim has also included detailed instructions on how to determine the maximum output power based on EIRP limits for all professional installers to follow. Caroline Yu Regulatory Compliance Manager Proxim Corporation

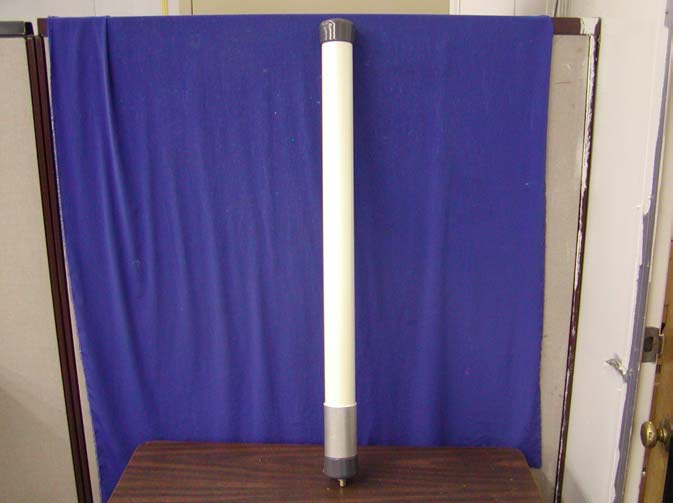

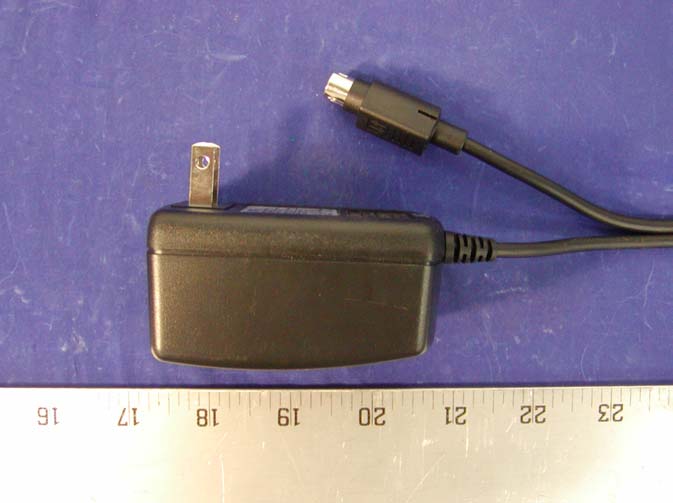

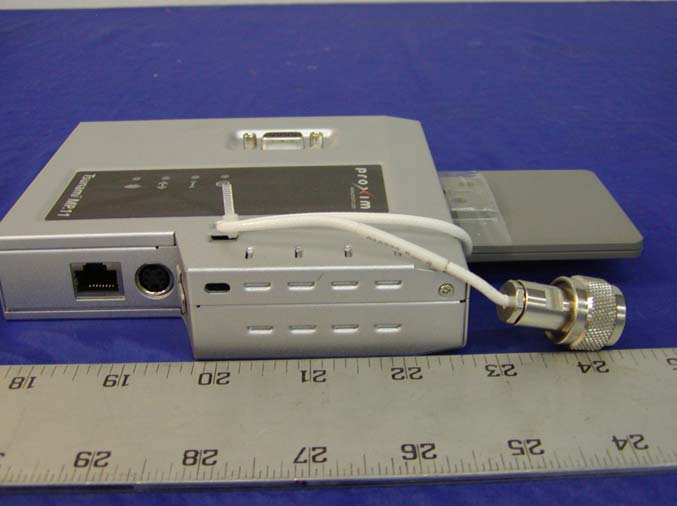

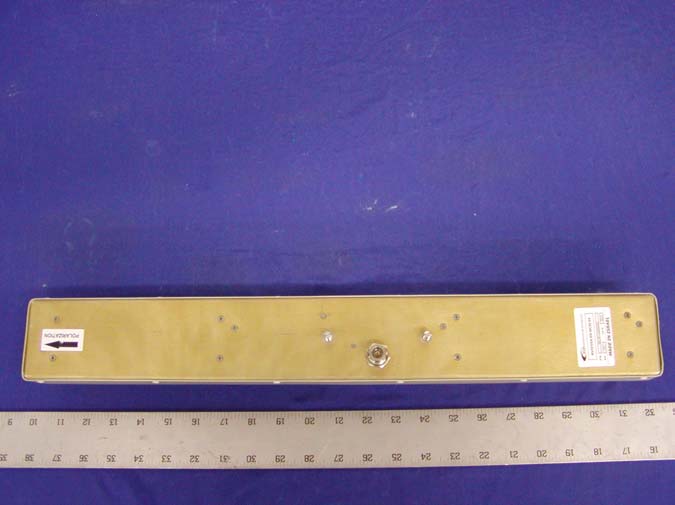

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Rear View EUT – Port View Power Adapter View EUT – Cable and Connector View DFPD2-52 Antenna - Front View DFPD2-52 Antenna – Rear View R0320-056 Antenna – Front View R0320-056 Antenna – Rear View MA-WC50 Antenna - Front View MA-WC50 Antenna – Rear View 52 3360 Antenna – Front View 52 3360 Antenna – Connector View 58 3360 Antenna – Front View 58 3360 Antenna – Connector View P3F-52-N7A Dish Antenna – Front View P3F-52-N7A Dish Antenna – Rear View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Board and Housing View EUT – Main Board Component View EUT – Main Board Solder View EUT – Transceiver with Shield View EUT – Transceiver with Shield Removed View EUT – Transceiver Solder View EUT - Antenna Connection View

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 SUBPART C EMI Measurement and TEST REPORT For Proxim Corporation 935 Stewart Drive Sunnyvale, CA 94085 FCC ID: HZB-A09UCF 2003-08-11 This Report Concerns: Original Report Equipment Type: UNII/ISM Radio Network Equipment Test Engineer: Benjamin Jing / Report No.: R0306091 Test Date: 2003-06-12 / 2003-08-06 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Proxim Corporation FCC ID: HZB-A09UCF Report # R0306091Rpt.doc Page 2 of 72 FCC Part 15.247 & 15.407 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................4 1.2 OBJECTIVE.............................................................................................................................................................5 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................5 1.4 TEST METHODOLOGY............................................................................................................................................5 1.5 TEST FACILITY.......................................................................................................................................................5 1.6 TEST EQUIPMENT LIST...........................................................................................................................................6 1.7 SUPPORT EQUIPMENT LIST AND DETAILS..............................................................................................................6 1.8 EXTERNAL I/O CABLING LIST AND DETAILS.........................................................................................................6 1.9 POWER SUPPLY INFORMATION...............................................................................................................................6 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................7 2.1 JUSTIFICATION.......................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................7 2.3 SPECIAL ACCESSORIES...........................................................................................................................................7 2.4 SCHEMATICS / BLOCK DIAGRAM...........................................................................................................................7 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................7 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................8 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................8 3 - SUMMARY OF TEST RESULTS..........................................................................................................................9 4 - PEAK OUTPUT POWER MEASUREMENT ....................................................................................................10 4.1 STANDARD APPLICABLE......................................................................................................................................10 4.2 MEASUREMENT PROCEDURE................................................................................................................................10 4.3 EQUIPMENT LISTS................................................................................................................................................10 4.4 MEASUREMENT RESULT......................................................................................................................................10 5 – 6 DB BANDWIDTH AND 26 DB BANDWIDTH...............................................................................................12 5.1 STANDARD APPLICABLE......................................................................................................................................12 5.2 MEASUREMENT PROCEDURE................................................................................................................................12 5.3 TEST EQUIPMENT.................................................................................................................................................12 5.4 MEASUREMENT RESULT......................................................................................................................................12 PLOTS OF 26DB BANDWIDTH.....................................................................................................................................13 6 - POWER SPECTRAL DENSITY ..........................................................................................................................15 6.1 STANDARD APPLICABLE......................................................................................................................................15 6.2 MEASUREMENT PROCEDURE...........................…

Text truncated - open the document above for the full version.

Proxim Corporation FCC ID: HZB-A09UCF Report # R0306091Rpt.doc Page 25 of 72 FCC Part 15.247 & 15.407 Test Report 9 - Out Of Band Emission for 15.407 9.1 Standard Applicable §15.407 (b), undesirable emission limits: except as shown in paragraph (b)(6) of this section, the peak emission outside of the frequency bands of operation shall be attenuated in accordance with the following limits: §15.407 (b)(2), for transmitters operating in the 5.25 – 5.35 GHz band: all emissions outside of the 5.15 – 5.35 GHz band shall not exceed an EIRP of –27 dBm/MHz. Devices operating in the 5.25 – 5.35 GHz band that generate emissions in the 5.15 – 5.25 GHz band must meet all applicable technical requirements for operation in the 5.15 …

Text truncated - open the document above for the full version.
