[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless LAN and Mini PCI MODEL NO.: A13QBF TRADE NAME: Proxim IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: RF911128H07. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: Proxim Corporation To Be Determined. Address: Zadelstede 1-10, PO Box 755 3430 AT Nieuwegein, The Netherlands Contact Person: Mark Koop Title: Regulatory Compliance Manager Te l / F a x : +31 30607 6520 +31 30607 6501

FCC ID: HZB-A13QBF ADT No.911128H07 Limited Modular Approval Request Letter Advance Data Technology Jan. 27, 2003 Dear Application Examiner, Proxim Corporation’s Wireless LAN and Mini PCI, FCC ID: HZB-A13QBF, would like to have your authorization as a limited modular approval specific to mobile device as access point with brand: Proxim and Model: Alpha-1. The requirements of Public Notice DA00- 1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5211. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is TK71725SCL. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” Due to the modular be specified to access point with model Alpha-1, the EUT was tested in the full system configuration. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: HZB-A13QBF ADT No.911128H07 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

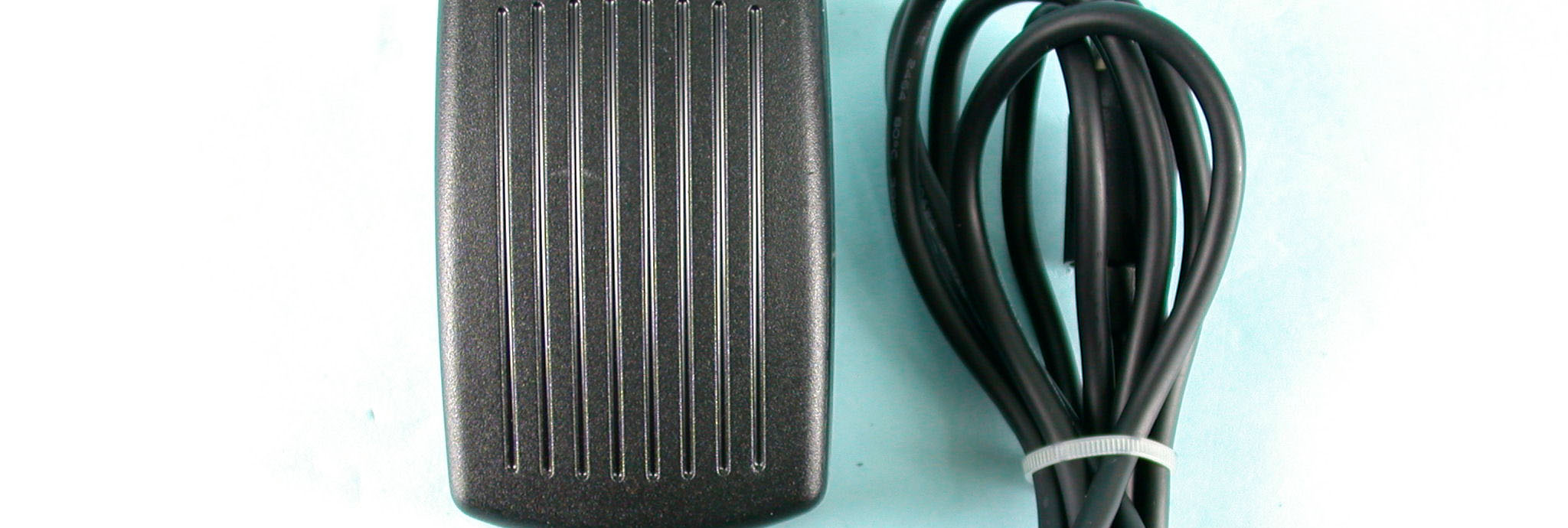

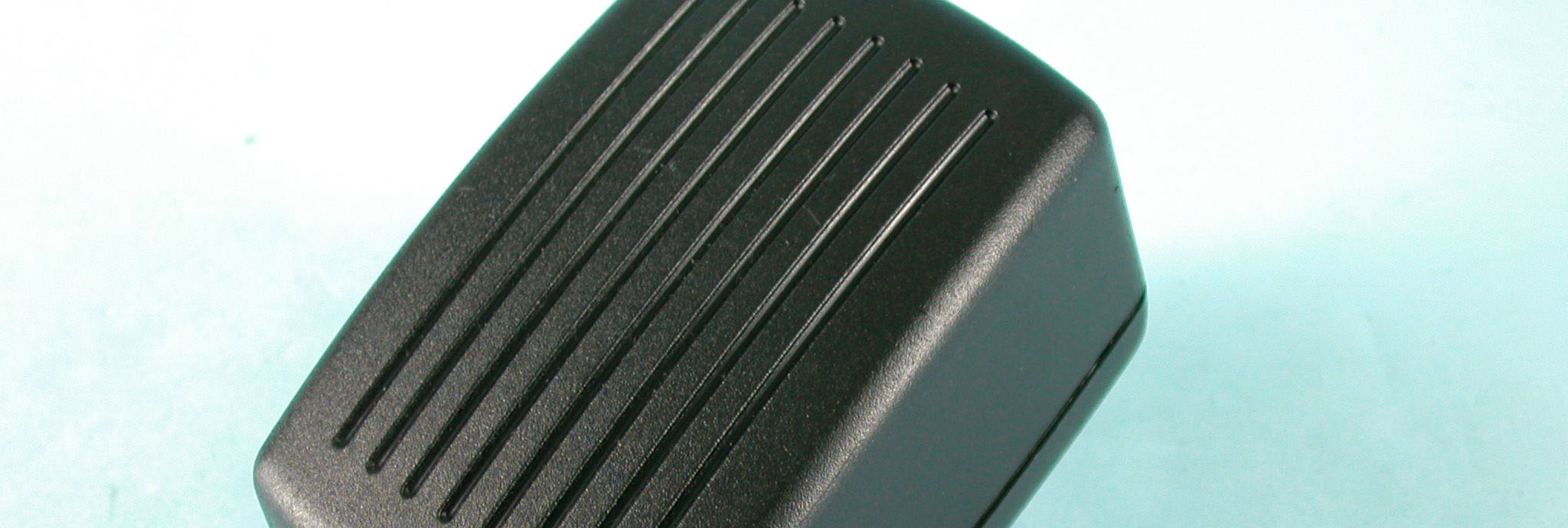

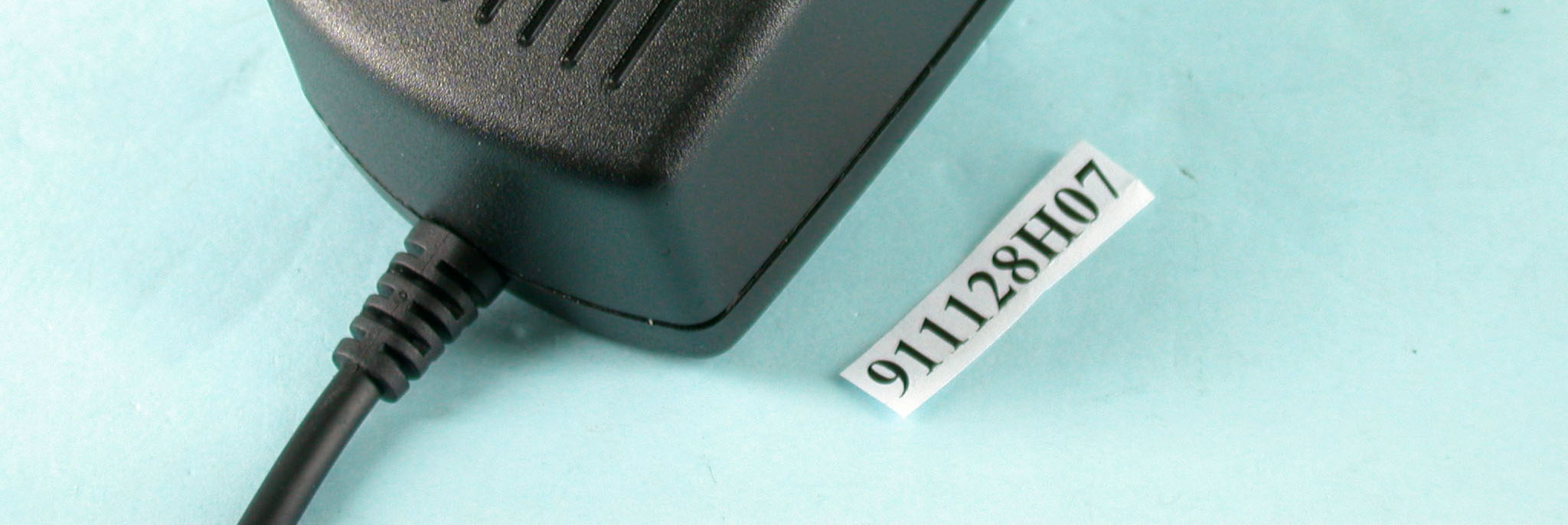

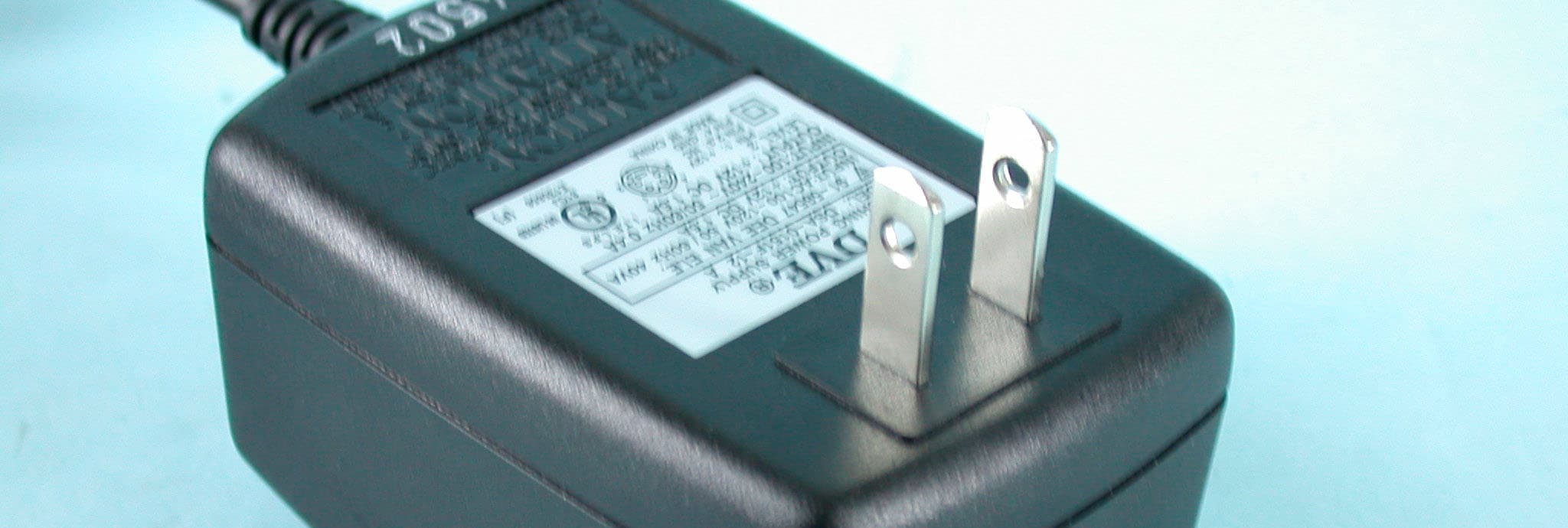

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9

Page 10 Page 11 Page 12 Page 13 Page 14

Page 15 Page 16 Page 17 Page 18 Page 19

FCC ID: HZB-A13QBF ADT No.911128H07 Technical Description The transmitter of the EUT is powered by host equipment. The antenna is Omni Directional antenna. The antenna connector is MMCX connector. This device would like to have your authorization as a limited modular approval specific to mobile device as access point. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Wireless LAN and Mini PCI operates in 5GHz band, the maximum data rate could be 108Mbps in turbo mode. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: HZB-A13QBF ADT No.: 911128H07 FCC TEST REPORT REPORT NO.: RF911128H07 MODEL NO.: A13QBF ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Proxim Corporation ADDRESS:935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HZB-A13QBF ADT No.: 911128H07 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) FCC ID: HZB-A13QBF ADT No.: 911128H07 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: HZB-A13QBF ADT No.: 911128H07 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 6dBi or 3.98(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : Normal Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1518028.713.02 4524048.983.94 5526054.584.16 8532030.623.11 9574578.704.99 115805122.186.22 135825110.155.91 Turbo Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1521030.973.13 2525030.973.13 3529031.333.15 4576042.853.68 5580047.643.89 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: HZB-A13QBF Report No.: RF911128H07 1 Issued: Jan. 27, 2003 FCC TEST REPORT REPORT NO.: RF911128H07 MODEL NO.: A13QBF PLATFORM: Alpha-1 RECEIVED: Nov. 28, 2002 TESTED: Jan. 1 ~ Jan. 25, 2003 APPLICANT:Proxim Corporation ADDRESS: 935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 116 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HZB-A13QBF Report No.: RF911128H07 2 Issued: Jan. 27, 2003 Table of Contents 1.CERTIFICATION........................................................................................... 5 2.SUMMARY OF TEST RESULTS .................................................................. 6 3.GENERAL INFORMATION ........................................................................... 8 3.1GENERAL DESCRIPTION OF EUT ...................................................................................... 8 3.2DESCRIPTION OF TEST MODES ........................................................................................ 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ..................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4.TEST TYPES AND RESULTS .................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS ................................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ............................................................................ 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 17 4.2.2LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ....................... 17 4.2.3TEST INSTRUMENTS ......................................................................................................... 18 4.2.4TEST PROCEDURES .......................................................................................................... 19 4.2.5DEVIATION FROM TEST STANDARD ................................................................................ 19 4.2.6TEST SETUP ....................................................................................................................... 20 4.2.7EUT OPERATING CONDITIONS......................................................................................... 20 4.2.8TEST RESULTS ................................................................................................................... 21 FOR FREQUENCY 5.15~5.35GHz................................................................................................... 34 4.3PEAK TRANSMIT POWER MEASUREMENT..................................................................... 34 4.3.1LIMITS OF PEAK TRANSMIT POWER MEASUREMENT .................................................. 34 4.3.2TEST INSTRUMENTS ......................................................................................................... 34 4.3.3TEST PROCEDURE ............................................................................................................35 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 35 4.3.5TEST SETUP ....................................................................................................................... 35 4.3.6EUT OPERATING CONDITIONS......................................................................................... 35 4.3.7TEST RESULTS ................................................................................................................... 36 4.4PEAK POWER EXCURSION MEASUREMENT.................................................................. 52 4.4.1LIMITS OF PEAK POWER EXCURSION MEASUREMENT ............................................... 52 4.4.2TEST INSTRUMENTS ......................................................................................................... 52 4.4.3TEST PROCEDURE ............................................................................................................53 4.4.4DEVIATION FROM TEST STANDARD ................................................................................ 53 FCC ID: HZB-A13QBF Report No.: RF911128H07 3 Issued: Jan. 27, 2003 4.4.5TEST SETUP ....................................................................................................................... 53 4.4.6EUT OPERATING CONDITIONS......................................................................................... 53 4.4.7TEST RESULTS ................................................................................................................... 54 4.5…

Text truncated - open the document above for the full version.

FCC ID: HZB-A13QBF Report No.: RF911128H07 70 Issued: Jan. 27, 2003 EUT Wireless LAN and Mini PCI MODEL A13QBF MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26deg. C, 66%RH, 1005 hPa TESTED BY Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15210-5.364PASS 25250-4.554PASS 35290-4.8611PASS FCC ID: HZB-A13QBF Report No.: RF911128H07 71 Issued: Jan. 27, 2003 CHANNEL 1 FCC ID: HZB-A13QBF Report No.: RF911128H07 72 Issued: Jan. 27, 2003 CHANNEL 2 FCC ID: HZB-A13QBF Report No.: RF911128H07 73 Issued: Jan. 27, 2003 CHANNEL 3 FCC ID: HZB-A13QBF Report No.: RF911128H07 74 Issued: Jan. 27, 2003 4.6 FREQUENCY STABILITY 4.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ANRITSU SPECTRUM ANALYZERMS2667CM10281Mar. 15, 2003 WIT STANDARD TEMPERATURE AND HUMIDITY CHAMBER TH-4S-CW901030Jun. 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE 1. The EUT was placed inside the environmental test chamber and powered by nominal DC voltage. 2. Turn the EUT on and couple its output to a spectrum analyzer. 3. Turn the EUT off and set the chamber to the highest temperature specified. 4. Allow sufficient time (approximately 30 min) for the temperature of the chamber to stabilize, turn the EUT on and measure the operating frequency after 2, 5, and 10 minutes. 5. Repeat step 2 and 3 with the temperature chamber set to the lowest temperature. 6. The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply voltage was then adjusted on the EUT from 85% to 115% and the frequency record. FCC ID: HZB-A13QBF Report No.: RF911128H07 75 Issued: Jan. 27, 2003 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 TEST SETUP 4.6.6 EUT OPERATING CONDITION Same as Item 4.1.6 Spectrum Analyzer DC Power Supply Temp era t u re FCC ID: HZB-A13QBF Report No.: RF911128H07 76 Issued: Jan. 27, 2003 4.6.7 TEST RESULTS Operating frequency: 5180MHzLimit : ± 0.02% 2 minute5 minute10 minute Te m p . (°C °C°C °C) Power supply (VDC) (MHz)(%)(MHz)(%)(MHz)(%) 126.5 5180.00430.00008305180.00570.00011005180.00670.0001293 110.0 5180.00430.00008305180.00570.00011005180.00670.0001293 50 93.5 5180.00520.00010045180.00540.00010425180.00620.0001197 126.5 5179.9947-0.00010235179.9943-0.00011005179.9940-0.0001158 110.0 5179.9947-0.00010235179.9973-0.00005215179.9940-0.0001158 40 93.5 5179.9945-0.00010625179.9946-0.00010425179.9945-0.0001062 126.5 5179.9877-0.00023755179.9873-0.00024525179.9880-0.0002317 110.0 5179.9877-0.00023755179.9873-0.00024525179.9880-0.0002317 30 93.5 5179.9873-0.00024525179.9875-0.00024135179.9880-0.0002317 126.5 5179.9927-0.00014095179.9923-0.00014865179.9923-0.0001486 110.0 5179.9927-0.00014095179.9923-0.00014865179.9923-0.0001486 20 93.5 5179.9923-0.00014865179.9926-0.00014295179.9925-0.0001448 126.5 5179.9973-0.00005215179.9970-0.00005795179.9980-0.0000386 110.0 5179.9973-0.00005215179.9970-0.00005795179.9980-0.0000386 10 93.5 5179.9969-0.00005985179.9973-0.00005215179.9984-0.0000309 126.5 5180.00170.00003285180.00200.00003865180.00270.0000521 110.0 5180.00170.00003285180.00200.00003865180.00270.0000521 0 93.5 5180.00140.00002705180.00240.00004635180.00220.0000425 126.5 5180.01230.00023755180.01270.00024525180.01370.0002645 110.0 5180.01230.00023755180.01270.00024525180.01370.0002645 -10 93.5 5180.01250.00024135180.01240.00023945180.01410.0002722 126.5 5180.01330.00025685180.01230.00023755180.01270.0002452 110.0 5180.01330.00025685180.01230.00023755180.01270.0002452 -20 93.5 5180.01360.00026255180.01270.00024525180.01320.0002548 126.5 5180.00930.00017955180.01000.00019315180.00900.0001737 110.0 5180.00930.00017955180.01000.00019315180.00900.0001737 -30 93.5 5180.00960.00018535180.01070.00020665180.00920.0001776 FCC ID: HZB-A13QBF Report No.: RF911128H07 77 Issued: Jan. 27, 2003 4.7 BAND EDGES MEASUREMENT 4.7.1 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.7.2 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 1MHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.7.3 EUT OPERATING CONDITION The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. 4.7.4 TEST RESULTS For signals in the restricted bands above and below the 5.15 to 5.35 GHz allocated band a measurement was made of the amplitude of the spurious emissions with respect to the intentional signals. The relative amplitude, in dBc, was applied to the average and peak filed strength of the intentional signal made on the OATS to calculate the field strength of the unintentional signals. The spectrum plots (Peak RBW=VBW=1MHz; Average RBW=1MHz, VBW=300Hz) are attached on the following pages. FCC ID: HZB-A13QBF Report No.: RF911128H07 78 Issued: Jan. 27, 2003 Normal Mode: Channel 1 (5180 MHz) The band edge emission plot on the following 2 pages shows 40.15dBc (Peak) / 45.12dBc (Average) between carrier maximum power and local maximum emission in restrict band. The emission of carrier strength list in the test result of channel 1 (normal mode) is 96.90dBuV/m, so the maximum field strength in restrict band is 96…

Text truncated - open the document above for the full version.

FCC ID: HZB-A13QBF Report No.: RF911128H07 114 Issued: Jan. 27, 2003 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HZB-A13QBF Report No.: RF911128H07 115 Issued: Jan. 27, 2003 RADIATED EMISSION TEST
