HZB-AP700Wireless Access Device

ORiNOCO AP-700 User Guide AP-700 User Guide 2 Copyright © 2007 Proxim Wireless Corporation. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This User Guide and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Wireless Corporation. Trademarks ORiNOCO and Proxim are registered trademarks, and the Proxim logo is a trademark, of Proxim Wireless Corporation. Acrobat Reader is a registered trademark of Adobe Systems Incorporated. Ekahau is a trademark of Ekahau, Inc. HyperTerminal is a registered trademark of HilGraeve, Incorporated. Microsoft and Windows are a registered trademarks of Microsoft Corporation. Netscape is a registered trademark of Netscape Communications Corporation. SolarWinds is a registered trademark of SolarWinds.net. All other trademarks mentioned herein are the property of their respective owners. OpenSSL License Note This product contains software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/) and that is subject to the following copyright and conditions: Copyright (c) 1998-2002 The OpenSSL Project. All rights reserved. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to refer to, endorse, or promote the products or for any other purpose related to the products without prior written permission. For written permission, please contact [email protected]. This software is provided by the OpenSSL Project “as is” and any expressed or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall the OpenSSL Project or its contributors be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of use, data, or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of the possibility of such damage. ORiNOCO AP-700 User Guide Software v3.4 P/N 73285/1 June 2007 IMPORTANT! Before installing and using this product, see the Safety and Regulatory Compliance Guide located on the product CD. AP-700 User Guide 3 Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Introduction to Wireless Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Guidelines for Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Management and Monitoring Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 HTTP/HTTPS Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 SNMP Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 SSH (Secure Shell) Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2 Installation and Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 AP-700 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Power-over-Ethernet (PoE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Product Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Attach Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Install the Security Cover (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Mount the AP-700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Power On the Unit . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Advanced ConfigurationAP-700 User Guide SSID/VLAN/Security 116 — For 64-bit encryption, an encryption key is 10 hexadecimal characters (0-9 and A-F) or 5 ASCII characters (see ASCII Character Chart). — For 128-bit encryption, an encryption key is 26 hexadecimal characters or 13 ASCII characters. — For 152-bit encryption, an encryption key is 32 hexadecimal characters or 16 ASCII characters. •Encryption Transmit Key: select Key 0, Key 1, Key 2, or Key 3 NOTE:When VLAN tagging is enabled, only Key 0 can be configured. •802.1x Station: •Authentication Mode: 802.1x •Cipher: WEP •Encryption Key Length: 64 or 128 Bits. — If 802.1x is enabled simultaneously with WEP, the 802.1x Station’s encryption key length is determined by the WEP encryption key. •WPA Station: •Authentication Mode: 802.1x •Cipher: TKIP •WPA-PSK Station: •Authentication Mode: PSK •Cipher: TKIP •PSK Passphrase: an 8-63 character user-defined phrase. It is recommended a passphrase of at least 13 characters, including both letters and numbers, and upper and lower case characters, be used to ensure that the generated key cannot be easily deciphered by network infiltrators. •802.11i Station: •Authentication Mode: 802.1x •Cipher: CCMP based on AES •802.11i-PSK Station: •Authentication Mode: PSK •Cipher: CCMP based on AES •PSK Passphrase: an 8-63 character user-defined phrase. It is recommended a passphrase of at least 13 characters, including both letters and numbers, and upper and lower case characters, to ensure that the generated key cannot be easily deciphered by network infiltrators. 5. When finished configuring all parameters, click OK. 6. If you selected a Security Mode of 802.1x Station, WPA Station, or 802.11i Station, you must configure a RADIUS 802.1x/EAP server. See the Configuring Radius Profiles section. Security Profile 1 will be used by default for all wireless interfaces. 7. Reboot the AP. Advanced ConfigurationAP-700 User Guide SSID/VLAN/Security 117 Figure 4-49 Security Profile Table - Add Entries Advanced ConfigurationAP-700 User Guide SSID/VLAN/Security 118 MAC Access The MAC Access sub-tab allows you to build a list of stations, identified by their MAC addresses, authorized to access the network through the AP. The list is stored inside each AP within your network. Note that you must reboot the AP for any changes to the MAC Access Control Table to take effect. Up to 1000 entries can be made in the table. The “MAC ACL Status” parameter (configurable on the SSID/VLAN/Security > Wireless sub-tab) is per VLAN if VLAN Management is enabled. All other parameters besides “MAC ACL Status” are configured per AP, even if VLAN is enabled. The following list details the configurable MAC Access parameters. NOTE:MAC Access Control status is controlled on the SSID/VLAN/Security > Wireless sub-tab. When set to Strict, changes to the MAC ACL table will take effect immediately, without a unit reboot. When not set to Strict, changes will not take effect until the unit is rebooted. •Operation Type: Choose between Passthru and Block. This determines how the stations identified in the MAC Access Control Table are filtered. –If set to Passthru, only the addresses listed in the Control Table will pass through the bridge. –If set to Block, the bridge will block traffic to or from the addresses listed in the Control Table. •MAC Access Control Table: Click Add to create a new entry. Click Edit to change an existing entry. Each entry contains the following field: –MAC Address: Enter the wireless client’s MAC address. –Comment: Enter an optional comment such as the client’s name. –Status: The entry is enabled automatically when saved (so the Status field is only visible when editing an entry). You can also disable or delete entries by changing this field’s value. NOTE:For larger networks that include multiple Access Points, you may prefer to maintain this list on a centralized location using the MAC Access Control Via RADIUS Authentication. Figure 4-50 MAC Access Configuration Screen Advanced ConfigurationAP-700 User Guide SSID/VLAN/Security 119 Wireless Each SSID can have its own Security Profile that defines its security mode, authentication mechanism, and encryption, so that customers can have multiple types of clients (non-WEP, WEP, 802.1x, WPA, WPA-PSK, 802.11i, 802.11i-PSK) on the same system separated per VLAN. See the Security Profile section for more information. Each SSID can support a unique VLAN. In order for the AP to support multiple SSID/VLANs, VLAN Tagging must be enabled. These parameters are configurable on the Wireless screens. Configuring an SSID/VLAN with VLAN Tagging Disabled With VLAN tagging disabled (from the SSID/VLAN/Security > Mgmt VLAN tab), only one SSID can be configured. All parameters set on the Wireless tab will be applied to that SSID. 1. Click SSID/VLAN/Security > Wireless. The SSID, VLAN, and Security Configuration page is displayed. Figure 4-51 SSID, VLAN, and Security Configuration (VLAN Tagging Disabled) 2. Enable or disable RADIUS accounting on the VLAN/SSID by selecting Enable or Disable from the Accounting Status drop-down menu. 3. Control the functionality of RADIUS MAC Authentication on the VLAN/SSID by selecting one of the following from the the RADIUS Authentication Status drop-down menu. Advanced ConfigurationAP-700 User Guide SSID/VLAN/Security 120 •Enable: MAC addresses in the MAC Access Control List stored on the RADIUS server are blocked or allowed, based on the MAC ACL settings. If a higher priority authentication protocol is also enabled, the higher-priority settings will override the MAC ACL settings. See Authentication Protocol Hierarchy. •Disable: RADIUS MAC ACL settings are disabled. •Strict: RADIUS MAC ACL settings are enabled. If a higher-priority authentication protocol is also enabled, RADIUS MAC ACL settings will be applied in addition to the higher priority authentication protocol settings. See Authentication Protocol Hierarchy. 4. Control the functionality of the MAC Access …

Text truncated - open the document above for the full version.

ORiNOCO AP-700 Access Point Safety and Regulatory Compliance Information (June 2007) IMPORTANT! Visit http://support.proxim.com for the latest safety and regulatory compliance information for this product. AP-700 Safety and Regulatory Information 2 Copyright © 2007 Proxim Wireless Corporation. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This user’s guide and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Wireless Corporation. Trademarks ORiNOCO, Proxim, and the Proxim logo are trademarks of Proxim Wireless Corporation. All other trademarks mentioned herein are the property of their respective owners. ORiNOCO AP-700 Safety and Regulatory Guide P/N 73286/2June 2007 Products Covered in the GuideAP-700 Safety and Regulatory Information 3 Products Covered in the Guide This document contains important safety and regulatory compliance information for the following products: Please see the following sections for more information: •Safety Information (USA, Canada, & European Union) •Federal Communications Commission (FCC) Compliance •Information for Professional Installers IMPORTANT! Visit http://support.proxim.com for the latest safety and regulatory compliance information for this product. Please read this document before installing and using your product, and save these instructions. ProductModel Numbers ORiNOCO Tri-Mode Access Point AP-700AP-AG-AT-01 8675-AU 8675-AU2 8675-BR 8675-CN 8675-EU 8675-EU2 8675-HK 8675-JP 8675-SG 8675-SK 8675-TW 8675-UK 8675-US 8675-US2 8675-WD Safety Information (USA, Canada, & European Union)AP-700 Safety and Regulatory Information 4 Safety Information (USA, Canada, & European Union) This product has been evaluated to, and complies with, the Safety requirements of UL60950:2000, and IEC60950:1999; the Standards for the Safety of Information Technology Equipment. When using this device, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Operate and install this product as described in this manual. This device must be installed and used in strict accordance with the manufacturer's instructions. • This product is suitable for installation in air handling spaces (plenum). • Use only the AC/DC power supply adapter provided. For replacement, contact your local supplier or distributor. • To avoid the risk of electric shock from lightning, do not use this product during an electrical storm. • Installation of this product must conform to local regulations and codes. • When using this product with an external antenna, see the installation documentation provided with the antenna system. • No user serviceable parts; all repairs and service must be handled by a qualified service center. Federal Communications Commission (FCC) ComplianceAP-700 Safety and Regulatory Information 5 Federal Communications Commission (FCC) Compliance This device operates at 2.4 GHz, 5.15 - 5.35 GHz, and 5.725 - 5.85 in compliance with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. To comply with the FCC radio frequency exposure requirements, the following antenna installation and device operating configurations must be satisfied: • The 8675-US2 must be used indoors only and must be installed to provide a separation distance of at least 20 cm (8 inches) from all persons. • Product models using external antennas require professional installation. The antennas used for professional installation must be fixed-mounted on indoor/outdoor permanent structures with a separation distance of at least 100 cm from all persons. • Antennas must not be co-located and must not operate in conjunction with any other antenna or transmitter. See the “Installation and Initialization” chapter in the AP-700 User Guide for cabling, mounting, and antenna installation instructions. Modifications Changes or modifications to this device that are not expressly approved by the manufacturer of the product could void the user’s authority to operate the equipment. Warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection again harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Information for Professional InstallersAP-700 Safety and Regulatory Information 6 Information for Professional Installers Optionally, a professional installer can connect two external antennas to the AP-700. NOTE:AP-700 models 8675-US2 and 8675-AU do not provide external antenna connectors for 5 GHz (802.11a) operation. All products using external antennas must be professionally installed, and the transmit powe…

Text truncated - open the document above for the full version.

2115 O’Nel Drive, San Jose, CA 95131 Tel (408) 731 2700, Fax (408)731 3675 June 12, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: HZB- AP700 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Caroline Yu Regulatory Compliance Manager Proxim Wireless Corporation

2115 O'Nel Drive, San Jose, CA 95131 P 408.731.2700 F 408.731.3675 www.proxim.com June 12, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD, 21046 Re: HZB-AP700 application To Whom It May Concern: With this letter, we apply for approval of the HZB-AP700 product for it’s operation in 2.4G and 5GHz bands. The HZB-AP700 product is a 802.11abg product that has previously been approved under IXMAPAGAT01 for 2.4GHz, 5.15-5.35GHz and 5.725-5.850 GHz operation. We also additionally tested the product to 5.47-5.725 GHz band to 15.407, and added DFS feature to 5.25-5.35 GHz band as well as 5.47-5.725 GHz band. With the previous certification submission documents in the IXMAPAGAT01, per approval of USI (see separately submitted letter of permission from USI) and additional 5.47-5.725 GHz radio test report and DFS test report, we apply to certify the radio under HZB-AP700 for all the above mentioned bands. Please review the submitted application documents. Please be notified that there is no hardware change to the existing radio from the prior certified IXMAPAGAT01 radio. Please direct any questions you may have to the undersigned. Yours truly, Caroline Yu Regulatory Compliance Manager Proxim Wireless Corporation [email protected]

2115 O'Nel Drive, San Jose, CA 95131 P 408.731.2700 F 408.731.3675 www.proxim.com Professional Installation Statement This letter is submitted with regards to professional installation of the external HZB-AP700 radios using external antennas. The HZB-AP700 products have integral antenna models and external antenna models. The external antenna model must be professionally installed and so is exempt from the antenna restrictions of FCC Part 15.203. The equipment is designed for point-to-point or point-to-multipoint communications and will carry data signals using Ethernet interfaces. The product versions using external antennas are for fixed indoor or outdoor use. Due to the unique requirements of installation of the systems when using external antennas, typical consumers or businesses will not have the proper training required for successful implementation of these systems. The HZB-AP700 is not designed for use by the general public, and will be sold as follows: ƒ Through the Proxim sales force to professional communications users ƒ Through designated and professionally trained Proxim Value Added Resellers to business users under individual reseller agreements. The output power of the HZB-AP700 radio will be adjusted to meet any applicable EIRP limits by the professional installer during installation. The method of adjusting the output power is described in the product regulatory manual written for use by professionally trained installers. The external antenna version of HZB-AP700 radio is typically sold without an antenna, and the customer and/or installation engineer chooses from commercially available antennas in the approved antenna scope. The professional installation engineer is responsible to install only those commercially available antenna(s) (or similar) as listed in the filing. From time to time, Proxim may sell a commercially available antenna as listed in the filing along with the HZB-AP700 radio upon customer request. Only antenna(s) covered in the filing are to be used with the device. Proxim has also included detailed instructions on how to determine the maximum output power based on EIRP limits for all professional installers to follow. Caroline Yu Regulatory Compliance Manager Proxim Wireless Corporation

Page 1 CONSTRUCTION PHOTOS OF EUT

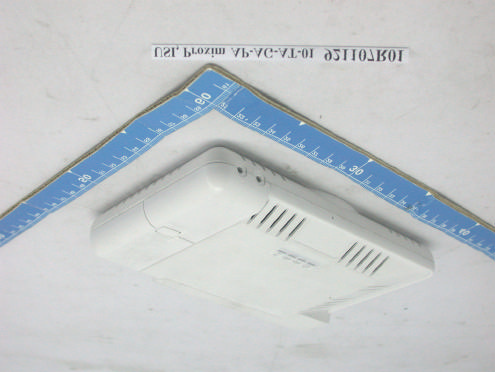

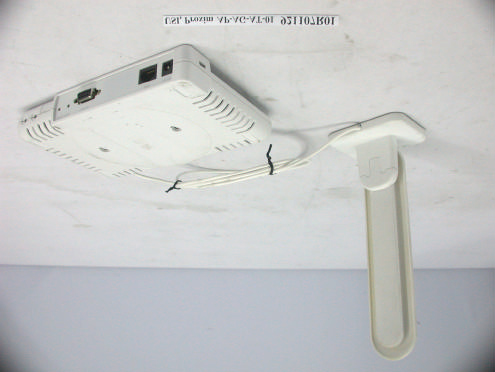

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Page 34 Page 35 Page 36 Page 37 Page 38 Page 39 Page 40 Page 41 Page 42 Page 43 Page 44 Page 45 Page 46 Page 47 Page 48 Page 49 Page 50

Report No.: 921107R01 1 RF EXPOSURE REPORT REPORT NO.: 921107R01 MODEL NO.: AP-AG-AT-01,AP-AG-AT-03, RT-AG-AT-01 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: UNIVERSAL SCIENTIFIC INDUSTRIAL CO., LTD. ADDRESS: 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 Report No.: 921107R01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: 921107R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No.: 921107R01 4 6. Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain of the antenna is 2.5dBi. Antenna 2: The maximum Gain of the antenna is 2.0dBi. Antenna 3: The maximum Gain of the antenna is 3.0dBi. Antenna 4: The maximum Gain of the antenna is 10.0dBi. Antenna 5: The maximum Gain of the antenna is 14.0dBi. Antenna 6: The maximum Gain of the antenna is 14.0dBi. Antenna 7: The maximum Gain of the antenna is 24.0dBi. FOR DSSS: Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 107.1519 0.03791 1.0 6 2437 136.1445 0.04816 1.0 11 2462 141.2537 0.04997 1.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 141.9057 0.04474 1.0 6 2437 156.3148 0.49287 1.0 11 2462 138.6756 0.43725 1.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 107.1519 0.04253 1.0 6 2437 136.1445 0.05404 1.0 11 2462 141.2537 0.05607 1.0 Report No.: 921107R01 5 Output Power Into Antenna & RF Exposure value at distance 100cm: Antenna 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 66.52732 0.00529 1.0 6 2437 123.02688 0.00979 1.0 11 2462 79.43282 0.00632 1.0 Antenna 5 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 7.26106 0.00145 1.0 6 2437 23.01442 0.00460 1.0 11 2462 23.17395 0.00463 1.0 Antenna 6 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 17.78279 0.00355 1.0 6 2437 60.53409 0.01210 1.0 11 2462 37.49730 0.00750 1.0 Antenna 7 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 3 2422 7.26106 0.01451 1.0 6 2437 8.91251 0.01782 1.0 9 2452 7.14496 0.01428 1.0 Report No.: 921107R01 6 FOR OFDM: Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 128.5287 0.04547 1.0 6 2437 161.8080 0.05724 1.0 11 2462 137.0882 0.04850 1.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 120.7814 0.03808 1.0 6 2437 212.8139 0.06710 1.0 11 2462 138.9953 0.04383 1.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 128.5287 0.05102 1.0 6 2437 161.8080 0.64223 1.0 11 2462 137.0882 0.05442 1.0 Output Power Into Antenna & RF Exposure value at distance 100cm: Antenna 4 Chann…

Text truncated - open the document above for the full version.
