  1. Home/
  2. Proxim Wireless Corporation/
  3. HZB-B11FNF

HZB-B11FNFmini-PCI Card Model B11FNF

Proxim Wireless Corporation
mini-PCI Card Model B11FNF - FCC ID HZB-B11FNF - Proxim Wireless Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 05, 2003
Application Purpose
Original Equipment
Date of Application
Jan 05, 2003
Equipment Note
mini-PCI Card Model B11FNF
Frequency Range
2412.00000000 - 2462.00000000
Company
Proxim Wireless Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗
↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

The Capacity to Do Great Things. User Guide for the ORiNOCO AP-600 2 Copyright © 2002 Proxim Corporation. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This user’s guide and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Corporation. Trademarks ORiNOCO is a registered trademark, and 2x, Proxim, and the Proxim logo are trademarks of Proxim Corporation. All other trademarks mentioned herein are the property of their respective owners. ORiNOCO AP-600 User’s Guide Part # PX-024124-A Rev. 01 12_02 3 ORiNOCO AP-600 User’s Guide Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Introducing the AP-600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 The Product Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 IEEE 802.11 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Wireless Networking Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Guidelines for Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Management and Monitoring Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 HTTP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 SNMP Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Wireless Network Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Active Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Software Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2 Installation & Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 ScanTool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 ScanTool Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Setup Wizard Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Download the Latest Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Setup your TFTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Download Updates from your TFTP Server using the Web Interface . . . . . . . . . . . . . . . . . . . 28 Download Updates from your TFTP Server using the CLI Interface . . . . . . . . . . . . . . . . . . . . 28 Additional Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Mounting Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Desktop Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Ceiling Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 4 3 Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Logging into the HTTP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 4 Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Configuring the AP-600 Using the HTTP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC ID: HZB-B11FNF ADT No.911128H08 Limited Modular Approval Request Letter Advance Data Technology Jan. 08, 2002 Dear Application Examiner, Proxim Corporation’s Wireless LAN and Mini PCI, FCC ID: HZB-B1FNF, would like to have your authorization as a limited modular approval specific to the Access Point with model name Alpha-1. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip PCI1410-144. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.8V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is U31 PSC0152. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” Due to the modular be specified to Access Point with model name Alpha-1, so the EUT was tested in the full system configuration. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: HZB-B11FNF ADT No.911128H08 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Line Manager of Hsinchu Certification Service Div. Advance Data Technology

External Photos

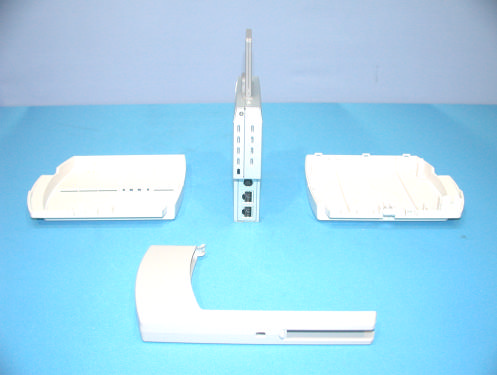

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT

ID Label/Location Info

Radio module: Antenna section + minipci Label position: permanent host

Internal Photos

Page 3 Page 4 Page 5 Page 6

Operational Description

FCC ID: HZB-B11FNF ADT No.911128H08 Operational Description The transmitter of the EUT (Wireless LAN and Mini PCI) is powered by Wireless LAN basestation. Except the output power, the operation of this device is fully controlled by the software installed in this Wireless LAN basestation. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

RF Exposure Info

FCC ID: HZB-B11FNF Report No.: RF911128H081Issued: Jan. 06, 2003 ADT No.: 911128H08 FCC TEST REPORT REPORT NO.: RF911128H08 MODEL NO.: B11FNF ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Proxim Corporation ADDRESS: 935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HZB-B11FNF Report No.: RF911128H082Issued: Jan. 06, 2003 ADT No.: 911128H08 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: HZB-B11FNF Report No.: RF911128H083Issued: Jan. 06, 2003 ADT No.: 911128H08 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: HZB-B11FNF Report No.: RF911128H084Issued: Jan. 06, 2003 ADT No.: 911128H08 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 2.0 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241232.892.29 6243733.652.31 11246233.812.32 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

Test Report

FCC ID: HZB-B11FNF Report No.: RF911128H081Issued: Jan. 02, 2003 ADT No.: 911128H08 FCC TEST REPORT REPORT NO.: RF911128H08 MODEL NO.: B11FNF PLATFORM: Alpha-1, BRAND: Proxim RECEIVED: Nov. 28, 2002 TESTED: Dec. 06 to 21, 2002 APPLICANT: Proxim Corporation ADDRESS: 935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HZB-B11FNF Report No.: RF911128H082Issued: Jan. 02, 2003 ADT No.: 911128H08 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS.................................................................8 4TEST TYPES AND RESULTS..............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT....................................................10 4.1.1TEST INSTRUMENTS...........................................................................................10 4.1.2TEST PROCEDURES...........................................................................................11 4.1.3DEVIATION FROM TEST STANDARD...............................................................11 4.1.4TEST SETUP..........................................................................................................12 4.1.5EUT OPERATING CONDITIONS........................................................................12 4.1.6TEST RESULTS.....................................................................................................13 4.2RADIATED EMISSION MEASUREMENT..........................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................19 4.2.2TEST INSTRUMENTS...........................................................................................20 4.2.3TEST PROCEDURES...........................................................................................21 4.2.4DEVIATION FROM TEST STANDARD...............................................................21 4.2.5TEST SETUP..........................................................................................................22 4.2.6EUT OPERATING CONDITIONS........................................................................22 4.2.7TEST RESULTS (A)...............................................................................................23 4.36dB BANDWIDTH MEASUREMENT..................................................................28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.............................................28 4.3.2TEST INSTRUMENTS...........................................................................................28 4.3.3TEST PROCEDURE..............................................................................................29 4.3.4DEVIATION FROM TEST STANDARD...............................................................29 4.3.5TEST SETUP..........................................................................................................29 4.3.6EUT OPERATING CONDITIONS........................................................................29 4.3.7TEST RESULTS.....................................................................................................30 4.4MAXIMUM PEAK OUTPUT POWER..................................................................34 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............34 4.4.2TEST INSTRUMENTS...........................................................................................34 4.4.3TEST PROCEDURES...........................................................................................35 FCC ID: HZB-B11FNF Report No.: RF911128H083Issued: Jan. 02, 2003 ADT No.: 911128H08 4.4.4DEVIATION FROM TEST STANDARD...............................................................35 4.4.5TEST SETUP..........................................................................................................35 4.4.6EUT OPERATING CONDITIONS........................................................................35 4.4.7TEST RESULTS.....................................................................................................36 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................37 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................37 4.5.2TEST INSTRUMENTS...........................................................................................37 4.5.3TEST PROCEDURE..............................................................................................38 4.5.4DEVIATION FROM TEST STANDARD...............................................................38 4.5.5TEST SETUP..........................................................................................................38 4.5.6EUT OPERATING CONDITIONS........................................................................38 4.5.7TEST RESULTS...........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: HZB-B11FNF Report No.: RF911128H0848Issued: Jan. 02, 2003 ADT No.: 911128H08 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HZB-B11FNF Report No.: RF911128H0849Issued: Jan. 02, 2003 ADT No.: 911128H08 RADIATED EMISSION TEST

Contact Information

Applicant

Ken Lim(Accounting Manager)
[email protected]408 383 7600Fax: 408 383 7680

Technical Contact

Advance Data Technology CorporationEric Lin
[email protected]+886 3 593 5343

81-1, Luliaoken, 9th Lin, Wullung Tsuen · Hsinchu · Taiwan

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-2-2605-2180-3Fax: 886-2-2605-2943

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz34.00 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. Limited Modular Approval (LMA) specific to model Alpha-1 wireless access point. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
