HZB-G11FNF802.11b/g MiniPCI Module

Proxim : G11FNF WLAN 802.11b/g User Manual Chapter 1About the PROXIM WLAN 802.11b/g device .......................................... 3 1-1 Introduction........................................................................................................... 3 1-2 Using a Wireless Local Area Network.................................................................. 3 1-3 Features and Requirements ................................................................................... 4 Chapter 2Network Configuring and Planning ............................................................ 5 2-1 Ad-Hoc Network ................................................................................................... 5 2-2 Access Point (Infrastructure) Network.................................................................. 6 Chapter 3Atheros Client Utility Installation ............................................................... 7 3-1 Atheros Client Utility Installation ......................................................................... 7 Chapter 4Atheros Client Utility (ACU) Configuration ............................................ 10 4-1 Atheros Client Utility icon .................................................................................. 10 4-2 Current Status Tab............................................................................................... 11 4-3 Profile Management............................................................................................ 13 4-3-1 Create or Modify a Profile....................................................................... 14 4-3-2 Security Settings in Profile Management ................................................ 16 4-3-3 Advanced settings in Profile Management .............................................. 20 4-4 Diagnostic Tab .................................................................................................... 21 4-5 Action Menu ....................................................................................................... 22 4-5-1 Enable/Disable Radio .............................................................................. 22 4-5-2 Enable/Disable Tray Icon ........................................................................ 22 Chapter 5 Wireless Configuration using Windows XP ..................................................... 23 5-1 Configuring Your Wireless Networking Settings................................................ 23 5-2 Advanced Wireless Settings ................................................................................ 23 5-3 Disabling the Radio............................................................................................. 24 5-4 Help and Support Information ............................................................................ 24 Appendix A - Atheros Client Utility Uninstall Process..................................................... 25 Appendix B - Glossary...................................................................................................... 28 Appendix C – Wireless Notice .......................................................................................... 29 Trade Name: Proxim Model Name: G11FNF Chapter 1About the PROXIM WLAN 802.11b/g device 1-1 Introduction The PROXIM WLAN 802.11b/g device allows you to access Wireless Local Area Networks (WLANs), share a local printer and files with others in your network, access the Internet, and roam about the office—wirelessly. This wireless Local Area Network solution is designed for both large and small businesses, and it is scalable so that you can add users and new network features as your networking needs grow. The PROXIM WLAN 802.11b/g device is a 2.4Ghz WLAN technology that will operate with at a maximum data rate of 11Mbps with 802.11b and maximum data rate of 54Mbps with 802.11g wireless networks. The PROXIM WLAN 802.11b/g device will automatically detect and seamlessly roam between both 802.11b and 802.11g wireless networks. 1-2 Using a Wireless Local Area Network A wireless LAN provides the same functionality of a wired network, but it eliminates the need to install networking cables and other networking equipment. Not only is a wireless LAN easier to deploy, but it also allows for mobility through “roaming.” For example the PROXIM WLAN 802.11b/g device can roam from a conference room to an office without being disconnected from the network. Trade Name: Proxim Model Name: G11FNF 1-3 Features and Requirements The PROXIM WLAN 802.11b/g device includes the following features: Wireless Features • Support for the IEEE 802.11b standard • Support for the IEEE 802.11g standard • Operates within the 2.4-GHz band • Maximum data rate of up to 11 Mbps (802.11b) • Maximum data rate of up to 54 Mbps (802.11g) Interoperability • WiFi certified at 2.4GHz to ensure wireless interoperability with other WiFi (802.11b) certified devices. Security • Cisco Client Extension compatibility (including LEAP) • Wired Equivalent Privacy (WEP) encryption, operating with 64bit, 128bit or 152 bit encryption • AES-CCM Encryption support • Support for Windows 802.1X supplicants Trade Name: Proxim Model Name: G11FNF Chapter 2Network Configuring and Planning A wireless LAN can be configured for two different modes of operation. While each method has its advantages, one may be better suited for your needs. Review the following configurations to determine which mode is best for you. • Ad-Hoc Network • Access Point (Infrastructure) Network 2-1 Ad-Hoc Network An Ad-Hoc network is the simplest to deploy and is ideal for small offices. Ad-Hoc wireless networks can be comprised of two or more wireless client configured to communicate with one another. All Ad-hoc clients communicate directly with each other without using an access point (AP). As a user on this type of network, you are able to quickly build up a wireless network in order to share files with other employees, print to a shared office printer, and a…

Text truncated - open the document above for the full version.

Proxim Corporation 935 Stewart Drive, Sunnyvale, CA 94085, USA Tel: +31 30607 6520 Fax:+31 30607 6501 1 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: 802.11b/g MiniPCI Module Model No.: G11FNF Trade Name: Proxim Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF920501R04. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Proxim Corporation (Company Name) 935 Stewart Drive, Sunnyvale, CA 94085, USA (Company Address) TEL ： +31 30607 6520 FAX ： + 31 30607 6501 Mark Koop / Regulatory Compliance Manager (Name) / (Title) (Signature) / (Date) May 7, 2003

POWER OF ATTORNEY HZB-G11FNF To whom it may concern: We, the undersigned, Proxim Corporation, hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Mark Koop / Regulatory Compliance Manager Proxim Corporation Tel: +31 30607 6520 Fax: +31 30607 6501 e-mail: [email protected] Proxim Corporation 935 Stewart Drive, Sunnyvale, CA 94085, USA Tel: +31 30607 6520 Fax:+31 30607 6501

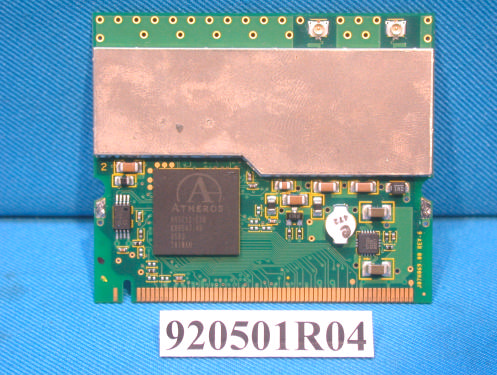

Page 1 CONSTRUCTION PHOTOS OF EUT

92.0874.06 LABEL U59H002.06 50~150 0.150.2 2 0.3 4 +7 5 5 150~250 ANG. TOL 250~ PREPARED BY CHECKED BY 30 ±0 ° ~ 0.25 0.2 30 0.2 °° ~ °° 60 0.4 0.50.3 0.25 APPROVED BY 60 0.5 ° 90 ~ °° 2 2 +10 +10 ° 1 2 6~50 0.10.20.15 1 +5 CRITICALMAJOR V 92087406 92.04.14 TITLE SCALE NO MARK:ALL OTHER MINOR DOC NO. DESCRIPTION NEW RELEASE REV. 0 MATERIAL: FILE NAME: DIM. CLASSIFICATION: REL. DATE AMBIT SHEET DIM IN mm OF 1.5 F 0~6 RANGE M1 0.05 TOL± M2I 0.20.1 TC 0.5 +5 USR F/N:RD-FORM-26-1R RESA NOTES: 1. U59H002.06 Covered by one or more of the following U.S. patents: 5,231,634,5,875,179,6,006,090 5,809,060,6,075,812,and 5,077,753 Proxim IEEE 802.11a/b/g ComboCard Model:8481-US 64733/A Proxim Corporation 8460 IC: 1856B-8460 FCC ID :HZB-8460 RTIPR8403-088 COFETEL: RTIPR8403-086 For other approvals see user documentation or www.proxim.com

(Fig. 1) FCC ID: HZB-G11FNF FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna Model: IAN24-OD-03-S & IAN24-OD-03 Page 4 Antenna Model: AOU24-OD-55-B Page 5 Antenna Model: AIN24-WB-OD Page 6

FCC ID: HZB-G11FNF ADT No.920501R04 Operational Description This device is a 802.11b/g MiniPCI Module which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. This project is seeking the authorization of limited module approval specific to the Access Point with model name Alpha-1. The transmitter of the EUT (802.11b/g MiniPCI Module) is powered by from host equipment. The antenna types used in this product are Integral antenna, Omni directional (mono-pole) Antenna and dual band omni directional (dipole) Antenna with MMCX connectors. The other instruction, please have a look at the users manual.

FCC ID: HZB-G11FNF ADT No.: 920501R04 RF EXPOSURE REPORT REPORT NO.: RF920501R04 MODEL NO.: G11FNF ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Proxim Corporation ADDRESS: 935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HZB-G11FNF ADT No.: 920501R04 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HZB-G11FNF ADT No.: 920501R04 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HZB-G11FNF ADT No.: 920501R04 6 Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain measured in Fully Anechoic Chamber is 3.5Bi or 2.24 (numeric). Antenna 2: The maximum Gain measured in Fully Anechoic Chamber is 5Bi or 3.16 (numeric). Antenna 3: The maximum Gain measured in Fully Anechoic Chamber is 3Bi or 2.00 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna 1: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241234.27680.01531.0 6243733.34260.01491.0 11246232.65880.01451.0 Antenna 1: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241237.23920.01661.0 6243734.37370.01541.0 11246232.73410.01461.0 FCC ID: HZB-G11FNF ADT No.: 920501R04 Antenna 2: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 2241739.08410.02461.0 6243733.34260.02101.0 10245735.31830.02221.0 Antenna 2: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 2241738.81500.02441.0 6243734.67370.02181.0 10245739.17420.02461.0 Antenna 3: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241234.27780.01361.0 6243733.34260.01321.0 11246232.65880.01291.0 Antenna 3: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241237.23920.01481.0 6243734.67370.01381.0 11246232.73410.01301.0

FCC ID: HZB-G11FNF Report No.: RF920501R04 1 Issue: May. 17, 2003 ADT No.: 920501R04 FCC TEST REPORT REPORT NO.: RF920501R04 MODEL NO.: G11FNF PLATFORM: Alpha-1, BRAND: Proxim RECEIVED: May 01, 2003 TESTED: May 08 to 15, 2003 APPLICANT: Proxim Corporation ADDRESS: 935 Stewart Drive, Sunnyvale, CA 94085, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 102 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HZB-G11FNF Report No.: RF920501R04 2 Issue: May. 17, 2003 ADT No.: 920501R04 Table of Contents 1 CERTIFICATION.......................................................................................................4 2 SUMMARY OF TEST RESULTS...........................................................................5 3 GENERAL INFORMATION.....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT......................................................................6 3.2 DESCRIPTION OF TEST MODES........................................................................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................8 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................9 4 TEST TYPES AND RESULTS..............................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT....................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT................................11 4.1.2 TEST INSTRUMENTS...........................................................................................11 4.1.3 TEST SETUP..........................................................................................................12 4.1.4 EUT OPERATING CONDITIONS........................................................................13 4.1.5 TEST RESULTS.....................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT..........................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................20 4.2.2 TEST INSTRUMENTS...........................................................................................21 4.2.3 TEST PROCEDURES...........................................................................................22 4.2.4 TEST SETUP..........................................................................................................23 4.2.5 EUT OPERATING CONDITIONS........................................................................23 4.2.6 TEST RESULTS (A)...............................................................................................24 4.2.7 TEST RESULTS (A) - DSSS.................................................................................25 4.2.8 TEST RESULTS (A) -OFDM.................................................................................28 4.2.9 TEST RESULTS (B)...............................................................................................31 4.2.10 TEST RESULTS (B) - DSSS.................................................................................32 4.2.11 TEST RESULTS (B) -OFDM.................................................................................35 4.2.12 TEST RESULTS (C)...............................................................................................38 4.2.13 TEST RESULTS (C) - DSSS................................................................................39 4.2.14 TEST RESULTS (C) -OFDM.................................................................................42 4.3 6dB BANDWIDTH MEASUREMENT..................................................................45 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.............................................45 4.3.2 TEST INSTRUMENTS...........................................................................................45 4.3.3 TEST PROCEDURE..............................................................................................46 4.3.4 TEST SETUP..........................................................................................................46 4.3.5 EUT OPERATING CONDITIONS........................................................................46 FCC ID: HZB-G11FNF Report No.: RF920501R04 3 Issue: May. 17, 2003 ADT No.: 920501R04 4.3.6 TEST RESULTS-DSSS.........................................................................................47 4.3.7 TEST RESULTS-OFDM........................................................................................55 4.4 MAXIMUM PEAK OUTPUT POWER..................................................................63 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............63 4.4.2 TEST INSTRUMENTS...........................................................................................63 4.4.3 TEST PROCEDURES...........................................................................................64 4.4.4 TEST SETUP..........................................................................................................64 4.4.5 EUT OPERATING CONDITIONS........................................................................64 4.4.6 TEST RESULTS(A)-DSSS....................................................................................65 4.4.7 TEST RESULTS(A)-OFDM...................................................................................65 4.4.8 TEST RESULTS(B)-DSSS...........................................…

Text truncated - open the document above for the full version.

FCC ID: HZB-G11FNF Report No.: RF920501R04 71 Issue: May. 17, 2003 ADT No.: 920501R04 CH1 FCC ID: HZB-G11FNF Report No.: RF920501R04 72 Issue: May. 17, 2003 ADT No.: 920501R04 CH6 FCC ID: HZB-G11FNF Report No.: RF920501R04 73 Issue: May. 17, 2003 ADT No.: 920501R04 CH11 FCC ID: HZB-G11FNF Report No.: RF920501R04 74 Issue: May. 17, 2003 ADT No.: 920501R04 EUT 802.11b/g MiniPCI Module MODEL G11FNF INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26 deg. C, 59 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 2 2417 -9.36 8 PASS 6 2437 -9.75 8 PASS 10 2457 -9.30 8 PASS FCC ID: HZB-G11FNF Report No.: RF920501R04 75 Issue: May. 17, 2003 ADT No.: 920501R04 CH2 FCC ID: HZB-G11FNF Report No.: RF920501R04 76 Issue: May. 17, 2003 ADT No.: 920501R04 CH6 FCC ID: HZB-G11FNF Report No.: RF920501R04 77 Issue: May. 17, 2003 ADT No.: 920501R04 CH10 FCC ID: HZB-G11FNF Report No.: RF920501R04 78 Issue: May. 17, 2003 ADT No.: 920501R04 4.5.7 TEST RESULTS-OFDM EUT 802.11b/g MiniPCI Module MODEL G11FNF INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26 deg. C, 59 %RH, 979 hPa TEST MODE Antenna 1&3 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 1 2412 -11.38 8 PASS 6 2437 -11.10 8 PASS 11 2462 -11.83 8 PASS FCC ID: HZB-G11FNF Report No.: RF920501R04 79 Issue: May. 17, 2003 ADT No.: 920501R04 CH1 FCC ID: HZB-G11FNF Report No.: RF920501R04 80 Issue: May. 17, 2003 ADT No.: 920501R04 CH6 FCC ID: HZB-G11FNF Report No.: RF920501R04 81 Issue: May. 17, 2003 ADT No.: 920501R04 CH11 FCC ID: HZB-G11FNF Report No.: RF920501R04 82 Issue: May. 17, 2003 ADT No.: 920501R04 EUT 802.11b/g MiniPCI Module MODEL G11FNF INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26 deg. C, 59 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 2 2417 -10.90 8 PASS 6 2437 -11.10 8 PASS 10 2457 -10.66 8 PASS FCC ID: HZB-G11FNF Report No.: RF920501R04 83 Issue: May. 17, 2003 ADT No.: 920501R04 CH2 FCC ID: HZB-G11FNF Report No.: RF920501R04 84 Issue: May. 17, 2003 ADT No.: 920501R04 CH6 FCC ID: HZB-G11FNF Report No.: RF920501R04 85 Issue: May. 17, 2003 ADT No.: 920501R04 CH10 FCC ID: HZB-G11FNF Report No.: RF920501R04 86 Issue: May. 17, 2003 ADT No.: 920501R04 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP 1093.4495.30 Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: HZB-G11FNF Report No.: RF920501R04 87 Issue: May. 17, 2003 ADT No.: 920501R04 4.6.5 TEST RESULTS - DSSS u TEST MODE: Antenna 1&3 The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 49.36dB delta between carrier maximum power and local maximum emission in restrict band (2.388GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 100.5dBuV/m, so the maximum field strength in restrict band is 100.5-49.36=51.2dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 50.62dB delta between carrier maximum power and local maximum emission in restrict band (2.4852GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 100.7dBuV/m, so the maximum field strength in restrict band is 100.7-50.62=50.08dBuV/m which is under 54 dBuV/m limit. FCC ID: HZB-G11FNF Report No.: RF920501R04 88 Issue: May. 17, 2003 ADT No.: 920501R04 FCC ID: HZB-G11FNF Report No.: RF920501R04 89 Issue: May. 17, 2003 ADT No.: 920501R04 FCC ID: HZB-G11FNF Report No.: RF920501R04 90 Issue: May. 17, 2003 ADT No.: 920501R04 u TEST MODE: Antenna 2 The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 53.22dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 97.8dBuV/m, so the maximum field strength in restrict band is 97.8-53.22=44.58dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 54.63dB delta between carrier maximum power and local maximum emission in restrict band (2.4918GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 98.1dBuV/m, so the maximum field strength in restrict band is 98.1-54.63=43.47dBuV/m which is under 54 dBuV/m limit. FCC ID: HZB-G11FNF Report No.: RF920501R04 91 Issue: May. 17, 2003 ADT No.: 920501R04 FCC ID: HZB-G11FNF Report No.: RF920501R04 92 Issue: May. 17, 2003 ADT No.: 920501R04 FCC ID: HZB-G11FNF Report No.: RF920501R04 93 Issue: May. 17, 2003 ADT No.: 920501R04 4.6.6 TEST RESULTS-OFDM u TEST MODE: Antenna 1&3 The spectrum plots …

Text truncated - open the document above for the full version.

FCC ID: HZB-G11FNF Report No.: RF920501R04100Issue: May. 19, 2003 ADT No.: 920501R04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HZB-G11FNF Report No.: RF920501R04101Issue: May. 19, 2003 ADT No.: 920501R04 RADIATED EMISSION TEST
