HZB-NGP1058802.11 ac PCIe Module

802.11 ac PCIe Module Model Number: NGP1058 Warning Statement FCC NOTICE This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Connect the computer to an outlet on a circuit different from that to which the receiver is connected. • Increase the separation between the computer and receiver. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. RF Exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without C2P. This device is going to be operated in 5.725~5.85GHz frequency range. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. 390cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 390cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: HZB-NGP1058 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Overview the Product Introduction The high-performance Wireless Radio Module is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage. Based on 802.11n (Draft 2.0), the access point supports high-speed data transmission of up to 800Mbps. The access point host with this device is capable of operating in different modes, which makes it suitable for a wide variety of wirelessapplications, including long-distance deployments. Designed with dual polarization high gain antenna it offers a compact, rugged design for outdoor installation and excellent performance.. To protect your security and privacy, the access point with this device is armed with many enhanced and latest wireless security features such as IEEE 802.11i standards, MAC Address Filtering, IEEE 802.1x Authentication and 64/128-bit WEP (Wired Equivalent Privacy) to ensure privacy for the heterogeneous mix of users within the same wireless network. Features • Qualcomm-Atheros QCA9882,Peregrine Series • Maximum 27dBm output power (per chain), 30dBm (aggregate) • IEEE 802.11ac complaint & backward compatible with 802.11a/n • 2X2 MIMO Technology & up to 867Mbps • MiniPCI Express 1.1 interface • Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), low-density parity check (LDPC), Maximal Ratio Combining (MRC), Space Time Block Code (STBC) • Supports IEEE 802.11d, e, h, I, k, RO, v time stamp, and w standards • Supports Dynamic Frequency Selection (DFS) • Cards are individually calibrated for Quality Assurance • Supported by either CompexWRT with Atheros Reference Wireless Driver OR OpenWRT with ath10k Wireless Driver on WPJ344 Install in the Host This device will be build-in into Proxim’s Host Tsunami ®, and it should be professional installation. The host system must be labelled with: Contains FCC ID: HZB-NGP1058; Please refer to the user guide for the host on our web site : http://www.proxim.com/

Product Details - PX3F-52-N7A Product Specifications PX3F-52-N7A 3 ft Standard Parabolic Unshielded Antenna, dual-polarized, unpressurized, 5.25– 5.85 GHz, type N female flange, gray antenna with flash, standard pack—one- piece reflector CHARACTERISTICS General Specifications Diameter, nominal 0.9 m | 3 ft Antenna Input N Female Antenna Type PXF - Standard Parabolic Unshielded, Dual-Polarized Antenna, unpressurized Polarization Dual Reflector Construction One-piece reflector Antenna Color Gray Radome Color Gray Radome Material Molded Flash Included Yes file:///C|/Documents%20and%20Settings/adelgadillo/My%20Documents/Vendor%20files/Andrew/PX3F-52-N7A.htm (1 of 3)3/4/2009 3:25:45 PM Product Details - PX3F-52-N7A Packing * Standard pack Electrical Specifications Operating Frequency Band * 5.250 – 5.850 GHz Gain, Top Band 33.5 dBi Gain, Mid Band * 33.4 dBi Gain, Low Band 33.4 dBi Front-to-Back Ratio * 42 dB Cross Polarization Discrimination (XPD) * 30 dB Beamwidth, Horizontal 3.8 ° Beamwidth, Vertical 3.8 ° VSWR * 1.50 Return Loss * 14.0 dB Radiation Pattern Envelope Reference (RPE) * 4741 Electrical Compliance ETSI 302 217 Class 1 Mechanical Specifications Net Weight 18 kg | 40 lb Packed Dimensions Gross Weight, Packed Antenna 18.0 kg | 39.7 lb Length 115.0 cm | 45.3 in Width 87.0 cm | 34.3 in Height 115.0 cm | 45.3 in * Footnotes Cross Polarization Discrimination (XPD) The difference between the peak of the co-polarized main beam and the maximum cross-polarized signal over an angle twice the 3 dB beamwidth of the co- polarized main beam. file:///C|/Documents%20and%20Settings/adelgadillo/My%20Documents/Vendor%20files/Andrew/PX3F-52-N7A.htm (2 of 3)3/4/2009 3:25:45 PM Product Details - PX3F-52-N7A Front-to-Back Ratio Denotes highest radiation relative to the main beam, at 180° ± 40°, across the band. Production antennas do not exceed rated values by more than 2 dB unless stated otherwise. Gain, Mid Band For a given frequency band, gain is primarily a function of antenna size. The gain of Andrew antennas is determined by either gain by comparison or by computer integration of the measured antenna patterns. Operating Frequency Band Bands correspond with CCIR recommendations or common allocations used throughout the world. Other ranges can be accommodated on special order. Packing Andrew standard packing is suitable for export. Antennas are shipped as standard in totally recyclable cardboard or wire-bound crates (dependent on product). For your convenience, Andrew offers heavy duty export packing options. Radiation Pattern Envelope Reference (RPE) Radiation patterns determine an antenna’s ability to discriminate against unwanted signals under conditions of radio congestion. Radiation patterns are dependent on antenna series, size, and frequency. Return Loss The figure that indicates the proportion of radio waves incident upon the antenna that are rejected as a ratio of those that are accepted. VSWR Maximum; is the guaranteed Peak Voltage-Standing-Wave-Ratio within the operating band. ©2009 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope. All specifications are subject to change.See www.commscope.com for the most current information. 3/4/2009 file:///C|/Documents%20and%20Settings/adelgadillo/My%20Documents/Vendor%20files/Andrew/PX3F-52-N7A.htm (3 of 3)3/4/2009 3:25:45 PM 800.949.7079 order online today at www.talleycom.com

Issued : 2013-07-22 http:// www.smartant.com E-mail: [email protected] Omni Directional Antenna for 2400 – 2500 MHz & 5100 - 5900 MHz SAA08-220570 Electrical Specification Environmental & Mechanical Characteristics Frequency range 2400-2500 MHz 5100-5900 MHZ Peak gain 8.0 dBi 10.0 dBi VSWR 2.0：1 (Max.) Polarization Linear, Vertical Horizontal HPBW 360° Vertical HPBW 13° 7°-10° Cable N/A Impedance 50Ohm Connector N Jack Power handling 5 W (cw) Lightning protection DC ground Survival wind speed 216 km/hr Temperature -40°C to +80°C Humidity 95% @55°C Radome color Wthite Radome material Fiber glass, UV resistant Weight 0.39 kg Dimensions 80 x 78 x 1175 mm Waterproof IP-67 Mounting kit Wall Mount & Pole Mount Version 2

4.9 - 6.1 GHz High Gain Subscriber Antenna MA-WA55-30 MARS Broadband High Gain Antenna covers the full 5GHz spectrum- from lower to higher UNII band - including its unlicensed part. Additional Features: - exceptionally high gain of 30 dB over the entire frequency band - UV protected radome allowing for harsh weather installations - highest range of ETSI standards - TS3, TS4, TS5 - easy mounting allowing for Az/El adjustment Specifications: Electrical Frequency range 4.9 - 6.1 GHz Gain,typ. 30 dBi 4.9-5.15 & 5.875-6.1@ 29 dBi , 5.15-5.875 @ 30 dBi VSWR, max. 1.7:1 @ 4.9-5.875, 1.9:1 @ 5.875-6.1 3 dB Beam-Width, H-Plane, typ. 5 ° 3 dB Beam-Width, E-Plane, typ. 5 ° Side Lobes, min. ETSI TS3, TS4, TS5 PolarizationLinear,Vertical or Horizontal Cross Polarization, min.ETSI TS3, TS4, TS5 Front to Back Ratio, min.ETSI TS3, TS4, TS5 Input power, max50 Watt Input Impedance50 Ohm Lightning ProtectionDC Grounded Mechanical Dimensions (HxWxD)600 x 600 x 30 mm ( 23.5"x 23.5"x1.2") Weight5 kg ConnectorN-Type, Female Back PlaneAluminum; protected through chemical passivation RadomeUV Protected, Plastic MountMNT-60 Environmemtal Operating Temperature Range-40° C to +65° C VibrationAccording to IEC 60721-3-4 Wind Load200 km/h (survival) FlammabilityUL94 Water ProofingIP-65 HumidityETS 300 019-1-4, EN 302 085 (annex. A.1.1) Salt FogAccording to IEC 68-2-11 Service Life> 10 years Specifications subject to change without notice

5 GHz Base Station Antenna, 30° MA-WB55-20 MARS 30° Broadband Sector Antenna provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications. Additional Features: - stable performance with 20 dBi of gain - small size allowing for easy blending with any environment - tilt mount allowing for quick and easy installation - UV protected radome suitable for harsh environment installations Specifications: Electrical Frequency range 4.9 - 6.1 GHz Gain,typ. 20 dBi VSWR, max. 1.8:1 3 dB Beam-Width, H-Plane, typ. 30 ° 3 dB Beam-Width, E-Plane, typ. 8 ° Side Lobes, min. ETSI EN 302 085 V1.2.3 – CS1 PolarizationLinear Vertical Cross Polarization, min.ETSI EN 302 085 V1.2.3 – CS1 Front to Back Ratio, min.ETSI EN 302 085 V1.2.3 – CS1 Input power, max50 Watt Input Impedance50 Ohm Lightning ProtectionDC Grounded Mechanical Dimensions (HxWxD)573 x 120 x 115 mm (22.6"x4.7"x4.5") Weight1 kg ConnectorN-Type, Female Back PlaneAluminum protected through chemical passivation RadomeUV Protected, Polycarbonate MountMNT-22 Environmemtal Operating Temperature Range- 40°C to + 65°C VibrationAccording to IEC 60721-3-4 Wind Load200 km/h (survival) FlammabilityUL94 Water ProofingIP-67 HumidityETS 300 019-1-4, EN 302 085 (annex A.1.1) Ice and Snow25mm radial (survival) Salt FogAccording to IEC 68-2-11 Service Life>10 years Standard Compliance ETSI EN 302 085 V1.2.3 – CS1 MARS reserves the right to make technical changes or modifications to any of its products and specifications without prior notice and without implementing such changes to prior supplied products. Product images are representative and indicative only. Warranty terms and general conditions of sale are applicable on any purchase of any product and are available in the “Policies― section.

Proxim Wireless Corporation FCC ID.: HZB-NGP1058 47633 Westinghouse Drive, Fremont City, California, United States 94539Tel : (408) 383-7600 Federal Communications Commission May 25, 2015 Authorization and Evaluation Division ATTESTATION FCC ID: HZB-NGP1058 Product: 802.11 ac PCIe Module We don’t provide any controls or software to allow operation outside the USA frequency band when we sell a product bearing the FCC ID: HZB-NGP1058 anywhere in the world. Sincerely, ---------------------------------------------------- Mr Cor van de Water / Sr. Requlatory and Compliance Manager Proxim Wireless Corporation

Proxim Wireless Corporation 47633 Westinghouse Drive, Fremont City, California, United States 94539 Tel : (408) 383-7600 Fax: (408) 383-7680 DTS-UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID : HZB-NGP1058 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 5745-5825 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No 5780 Yes , No Yes , No Yes , No Yes , No This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Signature ---------------------------------------------------------------------------------------------------------- Mr Cor van de Water / Sr. Requlatory and Compliance Manager Proxim Wireless Corporation Tel : (408) 383-7600 Fax: (408) 383-7680 Email: [email protected]

RF_160, Issue 03 Declaration of Authorization We Name: Proxim Wireless Corporation Address: 47633 Westinghouse Drive, Fremont City, California, United States 94539 City: Fremont Country: United States Declare that: Name Representative of agent: Vincent Lin (1) Agent Company name: QuieTek Corp. Address: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. City: New Taipei City Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: 802.11 ac PCIe Module FCC ID: HZB-NGP1058 Trademark: Proxim on our behalf. Date: May 25, 2015 City: Fremont Name: Cor van de Water (2) Function: Sr. Requlatory and Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Proxim Wireless Corporation Address : 47633 Westinghouse Drive, Fremont City, California, United States 94539 City: Fremont Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: HZB-NGP1058 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: May 25, 2015 Name and signature of applicant: Mr Cor van de Water Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF_734_00, Issue 1 Modular Approval Request FCC (per FCC Part 15 Section 15.212) FCC ID: HZB-NGP1058 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter have its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, The part number is QCA9882 3. The modular transmitter must have its own power supply regulation. The EUT has power supply regulation, The part number is QCA9882 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. RF_734_00, Issue 1 Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): _ Mr Cor van de Water _________________ Date: _May 25, 2015_____ Signature : ___________________________

Report No.: 1550017R-RFUSP69V00 Page : 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 1550017R-RFUSP69V00 Page : 3 of 8 (5) EUT Photo (6) EUT Photo RF Module Report No.: 1550017R-RFUSP69V00 Page : 4 of 8 (7) EUT Photo (8) EUT Photo (Dipole Antenna) Report No.: 1550017R-RFUSP69V00 Page : 5 of 8 (9) EUT Photo (Grid DISH Antenna) (10) EUT Photo (Grid DISH Antenna) Report No.: 1550017R-RFUSP69V00 Page : 6 of 8 (11) EUT Photo (Omni Antenna) (12) EUT Photo (Panel Antenna) Report No.: 1550017R-RFUSP69V00 Page : 7 of 8 (13) EUT Photo (Panel Antenna) (14) EUT Photo (Sector Antenna) Report No.: 1550017R-RFUSP69V00 Page : 8 of 8 (15) EUT Photo (Sector Antenna) (16) EUT Photo

Proxim Wireless Corporation FCC ID.: HZB-NGP1058 47633 Westinghouse Drive, Fremont City, California, United States 94539Tel : (408) 383-7600 FCC ID Label

Proxim Wireless Corporation FCC ID.: HZB-NGP1058 47633 Westinghouse Drive, Fremont City, California, United States 94539Tel : (408) 383-7600 The FCC ID will be placed on the equipment as shown in the photograph below.

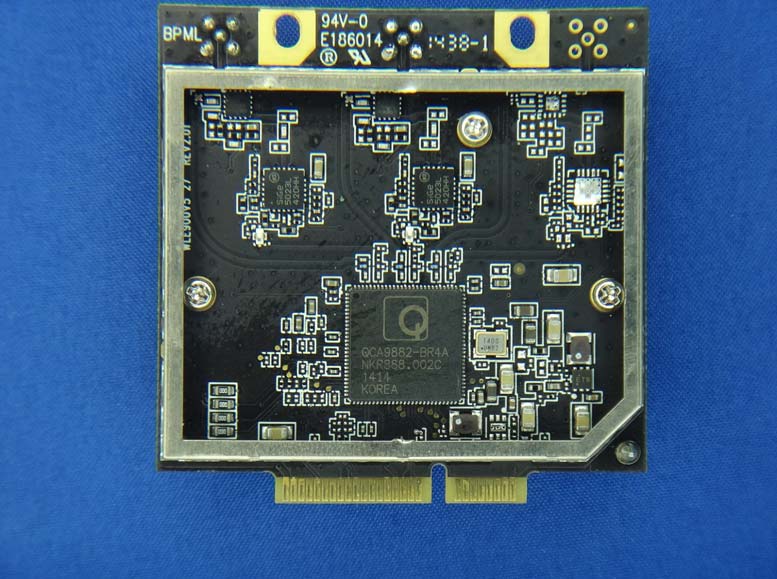

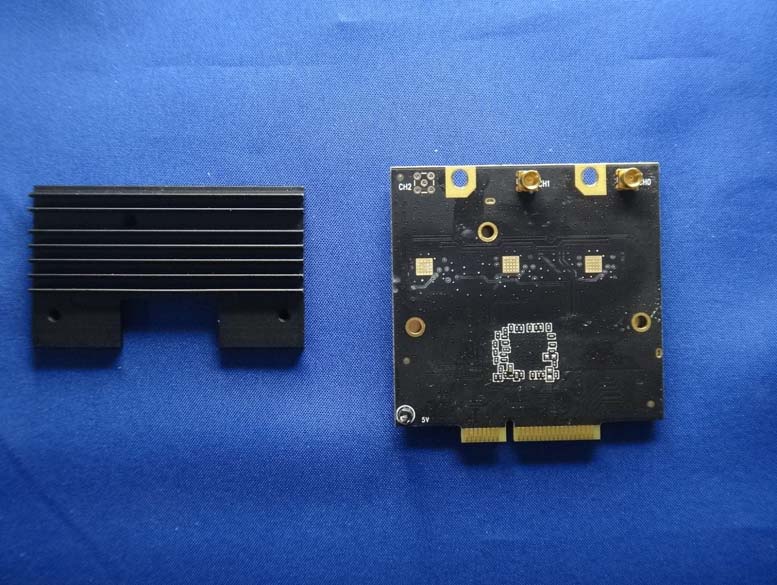

Report No.: 1550017R-RFUSP69V00 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Report No. 1550017R-RFUSP69V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name 802.11 ac PCIe Module Model No. NGP1058 FCC ID HZB-NGP1058 Applicant Proxim Wireless Corporation Address 47633 Westinghouse Drive, Fremont City, California, United States 94539 Date of Receipt Apr. 27, 2015 Date of Declaration May 27, 2015 Report No. 1550017R-RFUSP69V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1550017R-RFUSP69V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1550017R-RFUSP69V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : 802.11 ac PCIe Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 5745-5825MHz 5755-5795MHz 5780MHz Maximum Conducted output power 29.12dBm Antenna gain 33.5dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 390 cm (mW/cm2) 816.5824 0.956448 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No.: 1550017R-RFUSP69V00 Page: 1 of 377 FCC Test Report Product Name 802.11 ac PCIe Module Model No NGP1058 FCC ID. HZB-NGP1058 Applicant Proxim Wireless Corporation Address 47633 Westinghouse Drive, Fremont City, California, United States 94539 Date of Receipt Apr. 27, 2015 Issue Date May 21, 2015 Report No. 1550017R-RFUSP69V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1550017R-RFUSP69V00 Page: 2 of 377 Test Report Issue Date: May 21, 2015 Report No.: 1550017R-RFUSP69V00 Product Name 802.11 ac PCIe Module Applicant Proxim Wireless Corporation Address 47633 Westinghouse Drive, Fremont City, California, United States 94539 Manufacturer Compex Systems Pte Ltd Model No. NGP1058 EUT Rated Voltage DC 5V, 1.5A EUT Test Voltage AC 120V/60Hz Trade Name Proxim Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2009, ANSI C63.10: 2009, KDB 558074 Test Result Complied Documented By : ( Senior Engineering Adm. Specialist / Anita Chou) Tested By : ( Engineer / Benjamin Pan) Approved By : ( Director / Vincent Lin) Report No.: 1550017R-RFUSP69V00 Page: 3 of 377 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description ...........................................................................................................................5 1.2. Operational Description ................................................................................................................8 1.3. Tested System Details ...................................................................................................................9 1.4. Configuration of Tested System....................................................................................................9 1.5. EUT Exercise Software.................................................................................................................9 1.6. Test Facility.................................................................................................................................10 2. Conducted Emission .................................................................................................................. 11 2.1. Test Equipment ...........................................................................................................................11 2.2. Test Setup....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure.............................................................................................................................12 2.5. Uncertainty..................................................................................................................................12 2.6. Test Result of Conducted Emissio…
