Part Number 68568r1 Tsunami MP.11 and MP.11a Version 2.1 Installation and Management Outdoor: BSU Indoor Outdoor: SU Notices 2 COPYRIGHT ©2004 Proxim Corporation, Sunnyvale, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This manual and the software described herein are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Corporation. TRADEMARKS Tsunami, Proxim, and the Proxim logo are trademarks of Proxim Corporation. All other trademarks mentioned herein are the property of their respective owners. FCC COMPLIANCE This document provides regulatory information for the following wireless outdoor products: • Tsunami MP.11 2411 BSU, Tsunami MP.11 2411 SU, Tsunami MP.11 2411 RSU • Tsunami 2411 QuickBridge 11 • Tsunami MP.11a BSU, Tsunami MP.11a SU, Tsunami MP.11a RSU • Tsunami MP.11/a Ruggedized BSU, Tsunami MP.11/a Ruggedized SU This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. This device must be professionally installed. Changes or modifications not expressly approved by Proxim Corporation could void the your authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), you are encouraged to attempt to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help. This device must be professionally installed. Antennas used for the MP.11a product must be fix-mounted on permanent structures with a separation distance of at least 1.12 meters from all persons during normal operation. MP.11 and MP.11a Installation and Management Contents 3 Contents Copyright ..............................................................................................................................................................2 Trademarks ..........................................................................................................................................................2 FCC COMPLIANCE .............................................................................................................................................2 CHAPTER 1. OVERVIEW .........................................................................................................................................5 In This Release ....................................................................................................................................................6 Wireless Network Topologies...............................................................................................................................6 Active Ethernet .....................................................................................................................................................7 Identifying Network Topology and Equipment .....................................................................................................8 Finding a Suitable Location..................................................................................................................................8 CHAPTER 2. INSTALLATION ..................................................................................................................................9 Installing the Indoor MP.11/a ...............................................................................................................................9 Installing the Outdoor MP.11/a...........................................................................................................................16 Installing Documentation and Software .............................................................................................................21 Aligning the Antenna ..........................................................................................................................................21 CHAPTER 3. MANAGEMENT OVERVIEW............................................................................................................23 MP.11/a IP Address ...........................................................................................................................................23 Web Interface Overview .....................................................................................................................................25 MP.11a Country Options ....................................................................................................................................27 Command Line Interface Overview....................................................................................................................29 CHAPTER 4. BASIC MANAGEMENT......................................…

Text truncated - open the document above for the full version.

MP.11 and MP.11/a Quick Install Guide Chapter 5. Web Interface 66 Telnet Configuration Settings Note: To use HyperTerminal for CLI access, make sure to check “Send line ends with line feeds” in the ASCII Setup window (click Properties from the HyperTerminal window; select Setup, then ASCII Setup. See “HyperTerminal Connection Properties” on page 31 for more information). Telnet Interface Bitmask Select the interface (Ethernet, Wireless, All Interfaces) from which you can manage the MP.11/a through telnet. This parameter can also be used to disable telnet management. Telnet Port Number The default port number for Telnet applications is 23. However, you can use this field if you want to change the Telnet port for security reasons (but your Telnet application also must support the new port number you select). Telnet Login Timeout (seconds) Enter the number of seconds the system is to wait for a login attempt. The MP.11/a terminates the session when it times out. The range is 1 to 300 seconds; the default is 30 seconds. Telnet Session Timeout (seconds) Enter the number of seconds the system is to wait during a session while there is no activity. The MP.11/a ends the session upon timeout. The range is 1 to 36000 seconds; the default is 900 seconds. Serial Configuration Settings The serial port interface on the MP.11/a is enabled at all times. See “Serial Port” on page 30 for information on how to access the CLI interface through the serial port. You can configure and view following parameters: Serial Baud Rate Select the serial port speed (bits per second). Choose between 2400, 4800, 9600, 19200, 38400, or 57600; the default Baud Rate is 9600. Serial Flow Control Select either None (default) or Xon/Xoff (software controlled) data flow control. To avoid potential problems when communicating with the MP.11/a through the serial port, Proxim recommends that you leave the Flow Control setting at None (the default value). Serial Data Bits This is a read-only field and displays the number of data bits used in serial communication (8 data bits by default). Serial Parity This is a read-only field and displays the number of parity bits used in serial communication (no parity bits by default). Serial Stop Bits This is a read-only field that displays the number of stop bits used in serial communication (1 stop bit by default). The serial port bit configuration is commonly referred to as 8N1. MP.11 and MP.11/a Quick Install Guide Chapter 5. Web Interface 67 7) Security MAC Authentication Click the Configure button, the Security tab, and the MAC Auth sub-tab to build a list of authorized wireless stations that can register at the MP.11/a and access the network. MAC authentication is available only for Base Station units. This feature is supported on the wireless interface and only wireless MAC addresses should be entered in the list. For example, build a list of the wireless MAC addresses on the Base Station for the authorized SUs. To add table entries, click the Add Table Entries button; a window such as the following is displayed: Enter the MAC address and any comment, then click Add. To edit or delete table entries, click the Edit/Delete Table Entries button; make your corrections in the window displayed and click OK. MP.11 and MP.11/a Quick Install Guide Chapter 5. Web Interface 68 RADIUS Authentication Click the Configure button, the Security tab, and the Radius Auth sub-tab to set the IP address of the RADIUS server containing the central list of MAC addresses that are allowed to access the network. RADIUS authentication is available only for Base Station units. In large networks with multiple MP.11/a devices, you can maintain a list of MAC addresses on a centralized location using a RADIUS authentication server that grants or denies access. If you use this kind of authentication, you must specify at least the primary RADIUS server. The backup RADIUS server is optional. MP.11 and MP.11/a Quick Install Guide Chapter 5. Web Interface 69 Encryption You can protect the wireless data link by using encryption. Encryption keys can be 5 (64-bit), 13 (WEP 128-bit), or 16 (AES 128-bit) characters in length. Both ends of the wireless data link must use the same parameter values. Note: Advanced Encryption Standard (AES) encryption is supported on the MP.11a only. Click the Configure button, the Security tab, and the Encryption sub-tab to set encryption keys for the data transmitted and received by the MP.11/a. Note that all devices in one network must use the same encryption parameters to communicate to each other. MP.11 and MP.11/a Quick Install Guide Chapter 5. Web Interface 70 8) Filtering Click the Configure button and the Filtering tab to configure packet filtering. Packet filtering can be used to control and optimize network performance. Filtering sub-tabs are as follows: Ethernet Protocol The Ethernet Protocol filter blocks or forwards packets based upon the Ethernet protocols they support. Click the Configure button, the Filtering tab, and the Ethernet Protocol sub-tab to enable or disable certain protocols in the table. Entries can be selected from a drop-down box. • To add an entry to the table, click Add Table Entries, select the protocol name from the drop-down box and click the Add button. • To edit or delete table entries, click Edit/Delete Table Entries, make your changes or deletions, and click OK. Ethernet Protocol Filtering Blocks or forwards packets based upon the Ethernet protocols they support: Ethernet: Packets are examined at the Ethernet interface. Wireless: Packets are examined at the Wireless interface. All Interfaces: Packets are examined at both interfaces. Disabled: The filter is not used. Filter Operation Type Passthru: Only the enabled Ethernet protocols listed in the Filter table pass through the bridge. Block: the Bridge blocks enabled Ethernet protocols listed in the Filter table. MP.11 and MP.11/a Quick Install Guide Chapter 5. Web Interface 71 Static MAC Pair Filtering The Sta…

Text truncated - open the document above for the full version.

Part Number 69143 Tsunami MP.11 Version 2.1 Antenna Installation Guide NOTICES Copyright © 2003, 2004 Proxim Corporation, Sunnyvale, CA. All rights reserved. Covered by one or more of the following U.S. patents: 5,231,634; 5,875,179; 6,006,090; 5,809,060; 6,075,812; 5,077,753. This manual and the software described herein are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Proxim Corporation. Trademarks Tsunami, Proxim, and the Proxim logo are trademarks of Proxim Corporation. All other trademarks mentioned herein are the property of their respective owners. REGULATORY INFORMATION The Tsunami outdoor antenna solution must be installed and used in strict accordance with the instructions as described in this Antenna Installation Guide. Note: Radio approvals for the Tsunami outdoor antenna solution are valid only when using the exact combination of outdoor antenna cabling components and antennas as listed in this Tsunami MP.11a Antenna Installation Guide. Using other combinations of parts and components in outdoor antenna solutions voids the radio type approval and may be in violation of local radio regulations. Proxim Corporation and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from failing to comply with these guidelines. This document provides regulatory information for the following wireless products: ▪ Tsunami MP.11a Base Station Unit, Subscriber Unit, Residential Subscriber Unit This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Proxim Corporation could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to attempt to correct the interference by one or more of the following measures: ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation between the equipment and receiver. ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ▪ Consult the dealer or an experienced radio or television technician for help. This product must be fixed/mounted on permanent structures with a separation distance of at least two meters from all persons during normal operation. Notices 2 Tsunami MP.11 Antenna Installation Guide Contents Notices...................................................................................................................................................2 Regulatory Information..........................................................................................................................2 CONTENTS..................................................................................................................................................3 Figures...................................................................................................................................................3 Tables.....................................................................................................................................................4 ABOUT THIS BOOK....................................................................................................................................5 Who Should Use This Guide.................................................................................................................5 Finding Additional Information...............................................................................................................6 About the Tsunami MP.11 ......................................................................................................................6 Safety Precautions.................................................................................................................................7 CHAPTER 1. PREPARING FOR INSTALLATION.....................................................................................8 Planning Antenna Installation................................................................................................................8 Installation Process Overview................................................................................................................8 Site Prerequisites...................................................................................................................................9 Installation..............................................................................................................................................9 Outdoor Installation..............................................................................................................................12 Before Climbing the Roof....................................................................................................................19 CHAPTER 2. DETERMINING RANGE AND CLEARANCE....................................................................20 Determining th…

Text truncated - open the document above for the full version.

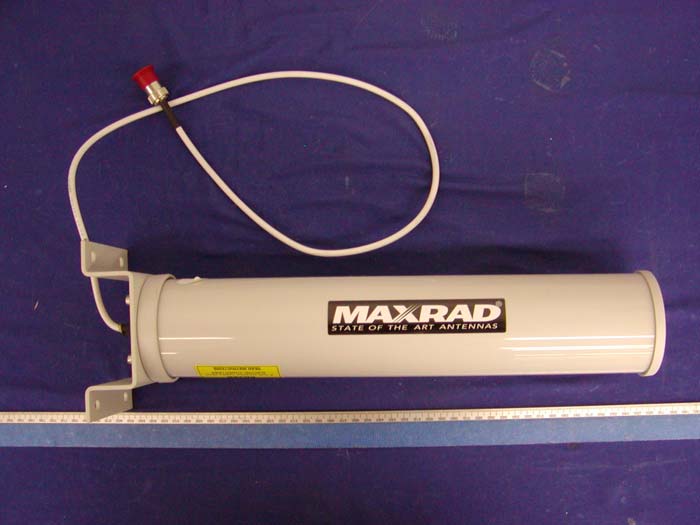

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View Antenna 2449LT Front View Antenna 2449LT Side View Antenna 2483 Antenna 2415LT Antenna 26WT-2400F Front View Antenna 26WT-2400F Side View Antenna 2443LT Antenna MA-WA24-1XP Top View Antenna MA-WA24-1XP Bottom View Antenna 523360 Antenna 583360 Antenna FPA5350D24-N Front View Antenna FPA5350D24-N Back View Antenna R0320-100 Antenna R0320-101 Antenna P3F-52 Front View Antenna P3F-52 Back View Antenna MA-WA58-1X Top View Antenna MA-WA58-1X Bottom View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Back Side of EUT / Label Location FCC ID: HZB-MP11R-ABG This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Board and Housing Main Board Component View Main Board Solder View Transceiver Board Component View Transceiver Board Solder View Transceiver Board Cover Removed View Interface Board Component View Interface Board Solder View

Note: The test report is specially limited to the use of the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.247 & 15.407 EMI MEASUREMENT AND TEST REPORT For Proxim Corporation 935 Stewart Drive, Sunnyvale, CA 94085, USA FCC ID: HZB-MP11R-ABG This Report Concerns: Original Report Equipment Type: 802.11a/b/g Wireless Access Point Test Engineer: Ming Jing / Ling Zhang Report No.: R0407141 Report Date: 2004-09-24 Reviewed By: Hang Tan Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Proxim Corporation FCC ID: HZB-MP11R-ABG Report # R0407141Rpt.doc Page 2 of 121 FCC Part 15.247 & 15.407 Test Report TABLE OF CONTENTS FCC PART 15.247 & 15.407 .........................................................................................................................................1 GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.203 - ANTENNA REQUIREMENT......................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 §15.205, §15.209(A), §15.407(B)(5), §15.407(B)(6) - SPURIOUS RADIATED EMISSION..................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................11 SPECTRUM ANALYZER SETUP....................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................12 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................12 SUMMARY OF TEST RESULTS.....................................................................................................................................12 2.4GHZ TEST DATA WITH ANTENNA 2415LT............................................................................................................19 2.4GHZ TEST DATA WITH ANTENNA Z483 ................................................................................................................23 2.4GHZ TEST DATA WITH ANTENNA 26WT-2400F...................................................................................................27 2.4GHZ TEST DATA WITH ANT…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission – with antenna 2449LT Radiated Emission – with antenna 2483 Radiated Emission – with antenna 2415LT Radiated Emission – with antenna 26WT-2400F Radiated Emission – with antenna 2443LT Radiated Emission – with antenna MA-WA24-1XP Radiated Emission – with antenna 523360 Radiated Emission – with antenna 583360 Radiated Emission – with antenna FPA5350D24-N Radiated Emission – with antenna R0320-100 Radiated Emission – with antenna R0320-101 Radiated Emission – with antenna P3F-52 Radiated Emission – with antenna MA-WA58-1X
