HZB-PROXMB92miniPCI High Power MIMO IEEE 802.11 a/b/g/n RF Module

mini PCI High Power MIMO IEEE 802.11 a/b/g/n RF Module User’s Guide NOTICE: The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice, and Proxim Wireless Corporation (Proxim) assumes no responsibility for any inaccuracies that may be contained in this document and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any updates. Proxim reserves the right to attempt to supply the best product possible. Proxim dos not represent the products described herein are free from patent infringement or from any other third party right. Subject to change without notice. PROXIM MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENT, IN NO EVENT SHALL PROXIM BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL SPECULATORY OR CONCEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSIBILITY OF SUCH DAMAGES. IN PARTICULAR PROXIM SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA TRANSMITTED OR OTHERVWISE USED WITH THE PRODUCT, INCLUDING THE COST OF REPARING, REPLACING, INTERGATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA. This document use information provided by Atheros Communications Inc. (Atheros), Atheros radio and chipsets user manuals, technical specifications, and Atheros regulatory manual. INTRODUCTION The Proxim PROXMB82 miniPCI module implements an IEEE 802.11a/b/g/n wireless LAN (WLAN) Master function. MIMO operation is implemented using three transmit and three receive chains per the 802.11n standard. The device will be marketed under brand name: PROXMB and model: PROXMB82. This module may be installed in PC and host processor systems using approved external antennas. The module may be configured for 2.4 GHz or 5 GHz operation USING THE Web Server function provided by Atheros Communications Inc. Please, refer to Atheros’ driver User Manual instructions for details. CONFIGURATION This section provide procedures for connecting and configuring the AP. Configuration can be performed either from a web browser accessing the build-in web server, or by entering commands using the command line interface (CLI). For detailed information on using the server refer to “AP Web Server and for using CLI, refer to detailed operational guide provided by Atheros for the chipset. AP Initial Configuration Configure the AP for its Service Set Identifier (SSID) unique to the application. This configuration can be done either through a web browser with access to the build-in AP web server, or by commands using the command line interface (CLI). WEB Browser 3. Select the Access Point Web Server hotlink. 4. A dialog box appears requesting login authorization. When prompted, enter the following information to log in: Login: Admin (case-sensitive) Password: 5up 5. Click OK to complete the login process. The 5 GHz Statistics window will appear. 6. Select the Configuration hotlink from the navigation menu. The system Configuration window will appear. 7. Enter the SSID (name or address) for the AP in the SSID field. The SSID must be 132 characters in length. To configure a single SSID to have more then one AP in a single SSID, specify a unique System Name for each AP within that single SSID. Note that range of available channels will be automatically determined by factory settings. Note that the radio channel is specified using the IEEE 802.11 a standard. For example, channel 48 is the equivalent of 5.240 GHz. The channel number is derived as: Channel Frequency (in MHz) – 5000 MHzChannel Number = 5MHz 1 Click Update to commit the changes. 2 After all configuration changes are complete, reboot the AP to enable them. To reboot AP, click on the REBOOT AP button that appears. For detailed information on using the server refer to “AP Web Server” and for using CLI refer to “AP Command-Line Interface” provided in Appendixes A and B of Atheros MPCI Module User’s Guide. FCC Requirements for Operation in the United States This device is restricted to indoor use only due to its operation in 5150 to 5250 MHz and 5470 to 5725 MHz frequency ranges in accordance with latest FCC regulations. Host systems using Porxim Firmware with this 802.11 a/b/g/n 3x3 MIMO nimiPCI module to be sold in the United States do not have country code settings and are factory configured to only operate on the channels allowed by the FCC. Master devices with a US SKU that contain the 802.11 a/b/g/n Radio module are limited to the following operating channels: ? 1 -11 (2412 to 2462 MHz) in the 2.4 GHz band ? 36 – 50 (5180 to 5250 MHz) in the 5150 to 5250MHz band ? 100 – 116 (5500 to 5580 MHz) and 132 – 140 (5660 to 5700 MHz) in the 5470 to 5725 MHz band ? 149 – 165 (5745 to 5825 MHz) in the 5725 to 5825 MHz band High power radars may use the 5250 to 5350 MHz and 5470 to 5725 MHz frequency ranges in your area. Such radar stations can cause interference and damage to this device. This radio module implements a radar detection function which may cause interruption of normal operation when radar signal is detected. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. RF Exposure To ensure compliance with FCC RF exposure requirements, the antennas used for this device must be installed to provide a separation distance of at least 20 cm from all persons. FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause har…

Text truncated - open the document above for the full version.

Page No. : 18 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/7/8 FCC ID: HZB-PROXMB92 Dear Reviewer, We, Sporton International Inc., are authorized by Proxim Wireless Corporation to have their state-of-the-art miniPCI High Power MIMO IEEE 802.11 a/b/g/n RF Module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR9920. 3. The requirement of power supply regulation: The part number of the power regulator is AME88052EFTZ 2.0V. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

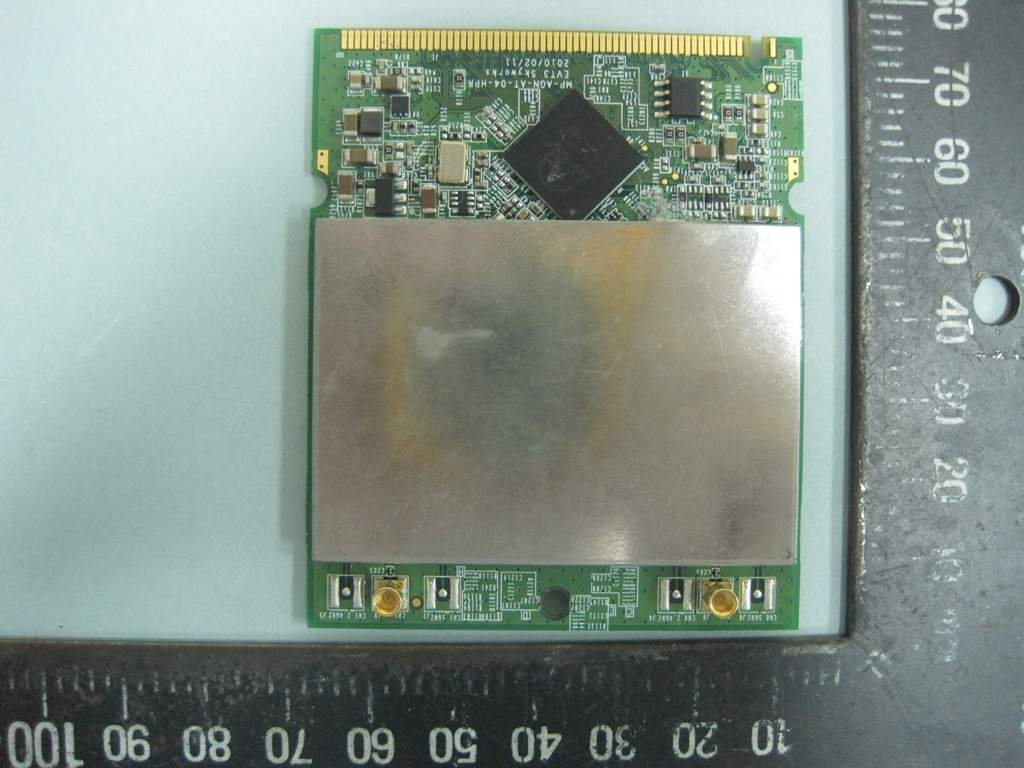

SPORTON International Inc. PAGE NUMBER : 1 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : 2 OF 3 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna Photographs of EUT SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 1 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 2 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 3 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 4 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 5 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 6 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Antenna 7 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 25, 2010 FAX : 886-2-2696-2255

Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : B1 of B5 Appendix B. Maximum Permissible Exposure Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : B2 of B5 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : B3 of B5 1.3. Calculated Result and Limit 1.4. For 5GHz Band <For Antenna 1>: ISM Band: Antenna Type : Panel Antenna Max Conducted Power for IEEE 802.11a Ant. 1-1 + Ant. 1-2 : 17.90 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 18 63.0957 17.8960 61.6030 0.773663 1 Complies <For Antenna 2>: ISM Band: Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11an MCS8 40MHz Ant. 2-1 + Ant. 2-2 : 23.30 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8 6.3096 23.3001 213.8029 0.268512 1 Complies Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : B4 of B5 <For Antenna 3>: UNII Band: Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11a Ant. 3-1 + Ant. 3-2 : 12.88 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 10 10.0000 12.8800 19.4089 0.038632 1 Complies ISM Band: Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11a Ant. 3-1 + Ant. 3-2 : 17.52 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 10 10.0000 17.5151 56.4300 0.112321 1 Complies <For Antenna 4>: UNII Band: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a Ant. 4-1 + Ant. 4-2 : 16.93 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.5 2.8184 16.9300 49.3174 0.027666 1 Complies ISM Band: Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11an MCS8 40MHz Ant. 4-1 + Ant. 4-2 : 23.30 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.5 2.8184 23.3001 213.8029 0.119940 1 Complies Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : B5 of B5 1.5. For 2.4GHz Band <For Antenna 4>: Antenna Type : Dipole Antenna Max Conducted Power for 802.11g Ant. 4-1 + Ant. 4-2 : 24.20 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 24.2007 263.0664 0.082988 1 Complies <For Antenna 5>: Antenna Type : Panel Antenna Max Conducted Power for 802.11g Ant. 5-1 + Ant. 5-2 : 23.65 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9 7.9433 23.6511 231.7995 0.366491 1 Complies <For Antenna 6>: Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11g Ant. 6-1 + Ant. 6-2 : 25.28 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9 7.9433 25.2796 337.2581 0.533228 1 Complies <For Antenna 7>: Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11g Ant. 7-1 + Ant. 7-2 : 25.23 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6 3.9811 25.2315 333.5378 0.264299 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company Proxim Wireless Corporation Applicant Address 1561 Buckeye Drive, Milpitas CA 95035 USA FCC ID HZB-PROXMB92 Manufacturer’s company Proxim Wireless Corporation Manufacturer Address 1561 Buckeye Drive, Milpitas CA 95035 USA Product Name miniPCI High Power MIMO IEEE 802.11 a/b/g/n RF Module Brand Name PROXIM Model Name PROXMB92 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date May 10, 2010 Final Test Date Jul. 15, 2010 Submission Type Original Equipment Statement Test result included is only for the 802.11n, 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR051015AB Report Format Version: 02 Page No. : i of ii FCC ID: HZB-PROXMB92 Issued Date : Jul. 16, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................7 3.3. Table for Filed Antenna.......................................................................................................................................................................8 3.4. Table for Carrier Frequencies .............................................................................................................................................................9 3.5. Table for Test Modes .........................................................................................................................................................................10 3.6. Table for Testing Locations................................................................................................................................................................12 3.7. Table for Supporting Units .................................................................................................................................................................12 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................13 3.9. Test Configurations ...........................................................................................................................................................................17 4. TEST RESULT ................................................................................................................................................... 28 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................28 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................34 4.3. Power Spectral Density Measurement ..............................................................................................................................................89 4.4. 6dB Spectrum Bandwidth Measurement ........................................................................................................................................118 4.5. Radiated Emissions Measurement ..................................................................................................................................................158 4.6. Band Edge Emissions Measurement ...............................................................................................................................................222 4.7. Antenna Requirements ...................................................................................................................................................................255 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 256 6. TEST LOCATION............................................................................................................................................ 258 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 259 APPENDIX A. TEST PHOTOS .......................................................................................................................A1 ~ A13 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................................... B1 ~B5 Report No.: FR051015AB Report Format Version: 02 Page No. : ii of ii FCC ID: HZB-PR…

Text truncated - open the document above for the full version.

Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 1 of 13 Appendix A. Test Photos Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 2 of 13 1. Photographs of Conducted Emissions Test Configuration <For Antenna 1><5GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 3 of 13 <For Antenna 5><2.4GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 4 of 13 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 5 of 13 Test Configuration: 30MHz~1GHz <For Antenna 1><5GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 6 of 13 Test Configuration: 30MHz~1GHz <For Antenna 5><2.4GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 7 of 13 Test Configuration: Above 1GHz <For Antenna 1><5GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 8 of 13 Test Configuration: Above 1GHz <For Antenna 2><5GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 9 of 13 Test Configuration: Above 1GHz <For Antenna 3><5GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 10 of 13 Test Configuration: Above 1GHz <For Antenna 4><2.4GHz / 5GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 11 of 13 Test Configuration: Above 1GHz <For Antenna 5><2.4GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 12 of 13 Test Configuration: Above 1GHz <For Antenna 6><2.4GHz>: FRONT VIEW REAR VIEW Report No.: FR051015 FCC ID: HZB-PROXMB92 Page No. : 13 of 13 Test Configuration: Above 1GHz <For Antenna 7><2.4GHz>: FRONT VIEW REAR VIEW
