INSTALLATION AND MAINTENANCE MANUAL ETHERNET BRIDGE SPREAD SPRECTRUM RADIOS (2.4 AND 5.8 GHz) INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS SEPTEMBER 1999 i Installation and Maintenance Manual Copyright © 1999 by Glenayre Western Multiplex. All rights reserved. No part of this manual may be reproduced without prior written permission from Glenayre Western Multiplex. The information contained in this manual is subject to change without notice. Glenayre Western Multiplex shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with this manual. Glenayre Western Multiplex makes no warranty of any kind with regard to this manual or any equipment supplied with this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Heliax is a registered product of Andrews Corporation. Printed in the United States of America Notice: Y2K (Year 2000 Issue) All software supplied by and for Glenayre Western Multiplex products adheres to the four- (4) digit year nomenclature as required for Year 2000 compliance. Glenayre Western Multiplex 1196 Borregas Avenue Sunnyvale, California USA Tel:+1 408 542-5200 Fax::+1 408 542-5300 Our facility has been Registered to the International Organization for Standardization ISO 9000 Series Standards for quality. Issue:September 1999 INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS SEPTEMBER 1999 ii This page intentionally left blank INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS SEPTEMBER 1999 iii Regulatory Notice This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by Glenayre Western Multiplex may void the user's authority to operate this equipment. This device complies with RSS-210 and/or RSS-139 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device must be professionally installed. INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS SEPTEMBER 1999 iv This page intentionally left blank INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS SEPTEMBER 1999 vW/CS97-1 GENERAL TERMS 1.1 All Definitions contained in Glenayre Western Multiplex's Conditions of Sale (Glenayre Western Multiplex document number CS96-8), apply to the Warranty. 1.2 Subject to the provisions of the Warranty, Glenayre Western Multiplex warrants that the equipment described in Paragraph 1.3 shall conform to their specifications described in Paragraph 1.4 in all material respects and that the equipment shall be free from material defects in materials and workmanship. 1.3 This Warranty applies to all original purchases of Glenayre Western Multiplex manufactured equipment and accessories (collectively the "Equipment"). 1.4 This Warranty applies to the specifications contained in the most recent version of the manual for the model of the Equipment purchased (the "Specifications"). 1.5 This Warranty does not apply to the following items of Equipment which are covered by the Original Equipment Manufacturer's warranty: (a) antenna systems, including coax cable, waveguide, connectors flex-sections, mounts, other parts of the antenna system and installation materials; (b) non-Glenayre Western Multiplex manufactured rack mounted equipment that is assembled wired and tested at Glenayre Western Multiplex's factory or supplied as part of a system, including orderwire items, channel banks, multiplexers, fuse/alarm panels, remote alarm items; and (c) equipment which is not listed in Glenayre Western Multiplex's price book. 1.6 The effective period of this Warranty shall start on the date of shipment of the Equipment and shall end: (a) for all spread spectrum unlicensed radio products and for all licensed digital microwave radio products, two (2) years later; (b) for all analog microwave radio products, three (3) years later; or (c) for all baseband products, five (5) years later (in each case the "Warranty Period"). 1.7 The Customer acknowledges that Glenayre Western Multiplex does not represent or warrant that the services provided by Glenayre Western Multiplex under this Warranty will ensure uninterrupted or error-free operation of the Equipment. RETURN OF EQUIPMENT UNDER WARRANTY 2.1If an item of Equipment malfunctions or fails in normal intended usage and maintenance within the applicable Warranty Period: (a) the Customer shall promptly notify Glenayre Western Multiplex of the problem and the serial number of the defective item; (b) Glenayre Western Mult…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 May 26, 2000 RE:Response to FCC Requests Correspondence Reference Numbers: 12894, 14145 FCC IDs: HZB-S24-12 Form 731 Confirmation Numbers: EA96522 Attn:Errol Chang Dear Mr. Chang: This is in response to your request 12894 and 14145 regarding the application of HZB-S24-12 product. 1. Please find in the attached the updated manual page of the product. 2. In our product manual, we recommend antennas to be used with our equipment by their size and gain. At 2.4GHz band, we recommend 2’ panel antennas and 2’-8’ parabolic antennas. The gains of these antennas range from 20dBi to 33.5dBi. As examples, we recommend to our users some typical antenna vendors now in the market, such Gabriel, Radio Wave, Andrew, CSA Wireless, etc. Though of different make, antennas of the same dimensions have very similar gains and other specifications, as indicated in the following table. Antenna Type and SizeGain (dBi) 2’ parabolic20.7 4’ parabolic27 6’ parabolic31 8’ parabolic33.5 Please find in the following table detailed information of some antennas as examples. Since there are numerous antenna manufacturers and product models in the market, this is only a partial list. However, I hope the examples shown on the following table can demonstrate the consistency of antenna specifications regardless of the make and model of the antennas. Antenna TypeManufacturerModel NumberMid-band Gain (dBi) 2 foot ParabolicGabriel ElectronicsSSP2-2320.7 3 foot ParabolicGabriel ElectronicsSSG3-23A23.9 4 foot ParabolicAndrewFP4-23D26.5 4 foot ParabolicGabriel ElectronicsSSG4-23A26.7 6 foot ParabolicAndrewFP6-23D30.4 6 foot ParabolicGabriel ElectronicsSSG6-23A30.1 8 foot ParabolicAndrewFP8-23D32.7 8 foot ParabolicGabriel ElectronicsSSG8-2332.6 1196 Borregas Ave., Sunnyvale, CA 94089-1302, USA Tel: +1 (408) 542-5200,Fax: +1 (408) 542-5300 I hope I have addressed your concerns. Please contact the undersigned should there be any further questions. Yours truly Caroline Yu International Product Manager Western Multiplex Corporation INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS FEBRUARY 2000 PAGE 3-20SECTION 3: INSTALLATION & ADJUSTMENTS 3.10Antenna Installation & Alignment The antenna installation consists of mounting the antenna on the tower, building roof, or other location that provides line-of-sight path clearance to the far-end location. In general, antennas smaller than 2 feet diameter are not recommended for urban areas due to their wider beamwidths, which results in higher interference susceptibility. For 2.4 GHz Tsunami radios, a minimum of 4 foot (1.2m) diameter antennas, or larger, are recommended. Antennas should be ordered with a suitable mounting kit specific to the site requirements. For example, specifying round or angle tower leg adapters, or a roof tripod as necessary. The antenna must be very rigidly mounted, with adequate room for azimuth and elevation adjustment. The antenna polarization must be the same at both ends of the link, either vertical or horizontal. In general, antenna mountings require a support pipe to which upper and lower support brackets are attached with “U” bolts. The antenna and optional elevation and azimuth adjustment rods are then mounted onto the support brackets. The whole structure must be adequately grounded for lightning protection. The antenna system must always be installed according to the manufacturer’s instructions. Unless special test equipment is available, two operating Tsunami terminals are required to align the antennas. Alternatively, a CW generator may be used to transmit a signal toward the end under alignment. The antenna is coarse aligned using visual sighting and then fine aligned using the receive signal level (RSL) voltage of the Tsunami. The RSL voltage reading can still be used to peak antennas even if the radios have not synchronized, however far-end RSL cannot be measured from the near-end terminal until radios are synchronized. To coarse align the antenna, first set it for flat elevation (no up or down tilt) using a spirit level. Then point it at a heading marker obtained using a compass back-bearing from an adjacent location, (ideally, 100 feet or more away from the antenna). INSTALLER CAUTION: Antennas used for this device must be fix-mounted on permanent outdoor structures to provide 5 meters or more separation from all persons during device operation to comply with FCC RF Exposure requirements. Installers should contact the manufacturer for applicable antenna gain and type restrictions to ensure compliance.

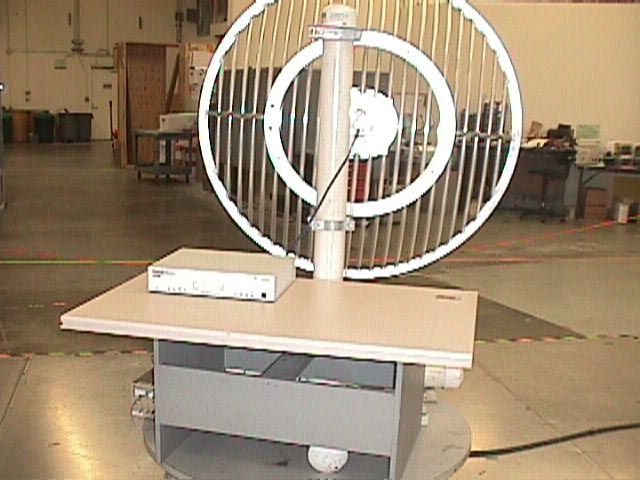

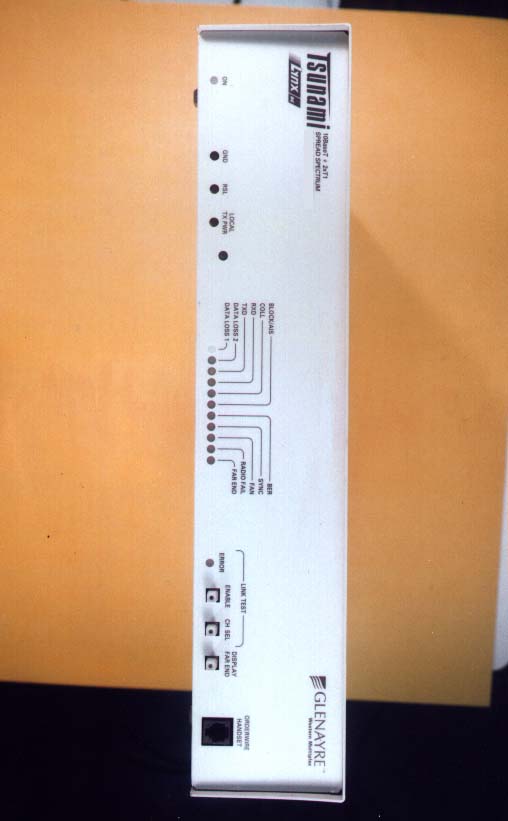

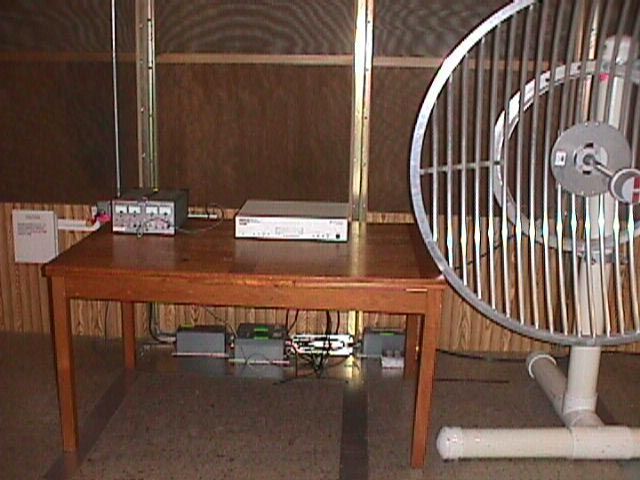

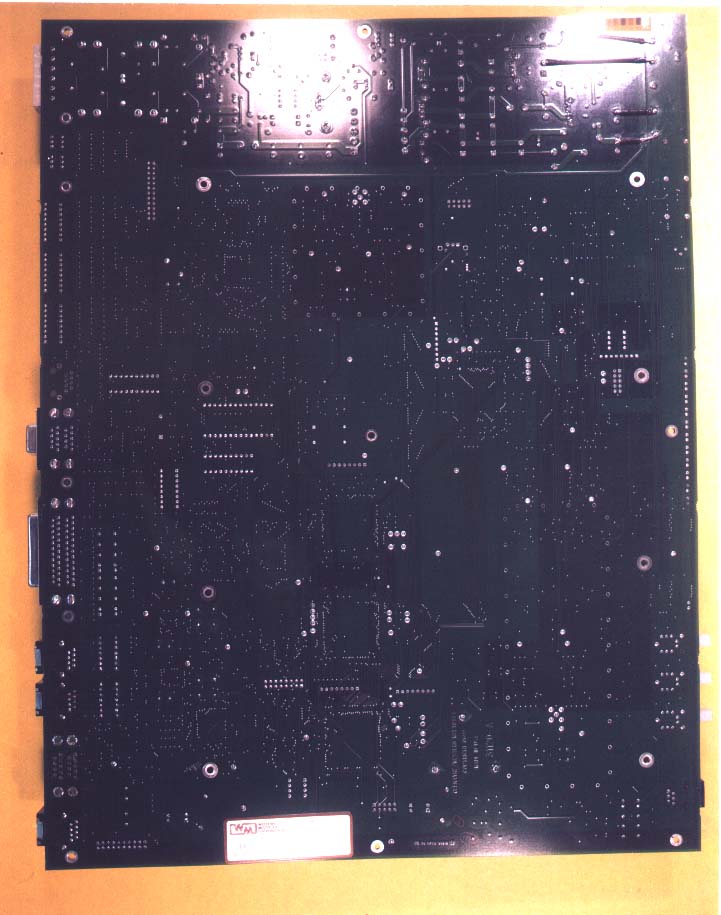

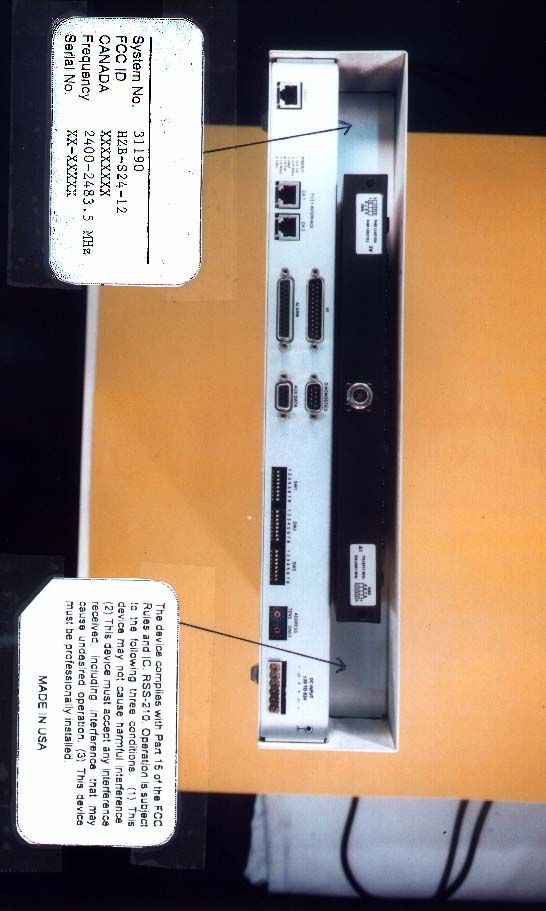

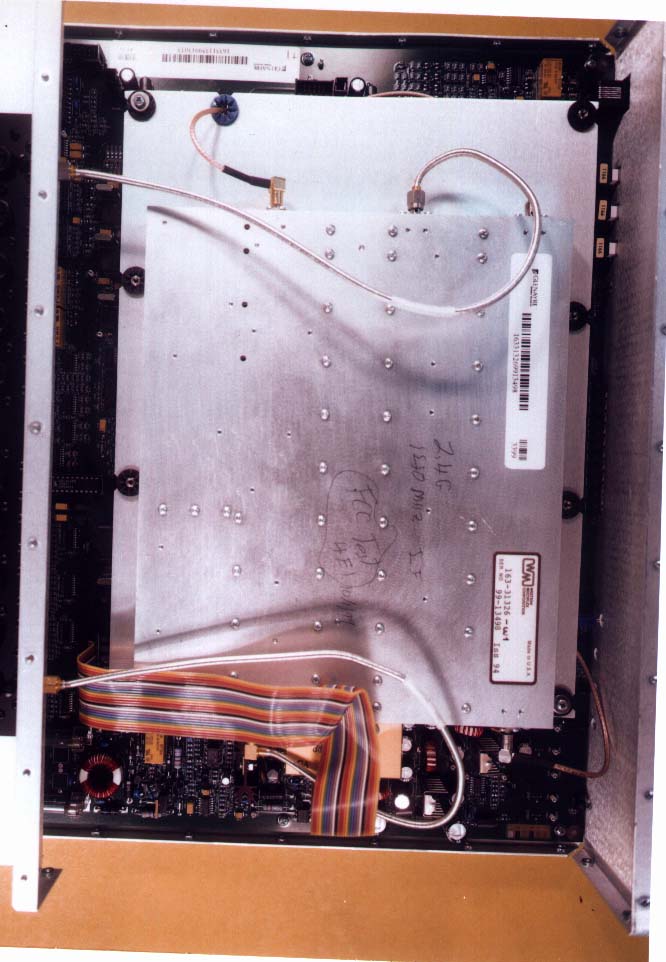

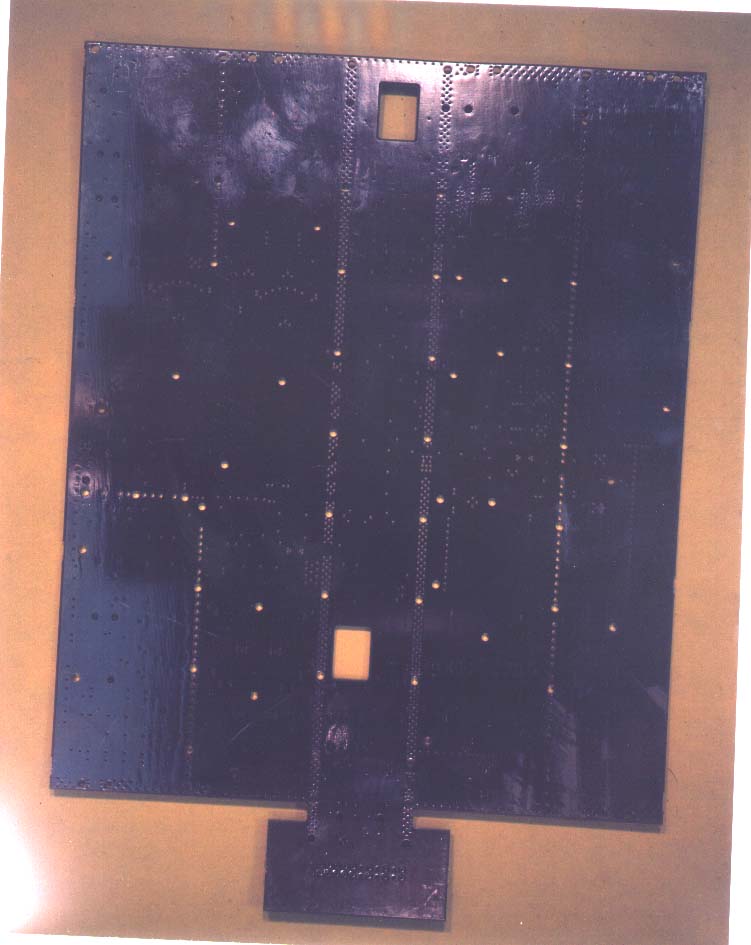

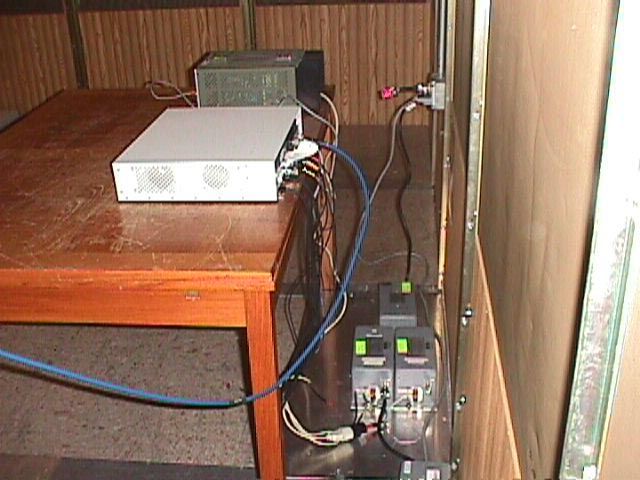

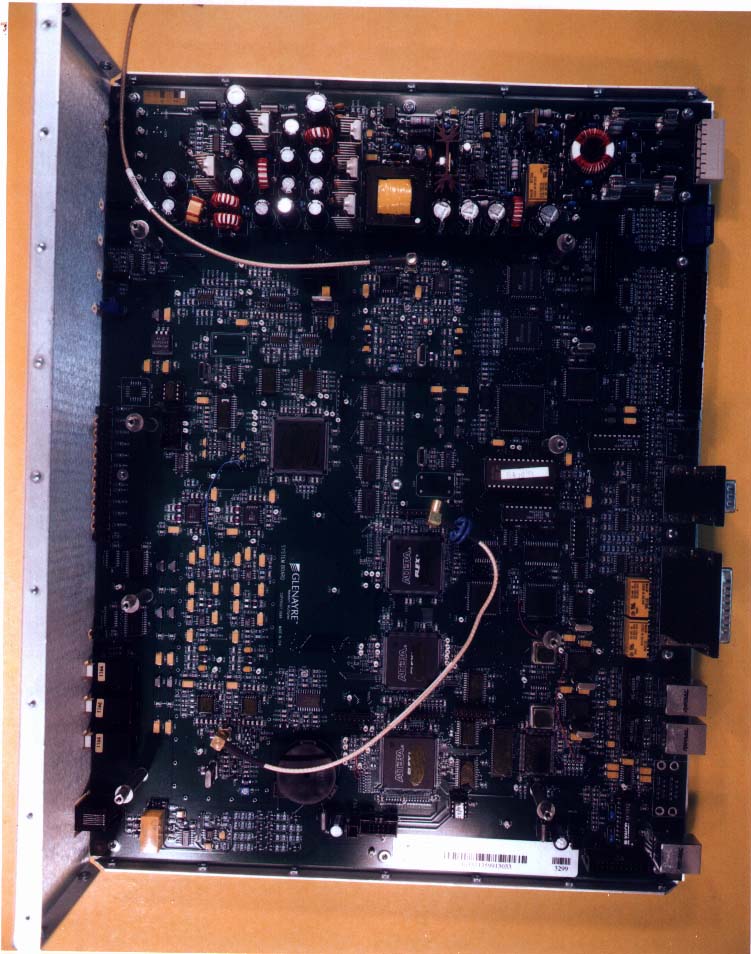

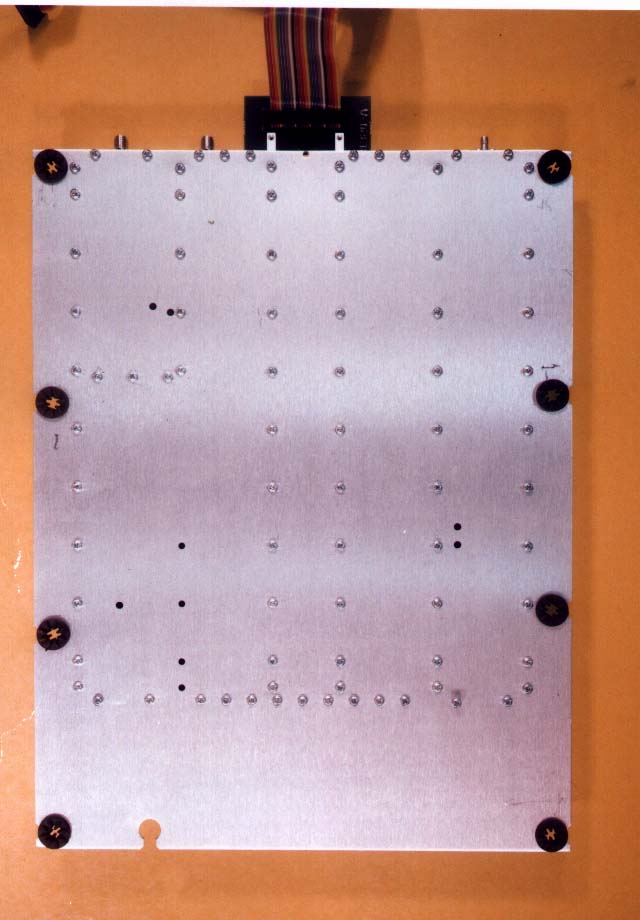

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer The HZB-S24-12 (MODEL 31190) radio is a full duty-cycle product exclusively designed for fixed-mount point-to-point applications (Please refer to Page 1-1 of the Installation and Maintenance Manual ). Each radio’s inputs are connected to external equipment through the radio’s interfaces. The RF output port is connected to a RF cable or a waveguide, which connects on the other side to an antenna usually installed on top of a building or a tower. It is impossible to use the radio in any mobile application. The HZB-S24-12 (MODEL 31190) radios need to be professionally installed outdoor either on top of a tower or a tall building. The installation sites are inaccessible to the general public. Only installation engineers may get close to the radio antenna during system installation. For the safety concern of the professional installers, we put a warning message on Page 3-20 of the product manual recommending installers stay at least 5 meters away from the antenna during system operation. The maximum output power allowed for the 2.4GHz spread spectrum radios is 1W, and the biggest antenna to be used with our 2.4GHz radios is of 8’ diameter (33.5dB gain). The worst case EIRP is when the highest gain antenna is used: Maximum EIRP = 30 + 33.5 – (33.5-6)/3 = 54.3dBm (269W); The power density at 5 meters from an antenna is: S = EIRP/4 π R 2 = 0.9 W/m 2 = 0.09 mW/cm 2 < 1 mW/cm 2 Where: S = Power density R = distance to the center of radiation of the antenna In the cases of using 4’, 6’ and 8’ parabolic antennas, the near field power density is S nf = 16 η P/ π D 2 . The worst case of near-field power density is when the radio output at 1W, η =1, and the antenna diameter D=4ft. S nf ma x = 16 x1/ π (4x0.3048) 2 = = 3.4 W/m 2 = 0.34 mW/cm 2 <1 mW/cm 2 Where: S nf = maximum near –field power density P = power fed to the antenna η = aperture efficiency D = antenna diameter So in all the above-mentioned situations, the power density is compliant with the limit for General Population/ Uncontrolled Exposure as specified in rule 1.1310. If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours tr ul y, Caroline Yu Inter natio nal Product Ma na ger Western Multiplex Corporation 1196 Borregas Ave., Sunnyvale, CA 94089-1302, USA Tel: +1 (408) 542-5200,Fax: +1 (408) 542-5300
