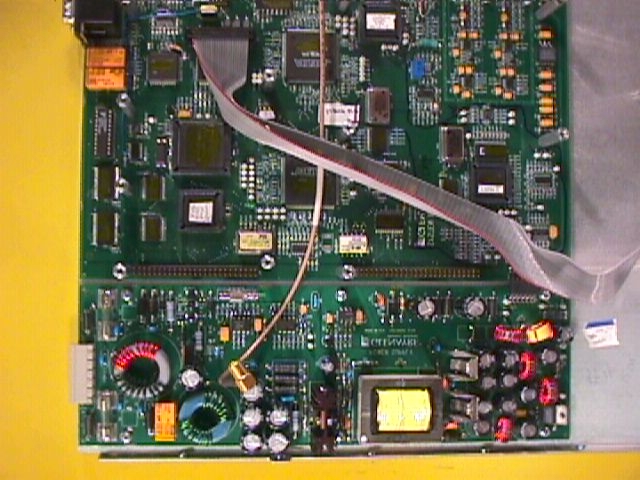

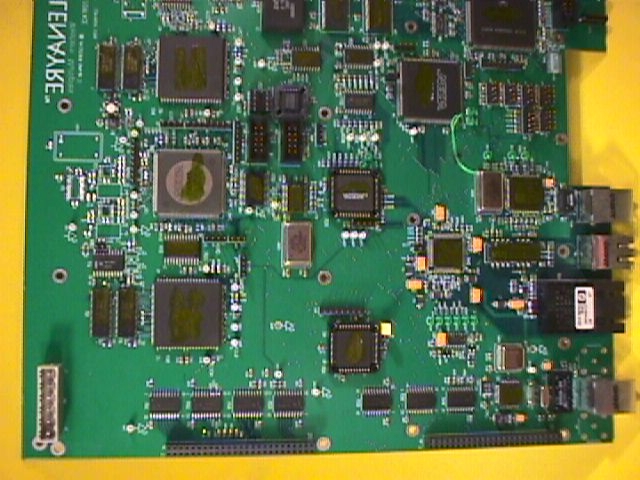

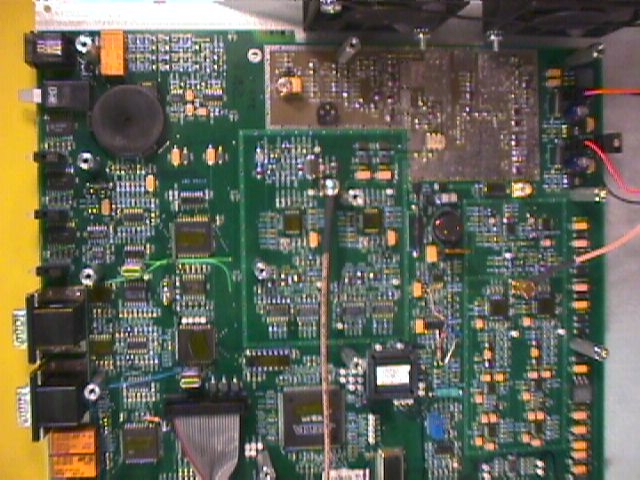

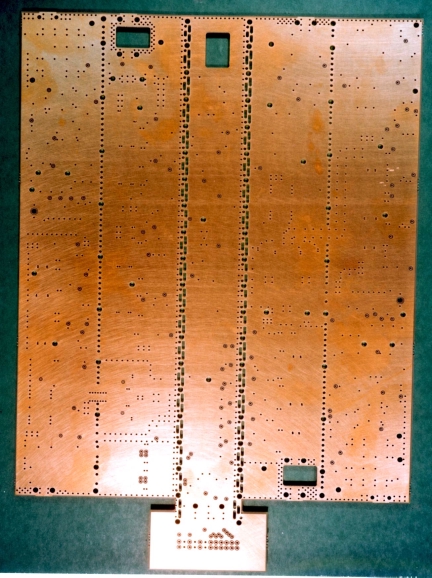

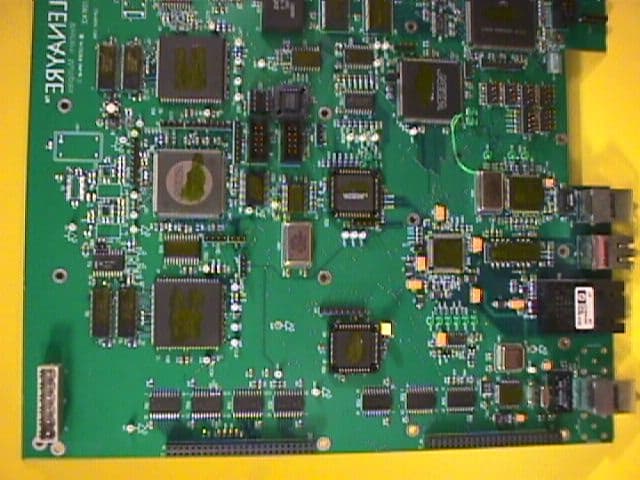

HZB-U5358-100U-NII Radio

INSTALLATION AND MAINTENANCE MANUAL WIRELESS FAST ETHERNET BRIDGES (5.3/5.8 and 5.8 GHz, UNII/LE-LAN) INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY FAST ETHERNET W IRELESS BRIDGES FEBRUARY 2000 i Installation and Maintenance Manual Copyright © 1999 & 2000 by Western Multiplex. All rights reserved. No part of this manual may be reproduced without prior written permission from Western Multiplex. The information contained in this manual is subject to change without notice. Western Multiplex shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with this manual. Western Multiplex makes no warranty of any kind with regard to this manual or any equipment supplied with this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Heliax  is a registered product of Andrews Corporation. OpenView  is a registered product of Hewlett Packard Corporation. Printed in the United States of America Notice: Y2K (Year 2000 Issue) All software supplied by and for Western Multiplex products adheres to the four-(4) digit year nomenclature as required for Year 2000 compliance. Western Multiplex 1196 Borregas Avenue Sunnyvale, California USA Tel:+1 408 542-5200 Fax:: +1 408 542-5300 Our facility has been Registered to the International Organization for Standardization ISO 9000 Series Standards for quality. Issue: February 2000 INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS FEBRUARY 2000 ii This page intentionally left blank INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY FAST ETHERNET W IRELESS BRIDGES FEBRUARY 2000 iii Regulatory Notice This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by Western Multiplex may void the user's authority to operate this equipment. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device must be professionally installed. INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY SPREAD SPECTRUM RADIOS FEBRUARY 2000 iv This page intentionally left blank INSTALLATION AND MAINTENANCE MANUAL Tsunami FAMILY FAST ETHERNET W IRELESS BRIDGES FEBRUARY 2000 v W/CS97-1 GENERAL TERMS 1.1 All Definitions contained in W estern Multiplex's Conditions of Sale (W estern Multiplex document number CS96-8), apply to the W arranty. 1.2 Subject to the provisions of the W arranty, W estern Multiplex warrants that the equipment described in Paragraph 1.3 shall conform to their specifications described in Paragraph 1.4 in all material respects and that the equipment shall be free from material defects in materials and workmanship. 1.3 This W arranty applies to all original purchases of W estern Multiplex manufactured equipment and accessories (collectively the "Equipment"). 1.4 This W arranty applies to the specifications contained in the most recent version of the manual for the model of the Equipment purchased (the "Specifications"). 1.5 This W arranty does not apply to the following items of Equipment which are covered by the Original Equipment Manufacturer's warranty: (a) antenna systems, including coax cable, waveguide, connectors flex-sections, mounts, other parts of the antenna system and installation materials; (b) non-W estern Multiplex manufactured rack mounted equipment that is assembled wired and tested at W estern Multiplex's factory or supplied as part of a system, including orderwire items, channel banks, multiplexers, fuse/alarm panels, remote alarm items; and (c) equipment which is not listed in W estern Multiplex's price book. 1.6 The effective period of this W arranty shall start on the date of shipment of the Equipment and shall end: (a) for all spread spectrum unlicensed radio products and for all licensed digital microwave radio products, two (2) years later; (b) for all analog microwave radio products, three (3) years later; or (c) for all baseband products, five (5) years later (in each case the "W arranty Period"). 1.7 The Customer acknowledges that W estern Multiplex does not represent or warrant that the services provided by W estern Multiplex under this W arranty will ensure uninterrupted or error- free operation of the Equipment. RETURN OF EQUIPMENT UNDER WARRANTY 2.1If an item of Equipment malfunctions or fails in normal intended usage and maintenance within the applicable W arranty Period: (a) the Customer shall promptly notify W estern Multiplex of the problem and the serial number of the defective item; (b) W estern Multiplex shall, at its sole option, either resolve th…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 July 27, 2000 RE:Response to FCC Requests Correspondence Reference Numbers: 14814 FCC IDs: HZB-U5358-100 Form 731 Confirmation Numbers: EA97698 Attn:Joe Dichoso Dear Mr. Dichoso: This is in response to your request 14814. 1. Please find separately uploaded product schematics. There must have been a technical problem somewhere when the application materials were submitted at the beginning. 2. Please find in attachment 1 additional plot showing compliance of the HZB-U5358-100 equipment to 15.407 a (6). 3. The HZB-U5358-100 radio was designed with networking capability, which demands the radio to carry networking traffic (polling, reporting) on a constant basis. Therefore, the radio is designed to transmit all the time (when operational). We designed the product in such a way that whenever a radio hardware failure is detected, the system firmware turns off the radio transmitter. 4. Please find in the attachment 2 a list of antennas we recommend to be used with the HZB-U5358-100 product. Since there are numerous antenna manufacturers and product models in the market, it is only a partial list but is representative of all the types of antennas that will be used. We have also included instructions in our manual on how to correctly calculate the transmit power to comply with the EIRP limits. In the original submission, the antenna list we used was what we used in our previous application, which is of the 5.725-5.825GHz band only. With a higher EIRP limit set for the 5.725-5.825 GHz band, there is a chance of using 8’ antennas. With the HZB-U5358-100 product however, since it transmits and receives through the same antenna, at both 5.25-5.35GHz and 5.725-5.825GHz bands, the antenna gain will not go as high as 41dB, even when there are considerable RF cable losses. The product test report shows under the tested condition of Pout=23dBm, the equipment can transmit up to the EIRP limit of 30dBm at 5.25-5.35 GHz. At 5.725-5.825 GHz, under the tested condition of Pout = 22 dBm, the equipment can transmit at 52.9 dBm EIRP. (The maximum EIRP for the equipment is derived from the lesser of EIRP limit set for the band and the sum of Pout, the maximum allowable antenna gain without reducing output power and power density limits, and the tested PSD compliance margin). When a higher gain antenna is used, the equipment output power will be reduced 1196 Borregas Ave., Sunnyvale, CA 94089-1302, USA Tel: +1 (408) 542-5200,Fax: +1 (408) 542-5300 in accordance with the transmit power adjustment instruction we provide in the product manual (refer to attachment 2 of this response). With the reduction of transmit power, the power density will be reduced on a dB for dB basis. Therefore, even though a higher gain antenna may result in lower power and power density limits , the compliance situation does not change. That is why we did not give a calculation on each antenna size to show compliance. The following paragraph gives a more detailed analysis. From Page 6 and 8 of the test report, it can be seen that the tested output power of the equipment is 23dBm (5.25-5.35 GHz) and 22dBm (5.725-5.825 GHz); the PSD is 9.6 dBm/MHz (5.25-5.35 GHz) and 9.1 dBm/MHz (5.725-5.825 GHz). When the equipment is used with an antenna less than 6dBi/23dBi in gain at 5.25-5.35/5.725-5.825 GHz band, the peak output power and PDS are obviously in compliance with the rule. When a higher gain antenna is used, for every additional dB higher than 6dBi at 5.250-5.350 GHz and 23dBi at 5.725-5.825 GHz, the output power will need to be reduced on a dB for dB basis from 24dBm/30dBm, and the PSD limits are reduced on a dB for dB basis from 11/17 dBm/MHz.. For example, when a 7dBi antenna is used for the 5.25-5.35 GHz band, the output power limit is 23dBm and the PDS limit is 10 dBm/MHz; when a 31dBi antenna is used for the 5.725- 5.825 GHz band, the output power limit is 22 dBm and the PDS limit is 9 dBm/MHz. Since the actual PSD of the product is 0.1dB higher than the limit, the output power needs to be reduced by 0.1dB to 21.9dBm so that the PDS will go down by 0.1dB. This makes the overall EIRP limit for the 5.725- 5.825 band 52.9 dBm. When antennas of even higher gains need to be used, the output power will have to be reduced from 23dBm (5.25-5.35 GHz) and 21.9dBm (5..725-5.825 GHz) for every dB exceeding 7dBi (5.25-5.35GHz) and 31dBi (5.725-5.825 GHz). When the output power is reduced, the PDS is reduced on a dB for dB basis as a result. Therefore, as long as the EIRP limits are observed, the peak output and PDS of the equipment are always in compliance with the rules. 5. In a previous submission of a U-NII device, Greg Czumak provided a peak power density testing procedure and he gave us specific measuring instructions (on a recorded voice message). We provided the test instructions to ITS and they did the in-band power density test in accordance to this instruction. ITS did the out of band conducted emission tests using the same principle so that parallels could be drawn. The testing is done from conducted measurements when the equipment transmits at the maximum transmit power. The margin indicates the allowable antenna gain under the maximum output power. As long as the equipment operates within the tested output power plus the allowable antenna gain (when radio transmit power is reduced from maximum, the allowable antenna gain will increase on the same scale), the out of band emission EIRP limit is met. Please refer to page 10 of test report. 6. Please refer to response 4. We will include the information in the manual. Yours truly Caroline Yu International Product Manager Western Multiplex Corporation Attachment 2 Antenna TypeManufacturerModel NumberMid-band Gain (dBi)Notes 1 Foot Flat PanelGabrielDFPD1-5223.5 AndrewFPA5250D12-N23.6 2 Foot Flat PanelGabrielDFPD2-5228 AndrewFPA5250D24-N28.2 2 Foot ParabolicGabrielSSP2-52B28.5 Gabr…
