WESTERN MULTIPLEX CORPORATION Installation and Maintenance Manual Multipoint MAN 40000-001d1 TSUNAMI MULTIPOINT iiii Revisions: September 2001 Draft October FCC submittal WESTERN MULTIPLEX CORPORATION Tsunami Point-to-Multipoint  2001 Western Multiplex Corporation 1196 Borregas Avenue Sunnyvale, California 94089 USA Phone +1 408 542 5200 • Fax +1 408 542 5300 http://www.wmux.com ftp://ftp.wmux.com/products/ ii Table of Contents 1. INTRODUCTION............................................................................................................................1-1 PRODUCT HIGHLIGHTS.........................................................................................................................1-2 KEY FEATURES....................................................................................................................................1-3 HOW TO USE THIS MANUAL.......................................................................................................................1-3 SAFETY INSTRUCTIONS...............................................................................................................................1-4 2. SYSTEM OVERVIEW.....................................................................................................................2-1 SITE PLANNING CONSIDERATIONS...............................................................................................................2-2 General Considerations..........................................................................................................................2-2 Weather................................................................................................................................................2-3 Antennas...............................................................................................................................................2-5 Path Planning........................................................................................................................................2-6 WIRELESS: FREQUENTLY ASKED QUESTIONS................................................ERROR! BOOKMARK NOT DEFINED. 3. QUICK SET-UP PROCEDURE........................................................................................................3-1 Important Configuration Notes................................................................................................................3-1 Unpacking the System.............................................................................................................................3-1 SOFTWARE INSTALLATION..........................................................................................................................3-4 HUB SITE EQUIPMENT CONFIGURATION (BSU).............................................................................................3-5 SUBSCRIBER UNIT CONFIGURATION.............................................................................................................3-8 Mechanical Considerations – Mounting Units...........................................................................................3-9 4. SPECIFICATIONS........................................................................................................................4-11 SYSTEM..............................................................................................................................................4-11 STANDARDS COMPL LANCE AND INTERFACES................................................................................4-12 CONFIGURATION AND MANAGEMENT.............................................................................................4-12 POWER /ENVIRONMENT /SAFETY......................................................................................................4-12 PHYSICAL DIMENSIONS....................................................................................................................4-13 MOUNTING (INSTALLATION).............................................................................................................4-13 TSUNAMI MULTIPOINT ii Figures FIGURE 1-1-1: PROPER EARTHING/GROUNDING................................................................................................1-5 FIGURE 2-2-1: EACH HUB IS MADE UP OF ONE TO SIX BASE STATIONS AND MULTIPLE REMOTES(SUS)...................2-1 FIGURE 3-3-1: SUBSCRIBER UNIT....................................................................................................................3-3 FIGURE 3-2 SUBSCRIBER ODU...................................................................................................................3-9 FIGURE 3-3: BASE STATION ODU.................................................................................................................3-10 TSUNAMI MULTIPOINT 1-1 1. Introduction sunami Multipoint is a point-to-multipoint outdoor wireless system offering a high-capacity alternative to wired data networks. Using IP packet radio transmitters, standard Ethernet interfaces, and an easy to-deploy design, the Tsunami Multipoint system enables high-speed network connections to multiple Ethernet switches, routers or PCs from a single location. With Tsunami Multipoint, you can now avoid the delays and costs associated with wired connections such as DSL, cable modems, and leased T I /E I lines. Tsunami Multipoint eliminates wire/fiber installation costs and recurring monthly fees - delivering carrier-class performance at an affordable price. Tsunami Multipoint systems consist of one or more Subscriber Units that communicate with a Base Station to provide high-performance wireless network connections. EXTEND OR ENHANCE YOUR NETWORK OVERNIGHT With Tsunami Multipoint, there are no DSL, cable, or leased-line hassles to negotiate. You no longer have to worry about man-made barriers to overcome. Easy installation and operation allow network planners to quickly deploy up to 60 Mbps capacity between locations, …

Text truncated - open the document above for the full version.

October 26, 2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, the undersigned, hereby authorize Intertek Testing Services to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Intertek Testing Services on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the applications authorized hereunder is subject to a denial of benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a). This agreement expires one year from the current date. Caroline Yu Homologation Product Manager Western Multiplex Corporation 1196 Borregas Ave., Sunnyvale, CA 94089-1302, USA Tel: +1 (408) 542-5200, Fax: +1 (408) 542-5300

October 31, 2001 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Western Multiplex, Tsunami (UNII) Radio Request for withholding from public disclosure proprietary information submitted pursuant to an application for certification of a UNII band radio. FCC ID: HZB-U58-B60 Dear Sir or Madam: Western Multiplex Corporation requests that certain materials submitted with this application for certification of the Tsunami (UNII) radio be withheld from public disclosure. This request is made under the provision of Section 0.457 (d) of the Commission’s Rule and Section 552 (b) (4) of the Freedom of Information Act, Trade Secrets. The items marked “Confidential” contain detailed block diagrams, schematic diagrams, antenna design specifications, a parts list and a detailed theory of operation submitted to the FCC for review with this application. The information contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture), which are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerable more time to assess and develop a workable competitive product. As a result, we believe that disclosure of these company guarded materials would compromise our leading position in this market. We therefore formally request that the materials marked “Confidential” be kept strictly confidential and not made available for inspection by any other party, except on a need to know basis for the sole purpose of the certification process. Caroline Yu Homologation Product Manager Western Multiplex Corp. 1196 Borregas Ave., Sunnyvale, CA 94089-1302, USA Tel: +1 (408) 542-5200, Fax: +1 (408) 542-5300

Assembly Assembly Assembly Assembly Assembly Digital Board Digital Board RF Board RF Board RF Board RF Board RF Board GPS Receiver Board GPS Receiver Board

Attention: Reviewing Engineer The HZB-U58-B60 radio is designed for fixed-mount point-to-multipoint applications. The device is integrated to an array antenna with maximum gain of 19dBi. The maximum EIRP for the HZB-U58-B60 as defined in FCC 15.407 is +36 dBm. For the worst case EIRP of +36dBm, the power density at 1.5 meters from an antenna is: S = EIRP/4πR 2 =0.142 W/m 2 =0.014 mW/cm 2 < 1 mW/cm 2 Where: S = Power density R = distance to the center of radiation of the antenna Therefore, the power density is compliant with the limit for General Population/ Uncontrolled Exposure as specified in rule 1.1310. If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours truly, Caroline Yu Homologation Product Manager Western Multiplex Corporation 1196 Borregas Ave., Sunnyvale, CA 94089-1302, USA Tel: +1 (408) 542-5200, Fax: +1 (408) 542-5300

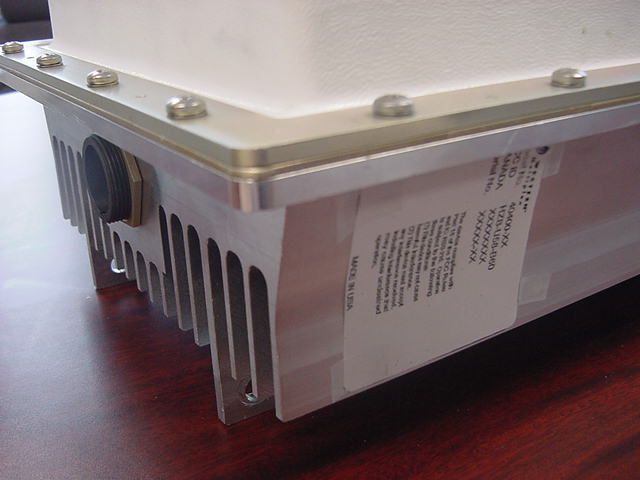

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 1 of 17 Rev.No 1.1 (30 October 2001) EMC EMISSION - TEST REPORT UNITED STATES STANDARD 47 CFR PART 15, SUBPART E Test Report File No. : SC106727-06 Date of Issue: Revision Date: 11 October 2001 30 October 2001 (Rev. 1.1) Model / Serial No. : 40400-XX 1 / ENGR UNIT #1 Product Type : UNII Radio FCC ID: HZB-U58-B60 Applicant : WESTERN MULTIPLEX CORPORATION Manufacturer : WESTERN MULTIPLEX CORPORATION License holder : WESTERN MULTIPLEX CORPORATION Address : 1196 Borregas Avenue : Sunnyvale, CA 94089 Test Result : nn Positive 2 oo Negative Test Project Number Reference(s) : SC106727-06 Total pages - Test Report : 157 1 40400-25 (20 megabytes) and 40400-65 (20 to 60 megabytes) 2 See General Remarks. NOTE: All test equipment used during testing is calibrated and traceable to NIST. TÜV Product Service reports apply only to the specific sample tested under stated test conditions. It is the manufacturer’s responsibility to assure the continued compliance of production units of this model. TÜV Product Service, Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service, Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service, Inc. and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 2 of 17 Rev.No 1.1 (30 October 2001) DIRECTORY - EMISSIONS Test Report Pages Test Report 1 - 17 Directory 2 Test Regulations 3 General Remarks and Summary 17 Equipment 15.407 (a) Output Power 5 15.407 (a) 26 dB Bandwidth 6 15.407 (a) (5) Power Density 7 15.407 (a) (6) The Ratio of the Peak Excursion of the Modulation Envelope to the Peak Transmit Power 8 15.407 (b) Out of Band Antenna Conducted Emission 9 15.407 (b) Band Edge Antenna Conducted Emission 10 15.205 Radiated Emission in Restricted Bands 11 15.207 AC Conducted Emission 12 15.209 Radiated Emission from Digital Part 13 15.209 Radiated Emission from Receiver L.O. 14 15.407 (c) Automatically Discontinue Transmission 15 Technical Documentation Test Data Sheets and Test Setup Drawing(s) TD1 Appendices Appendix A - Test Setups (Photographs) A1 Appendix B - Product Information Form(s) B1 Appendix C - Change History C1 Appendix D - Supplemental Information D1 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 3 of 17 Rev.No 1.1 (30 October 2001) EMISSIONS TEST REGULATIONS : The emissions tests were performed according to the following regulations: o - EN 50081-1 / 1991 o - EN 55011 / 1998 o - Group 1 o - Group 2 o - Class A o - Class B o - EN 55014 / 1993 o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55022 / 1987 o - Class A o - Class B o - EN 55022 / 1998 o - Class A o - Class B o - VCCI o - Class A ITE o - Class B ITE n - 47 CFR Part 15, Subpart E n - 15.407 (a) n - 15.407 (a) (5) n - 15.407 (a) (6) n - 15.407 (b) n - 15.205 n - 15.207 n - 15.209 n - 15.407 (c) o - AS/NZS 3548: 1995 o - Class A o - Class B o - CISPR 11 (1997) o - Group 1 o - Group 2 o - Class A o - Class B o - CISPR 22 (1997) o - Class A o - Class B TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 4 of 17 Rev.No 1.1 (30 October 2001) Environmental Conditions In The Laboratory: Actual Temperature: : 23 °C Relative Humidity: : 50 % Atmospheric Pressure: : 100.0 kPa Power Supply Utilized: Power supply system : 115 V / 60 Hz / 1φ Symbol Definitions: n - Applicable o - Not Applicable TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 5 of 17 Rev.No 1.1 (30 October 2001) Emissions Test Conditions: Output Power The EMISSIONS measurements were performed at the following test location: o - Test not applicable n - SR-3, Shielded Room, 12’ x 20’ x 8’, Metal Chamber Test Equipment Used : Model No. Prop. No. Description Manufacturer Serial No. Cal Due Date HP8900D 802 Peak Power Meter Hewlett Packard 3607U00653 04/02 Result : n - Pass o - Fail Remarks: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 6 of 17 Rev.No 1.1 (30 October 2001) Emissions Test Conditions: 26 dB Bandwidth The EMISSIONS measurements were performed at the following test location: o - Test not applicable n - Western Multiplex Test Facility Test Equipment Used : Model No. Prop. No. Description Manufacturer Serial No. Cal Due Date E4404B -- Agilent Spectrum Analyzer ESA-E Series 9kHz-6.7GHz Agilent Technologies US41191299 06/02 Result : n - Pass o - Fail Remarks: Tested at customer’s test facility. For calculation purpose. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page 7 of 17 Rev.No 1.1 (30 October 2001) Emissions Test Conditions: Power Density The EMISSIONS measurements were performed at the following test location: o - Test not applicable n - Western Multiplex Test Facility Test Equipment Used : Model No. Prop. No. Description Manufacturer Serial No. Cal Due Date E4404B -- Agilent Spectrum Analyzer ESA-E Series 9kHz-6.7GHz Agilent Technologies US41191299 06/02 Result : n - Pass o - Fail Remarks: Tested at customer’s test facility. TÜV PRODUCT SERVICE 10040 Mesa Rim Ro…

Text truncated - open the document above for the full version.

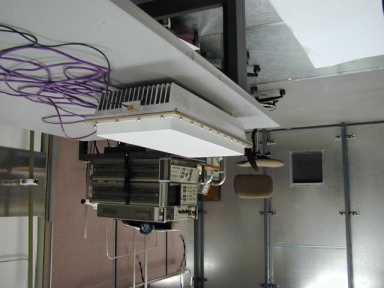

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A1 of A14 Rev.No 1.1 (30 October 2001) Appendix A Test Setups (Photographs) NOTE: All photographs are representative of setup for maximum emissions. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A2 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Output Power and The Ratio of the Peak Excursion of the Modulation Envelope to the Peak Transmit Power TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A3 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: 26 dB Bandwidth Photograph not available. SeeTechnical Documentation, page TD112 for test setup. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A4 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Power Density Photograph not available. SeeTechnical Documentation, page TD112 for test setup. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A5 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Out of Band Antenna Conducted Emissions TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A6 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Out of Band Antenna Conducted Emissions TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A7 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Band Edge Antenna Conducted Emissions Photograph not available. SeeTechnical Documentation, page TD112 for test setup. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A8 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Radiated Emission in Restricted Bands and Radiated Emission from Receiver L.O. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A9 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Radiated Emission in Restricted Bands and Radiated Emission from Receiver L.O. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A10 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Radiated Emission in Restricted Bands TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A11 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: AC Conducted Emission TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A12 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: AC Conducted Emission TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A13 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Radiated Emission from Digital Part TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page A14 of A14 Rev.No 1.1 (30 October 2001) Photograph of Test Setup: Radiated Emission from Digital Part TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page B1 of B5 Rev.No 1.1 (30 October 2001) Appendix B Product Information Form(s) TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page B2 of B5 Rev.No 1.1 (30 October 2001) General Equipment Description -- NOTE: This information will be input into your test report as shown below. EUT Description: Point-to-multipoint Base Station for 5.8 GHz U-NII EUT Name: UNII Radio FCC ID: HZB-U58-B60 Model No.: 40500 Serial No.: ENGR UNIT #1 Product Options: mdl 40400-65: 20, 30, 40, & 60Mbps; mdl 40400-25: 20Mbps only Configurations to be tested: mdl 40400-25, 40400-65: 20, 30, 40, & 60 Mbps Power Requirements Regulations require testing to be performed at typical power ratings in the countries of intended use. (i.e., European power is typically 230 VAC 50 Hz or 400 VAC 50 Hz, single and three phase, respectively) Voltage: 120 VAC (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: 1 Current (Amps/phase(max)): 2.5 Current (Amps/phase(nominal)): 1 Other: -- Other Special Requirements -- Typical Installation and/or Operating Environment (ie. Hospital, Small Business, Industrial/Factory, etc.) Small business EUT Power Cable Permanent OR n Removable Length (in meters): 1 to 100m Shielded OR n Unshielded Not Applicable TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC106727-06 Page B3 of B5 Rev.No 1.1 (30 October 2001) EUT Interface Ports and Cables Interface Shielding Type Type Termination Connector Type Port Termination EXAMPLE: RS232 o n 2 n o Foil over braid Coaxial Metallized 9- pin D-Sub Characteristic Impedance 6 n o Cat5 UTP n n 1 n -- Crimp RJ-45 Cat-5 0 n EUT Software. Revision Level: 4.6 Description: Software can be manually configured by an external computer to use the desired frequency channel and modulation mode (QPSK, 8QAM, or 16QAM). EUT Operating Modes to be Tested -- list the operating modes to be used during test. It is recommended the equipment be tested while operating in a typical operation mode. FCC testing of personal computers and/or peripherals requires that a simple program generate a complete line of upper case H’s. Provide a general des…

Text truncated - open the document above for the full version.

Appendix E This Appendix contains additional plots intended to show compliance with the out-of- band emission requirements in the band from highest band-edge frequency (for channels 0, 2, and 5) to 6 GHz.

Western Multiplex Confidential 15.407(c) Compliance Sept. 17, 2001 page 1 Compliance to 15.407(c) HZB-U58-B60 The HZB-U58-B60 operates in a point-to-multipoint network, and only transmits under the following conditions: a) The base station has received information at its Ethernet interface that is addressed to a destination accessible through a subscriber unit. In the absence of information bearing data, the base station will continue to periodically transmit synchronization bursts. b) The base station will periodically “poll” the subscriber units by transmitting a polling command in a broadcast network control message. This is required to maintain inbound synchronization and power control for each subscriber unit. c) The Control Processor in the base station only enables dc power to the transmitter circuitry if the following operational conditions are met: (i) The frequency synthesizers are locked. (ii) The transmitter output power is below its allowable limit, as determined by coupling and detecting the output RF signal and comparing the detector output with a calibrated threshold. (iii) The transmitter power-control attenuators are operating within their expected range. (iv) The Control Processor is responding to interrupts as expected (checked by a watchdog timeout). (v) The modem, data buffer, and Ethernet interface is processing data without checksum or synchronization errors. Therefore, it is shown that the base station will automatically discontinue transmission in the absence of information to transmit or operational failure to ensure compliance with 15.407(c). Western Multiplex Confidential 15.407(g) Compliance Sept. 17, 2001 page 1 Compliance to 15.407(g) Base Station (Model 40400/40500) Tsunami Multipoint Emissions of the Tsunami Multipoint base station will be maintained within the band under all conditions of normal operation under the worst case of frequency shift. As described in the theory of operations document, the frequency of the RF signal is completely determined by a single reference oscillator of 20.75MHz frequency. Two vendors have been approved to supply the reference oscillator, part #690-00427-02, and the frequency-stability characteristics of each vendor’s part are shown in the following table. Data sheets are attached for reference. Frequency-Stability Characteristics of Reference Oscillator (p/n 690-00427-02) Characteristic Vectron [email protected] Type OCXO Initial Calibration ±0.1 ppm Stability vs.Temperature (-33°C to +70°C) ±0.01 Stability vs. Supply Voltage ±0.001 Aging (10 years) ±0.5 Total: ±0.611 ppm The worst-case stability is ±0.6 ppm, or ±3.5 kHz, over all operating conditions. This is sufficient to maintain the emissions within the allowable band; the supporting reasoning for this claim is as follows: a) The lowest channel center frequency is 5740.40MHz, with a maximum 26dBc bandwidth of 26MHz. The margin from the lower band edge of 5.725GHz to the lower 26dBc point is 2.4MHz. This margin is greater than the maximum oscillator error of 3.5kHz. b) The highest channel center frequency is 5809.57MHz, with a maximum 26dBc bandwidth of 26MHz. The margin from the upper band edge of 5.825GHz to the upper 26dBc point is 2.43MHz. This margin is also greater than the maximum oscillator error of 3.5kHz. Therefore, it is determined that the frequency-determining components offer superior stability to ensure compliance with 15.407(g). VI N ORWALK , CT USA CO738 SERIES FSCM 27802 Specification Control Drawing No. 738Y5244 Page 1 Revision A Temperature stability: ±1 x 10 -8 over -30°C to +70°C Aging: 1 x 10 -9 /day, 1 x 10 -7 /year, 5 x 10 -7 / 10 years Frequency vs. supply: 1 x 10 -9 /percent Short-term: 5 x 10 -11 /second (Allan Variance) Output: +5dBm Min; +10dBm Max (50Ω load) Harmonics -20 dBc max Ssb Noise/Hz: -110dBc @ 10Hz (typical, static) -120dBc @ 100Hz -130dBc @ 1kHz -140dBc @ 10kHz -145dBc @ 50kHz Supply: +9 Vdc ±2.5% Input power: <6W at turn-on <4W stabilized at -20°C Warm Up: ±1 x 10 -7 within 5 minutes following a 24Hr off period (@ 25°C) Accuracy: ±0.1PPM with 2.5v on Vc at time of shipment Electrical tuning: ±7 x 10 -7 (over 0v to +5v) Size: 1.41” x 1.06” x 0.76” (35.3x26.9x19.3 mm) CO-08 Package Base: Pins for pcb mounting Frequency: 20.75MHz VI N ORWALK , CT USA CO738 SERIES FSCM 27802 Specification Control Drawing No. 738Y5244 Page 2 Revision A VI N ORWALK , CT USA CO738 SERIES FSCM 27802 Specification Control Drawing No. Revision A Revision History: Revision Date Salesman Approval Eng req'd Engineer Approval Date Description 12/19/00 RJB No A 12-19-00 RJB No Added 10yr aging, redefined tune range, added ,accuracy
