I4S-AQPowered Speaker

www.peavey.com AQ 12 Enclosure Operating Manual FCC CAUTION: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pur- suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm- ful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment, This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment should be installed and operated with minimum distance 20cm between the radiator and your body. IC WARNING: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the fol- lowing two conditions: (1) this device may not cause interference, and (2) this device must accept any inter- ference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. the device is compliance with RF exposure guidelines, and the equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. l’appareil est conforme aux directives d’exposition RF, et l’équipement doit être installé et exploité avec une distance minimale de 20 cm entre le radiateur et votre corps. ENGLISH Thank you for purchasing the powered Peavey® AQ™12 powered speaker system. The AQ™12 features a reliable bi-amped power section that provides a total of 1000 Watts of peak available dynamic power with signal compression to prevent au- dible overload. The analog power amplifiers and linear power supply are coupled with a DSP based crossover and EQ. The EQ presets are accessed via a one-knob selector switch. The AQ™12 provides a balanced input via a combination jack that accepts balanced TRS 1/4 inch input as well as a balanced XLR input. There is a balanced Thru output via a Male XLR. There is an adjustable Level control as well as an LED indicator that lights when the “soft-limiting” compression circuit is activated. Features * Two-way bi-amplified analog amp powered speaker system * 12” heavy-duty woofer * DX™14 compression driver, with 1.4 inch titanium diaphragm * 670 watts peak dynamic woofer power, 330 watts peak dynamic tweeter power * Bluetooth® streaming and pairing are supported * DSP processing is 56 bit double-precision * DSP I/O is at 48 kHz and 24 bits, with low-jitter, professional grade components * Dynamic bass boost function * Fan cooled for maximum reliability * Peavey® Designed Quadratic Throat Waveguide™ technology, 110 by 80 degree coverage * Input is via a combo female XLR and 1/4” TRS phone jack with balanced input OR a Bluetooth ® signal can be streamed to the speaker system. * A Mic/Line switch provides for two different gain settings * Thru/Mix output is via a male XLR jack * Multiple Factory Preset EQ settings for the DSP crossover system * Rugged plastic injection-molded trapezoidal enclosure * Cabinet has dual rear corner angled sides for floor monitor use. * Full-coverage perforated steel grille, with powder coat finish * Pole mount molded-in for 1 3/8” diameter poles Applications The Peavey AQ™12 has a variety of applications such as sound reinforcement, public address, side fill system, karaoke or musical playback. A typical signal source for the line-Gain inputs of the AQ™12 would be a sound reinforcement mixing console (mixer) or the output from a CD player, MP3 player or tape deck. A dynamic microphone can be connected directly via the XLR input and used when the Mic/Line switch in placed into the “Mic” position as well. The AQ™12 is a two-way sound reinforcement system based on a heavy-duty 12” woofer and a DX™14 titanium diaphragm dynamic compression driver mounted on a 110 by 80 degree coverage Quadratic Throat Waveguide™. It’s contemporary appearance coupled with exceptional performance offer a highly desirable combination. The light yet durable injection-molded plastic enclosure with molded-in stand mount cup eases portable use for live music or PA sound. The trapezoidal cabinet has three handles for ease of portability, and two extra angled sections on either side to allow use as a floor monitor. A full length black powder coated p…

Text truncated - open the document above for the full version.

Attestation Letter Date: 09/16/2022 Federal Communications Commission Authorization and Evaluation Division ATTESTATION FCC ID: I4S-AQ IC: 3642A-AQ Product: Powered Speaker Model: AQ12, AQ15 Both models share same Bluetooth module. Both models are identical except Size of enclosure, loudspeaker. Sincerely, Printed: T.J Wang Position: Compliance Manager Company name: Peavey Electronics Corp.

Agent Authorization Letter 09/16/2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Eurofins Electrical Testing Service (Shenzhen) Co. Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Printed: T.J Wang Title: Product Compliance Manager Company name: Peavey Electronics Corp.

Long Term Confidentiality Request Letter 09/16/2022 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product type：Powered Speaker Model name: AQ12, AQ15 FCC ID: I4S-AQ To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the -Block Diagram -Schematics -Circuit Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Printed: T.J Wang Title: Product Compliance Manager Company name: Peavey Electronics Corp.

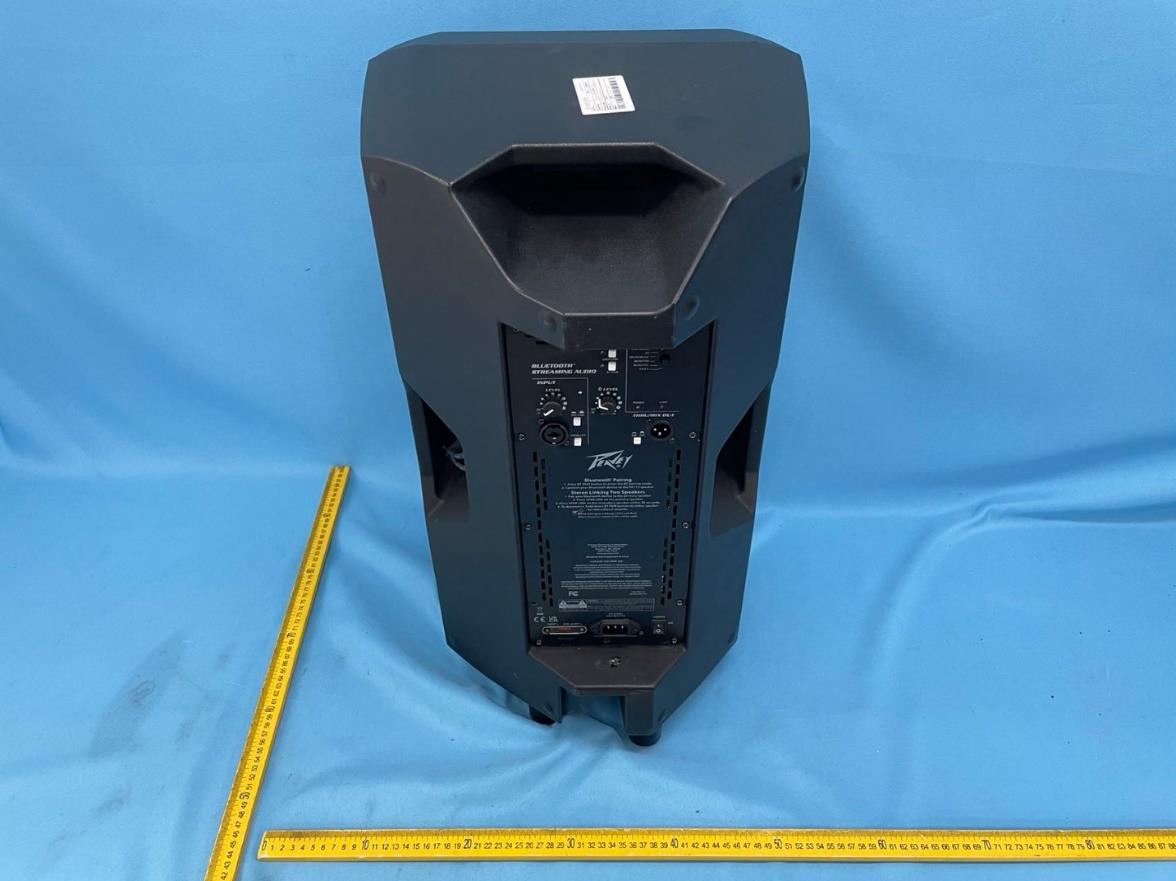

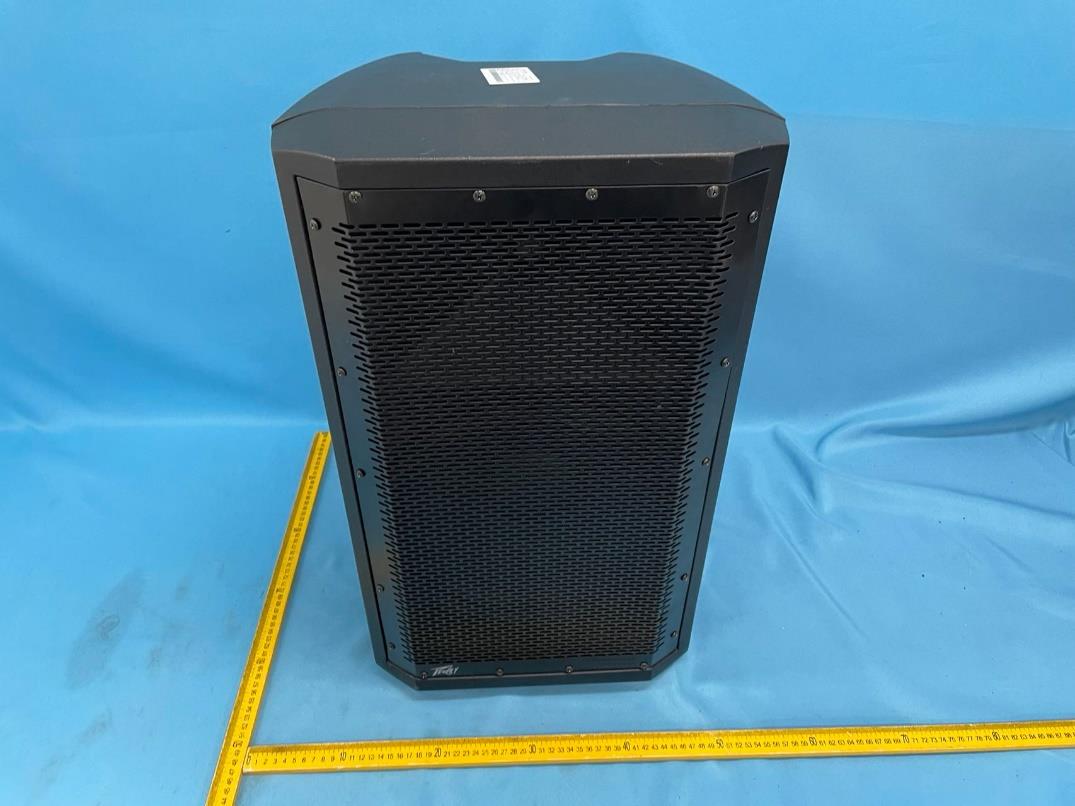

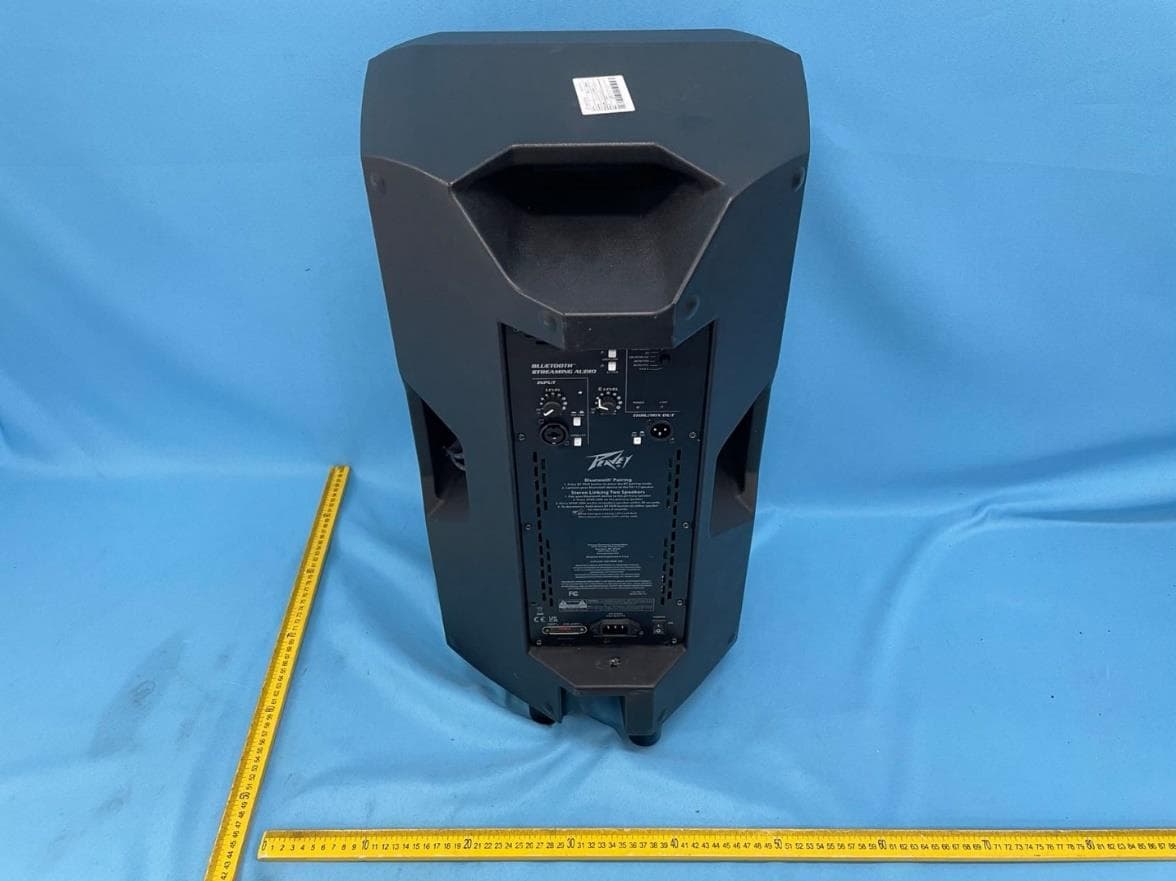

AQ12 Photo AQ12 Photo AQ15 photo AQ15 photo AQ12 photo AQ15 photo

Label location

AQ12 and AQ15 photo AQ12 and AQ15 photo AQ12 and AQ15 photo AQ12 and AQ15 photo AQ12 and AQ15 photo AQ12 and AQ15 photo AQ12 and AQ15 photo AQ12 and AQ15 photo

FCC ID: I4S-AQ FCC RF Exposure Evaluation Calculated Data： Mode Frequency （MHz） Max. RF Output Power (dBm) Max. RF Output Power (mW) Antenna Gain (numeric) Evaluation Distance (cm) Power Density (mW/cm2) MPE Limit (mW/cm²) BT 2402-2480 1.69 1.476 1.48 20 0.0004 1 BLE 2402-2480 1.84 1.528 1.48 20 0.0004 1 Note: the maximum antenna gain is 1.7dBi. Result: Compliance, the device meets MPE requirement for Devices Used by the General Public (Uncontrolled Environment) at distance ≥20 cm.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.652 2401.608 2402.260 0.5 PASS 2440 0.644 2439.612 2440.256 0.5 PASS 2480 0.676 2479.588 2480.264 0.5 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0086 2401.4342 2402.4428 --- --- 2440 1.0166 2439.4254 2440.4420 --- --- 2480 1.0189 2479.4266 2480.4455 --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 1.5 ≤30 PASS 2440 1.84 ≤30 PASS 2480 1.36 ≤30 PASS TestMode Antenna Channel E.I.R.P[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 3.2 ≤36 PASS 2440 3.54 ≤36 PASS 2480 3.06 ≤36 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.27 ≤8.00 PASS 2440 -12.32 ≤8.00 PASS 2480 -12.91 ≤8.00 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 0.83 -47.84 ≤-19.17 PASS High 2480 0.63 -49.76 ≤-19.37 PASS Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 30~1000 0.83 -50.58 ≤-19.17 PASS 1000~26500 0.83 -53.02 ≤-19.17 PASS 2440 30~1000 1.12 -49.74 ≤-18.88 PASS 1000~26500 1.12 -53.55 ≤-18.88 PASS 2480 30~1000 0.63 -49.69 ≤-19.37 PASS 1000~26500 0.63 -52.93 ≤-19.37 PASS Test Graphs BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict BLE_1M Ant1 2402 2.09 2.50 83.60 --- --- 2440 2.09 2.50 83.60 --- --- 2480 2.09 2.50 83.60 --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix H: Emissions in Restricted Bands Test Result Mode: BLE 2402 PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2310.000 0 63.37 42.25 -21.12 74.00 31.75 Horizontal PASS 2 2376.326 6 67.62 46.62 -21.00 74.00 27.38 Horizontal PASS 3 2390.000 0 62.36 41.39 -20.97 74.00 32.61 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2310.000 0 62.01 40.89 -21.12 74.00 33.11 Vertical PASS 2 2369.349 9 67.36 46.35 -21.01 74.00 27.65 Vertical PASS 3 2390.000 0 62.39 41.42 -20.97 74.00 32.58 Vertical PASS Mode: BLE 2480 PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2483.500 0 63.14 42.34 -20.80 74.00 31.66 Horizontal PASS 2 2485.031 4 66.00 45.20 -20.80 74.00 28.80 Horizontal PASS 3 2500.000 0 63.44 42.67 -20.77 74.00 31.33 Horizontal PASS PK Final Data List NO. Freq. [MHz] PK Reading [dBμV/m] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Polarity Verdict 1 2483.500 0 64.00 43.20 -20.80 74.00 30.80 Vertical PASS 2 2490.075 9 65.47 44.68 -20.79 74.00 29.32 Vertical PASS 3 2500.000 0 62.57 41.80 -20.77 74.00 32.20 Vertical PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Appendix I: Spurious emissions Mode: BLE 2402 Test Graph NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 34.8549 37.10 -16.85 40.00 2.90 100 336 Horizontal 2 79.5195 36.89 -20.53 40.00 3.11 100 214 Horizontal 3 107.677 7 33.91 -19.42 43.50 9.59 100 244 Horizontal 4 275.655 7 42.06 -15.99 46.00 3.94 100 151 Horizontal 5 536.846 8 42.13 -10.36 46.00 3.87 100 318 Horizontal 6 810.660 7 41.58 -5.93 46.00 4.42 100 49 Horizontal Mode: BLE 2402 Test Graph NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 34.8549 37.01 -16.85 40.00 2.99 100 262 Vertical 2 65.9259 35.11 -17.14 40.00 4.89 100 325 Vertical 3 147.487 5 30.14 -15.89 43.50 13.36 100 310 Vertical 4 311.581 6 36.46 -15.30 46.00 9.54 100 277 Vertical 5 519.369 4 37.83 -10.73 46.00 8.17 100 71 Vertical 6 884.454 5 42.77 -5.43 46.00 3.23 100 141 Vertical Mode: BLE 2440 Test Graph NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 30.9710 37.69 -17.27 40.00 2.31 100 336 Horizontal 2 43.5936 35.46 -16.08 40.00 4.54 100 336 Horizontal 3 79.5195 37.61 -20.53 40.00 2.39 100 240 Horizontal 4 110.590 6 34.18 -19.13 43.50 9.32 100 244 Horizontal 5 324.204 2 42.28 -15.04 46.00 3.72 100 328 Horizontal 6 513.543 5 41.61 -10.85 46.00 4.39 100 295 Horizontal Mode: BLE 2440 Test Graph NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 39.7097 36.96 -16.32 40.00 3.04 100 265 Vertical 2 65.9259 35.66 -17.14 40.00 4.34 100 302 Vertical 3 146.516 5 29.85 -15.92 43.50 13.65 100 228 Vertical 4 287.307 3 35.69 -15.67 46.00 10.31 100 106 Vertical 5 519.369 4 37.41 -10.73 46.00 8.59 100 243 Vertical 6 730.070 1 40.05 -7.27 46.00 5.95 100 99 Vertical Mode: BLE 2480 Test Graph NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 33.8839 36.27 -16.95 40.00 3.73 100 336 Horizontal 2 81.4615 37.31 -20.81 40.00 2.69 100 245 Horizontal 3 110.590 6 33.87 -19.13 43.50 9.63 100 234 Horizontal 4 275.655 7 41.26 -15.99 46.00 4.74 100 175 Horizont…

Text truncated - open the document above for the full version.

EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&IC Compliance Test Report for Product name: Powered Speaker Model name: AQ12, AQ15 FCC ID: I4S-AQ IC: 3642A-AQ Test Report Number: EFGX22040061-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, Fax: +86-0755-82910749 No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China Page 1 of 28 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.6 Conducted Peak output power 18 3.7 Power spectral density 19 3.8 Conducted Spurious Emissions 20 3.9 Band edge 21 3.10 Spurious radiated emissions for transmitter 24 4 Test Setup Photos 27 5 External Photo 27 6 Internal Photos 27 7 Appendix 27 Test Report No.: EFGX22040061-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 27 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator: 2022-12-14 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2022-12-14 Albert Xu / Lab Manager Date Eurofins Name / Title Signature Test Report No.: EFGX22040061-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 27 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Peavey Electronics Corp. Address : 5022 Hartley Peavey Drive Meridian, MS 39305, USA Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : Peavey Electronics Corp. Address : 5022 Hartley Peavey Drive Meridian, MS 39305, USA Telephone : ./. Fax : ./. Test Report No.: EFGX22040061-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 27 1.5 Application details Date of receipt of application : 2022-03-31 Date of receipt of test item : 2022-03-31 Date of test : 2022-03-31 to 2022-12-14 Date of issue : 2022-12-14 1.6 Test item Product type : Powered Speaker Model name : AQ12, AQ15 Brand : PEAVEY Serial number : ./. Ratings : 120V~, 50/60Hz, 35W Test voltage : 120V~, 60Hz Hardware Version : V1.0 Software / Firmware Version : V1.0 FCC ID : I4S-AQ IC : 3642A-AQ PMN : Powered Speaker HVIN : AQ12, AQ15 Additional information : The products covered in this report is powered speaker with Bluetooth function. Both models share same Bluetooth module. Both models are identical except Size of enclosure, loud- speaker. RadioTechnical data Frequency range : 2402MHz – 2480MHz Radio Tech. : Bluetooth Low Energy Frequency channel : 40 Channels Modulation : GFSK Antenna type : PCB antenna Antenna gain : 1.7dBi The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial infor- mation and technical documents. Test Report No.: EFGX22040061-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 27 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-247 RSS-247 — Digital Transmission Systems (DTSs), Frequency Hop- ping Systems (FHSs) and Licence-Exempt Local Area Network (LE- LAN) Devices RSS-GEN RSS-Gen — General Requirements for Compliance of Radio Appa- ratus Test Method 1: ANSI C63.4-2014, American National Standa…

Text truncated - open the document above for the full version.

RE Below 1GHz RE above 1GHz Conducted Emission
