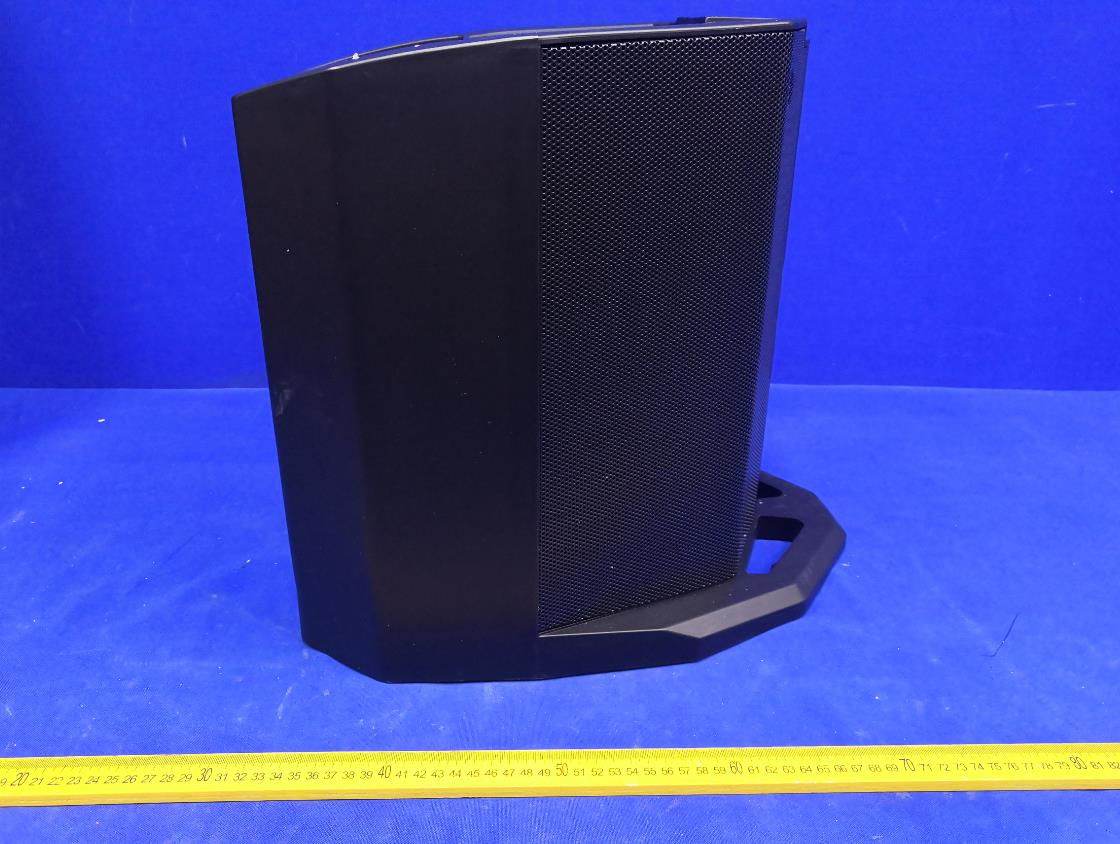

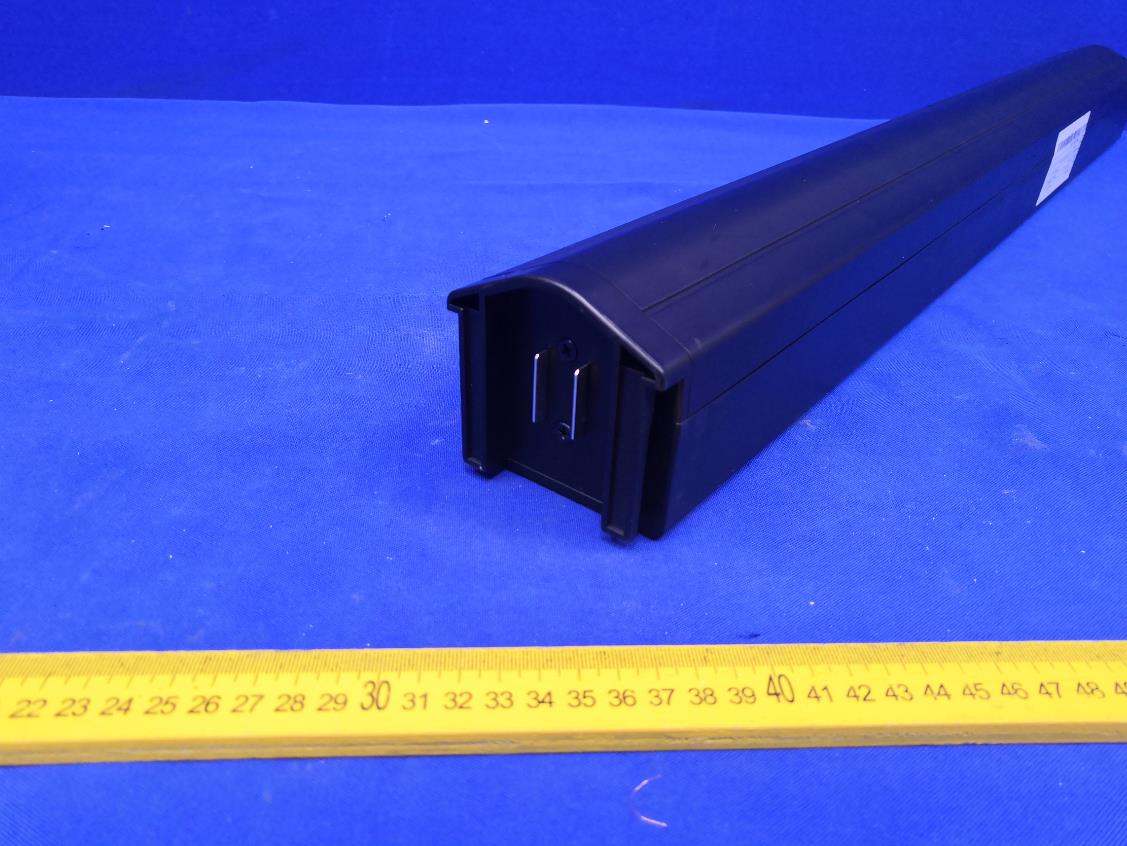

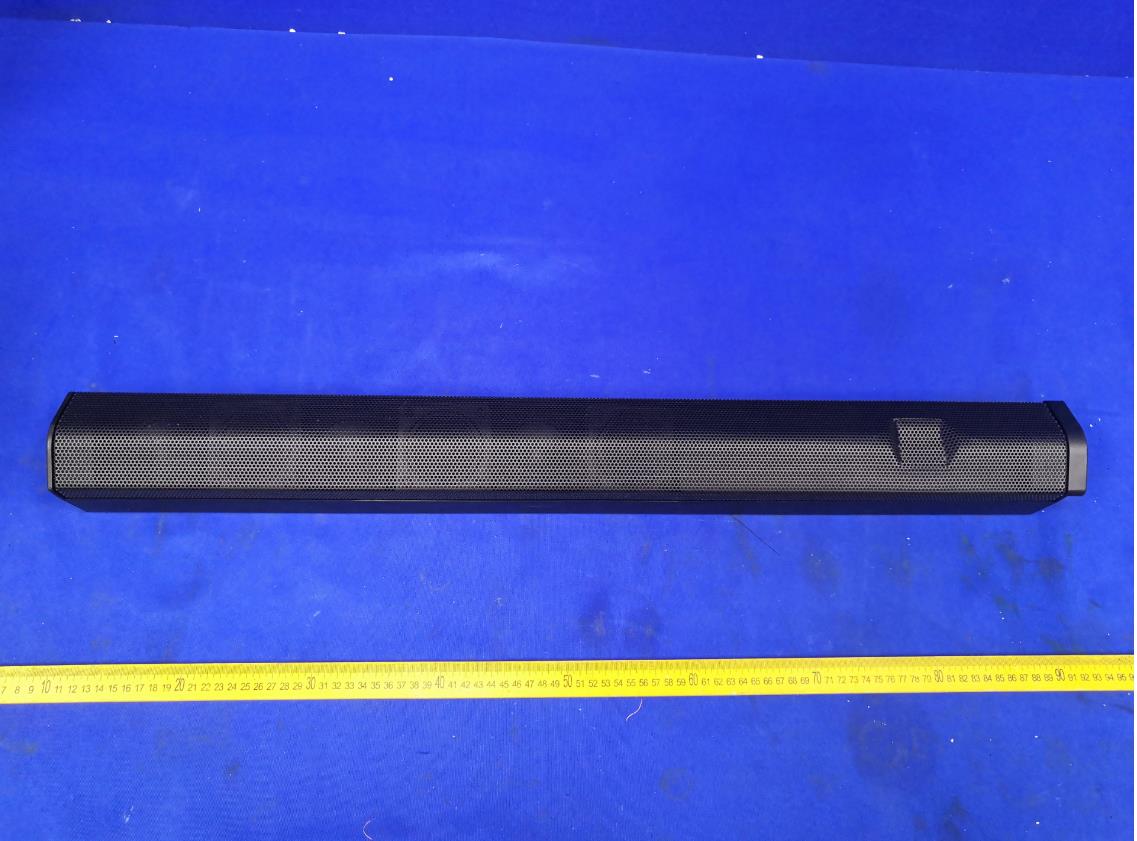

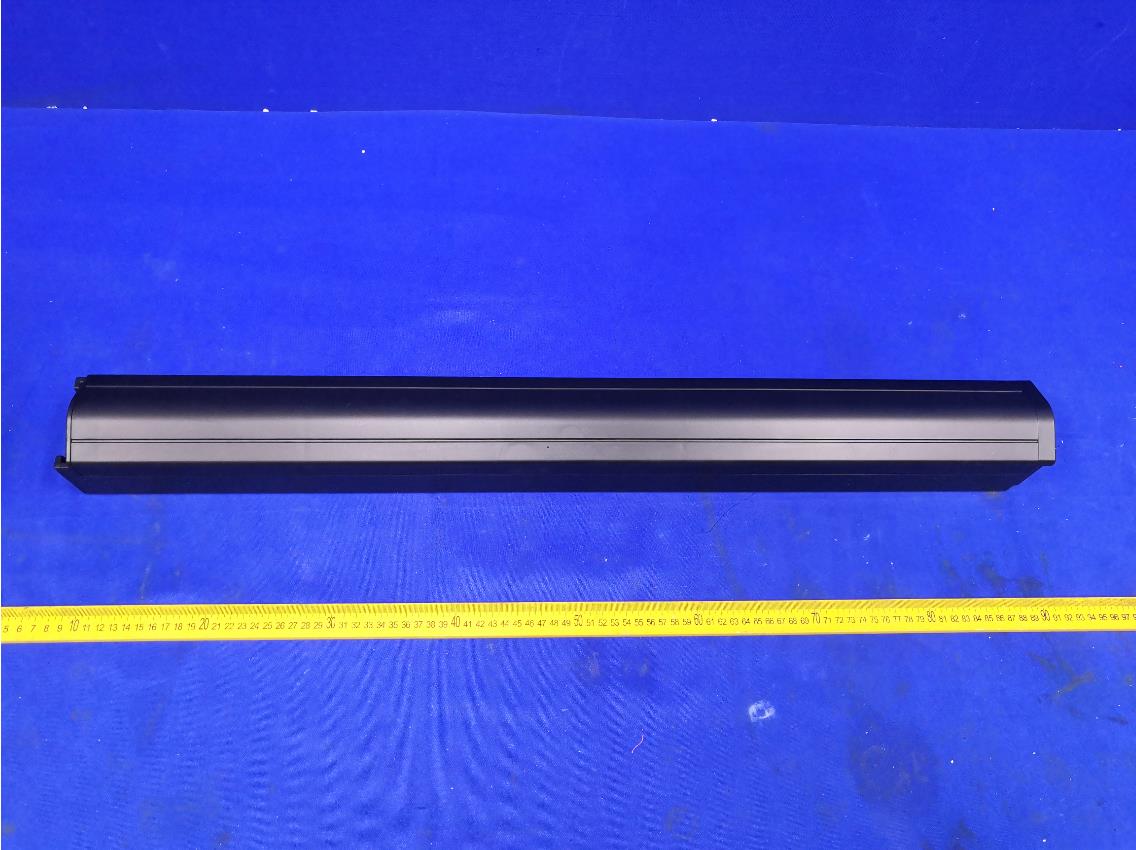

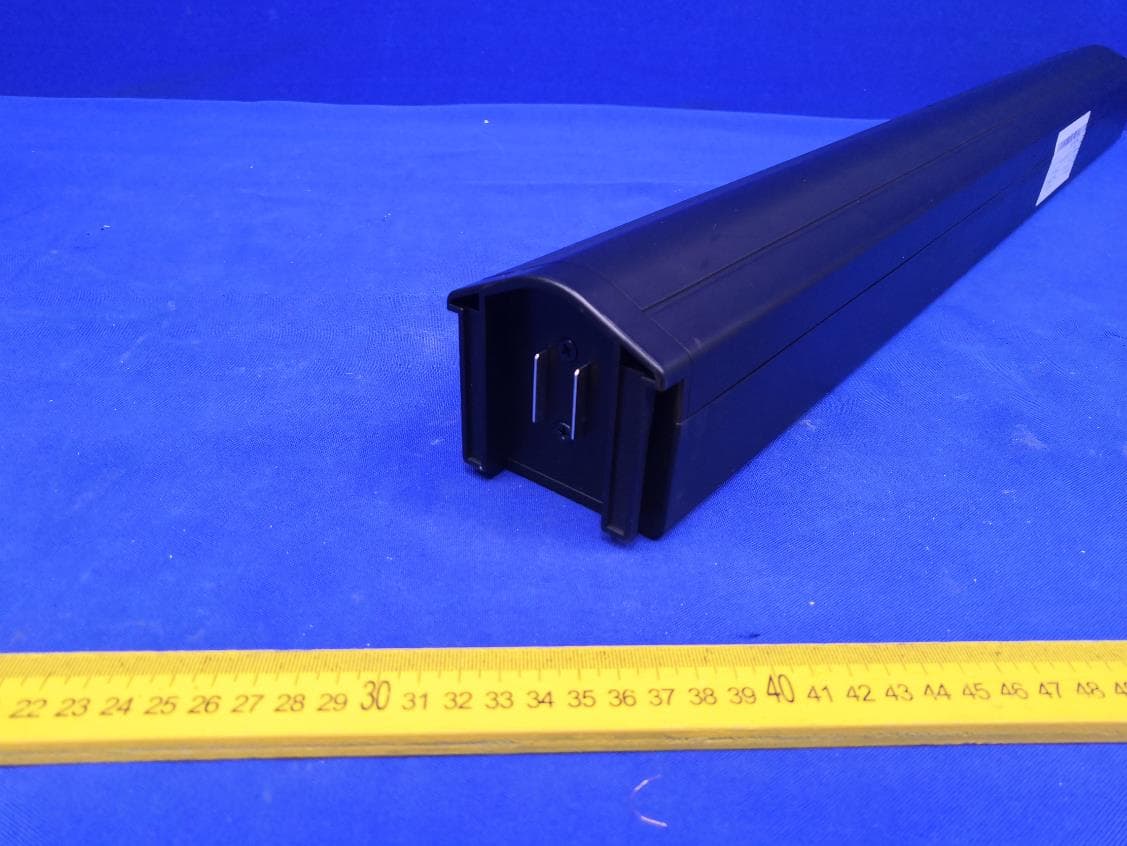

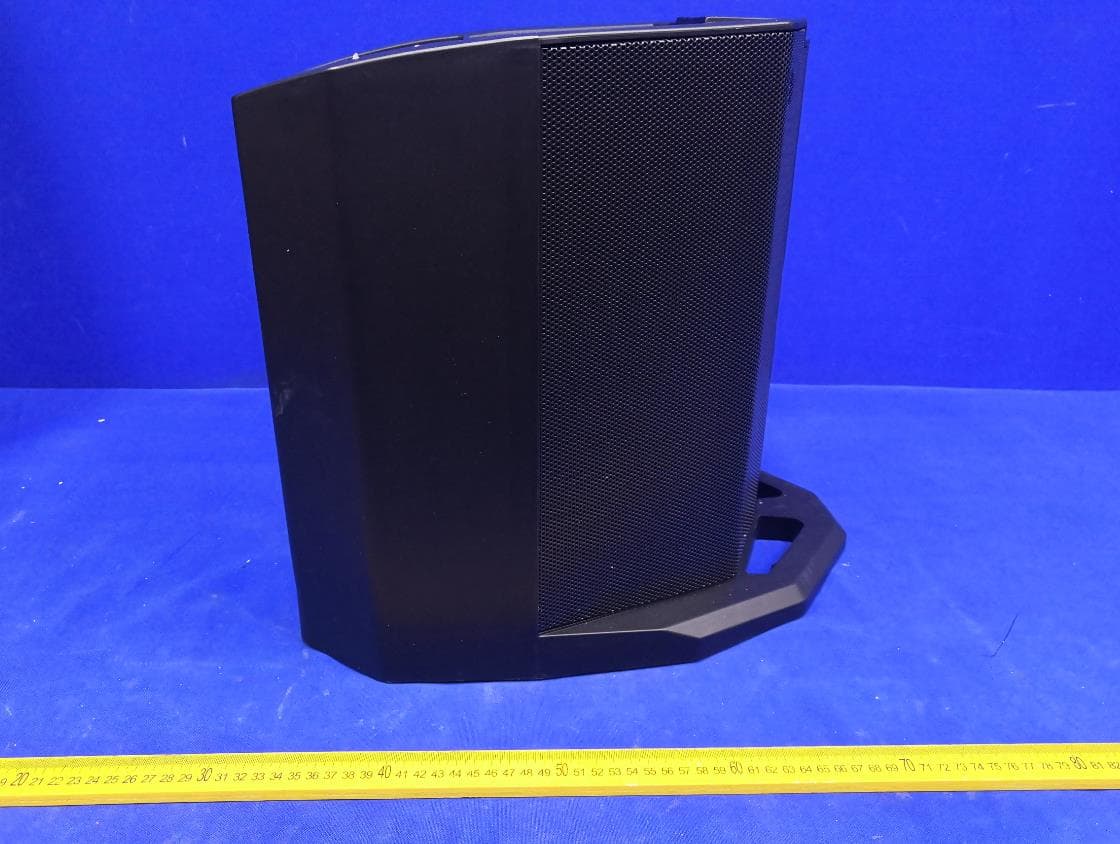

I4S-LN1063Column Array Powered Speaker System

Safety and Warnings De seguridad y advertencias De sécurité et avertissements Sicherheits-und Warnhinweise Turvallisuus ja varoitukset Säkerhet och varningar Sicurezza e avvertenze De segurança e avisos 安全和警告 安全性および警告 안전 경고 تاريذحتو ةمالس READ BEFORE OPERATING THIS DEVICE. A multi-language owner's manual has been provided to you on CD-ROM in PDF format or as a printed copy. Owner's manuals can also be found at www.peavey.com or can be requested from your local Crest distributor for that country or location. In the USA call: 877-732-8391 for a hardcopy of the owner’s manual. تم تقديم دليل للمالك متعدد اللغات لك على قرص رجى القراءة قبل تشغيل هذا الجهاز. ٌ ي ا عبر موقع الويب ً وجد دليل المالك أيض ُ أو كنسخة مطبوعة. كما يPDFمضغوط بتنسيق بهذا Peavey أو يمكن طلبه من موزع محلي تابع لشركة www.peavey.com رجى الاتصال على رقم ٌ المكان أو الدولة. في الولايات المتحدة الأمريكية، ي للحصول على نسخة مطبوعة من دليل المالك.877-732-8391 VOR INBETRIEBNAHME DIESES GERÄTES LESEN. Sie haben eine Bedienungsanleitung in mehreren Sprachen als CD-ROM, im PDF-Format oder als Ausdruck erhalten. Bedienungsanleitungen finden Sie auch unter www.peavey.com oder können bei Ihrem örtlichen Peavey-Händler für Ihr Land bzw. Ihren Standort angefordert werden. In den USA können Sie unter folgender Telefonnummer einen Ausdruck der Bedienungsanleitung erhal- ten: 877-732-8391. LÉALO ANTES DE OPERAR ESTE DISPOSITIVO. Se le ha entregado un manual del propietario en múltiples idiomas, en soporte de CD-ROM en formato PDF o en una copia impresa. Los manuales del propietario tam- bién pueden encontrarse en www.peavey.com o se los puede solicitar a su distribuidor local de Peavey para su país o ubicación. En los Estados Uni- dos llame al: 877-732-8391 para obtener una copia impresa del manual del propietario. LUE ENNEN LAITTEEN KÄYTTÖÄ. Monikielinen käyttöohje on laitteen mukana PDF-muotoisena CD-ROM-levyllä tai painettuna. Käyttöohjeet voi myös noutaa osoitteesta www.peavey.com tai pyytää paikalliselta Peavey- jakelijalta. Yhdysvalloissa voit tilata painetun käyttöohjeen soittamalla nume- roon 877-732-8391. À LIRE AVANT D’UTILISER CET APPAREIL. Un mode d’emploi multilingue vous est fourni au format PDF sur le CD-ROM ou sur papier. Les modes d’emploi sont également disponibles sur le site www.peavey.com ou auprès de votre revendeur local Peavey. Aux États-Unis, appelez le 877-732-8391 pour demander une copie papier du mode d’emploi. LEGGERE PRIMA DI METTERE IN FUNZIONE QUESTO DISPOSITIVO. Ti è stato fornito un manuale dell’utente multilingue su CD-ROM in formato PDF o come copia stampata. I manuali dell’utente possono essere trovati su www.peavey.com o possono essere richiesti dal tuo distributore Peavey per quel paese o località. Negli USA chiama: 877-732-8391 per una copia carta- cea del manuale dell’utente. 本機操作前にお読みください。 多言語オーナーズマニュアルは、 PDF 形 式コピーが CD-ROM に入っています。オーナーズマニュアルは、 www. peavey.com でご覧いただくか、お住まいの国や場所の Peavey 代理店から 取り寄せることもできます。米国内の場合: 877-732-8391 にお電話にてお 問い合わせの上、オーナーズマニュアルのハードコピーをお取り寄せくだ さい。 본 장치를 사용하기 전에 주의 깊게 읽고 숙지하십시오. 다국어로 작성된 사 용 설명서는 CD-ROM (PDF 파일) 또는 인쇄본으로 제공해 드립니다. 또한 www.peavey.com에서도 구할 수 있으며 해당 지역의 Peavey 대리점에 요 청하실 수 있습니다. 사용 설명서의 인쇄본이 필요한 경우 877-732-8391(미 국)로 연락해 주시기 바랍니다. LEES ALVORENS DIT TOESTEL TE BEDIENEN. Een meertalige eige- naarhandleiding is aan u verstrekt op CD-ROM in PDF-formaat of als een gedrukt exemplaar. De eigenaarhandleidingen kunnen ook worden gevon- den op www.peavey.com of bij uw lokale Peavey distributeur voor dat land of locatie worden aangevraagd. Bel in de Verenigde Staten: 877-732-8391 voor een hardcopy van de eigenaarhandleiding. LES FØR APPARATET TAS I BRUK. En multispråks brukermanual forelig- ger på CD CD-ROM i PDF-format eller som en trykt kopi. Brukermanualer kan også finnes på www.peavey.com eller kan bestilles hos din lokale Pea- vey-forhandler for vedkommende land eller sted . I USA ring: 877-732-8391 en brukermanual på papir. LEIA ANTES DE OPERAR ESTE DISPOSITIVO. Um manual multilíngue do usuário é fornecido a você em CD-ROM em formato PDF ou como cópia impressa. O manual do proprietário também pode ser encontrado em www.peavey.com ou pode ser pedido de seu distribuidor Peavey local para aquele país ou localização. Nos EUA ligue: 877-732-8391 para uma cópia impressa do manual do proprietário. LÄS DETTA INNAN DU ANVÄNDER UTRUSTNINGEN. Du har fått en flerspråkig bruksanvisning i PDF-format på CD-ROM eller som en utskriven kopia. Bruksanvisningar kan även hittas på www.peavey.com eller beställas från din lokala Peavey-återförsäljare för respektive land eller plats. I USA kan du ringa 877-732-8391 och beställa en papperskopia av bruksanvis- ningen. 请在操作之前仔细阅读。一份含多种语言的说明书已通过 CD-ROM 上 PDF 文 件格式或以打印件的形式向您提供。用户手册也可以在 www.peavey.com 网 站上查找或向您所在国的当地 Peavey （百威）经销商索取。在美国请拨打： 877-732-8391 索取印刷版用户手册。 www.peavey.com Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: Risk of electrical shock — DO NOT OPEN! CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture‚ and objects filled with liquids‚ such as vases‚ should not be placed on this apparatus. Before using this apparatus‚ read the operating guide for further warnings. Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection. SPANISH ENGLISH FINNISH FRENCH GERMAN Tarkoitettu kiinnittämään käyttäjän huomio sellaiseen eristämättömään vaaralliseen jännitteeseen tuotteen kotelossa, joka saattaa olla riittävän suuri aiheuttaakseen sähköiskuvaaran. Tarkoitettu kiinnittä…

Text truncated - open the document above for the full version.

Label location

Bluetooth Antenna

FCC ID: I4S-LN1063 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Calculated Formulary Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: I4S-LN1063 3. Result Maximum peak output power at antenna input terminal: 10.45 (dBm) Maximum peak output power at antenna input terminal: 11.09 (mW) Antenna gain(typical): 1.7 (dBi) Maximum antenna gain: 1.48 (numeric) Prediction distance: 20 (cm) Source Based Time Average Duty Cycle: 100 (%) Prediction frequency: 2402 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 32.67*10 −4 (mW /cm^2) Power density at a given distance is 32.67*10 −4 <1 mW/cm^2

Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 50 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&IC Compliance Test Report for Product name: Column Array Powered Speaker System Model name: LN 1063 FCC ID: I4S-LN1063 IC: 3642A-LN1063 Test Report Number: EFGX20090095-IE-01-E01 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 50 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 5 2 Technical test 6 2.1 Summary of test results 6 2.2 Test environment 6 2.3 Measurement uncertainty 6 2.4 Test mode 7 2.5 Test equipment utilized 8 2.6 Auxiliary Equipment Used during Test: 8 2.7 Test software information: 8 2.8 Test setup- ac line conducted 9 2.9 Setup diagram for conducted tests 9 2.10 Setup diagram for radiated tests below 30MHz 9 2.11 Setup diagram for radiated tests below 1GHz 10 2.12 Setup diagram for radiated tests above 1GHz 10 2.13 Test results 11 3 Technical Requirement 12 3.1 Conducted emission AC power port 12 3.2 Duty cycle 15 3.3 20dB Occupied bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 Carrier frequency separation 18 3.6 Number of hopping frequencies 19 3.7 Time of occupancy (dwell time) 20 3.8 Peak Output Power 21 3.9 Conducted Band-edge & Spurious Emissions 22 3.10 Radiated emissions for transmitter 23 3.11 Hopping sequence requirement 50 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 50 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Peavey Electronics Corp. Address : 5022 Hartley Peavey Drive Meridian, MS 39305, USA Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : Peavey Electronics Corp. Address : 5022 Hartley Peavey Drive Meridian, MS 39305, USA Telephone : ./. Fax : ./. Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 50 1.5 Application details Date of receipt of application : 2020-09-17 Date of receipt of test item : 2020-09-17 Date of test : 2020-09-17-2020-10-13 Date of issue 2020-11-13 1.6 Test item Product type : Column Array Powered Speaker System Model name : LN 1063 Brand : Peavey Serial number : ./. Ratings : AC100-240V, 50/60Hz Test voltage : 120V/60Hz FCC ID : I4S-LN1063 IC : 3642A-LN1063 PMN : Column Array Powered Speaker System HVIN : LN 1063 Additional information : ./. RadioTechnical data Frequency range : 2400-2483.5 MHz, Radio Tech. : Classic Bluetooth Frequency channel : 79 Channels Modulation : GFSK, π/4-DQPSK, 8-DPSK Antenna type : PCB antenna Antenna gain : 1.7 dBi Radio module Type : ./. Model : AB5305B Manufacturer : ./. 1.7 Test standards Test Standards FCC Part 15 Subpart C October 8, 2020 PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-247 Issue 2 February 2017 RSS-247 — Digital Transmission Systems (DTSs), Frequency Hop- ping Systems (FHSs) and Licence-Exempt Local Area Network (LE- LAN) Devices RSS-GEN Issue 5 March 2019 RSS-Gen — General Requirements for Compliance of Radio Appa- ratus Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2: ANSI C63.10-2013, American National Standard for Testing Unlicensed Wireless Devices. 3: KDB558074 D01 15.247 Meas Guidance v05r02 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 50 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. or The deviations as specified were ascertained in the course of the tests performed. 2.2 Test environment Ac line conducted Enviroment Parameter Temperature Relative Humidity 101.5 kPa 25.1°C 57.3% RF Conducted Enviroment Parameter Temperature Relative Humidity 101.5kPa 25.3°C 52.1% Radiated Enviroment Parameter Temperature Relative Humidity 101.2Kpa 25.7°C 55.2% 2.3 Measurement uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncer- tainty in Measurement" (GUM) published by ISO. System Measurement Uncertainty Test Items Extended Uncertainty Uncertainty in conducted measurements 1.96dB Uncertainty for Conducted RF test RF Power Conducted: 1.16dB Frequency test involved: 1.05×10-7 or 1% U…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 1 of 62 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.050 2401.496 2402.546 --- PASS 2441 1.068 2440.490 2441.558 --- PASS 2480 1.071 2479.478 2480.549 --- PASS 2DH5 Ant1 2402 1.407 2401.310 2402.717 --- PASS 2441 1.389 2440.319 2441.708 --- PASS 2480 1.389 2479.325 2480.714 --- PASS 3DH5 Ant1 2402 1.431 2401.301 2402.732 --- PASS 2441 1.359 2440.331 2441.690 --- PASS 2480 1.365 2479.325 2480.690 --- PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 2 of 62 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 62 DH5_Ant1_2480 2DH5_Ant1_2402 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 62 2DH5_Ant1_2441 2DH5_Ant1_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 62 3DH5_Ant1_2402 3DH5_Ant1_2441 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 62 3DH5_Ant1_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 7 of 62 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.84609 2401.592 2402.438 --- PASS 2441 0.83107 2440.595 2441.426 --- PASS 2480 0.81213 2479.607 2480.419 --- PASS 2DH5 Ant1 2402 1.1959 2401.417 2402.612 --- PASS 2441 1.1881 2440.419 2441.607 --- PASS 2480 1.1859 2479.421 2480.607 --- PASS 3DH5 Ant1 2402 1.1892 2401.419 2402.608 --- PASS 2441 1.1912 2440.412 2441.603 --- PASS 2480 1.1853 2479.415 2480.600 --- PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 8 of 62 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 9 of 62 DH5_Ant1_2480 2DH5_Ant1_2402 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 10 of 62 2DH5_Ant1_2441 2DH5_Ant1_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 11 of 62 3DH5_Ant1_2402 3DH5_Ant1_2441 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 12 of 62 3DH5_Ant1_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 13 of 62 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 8.74 ≦20.97 PASS 2441 7.75 ≦20.97 PASS 2480 6.71 ≦20.97 PASS 2DH5 Ant1 2402 10.30 ≦20.97 PASS 2441 9.64 ≦20.97 PASS 2480 8.82 ≦20.97 PASS 3DH5 Ant1 2402 10.45 ≦20.97 PASS 2441 9.90 ≦20.97 PASS 2480 9.14 ≦20.97 PASS TestMode Antenna Channel E.I.R.P Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 10.44 ≦36 PASS 2441 9.45 ≦36 PASS 2480 8.41 ≦36 PASS 2DH5 Ant1 2402 12.00 ≦36 PASS 2441 11.34 ≦36 PASS 2480 10.52 ≦36 PASS 3DH5 Ant1 2402 12.15 ≦36 PASS 2441 11.60 ≦36 PASS 2480 10.84 ≦36 PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-829107…

Text truncated - open the document above for the full version.

Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 16 of 62 2DH5_Ant1_2441 2DH5_Ant1_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 17 of 62 3DH5_Ant1_2402 3DH5_Ant1_2441 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 18 of 62 3DH5_Ant1_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 19 of 62 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.998 ≧0.714 PASS 2DH5 Ant1 Hop 0.982 ≧0.938 PASS 3DH5 Ant1 Hop 0.990 ≧0.954 PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 20 of 62 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 21 of 62 3DH5_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 22 of 62 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.39 330 0.130 ≦0.4 PASS DH3 Ant1 Hop 1.65 150 0.248 ≦0.4 PASS DH5 Ant1 Hop 2.90 80 0.232 ≦0.4 PASS 2DH1 Ant1 Hop 0.40 330 0.133 ≦0.4 PASS 2DH3 Ant1 Hop 1.66 190 0.315 ≦0.4 PASS 2DH5 Ant1 Hop 2.90 70 0.203 ≦0.4 PASS 3DH1 Ant1 Hop 0.41 330 0.134 ≦0.4 PASS 3DH3 Ant1 Hop 1.65 190 0.314 ≦0.4 PASS 3DH5 Ant1 Hop 2.91 130 0.378 ≦0.4 PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 23 of 62 Test Graphs DH1_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 24 of 62 DH3_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 25 of 62 DH5_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 26 of 62 2DH1_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 27 of 62 2DH3_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 28 of 62 2DH5_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 29 of 62 3DH1_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 30 of 62 3DH3_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 31 of 62 3DH5_Ant1_Hop

Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 32 of 62 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≧15 PASS 2DH5 Ant1 Hop 79 ≧15 PASS 3DH5 Ant1 Hop 79 ≧15 PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 33 of 62 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 34 of 62 3DH5_Ant1_Hop Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 35 of 62 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 8.28 -46.61 ≦-11.72 PASS High 2480 6.00 -48.03 ≦-14.00 PASS Low Hop_2402 7.58 -48.35 -12.42 PASS High Hop_2480 6.21 -48.23 -13.80 PASS 2DH5 Ant1 Low 2402 6.68 -39.04 ≦-13.32 PASS High 2480 6.09 -49.03 ≦-13.91 PASS Low Hop_2402 5.12 -49.01 -14.88 PASS High Hop_2480 3.84 -48.87 -16.16 PASS 3DH5 Ant1 Low 2402 8.33 -39.67 ≦-11.67 PASS High 2480 6.48 -48.4 ≦-13.52 PASS Low Hop_2402 5.60 -49.55 -14.40 PASS High Hop_2480 5.04 -49.72 -14.96 PASS Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 36 of 62 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 37 of 62 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 38 of 62 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 39 of 62 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 40 of 62 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 41 of 62 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Test Report No.: EFGX20090095-IE-01-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 42 of 62 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 7.87 7.87 --- PASS 30~1000 30~1000 -62.467 ≦-12.128 PASS 1000~26500 1000~26500 -37.569 ≦-12.128 PASS 2441 Reference 7.12 7.12 --- PASS 30~1000 30~1000 -62.668 ≦-12.876 PASS 1000~26500 1000~26500 -38.179 ≦-12.876 PASS 2480 Reference 6.12 6.12 --- PASS 30~1000 30~1000 -62.187 ≦-13.883 PASS 1000~26500 1000~26500 -38.387 ≦-13.883 PASS 2DH5 Ant1 2402 Reference 7.70 7.70 --- PASS 30~1000 30~1000 -62.764 ≦-12.303 PASS 1000~26500 1000~26500 -42.248 ≦-12.303 PASS 2441 Reference 5.21 5.21 --- PASS 30~1000 30~1000 -62.021 ≦-14.788 PASS 1000~26500 1000~26500 -37.375 ≦-14.788 PASS 2480 Reference 5.54 5.54 --- PASS 30~1000 30~1000 -62.446 ≦-14.464 PASS 1000~26500 1000~26500 -39.507 ≦-14.464 PASS 3DH5 Ant1 2402 Reference 8.39 8.39 --- PASS 30~1000 30~1000 -61.877 ≦-11.609 PASS 1000~26500 1000~26500 -37.85 ≦-11.609 PAS…

Text truncated - open the document above for the full version.
