I54-200101440Jurassic Park 3 Walkie-Talkie

FCC ID: I54-200101440

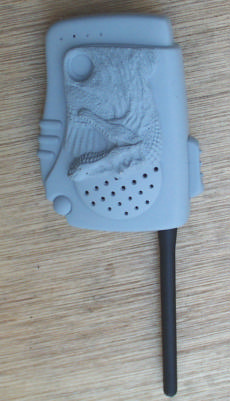

FCC ID: I54-200101440 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT FCC ID: I54-200101440 REAR VIEW OF THE PRODUCT

FCC ID:I54-200101440 BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC ID:I54-200101440

FCC ID: I54-200101440 INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: I54-200101440 Circuit Description The 49.86Mhz crystal oscillator drives the base of Q5 the final/buffer amplifier. The modulation provided by Mic. The output of Q5 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 10.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9Volt (“6F22”) primary storage cell.

Date: 2000-09-26 TEST REPORT Page 1 of 8 No.: HM103333 Law Man KitKitty ChoiPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (Code : CMT001) TIGER ELECTRONICS, INC. 980 WOODLANDS PARKWAY, VERNON HILLS, IL 60061, U.S.A. DATE OF SAMPLE(S) RECEIVED: 2000-09-22 SUBMITTED SAMPLE(S): 2 samples per model DATE OF TESTING: 2000-09-25 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:JURASSIC PARK 3 WALKIE TALKIE Manufacturer:TSUEN SHING ENTERPRISES LIMITED. Model Number:20-010-14-40 Brand Name:N/A Rating: 9Vd.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B - Unintentional Radiator and Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.109(a) and ANSI C63.4-1992 Section 12.1.1.1-2 for the Receiver Section and for the Transmitter Section with the clause 15.235 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A. Date: 2000-09-26 TEST REPORT Page 2 of 8 No.: HM103333 T E S T S U M M A R Y ***UNINTENTIONAL RADIATOR*** (A)Measurement of Radiated Emissions .........................................................Satisfactory (B)Line Conducted Voltage Test. ...............................................................Not Applicable *** INTENTIONAL RADIATOR*** (1)Measurement of Emission of RF energy on the carrier frequency..............Satisfactory (2)Measurement of the out-of band emissions including harmonics...............Satisfactory (3)Measurement of Emission Within Band Edges...........................................Satisfactory (4)Measurement of Line-Conducted Voltage onto AC Power Line............Not Applicable T E S T D A T A Please refer to the attached result sheets. Date: 2000-09-26 TEST REPORT Page 3 of 8 No.: HM103333 ***UNINTENTIONAL RADIATOR*** (A) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart B section 15.109(a) TEST CONDITION:Normal TEST DATE:2000-09-25 ================================================================== Freq. to Freq. of PolarizationMeterAntennaField Strength (at 3m)FCC whichthereadingfactorLimit tunedemission(at 3m)@ MHzMHzH-VdBdB( μ V) μ V/m μ V/m 49.86049.9<1.0+15.0<16.0<6.340100 99.7<1.0+12.2<13.2<4.643.5150 149.6<1.0+9.8<10.8<3.543.5150 199.4<1.0+11.5<12.5<4.243.5150 249.3<1.0+15.9<16.9<7.046200 299.2<1.0+17.0<18.0<7.946200 349.0<1.0+17.2<18.2<8.146200 398.9<1.0+18.8<19.8<9.846200 448.7<1.0+19.7<20.7<10.846200 498.6<1.0+20.6<21.6<12.046200 548.5<1.0+22.2<23.2<14.546200 598.3<1.0+23.4<24.4<16.646200 648.2<1.0+23.5<24.5<16.846200 698.0<1.0+25.0<26.0<20.046200 747.9<1.0+26.3<27.3<23.246200 797.8<1.0+27.2<28.2<25.746200 847.6<1.0+26.6<27.6<24.046200 897.5<1.0+27.1<28.1<25.446200 947.3<1.0+28.0<29.0<28.246200 997.2<1.0+28.5<29.5<29.954500 ================================================================== ==========SUMMARY========== All data is within limits =========================================================== Broad-band Antennas were used and both polarizations of emissions were measured Polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================================ Date: 2000-09-26 TEST REPORT Page 4 of 8 No.: HM103333 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentation: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz.). 6 dB bandwidth set at 120 KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurement data. The antenna are capable of measuring both horizontal and vertical polarizations. (5) Frequency range scanned: The frequency range from 25 MHz to 1000 MHz had been searched. Readings of the highest emissions relating to the limit were reported as above. (6) Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. (7) Measuring Procedure: In accordance with the relevant clauses of the FCC Rules Part 15 section 15.109(a) and ANSI C63.4:1992 section 12.1.1.1-2. For superregenerative receivers, an independent signal generator had been used to radiated an unmodulated were (cw) signal to the receiver at its operating frequency in order to “cohere” or resolve the individual components of the characteristic broadband emission from such a receiver. The level of such signal may need to be adjusted in order to accomplish this. (8) Measuring Uncertainty: The calculated uncertainty for measurement performed at 3M test distance are:- 30MHz to 300MHz = ± 3.7dB, 300MHz to 1000MHz = + 3.0dB/-2.7dB. Remark: Purpose of this test is to provide the Applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under FCC Equipment Authorization Program. This test itself is not an Approval Test. Date: 2000-09-26 TEST REPORT Page 5 of 8 No.: HM103333 ** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2000-09-25 Emission of RF energy on the carrier frequency -- 49.860 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(…

Text truncated - open the document above for the full version.

FCC ID: I54-200101440 TEST SET UP PHOTOGRAPH OF THE PRODUCT
