I54-66446Wrist Worn Walkie Talkie

REMARKREMARK Modifications not authorized by the manufacturer may void users authority to operate this device.

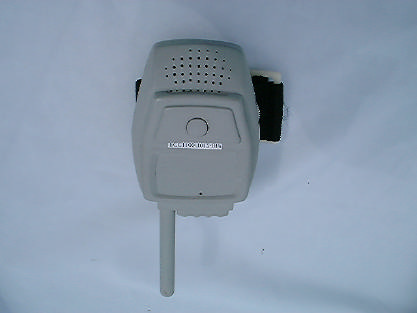

FCC ID: I54-66446 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

Battery Door

FCC ID: I54-66446 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Date: 2001-10-26 TEST REPORT Page 1 of 20 No.: HM106103 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM106103 Equipment Under Test [EUT]:WALKIE TALKIE Model Number:66446 Applicant:TIGER ELECTRONICS INC. FCC ID :I54-66446 Date: 2001-10-26 TEST REPORT Page 2 of 20 No.: HM106103 CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 Conclusion Page 4 of 20 1.0General Details 1.1Test Laboratory Page 5 of 20 1.2Applicant Details Page 5 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 20 Description of EUT operation 1.4Date of Order Page 6 of 20 1.5Submitted Sample Page 6 of 20 1.6Test Duration Page 6 of 20 1.7Country of Origin Page 6 of 20 1.8 Additional Information of EUT Page 7 of 20 2.0Technical Details 2.1Investigations Requested Page 8 of 20 2.2Test Standards and Results Summary Page 8 of 20 3.0Test Results 3.1Emission Page 9-14 of 20 3.2Bandwidth Measurement Page 15-17 of 20 Date: 2001-10-26 TEST REPORT Page 3 of 20 No.: HM106103 Appendix A List of Measurement Equipment Page 18 of 20 Appendix B Photographs Page 19-20 of 20 Date: 2001-10-26 TEST REPORT Page 4 of 20 No.: HM106103 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Law Man KitPatrick Wong Verify byPatrick Wong for Managing Director Date: 2001-10-26 TEST REPORT Page 5 of 20 No.: HM106103 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant TIGER ELECTRONICS INC. 980 Woodlands Parkway, Vernon Hills, IL 60061, USA Telephone:879 913 8100 Fax:847 913 8118 HKSTC Code Number for ApplicantTIE003 Manufacturer TSUEN SHING ENTERPRISES LTD. Flat 8-10, 8/F., Kar Wah Industrial Building, Hei Yip Street, YLTL #356, Yuen Long, N.T., Hong Kong Telephone:852 24740130 Fax:852 24731801 Date: 2001-10-26 TEST REPORT Page 6 of 20 No.: HM106103 1.3Equipment Under Test [EUT] Description of Sample Product:Walkie Talkie Manufacturer:Tsuen Shing Enterprises Ltd. Brand Name:B.U.M. Wrist Gauntlet Model Number:66446 Input Voltage:9Vd.c (“6F22” size battery x 1) 1.3.1Description of EUT Operation The Equipment Under Test(EUT) is an Tiger Electronics Inc., 49.86MHz Walkie Talkie. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic. and tape is frequency modulation. 1.4Date of Order 2001-10-16 1.5Submitted Sample(s): 2 Samples per model 1.6Test Duration 2001-10-23 1.7Country of Origin China Date: 2001-10-26 TEST REPORT Page 7 of 20 No.: HM106103 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Rating Label Block diagram FCC ID Label Date: 2001-10-26 TEST REPORT Page 8 of 20 No.: HM106103 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235ANSI C63.4: 2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4: 2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4: 2000Class B Note: N/A - Not Applicable Date: 2001-10-26 TEST REPORT Page 9 of 20 No.: HM106103 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.235 Test Method:ANSI C63.4:2000 Test Date:2001-10-23 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: Date: 2001-10-26 TEST REPORT Page 10 of 20 No.: HM106103 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.235]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m][μV/m] 49.82-49.90100,00010,000 Results: Transmitter Field Strength of Fundamental Emissions Peak Value Frequency Level @3m Correction Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHz dBμV dB/m dBμV/mμV/mμV/m 49.8640.315.055.3582.1100,000Vertical According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Remarks: *:Linear interpolations Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty=30MHz to 300MHz±3.7dB 300MHz to 1GHz+3.0dB / -2.7dB Date: 2001-10-26 TEST REPORT Page 11 of 20 No.: HM106103 Results: Field Strength of Fundamental Emissions Average Value * FrequencyLevel @3m Correction Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHz dBμV dB/m dBμV/…

Text truncated - open the document above for the full version.

FCC ID: I54-66446 TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
